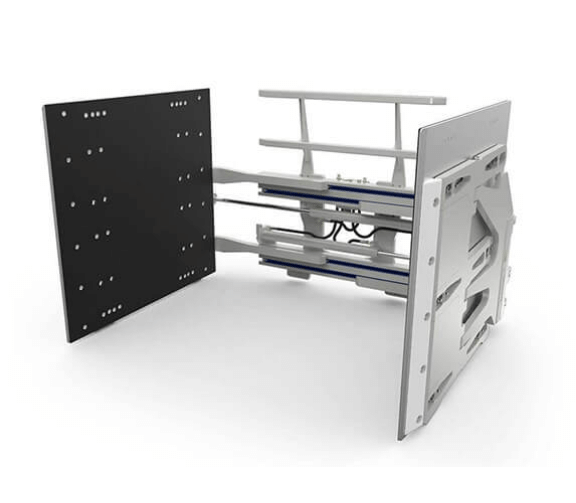

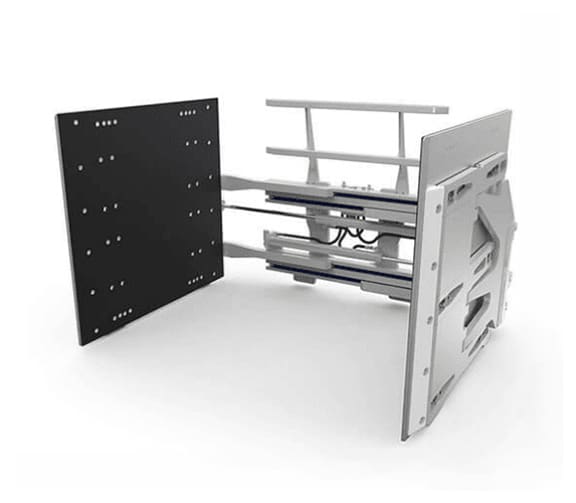

Cascade Carton Clamps

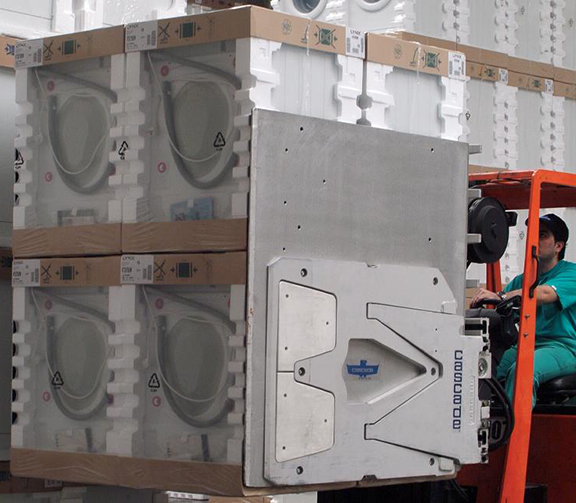

WhiteGoodsClamp_App2
WhiteGoodsClamp_App1

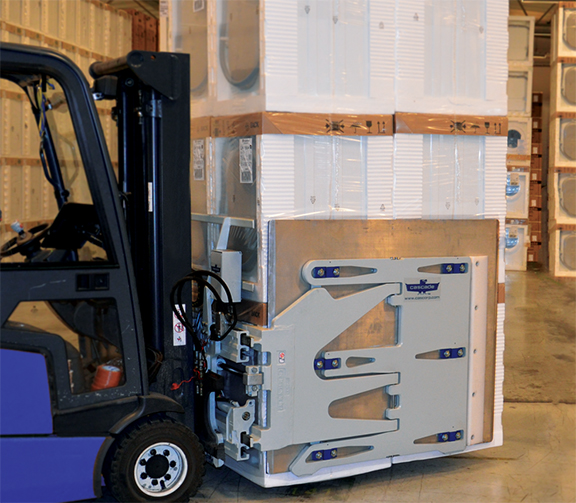

WG_CartonClamp_ImageGallery

Cascade J-Series White Goods Clamps

  • 1,750 – 3,475 lb. Capacity
  • Class II Mounting Standard
  • 20.5 – 102.1 in. Opening Range
  • 34 – 60 in. Usable Arm Length
  • 1,381 – 2,106 lbs. Attachment Weight
Request a Quote

Documents

Brochure

Specification Sheet

Videos

Attachment Resources

The Cascade J-Series White Goods Clamp is designed to handle appliances, electronics, beverages and other large packaged products without pallets. Palletless handling can improve warehouse space utilization, while thin-profile arms help operators work between tightly stacked loads.

Rubber-faced aluminum contact pads and a multi-support arm design distribute clamping force across the load for secure, controlled handling. WGF models use Flexipads and a six-position Adjusta-Block system for handling loads at the tip, single depth or full depth. WGS models use shim-adjustable, single-articulating arms for single and full-depth handling of heavy loads.

An integrated sideshift circuit, efficient hydraulic system and flow divider support smooth attachment operation. High-strength steel construction and lubrication-free UHMW bearings provide durability in demanding warehouse and distribution applications.

WGF Model Numbers: 12J-WGF-2A-0080 | 12J-WGF-2A-0090 | 12J-WGF-2A-0100 | 12J-WGF-2A-0110 | 15J-WGF-2A-0120 | 15J-WGF-2A-0130 | 15J-WGF-2A-0140 | 15J-WGF-2A-0150 | 15J-WGF-2A-0160 | 15J-WGF-2A-0170 | 15J-WGF-2A-0180 | 15J-WGF-2A-0190 | 18J-WGF-2A-0160 | 18J-WGF-2A-0170 | 18J-WGF-2A-0180 | 18J-WGF-2A-0190

WGS Model Numbers: 8J-WGS-2A-0010 | 12J-WGS-2A-0100 | 12J-WGS-2A-0110 | 12J-WGS-2A-0120 | 15J-WGS-2A-0120 | 15J-WGS-2A-0130 | 15J-WGS-2A-0140 | 15J-WGS-2A-0150 | 18J-WGS-2A-0160 | 18J-WGS-2A-0170

  • Handles large packaged products without pallets, helping improve warehouse space utilization.
  • WGF and WGS arm configurations support different load sizes and handling patterns.
  • Multi-support arm design distributes clamping force across the contact pad to help reduce product damage.
  • Thin arm profiles help the clamp enter narrow spaces between tightly stacked loads.
  • Integrated sideshift allows operators to reposition loads without moving the lift truck.
  • Efficient hydraulic system designed to minimize energy consumption while supporting attachment performance.
  • Clamp and backhand protection.
  • Flow divider for equal arm movement.
  • Sideshift circuit relief for optimized sideshift speed.
  • Integrated sideshift circuit that can be converted to non-sideshifting operation.
  • High-strength steel frame and castings.
  • Lubrication-free, full-length UHMW bearings.
  • Rubber-faced aluminum contact pads.
  • Integrated true-centering key for precise and secure installation.
  • Class II bolt-on mounting.
  • Low- and high-pressure configurations for compatibility with different lift truck hydraulic systems.
  • Custom opening ranges and frame widths.
  • Custom arm lengths, arm heights and contact pad surfaces.
  • Application-specific contact pad sizes and materials.
  • Load bumper for additional protection when handling loose loads.
  • Load backrest and arm extensions for extended-tier handling.
  • Class III and quick-disconnect mounting configurations.
  • External sideshift mounting.
  • Alternate valve configurations for left- or right-hand hydraulic installation.
  • Volumetric Force Control for automatic clamping-pressure adjustment based on load size.
  • Load Cushion system for absorbing shocks during load handling.
  • Tilt Control and Two-Way Tilt Control systems for aligning the attachment with the load.
  • Touch Force Control system for applications requiring adjustable clamp force and pressure control.
  • Open frame and arm construction provides visibility through the attachment.
  • Optional Volumetric Force Control automatically calculates clamping pressure, reducing the need for operators to estimate the required force.
  • Optional Touch Force Control provides an interactive touchscreen for managing clamp pressure.
  • Optional Two-Way Tilt Control automatically aligns the attachment pads with the load.
  • Clamp and backhand protection helps protect the attachment’s hydraulic circuit.
  • Rubber-faced contact pads help maintain secure contact with the load.
  • The true-centering key supports precise and secure attachment installation.
  • Optional tilt-control systems help operators maintain proper pad alignment when handling loads.
  • Optional clamp-force controls help prevent excessive pressure from being applied to damage-sensitive products.
  • Flow divider provides synchronized arm movement for controlled load engagement.
  • Sideshift circuit relief supports efficient sideshift operation.
  • Patented three-finger arm design spreads clamp force upward when handling taller loads.
  • WGF Adjusta-Blocks provide six adjustment positions for tuning clamp-force distribution.
  • WGF models can handle loads at the arm tips, single depth or full depth.
  • WGS models are designed for single and full-depth handling of heavy loads.
  • Top-mounted hydraulic cartridges provide convenient service access.
  • Integrated test port simplifies hydraulic testing and troubleshooting.
  • Lubrication-free UHMW bearings reduce routine maintenance requirements.
  • Replaceable wear tiles address wear along the lower leading edge of the contact pads.
  • Accessible hydraulic components support faster inspection and service.
  • White Goods and Appliance Manufacturing
  • Electronics
  • Warehousing and Distribution
  • Beverage Distribution
