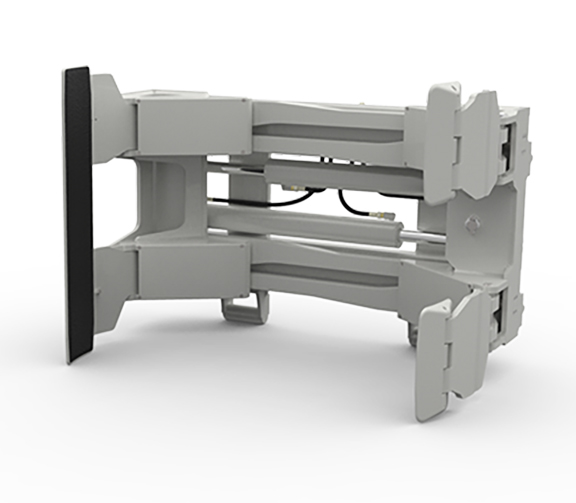

SAPRC

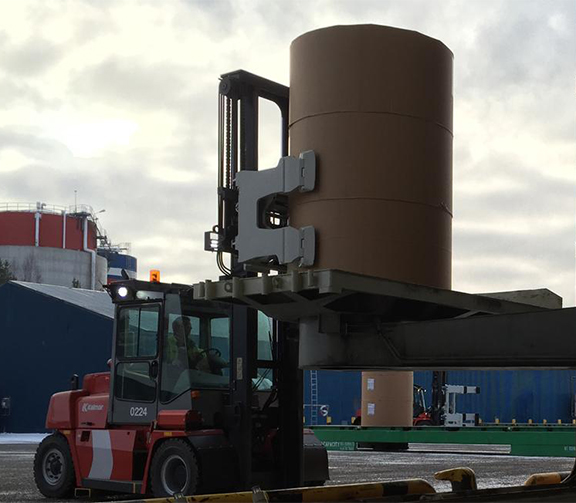

PRC_SlidingArm-App1

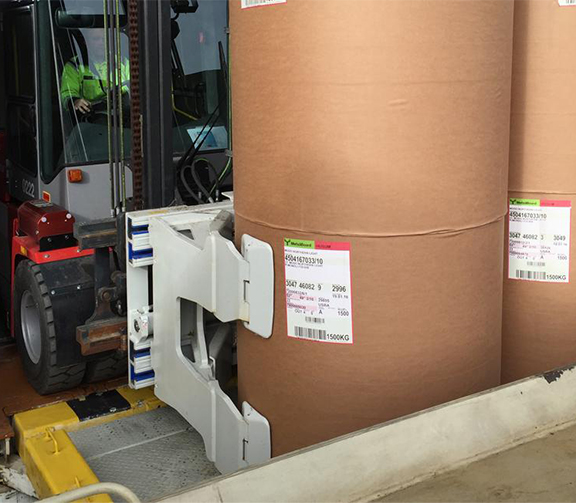

PRC_SlidingArm-App2

Cascade Sliding Arm Paper Roll Clamp

  • 6,600 – 11,000 lb. Capacity
  • III – IV Mounting Class
  • 35.4 – 59 in. Roll Range
  • 2,088 – 3,252 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade 30G, 41G, and 50G Sliding Arm Paper Roll Clamps are forklift attachments designed for handling one, two, or four paper rolls in applications where tight stacking and limited clearance make conventional roll handling difficult. With rated capacities ranging from 6,600 to 11,000 lbs., these attachments are suited for paper mills, cross-docking operations, warehouses, and facilities loading or unloading trailers, shipping containers, and vessels.

The sliding-arm design maintains a thin arm profile, allowing operators to position the clamp between closely stacked rolls while helping reduce contact damage. A standard split left-hand arm accommodates stacked rolls with up to a 3-inch difference in diameter. Full-width lip construction over UHMW bearings provides additional support and helps reduce bearing wear during repeated operation.

Available in Class III and IV mounting configurations, the 30G–50G series offers hydraulic cylinder options selected to match forklift operating pressure, built-in over-clamping protection, sideshift pressure relief, and an integrated storage stand. Optional Hydraulic Force Control (HFC), Adaptive Force Control (AFC), and alternate contact pads provide additional flexibility for specific paper-handling requirements.

Model Numbers: 30G-RSM-3A | 41G-RSM-4A | 50G-RSM-4A

  • Thin sliding-arm profile allows operators to engage paper rolls in tightly stacked storage areas, trailers, and shipping containers.
  • Supports handling one, two, or four rolls, depending on the selected configuration and application requirements.
  • Standard split left-hand arm accommodates stacked rolls with up to a 3-inch difference in diameter.
  • Streamlined arm construction helps reduce contact with adjacent rolls during load engagement and removal.
  • Available high- and low-pressure hydraulic configurations allow the attachment to be matched to the forklift’s hydraulic system for responsive arm movement.
  • Full-width lip construction over UHMW bearings provides additional bearing support while helping reduce wear.
  • Built-in sideshifting supports precise lateral positioning during loading, unloading, and storage operations.
  • Optional clamping force control systems help operations manage pressure when handling different paper grades and roll weights.
  • Sliding-arm construction with a thin arm profile for handling tightly stacked paper rolls.
  • Standard split left-hand arm for handling stacked rolls with up to a 3-inch difference in diameter.
  • Full-width lip construction over UHMW bearings for additional strength and bearing support.
  • Hydraulic cylinders available in high- and low-pressure configurations to accommodate different forklift hydraulic systems.
  • Hydraulic circuit with integrated over-clamping protection.
  • Sideshift pressure relief system for hydraulic protection during load positioning.
  • High-visibility attachment design for improved visibility during roll engagement and placement.
  • Built-in storage stand for attachment removal and storage when not in use.
  • Hydraulic components arranged for accessibility during service and maintenance.
  • Available three- and four-pad arrangements, depending on the selected model configuration.
  • High-visibility construction helps operators maintain a view of paper rolls during engagement, transport, and placement.
  • Thin arm profiles allow operators to approach rolls in tightly stacked storage locations with limited clearance.
  • Hydraulic sideshifting allows lateral load adjustments without repositioning the entire forklift.
  • High- and low-pressure cylinder configurations allow arm movement to be matched to the forklift’s available hydraulic pressure.
  • Split left-hand arm accommodates stacked rolls with different diameters, reducing the need to handle compatible loads individually.
  • Built-in storage stand supports attachment positioning when the clamp is removed from the forklift.
  • Integrated hydraulic over-clamping protection helps limit excessive clamping pressure during roll handling.
  • Sideshift pressure relief system helps protect hydraulic components during lateral positioning.
  • Thin arm construction helps minimize unintended contact with adjacent rolls when entering tightly stacked locations.
  • High-visibility attachment design supports operator awareness during load engagement and positioning.
  • Standard split left-hand arm accommodates diameter differences of up to 3 inches between stacked rolls when used within the attachment’s rated specifications.
  • Optional Hydraulic Force Control (HFC) adjusts clamping force in proportion to load weight.
  • Optional Adaptive Force Control (AFC) provides automatic clamping force management to help prevent excessive pressure on paper rolls.
  • Available contact pad configurations allow the gripping surface to be matched to the paper grade and handling application.
  • Rated Capacity: 6,600–11,000 lbs., depending on model and load center.
  • 30G Models: 6,600 lb. rated capacity at a 26.0- or 28.5-inch load center, depending on configuration.
  • 41G Models: 9,020 lb. rated capacity at a 29.5-inch load center.
  • 50G Models: 11,000 lb. rated capacity at a 29.5-inch load center.
  • Single Roll Diameter Range: Documented configurations accommodate rolls ranging from 35.4 to 59 inches in diameter.
  • Double Roll Diameter Range: Documented configurations accommodate rolls ranging from 35.4 to 50 inches in diameter.
  • Mounting Class: Class III for 30G models and Class IV for 41G and 50G models.
  • Attachment Weight: 2,088–3,252 lbs., depending on model and configuration.
  • Multiple-Roll Handling: Designed to handle one, two, or four rolls in compatible configurations.
  • Split Arm Capability: Accommodates a maximum 3-inch difference in diameter between upper and lower rolls.
  • Hydraulic Operation: High- and low-pressure cylinder configurations are available to match forklift hydraulic requirements.
  • Contact Pads: Available with herringbone or rubber contact pad surfaces and three- or four-pad arrangements.
  • Hydraulic Functions: Two hydraulic functions support clamping and sideshifting.
  • Built-in storage stand supports attachment removal and storage when the clamp is not in use.
  • Full-width lip construction provides additional support over UHMW bearings, helping reduce bearing surface wear and replacement frequency.
  • Hydraulic circuit components are positioned for convenient access during maintenance and service.
  • Integrated over-clamping protection and sideshift pressure relief help protect hydraulic components during operation.
  • Available high- and low-pressure cylinder configurations allow the attachment to be matched to compatible forklift hydraulic systems.
  • Cascade provides model-specific service instructions, troubleshooting information, and replacement parts documentation to support maintenance.
  • Paper Mills: Handling multiple paper rolls during production, storage, and outbound shipping operations.
  • Warehousing & Distribution: Storing, retrieving, and transporting paper rolls in facilities where tight stacking and efficient use of storage space are important.
  • Ports & Shipping: Loading and unloading paper rolls in trailers, shipping containers, and vessels where access between closely stacked loads is limited.
  • Paper Converting: Moving and positioning paper rolls used in cutting, coating, printing, and other converting processes.
  • Printing & Publishing: Handling rolls of newsprint and other printing stock during receiving, storage, and production operations.
  • Packaging: Transporting kraft paper, linerboard, and other paper grades used in packaging manufacturing.
  • Cross-Docking Operations: Handling and transferring multiple rolls between incoming and outgoing shipments.
