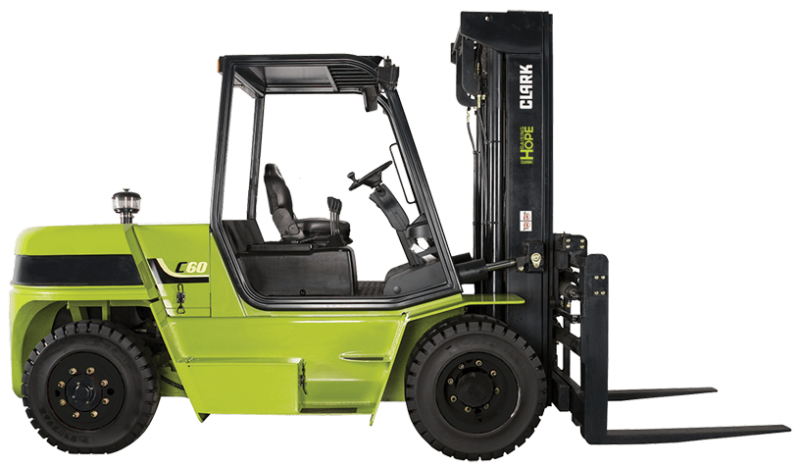

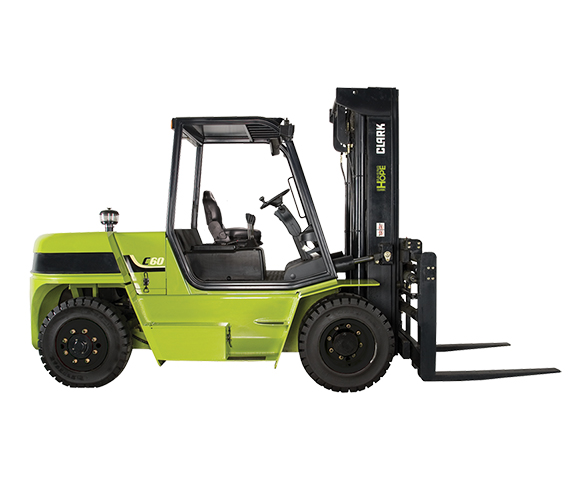

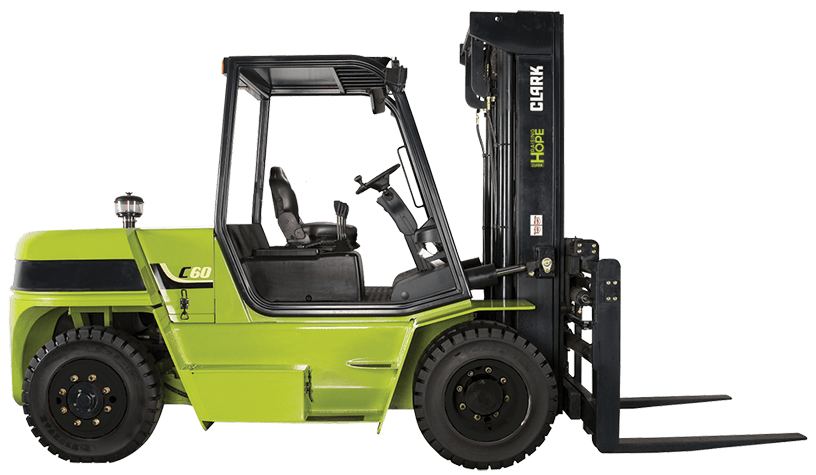

CLARK Large IC Pneumatic Forklift

13,500 – 18,000 lb. Capacity
LCD Multi-Function Display
Standard and Triple Uprights
Wet Disc Brakes
Operator Presence System
3-Speed Powershift Transmission

Documents

Product Documents

Financing Information

Forklift Leasing: The Ultimate Guide

Forklift Information

Product Description

With the combination of a 100 HP engine, fully automatic 3-speed transmission, wet disc brakes, and rugged chassis design, CLARK C-Series Large IC Pneumatic Forklifts provide the exceptional performance, maneuverability, and durability in its class that you’ve come to expect from CLARK.

Model Numbers: C60D | C70D | C75D | C80D | C80D900 | C60L | C70L | C75L

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	CLARK
Capacity	13,500 lbs., 15,500 lbs., 16,500 lbs., 18,000 lbs.
Condition	New
Fuel Type	Diesel, LPG

Choice of 4.5L turbo charged 100HP Iveco diesel or 4.3L V6 GM LPG engine to tackle the toughest tasks and applications
Powerful “Smart Shift” transmission, featuring fully automatic 3-speed powershift transmission standard on LPG and Diesel models
Long-lasting and fatigue-reducing wet disc brakes that are enclosed and oil-cooled
“Built to Last” chassis featuring heavy duty, welded, integral box frame assembly; integral hydraulic and fuel tanks; and wrap-around side frame member for rigidity
Optimized operator comfort with fully adjustable, full-suspension seat, tilt steering column, cowl mounted hydraulic controls, and optional enclosed operator cab
Maximum visibility through the upright with inside-mounted lift cylinders, chains, and hoses

Fully adjustable, full-suspension seat, molded for support with a non-cinching, retractable seat belt
Tilt steering column can be adjusted to suit the operator and provides easier exit/entry
Cowl mounted hydraulic controls are located and sized for optimal ease of use
Thick molded floor mats are designed to reduce vibration and noise level to improve operator comfort
Optional Operator Cab has a unique overhead guard design which minimizes vision obstruction of door pillars for maximum visibility
180-degree Fold and Lock doors recede within the truck frame when locked open, further increasing visibility in the cab

Turbo charged 4.5L 100HP Iveco diesel engine
- EPA-compliant
- Provides exceptional output, torque, and fuel economy
- Cold start system, vertical exhaust, and pre-cleaner come standard
- Square fin radiator
- High capacity cooling system
Field-proved 4.3L V6 GM LPG engine
- EPA-compliant
- Built for smooth and quiet operation
- Auto shut-down feature protects your investment in the event of excessive engine coolant, high transmission oil temperature, or low engine oil pressure
- Square fin radiator
- High capacity cooling system
Transmission
- Fully automatic 3-speed powershift transmission is standard on LPG and diesel models
- Operator friendly upshifting and downshifting
- Modulated shift protection has smooth engagement with cushioned shifting/li>
- Heavy-duty, robust components for longer life
- Inching valve allows for precisely controlled travel speeds during high speed lifting
Braking and Steering
- Enclosed and oil cooled wet disc brakes provide a smooth, quiet operation
- Power assist design requires low pedal effort which reduces operator fatigue
- Hand-operated parking brake activates the brakes, and the transmission disengages when the parking brake is set to prevent driving against the brakes
- All C60/70/75/80 trucks come with 36 months or 10,000-hour warranty on brake discs
Upright
- Standard and Triple uprights
- Full range of lift heights
- High visibility “Silent Staging” upright
- Lift cylinders, chains, and hoses in the C60/70/75/80 are all mounted within the rail profile for maximum visibility
- Silent staging of the hydraulic cushioning valve reduces shock and vibration
- Carriage has 8 shimmable, sealed, and canted rail rollers and 4 side thrust rollers to maximize load distribution and reduce free play

4.3L V6 GM LPG engine features auto shut-down to protect your investment in the event of excessive engine coolant, high transmission oil temperature, or low engine oil pressure
Wet disc brakes boast longer service intervals for less downtime, saving you time and money

Traction disable seat switch
Operator presence system
Rear combination lights with turn signals
High visibility orange seatbelt

“Built to Last” chassis featuring heavy duty, welded, integral box frame assembly
Integral hydraulic and fuel tanks
Wrap-around side frame member for rigidity
Integral battery and tool box compartments

Heavy Manufacturing
Stevedoring
Warehousing

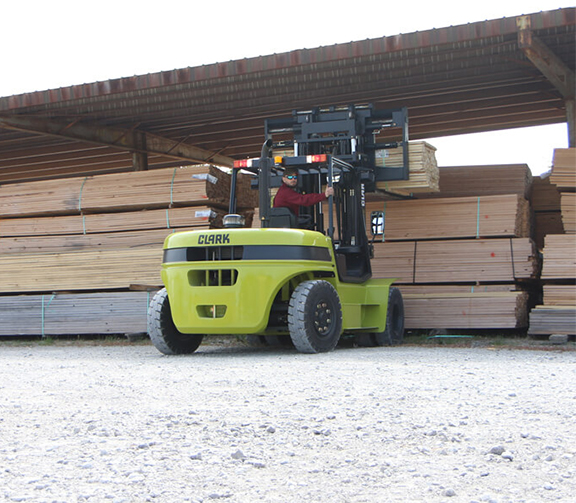

Building Materials Handling
