You are here: Home / Equipment / Forklift Attachments / Cascade Hydraulic Bin Retainer

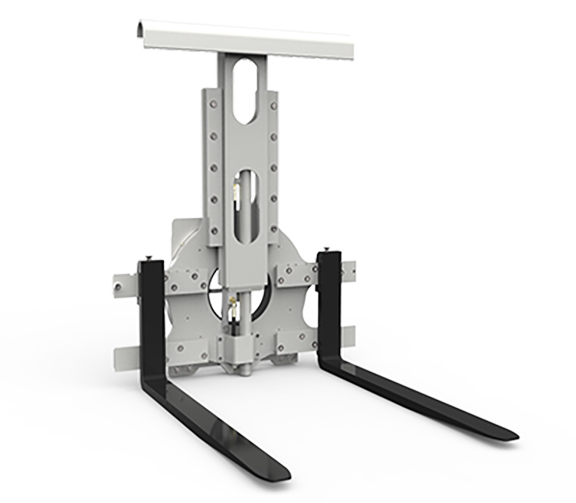

hydbinretain_3

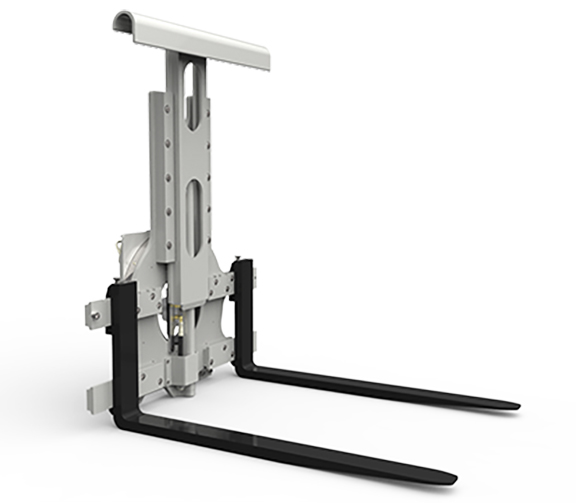

hydbinretain_5

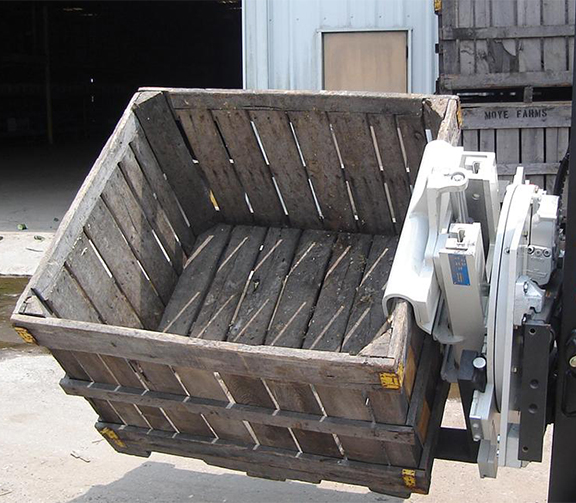

Rotator_HydraulicBin-App2
Rotator_HydraulicBin-App1

Cascade Hydraulic Bin Retainer

  • 3,000 – 10,000 lb. Capacity
  • II-IV  Mounting Class
  • 13-37 in. Fork Spread
  • 24.2–41.2 in. Bin Range
Request a Quote

Documents

Product Documents

  • Hydraulic Bin Retainer Spec Sheet

Videos

  • Cascade Hydraulic Bin Retainer

Attachment Resources

  • Types of Forklift Attachments: A Complete Guide
  • Forklift Attachments and Customization: Enhancing Your Rental
  • Description
  • Advantages
  • Standard Features
  • Ergonomics
  • Safety
  • Performance
  • Ease of Service
  • Industries
  • Sales Terms & Conditions

The Cascade Hydraulic Bin Retainer is a forklift attachment designed to hold compatible plastic, wooden, and steel bins in place during rotation and dumping. Available in rated capacities from 3,000 to 10,000 lbs., the Hydraulic Bin Retainer works with compatible Cascade rotators to support agricultural processing, recycling, and industrial material handling applications.

The attachment uses a hydraulically operated hold-down mechanism to secure the bin against the forklift forks during rotation. Constructed with proven D-Series extrusions, the retainer features a pressure reduction valve designed to limit excessive force on the container. When paired with an appropriate heavy-duty Cascade rotator, the assembly supports continuous 360° rotation for emptying and repositioning compatible bins.

Available in Class II, III, and IV configurations, the Hydraulic Bin Retainer accommodates different bin dimensions and fork arrangements. Optional side stabilizers, alternate hook profiles, extended hook reach, and custom hook widths provide additional flexibility for application-specific requirements. An optional hydraulic sequencing valve allows the retainer and rotator to operate using a single forklift auxiliary hydraulic function.

Model Numbers: 30G-RLH | 40G-RLH | 45G-RLH | 55G-RLH | 65G-RLH | 80G-RLH | 100G-RLH

  • Hydraulically operated hold-down mechanism helps retain compatible plastic, wood, and steel bins during rotation and dumping operations.
  • Supports agricultural and industrial operations that need to invert containers for unloading or material transfer.
  • Available capacity and mounting configurations accommodate different bin weights and material handling requirements.
  • Pressure reduction valve helps limit excessive clamping force on containers during hydraulic engagement.
  • Custom hook profiles, widths, and extended reach options allow the attachment to be matched to different container designs.
  • Optional side stabilizers provide additional bin retention for applications requiring lateral support.
  • Available hydraulic sequencing valve allows the retainer and compatible rotator to operate using a single forklift auxiliary hydraulic function.
  • Compatible Cascade rotators provide 360° rotation for emptying and repositioning suitable agricultural and industrial bins.
  • Hydraulically operated bin hold-down mechanism for retaining compatible containers during rotation.
  • Retainer construction using proven Cascade D-Series extrusions.
  • Pressure reduction valve designed to help prevent excessive hydraulic force on bins.
  • Adjustable hook height to accommodate the specified bin dimensions.
  • Standard 18-inch-wide bin retainer hook with a 2.5-inch inside depth and 2-inch inside height on documented configurations.
  • Available Class II, III, and IV mounting configurations, depending on model.
  • Fork spread range of 13 to 37 inches on documented configurations.
  • Hydraulic retention function designed for integration with a compatible Cascade rotator.
  • Model-specific construction and mounting arrangements designed to accommodate different bin weights and dimensions.
  • Hydraulic hold-down mechanism allows operators to engage and release compatible bins using forklift auxiliary controls.
  • Eliminates the need to manually fasten compatible containers to the attachment during normal hydraulic retention operations.
  • Adjustable hook positioning accommodates different bin heights and container dimensions.
  • When paired with a compatible rotator, hydraulic controls allow operators to invert and empty bins from the forklift operating position.
  • Optional sequencing valve coordinates bin retention and rotation using a single auxiliary hydraulic function.
  • Application-specific hook and stabilizer configurations help operators engage bins with different shapes and retaining surfaces.
  • Hydraulically operated bin retainer helps maintain contact with compatible containers during controlled rotation and dumping.
  • Pressure reduction valve helps limit excessive force that could damage bins during hydraulic engagement.
  • Optional side stabilizers provide additional lateral support for containers that require it during rotation.
  • Custom hook profiles and widths allow the retaining mechanism to be matched to suitable container engagement points.
  • Optional sequencing valve allows the retainer to engage before rotation begins in compatible hydraulic configurations.
  • Application-specific bin dimensions and rated capacities help determine suitable equipment configurations.
  • Some container designs may require an additional horizontal support bar to provide suitable retention during rotation.
  • Proper forklift, attachment, fork, and rotator capacities must be verified for the combined assembly and intended load.
  • Rated Capacity: 3,000–10,000 lbs. at a 24-inch load center, depending on the selected model.
  • 30G-RLH: 3,000 lb. rated capacity with Class II mounting.
  • 40G-RLH: 4,000 lb. rated capacity with Class II mounting.
  • 45G-RLH: 4,500 lb. rated capacity with Class II mounting.
  • 55G-RLH: 5,000 lb. rated capacity with Class III mounting.
  • 65G-RLH: 6,500 lb. rated capacity with Class III mounting.
  • 80G-RLH: 8,000 lb. rated capacity with Class III mounting.
  • 100G-RLH: 10,000 lb. rated capacity with Class IV mounting.
  • Mounting Class: Class II, III, or IV, depending on model.
  • Bin Range: 24.2–34.2 inches for documented Class II configurations and 24.6–41.2 inches for Class III and IV configurations.
  • Fork Spread: 13–37 inches across documented models, with alternative fork bar widths available.
  • Hook Height: 23.2–40.2 inches on Class II models and 23.6–47.2 inches on Class III and IV models.
  • Retainer Hook: Standard documented hook measures 18 inches wide, with a 2.5-inch inside depth and 2-inch inside height.
  • Rotation: Compatible Cascade rotators provide continuous 360° rotation in both directions.
  • Hydraulic Flow: 1–4 GPM for the retainer function, with 2 GPM recommended.
  • Hydraulic Pressure: 500 psi minimum and 2,300 psi maximum for the documented retainer circuit.
  • Hydraulic Functions: Two auxiliary functions are normally required for combined retention and rotation. Optional sequencing allows operation with one auxiliary function.
  • Attachment Weight: Determined by the selected rotator, retainer, mounting, and application-specific configuration. Consult Cascade.
  • Hydraulic retainer components are covered by Cascade’s dedicated service documentation, including troubleshooting, hydraulic circuits, and component replacement procedures.
  • Serviceable hydraulic cylinder assembly supports inspection, repair, and replacement of individual components.
  • Frame bearings can be inspected and replaced according to manufacturer maintenance requirements.
  • Cylinder rod anchor joint operates without a routine lubrication requirement at that connection.
  • Manufacturer maintenance guidance includes daily inspections of hydraulic hoses, connections, mounting fasteners, and contact pads when equipped.
  • Scheduled maintenance procedures include frame bearing inspections and fastener torque checks.
  • Separate service documentation is available for compatible Cascade rotator drive systems.
  • Agriculture: Retaining bins containing harvested apples, pears, potatoes, nuts, seeds, and other agricultural products during dumping and unloading.
  • Wine Production: Handling and emptying compatible grape collection bins during harvesting, receiving, and processing operations.
  • Food Processing: Inverting suitable plastic, wooden, and steel containers used to transport ingredients and raw materials.
  • Recycling & Waste Management: Holding steel collection bins containing scrap metal, paper waste, and other compatible materials during dumping.
  • Textile Manufacturing: Handling suitable industrial collection bins used to transport textile materials or production waste.
  • Manufacturing: Retaining and emptying compatible containers containing production materials, scrap, and industrial byproducts.
  • Warehousing & Distribution: Supporting controlled dumping and material transfer operations involving compatible bulk storage bins.
