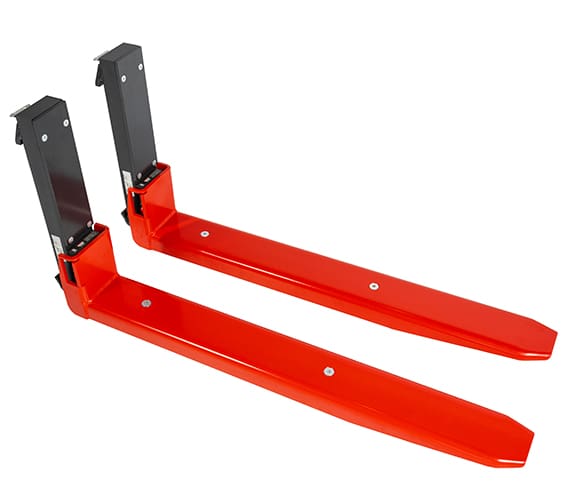

iForks-32
iForks-32XT_left

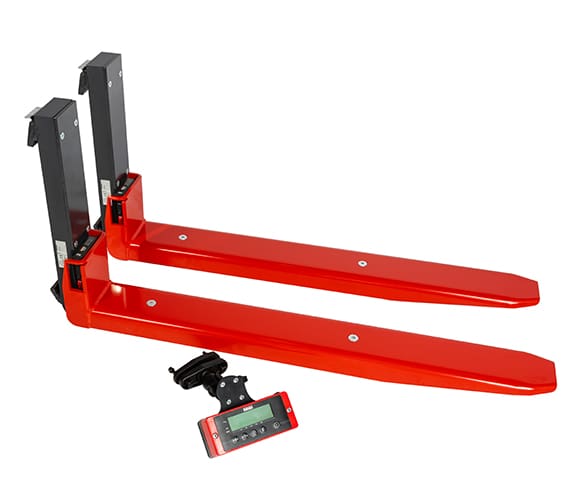

iForks-32_charger 4
iForks-32XT_upper

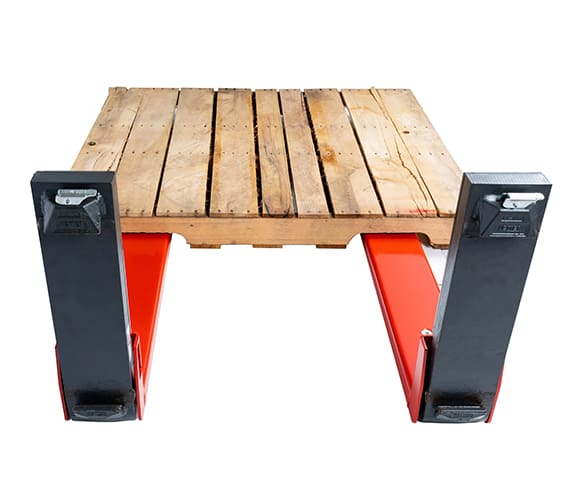

iForks-32_easy entry 2
iForks-32XT_easy entry 1
iForks-32XT_charger 3

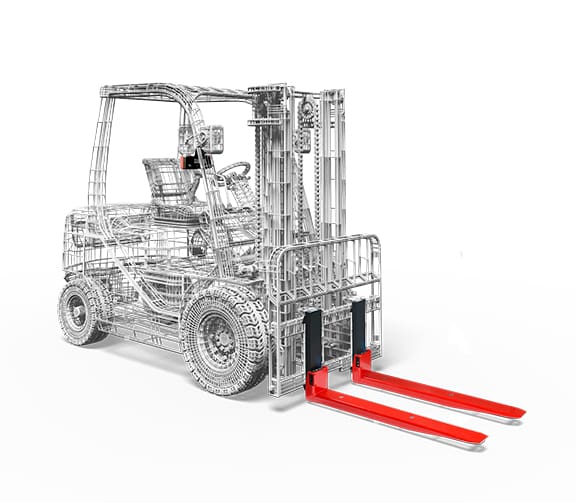

Forklift_3D
RAVAS iforks-32 - Image 9
iForks-32_charger 3
iForks-32_charger 1

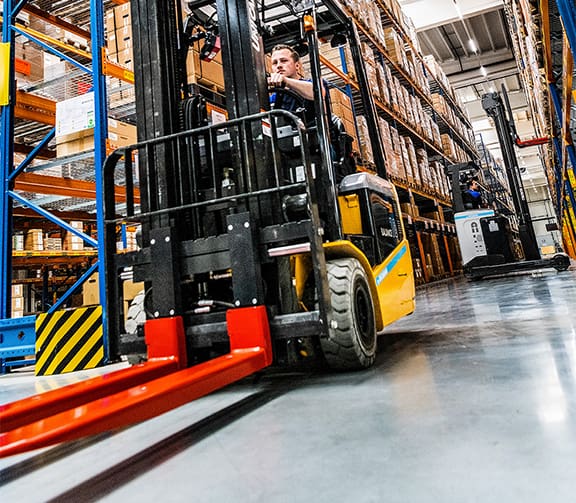

04 iForks-32 - In use

RAVAS iforks-32

  • 5,000 lb capacity at a 20-inch load center
  • 0.1% system tolerance
  • Wireless fork-to-indicator communication
  • Automatic mast-tilt compensation
  • Extra-thin XT configuration for low-clearance pallets
Request a Quote

Documents

Product Documents

Attachment Resources

The RAVAS iForks-32 turns a forklift into a mobile weighing system, allowing operators to capture pallet weights during normal handling instead of traveling to a stationary floor scale. Its 5,000 lb capacity, 0.1% system tolerance, multirange display, and automatic tilt compensation support accurate weighing throughout day-to-day operations.
Wireless communication and rechargeable fork batteries eliminate connecting cables and help simplify installation. Load-position and overload warnings alert operators to common weighing errors, while optional NTEP certification and data-connectivity configurations support a range of operational requirements.
For pallets with restricted openings, the iForks-32 XT provides an extra-thin fork profile.
  • Weighs pallets directly on the forklift, reducing trips to a separate floor scale.
  • Wireless communication between the weighing forks and indicator eliminates connecting cables.
  • No external components are mounted on the fork shanks, supporting quick installation.
  • Automatic tilt compensation helps maintain weighing accuracy when the mast is tilted.
  • Rechargeable lithium-ion fork batteries provide approximately 75 hours of continuous use.
  • 5,000 lb capacity at a 20-inch load center.
  • Automatic and manual zero correction with gross and net weighing.
  • Load totaling with sequence numbers and five-digit D-code entry.
  • Five-digit, backlit indicator with green and red display modes.
  • RS232 connection for a printer and a wireless port for data communication.
  • Sleep mode with automatic fork startup.
  • IP65/NEMA 4 environmental protection.
  • FEM/ISO 2A and 3A mounting profiles.

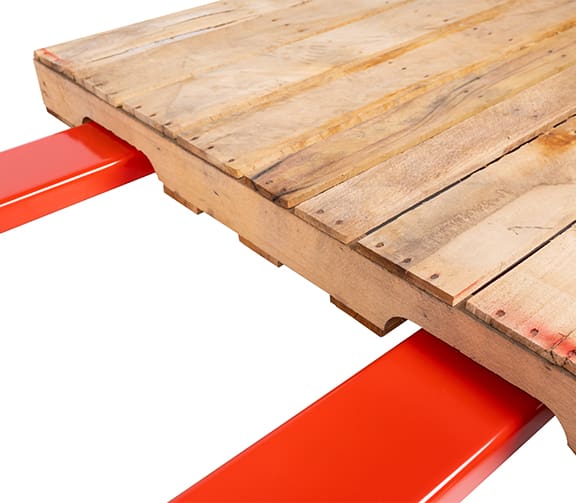

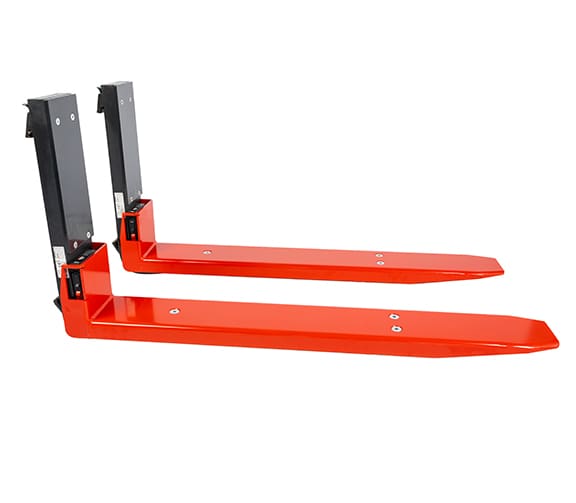

  • iForks-32 XT configuration with extra-thin forks for low-clearance, low-profile, or damaged pallets.
  • NTEP Legal for Trade certification.
  • Wi-Fi module for data communication.
  • Indicator power supplied by the forklift battery.
  • Alternative fork lengths, power configurations, and integrated data-connectivity solutions.
  • FEM/ISO 2B and 3B mounting profiles.
  • Red display alerts the operator to fork-tip loading and loads concentrated on one fork.
  • Tip-loading errors can be logged for review.
  • Mechanical construction provides overload protection up to 200%.
  • Forks are tested for 1,000,000 cycles at 125% of rated capacity.
  • System tolerance is 0.1% of the lifted load.
  • Multirange graduation displays 2 lb increments through 2,000 lb and 5 lb increments up to 5,000 lb.
  • Integrated level correction compensates for changes in mast angle.
  • Wireless connectivity supports use with the RAVAS Indicator App.
  • Standard forks have a 2.3-inch profile; the XT version provides a thinner profile for restricted pallet openings.
  • Digital calibration is performed through the indicator.

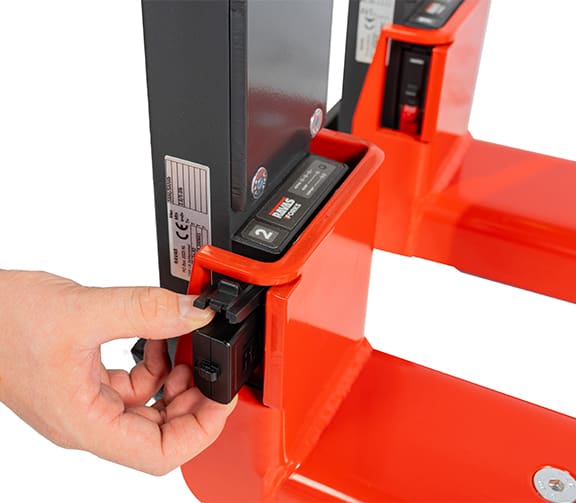

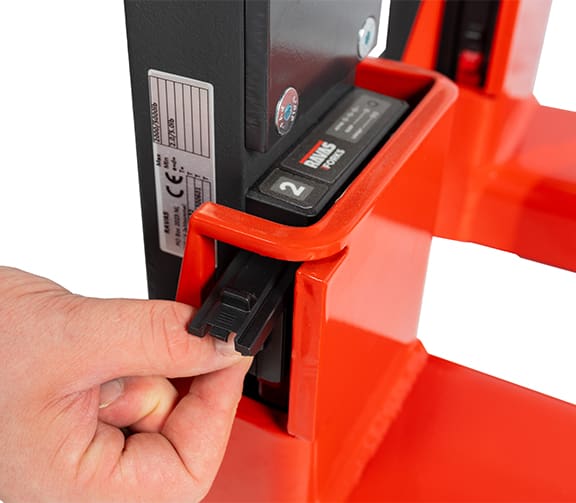

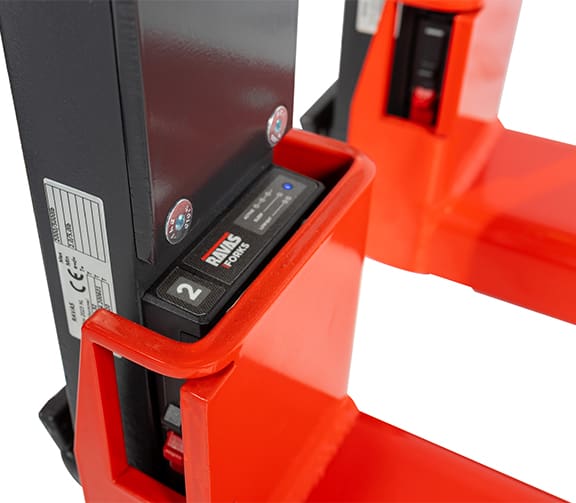

  • Rechargeable lithium-ion battery packs power the weighing forks.

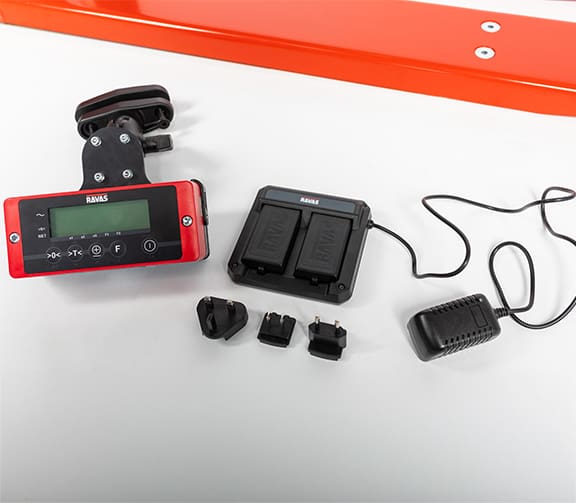

  • The indicator runs for approximately 50 hours on four AA batteries.

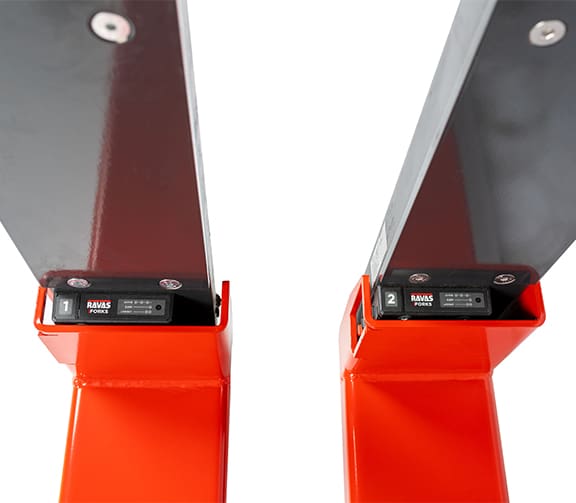

  • Cable-free fork construction simplifies installation and battery access.
