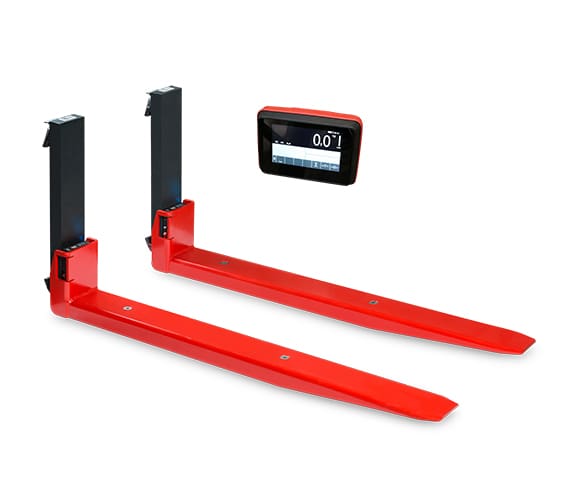

iForks-52 indicator
Forklift_3D

RAVAS iforks-52

  • 5,000 lb weighing capacity at a 20-inch load center
  • 0.1% system tolerance with 2 lb and 5 lb multirange graduations
  • Completely wireless fork-to-indicator communication
  • 5-inch touchscreen with weighing, counting, ID, and totalization functions
  • Automatic level correction for changes in mast tilt angle
Request a Quote

Documents

Product Documents

Attachment Resources

The RAVAS iForks-52 combines forklift forks with an onboard scale, allowing operators to weigh products as part of normal material handling. Its 5,000 lb capacity, 0.1% system tolerance, and automatic level correction support consistent weight capture for incoming and outgoing shipments.
A full-color 5-inch touchscreen provides gross/net weighing, piece counting, ID entry, and totalization functions, while wireless communication eliminates cabling between the forks and indicator.
Rechargeable fork batteries deliver up to 75 hours of continuous operation, and onboard USB and communication connections support weight-data transfer. For loads with limited entry clearance, the iForks-52 XT offers a lower-profile fork design.
  • Weighs loads directly during forklift handling, reducing the need to move products to a stationary scale.
  • Completely wireless communication between the weighing forks and indicator simplifies installation.
  • Supports weighing, piece counting, shipment identification, and weight totalization from one system.
  • Integrated level correction automatically compensates for mast tilt angle.
  • Low-profile iForks-52 XT variant is designed for containers with low openings and for low or damaged pallets.
  • 5,000 lb weighing capacity at a 20-inch load center.
  • Full-color 5-inch touchscreen indicator with 1-inch-high digits.
  • Automatic and manual zero correction plus gross and net weighing.
  • Piece-counting functionality and 10 totalizing registers.
  • Entry for up to four ID codes, with 10 preset codes available for each ID.
  • Internal clock records date and time.
  • USB output for transferring data with a USB stick.
  • Wireless connectivity for the RAVAS Indicator App.
  • Rechargeable lithium-ion battery pack and charging station for each fork.
  • Large touchscreen and 1-inch-high weight digits support clear viewing from the operator position.
  • Automatic fork-transmitter startup reduces manual steps at the beginning of operation.
  • The XT configuration provides a thinner fork profile for handling pallets and containers with limited entry clearance.
  • Tip-loading and side-loading error messages alert the operator to improper load positioning and log the event.
  • Mechanical construction provides 200% overload protection in accordance with ISO 2330.
  • Fork design was tested for 1,000,000 cycles at 125% of capacity.
  • IP65/NEMA 4 protection helps shield the indicator from dust and water exposure.
  • System tolerance is 0.1% of the load lifted.
  • Multirange graduations display in 2 lb increments through 2,000 lbs and 5 lb increments up to 5,000 lbs.
  • Integrated level correction compensates for changes in mast angle.
  • Rechargeable fork batteries provide up to 75 hours of continuous use.
  • Available communication ports support Wi-Fi, wireless, and RS232 configurations.
  • Compact rechargeable battery packs can be removed from the forks for charging.
  • Fork transmitters enter sleep mode and restart automatically to help conserve battery power.
  • The indicator includes an automatic shutoff function and user-adjustable power settings.
  • Standard FEM/ISO mounting classes 2A and 3A support straightforward forklift installation.
  • Warehousing and distribution
  • Shipping and receiving
  • Logistics and material flow
  • Inventory counting and order fulfillment
  • Operations handling low, damaged, or restricted-entry pallets with the XT variant
