RAVAS RCS HY-Q-52 Hydraulic scale

  • 5,000 to 20,000 lb capacity range
  • ±1% of scale-capacity system tolerance
  • Guided 5-inch full-color touchscreen
  • Approximately 1,000 hydraulic-pressure samples per weighing pass
  • Manifold-free installation compatible with rotators and clamps
Request a Quote

Documents

Product Documents

Attachment Resources

The RAVAS RCS Hy-Q-52 adds hydraulic weighing to forklift trucks, reach trucks, and stacker trucks with capacities from 5,000 to 20,000 lb. Its mast-mounted sensors monitor carriage movement while the system samples hydraulic pressure approximately 1,000 times and calculates an average weight.
A 5-inch full-color touchscreen guides operators through gross/net weighing, tare, ID-code, and totalizing functions.
The system supports USB, RS232, Wi-Fi-ready expansion, and connectivity with the RAVAS Indicator App. Installation requires no manifold block, and the scale can be used with rotators and clamps.
  • Designed for forklift trucks, reach trucks, and stacker trucks with capacities from 5,000 to 20,000 lb.
  • Compatible with trucks equipped with rotators and clamps.
  • Less sensitive to changes in the load center point.
  • Suitable for demanding material handling applications.
  • Gross and net weighing with manual and self-learning zero correction.
  • Tare memory stores up to 10 values.
  • Four ID-code fields support 10 preset alphanumeric codes each.
  • Ten totalizing registers and an internal clock for date and time.
  • Built-in RS232 printer connection and USB output for data transfer.
  • Connectivity for the RAVAS Indicator App.

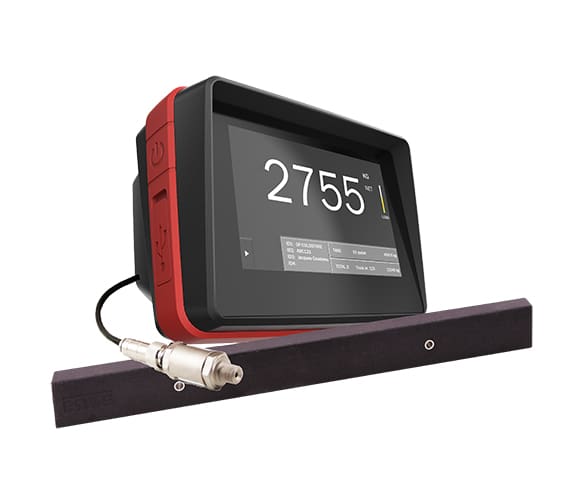

  • System package includes the Hy-Q-52 indicator, RAM mounting support, oil-pressure sensor, mast-mounted sensor strip, carriage magnet, and manuals.
  • Thermal or matrix printer.
  • Two additional COM ports for RS232, Wi-Fi, or transfer to devices using Bluetooth technology.
  • 1D USB barcode scanner.
  • User-friendly 5-inch full-color touchscreen guides the operator through weighing functions.
  • Available keys change with the selected display mode, keeping relevant controls accessible.
  • Displays an overload indication based on actual hydraulic pressure.
  • Shows and logs system error messages for operator visibility.
  • Available capacities range from 5,000 to 20,000 lb.
  • Graduations are 5 lb at 5,000 lb capacity, 10 lb at 10,000 lb capacity, and 20 lb at 20,000 lb capacity.
  • System tolerance is ±1% of scale capacity when the truck mast is in good condition.
  • Samples hydraulic pressure approximately 1,000 times as the carriage passes between two mast-mounted sensors, then calculates an average weight.
  • Supports weighing while lifting and lowering; UP-only weighing can be configured for applicable reach or stacker trucks with regenerative lowering systems.
  • IP65-rated indicator operates from a 9 to 100 VDC power input.
  • Installs without a manifold block, simplifying the hydraulic installation.
  • Dedicated calibration menu supports straightforward system setup.
  • USB output allows weighing data to be transferred using a USB drive.
