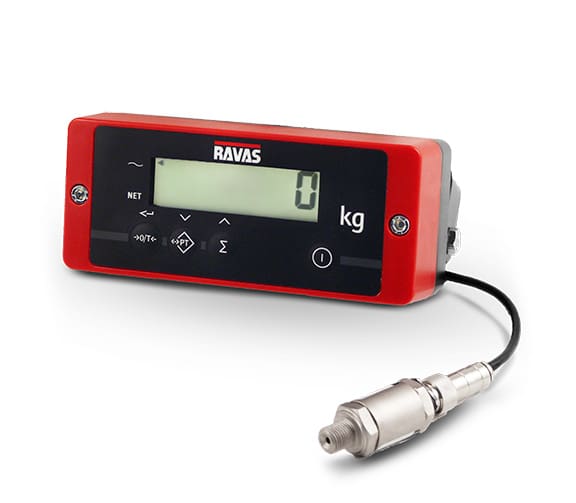

RAVAS RCS

RAVAS RCS Hydraulic scale

  • Universal hydraulic forklift weighing system
  • Capacity matched to truck: 5,000 lb, 10,000 lb, or 20,000 lb.
  • 2% system tolerance at centered load
  • IP65/NEMA 4 protection class
  • Optional overload buzzer and optional 12V truck-battery power.
Request a Quote

Documents

Product Documents

Attachment Resources

The RAVAS RCS is a hydraulic forklift scale built for practical load indication on everyday material handling equipment. It fits forklift trucks across brands and models, including trucks with rotators or clamps, and is intended for simple weight checks where high precision is not required.
Operations can use it to check incoming goods, capture shipping weights, and help avoid overloads without sending every load to a separate weighing station.
With IP65/NEMA 4 protection, AA-battery operation, and optional truck-battery power, the RCS gives warehouses a rugged and cost-conscious way to add basic weighing capability to existing forklifts.
  • Hydraulic forklift weighing system for simple load checks where high accuracy is not required.
  • Universal fit for forklift trucks regardless of brand or model.
  • Cost-effective load check system for checking incoming goods, shipping weights, overload avoidance, and safety checks.
  • Suitable for rough applications and compatible with forklifts using rotators and/or clamps.
  • Installs through the forklift hydraulic line using an oil pressure sensor, with no structural modifications required.
  • Capacity configured to match the truck: 5,000 lb, 10,000 lb, or 20,000 lb.
  • Multirange graduation: 10 lb at 5,000 lb, 20 lb at 10,000 lb, and 50 lb at 20,000 lb.
  • System tolerance of 2% of system capacity at centered load.
  • IP65/NEMA 4 protection class for demanding operating environments.
  • LCD display with 0.7-inch digit height.
  • Indicator powered by 4 AA batteries.
  • Auto shut-off after 3 minutes of non-use.
  • Overload buzzer for added load-check feedback.
  • 12V power supply through the forklift truck battery.
  • Helps operators check loads to avoid overload conditions.
  • Supports basic safety checks during forklift handling operations.
  • Optional overload buzzer provides an added alert when configured.
  • Provides fast hydraulic load indication directly from the forklift.
  • Supports load checks for incoming goods and shipping weights without moving freight to a separate floor scale.
  • Normal battery cycle time is up to 6 months when using the AA-powered indicator.
  • Maximum tolerance examples include 100 lb at 5,000 lb, 200 lb at 10,000 lb, and 400 lb at 20,000 lb.
  • Simple hydraulic installation using a T-joint and oil pressure sensor.
  • Battery-powered indicator reduces the need for truck wiring in standard configuration.
  • Optional truck-battery power is available for operations that prefer a wired power source.
  • Warehousing and logistics operations that need quick load checks.
  • Receiving areas checking incoming goods.
  • Shipping operations capturing load weights before dispatch.
  • Rough forklift applications where a robust, basic weighing system is preferred.
