Toyota Industrial Tow Tractor

15,000 lb. Capacity on Flat Surfaces
7,500 lb. Capacity on Grades up to 11%
24V Electrical System
AC Drive Motor
Power Steering
Cold Storage Conditioning

Documents

Product Documents

Product Videos

Financing Information

Forklift Leasing: The Ultimate Guide

Forklift Information

When it comes to heavy-duty towing, Toyota’s Industrial Tow Tractor is here to get the job done. Designed with a towing capacity of 15,000 lbs. on flat surfaces, this piece of equipment is capable of towing even the heaviest of loads with ease. Its power steering capability allows you to transport items from point A to point B seamlessly, so you never have to worry about getting the job done.

The Toyota Industrial Tow Tractor is the versatile, efficient tugger you need in your fleet.

Model Numbers: TT1-HC150

Additional Information

Brand	Toyota
Condition	New
Fuel Type	Electric/Battery, 24 Volt
Capacity	15,000 lbs.

Move more per trip: Tow up to 15,000 lbs. on flat surfaces to transport materials throughout your facility.
Reduce steering effort: Standard power steering helps operators maneuver during frequent transport tasks.
Adapt to your application: Programmable performance allows settings to be tailored to operational needs.
Access fleet information: Pre-installed MyInsights® provides equipment data through the MyToyota Portal.

24V electrical system
AC drive motor
Power steering
Regenerative plugging
Programmable performance
Cold storage conditioning
Electric disc brake
Hour meter
Cushioned operator backrest and knee pad

Battery-mounted storage tray: Keeps frequently used items within reach.
LED work light: Provides additional illumination.
Operator cooling fan: Adds airflow in the operator area.
Electronic PIN code access pad: Provides code-based equipment access.

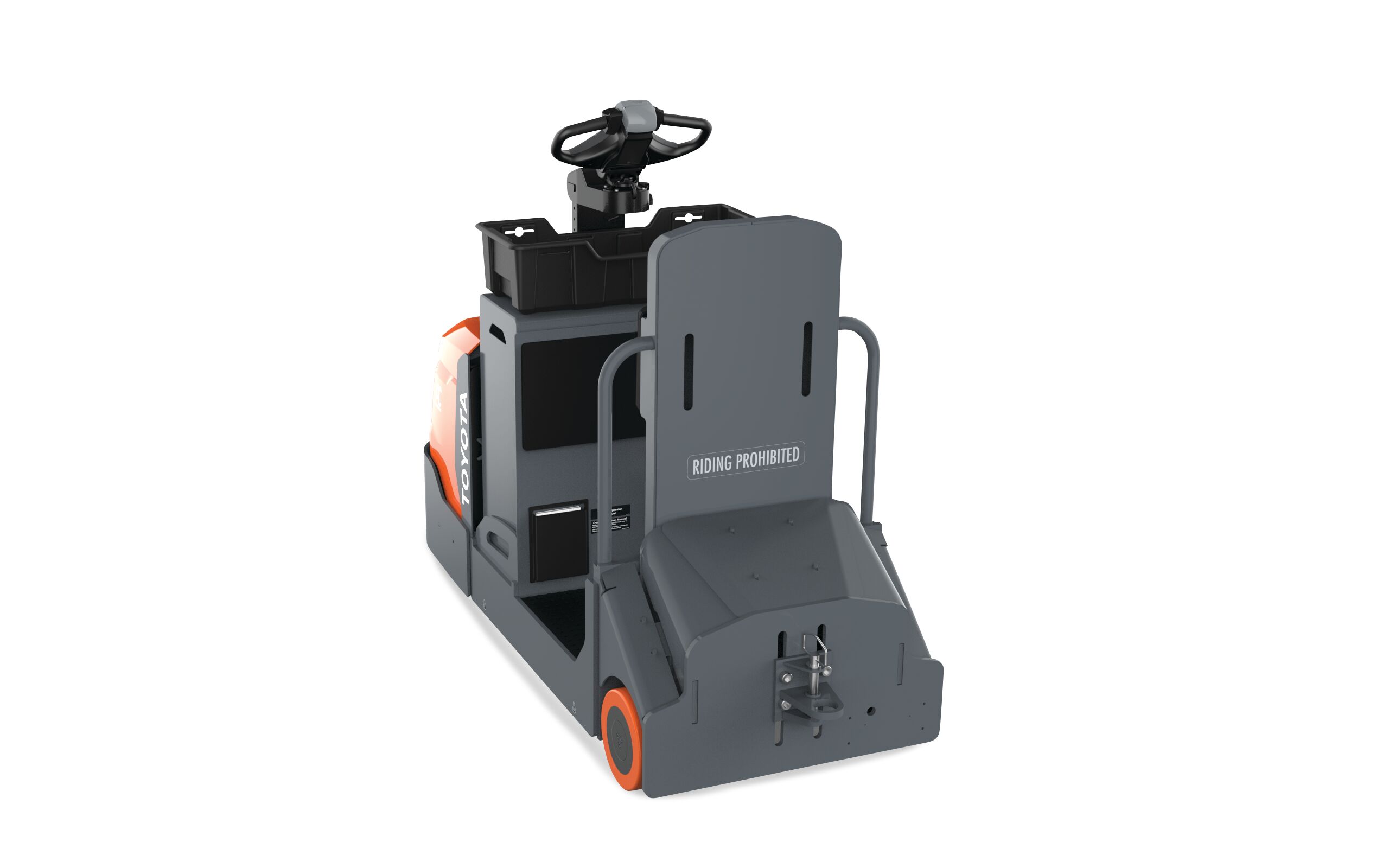

Pin and clevis tow hitch: Offers an additional connection option for towing.
Lithium-ion battery compatibility: Supports an alternative battery configuration.

Option availability depends on the equipment configuration.

Power steering: Reduces the effort required to maneuver the tractor.
Cushioned backrest and knee pad: Provide support while traveling in either direction.
Soft-cushioned floor mat: Adds cushioning beneath the operator’s feet.

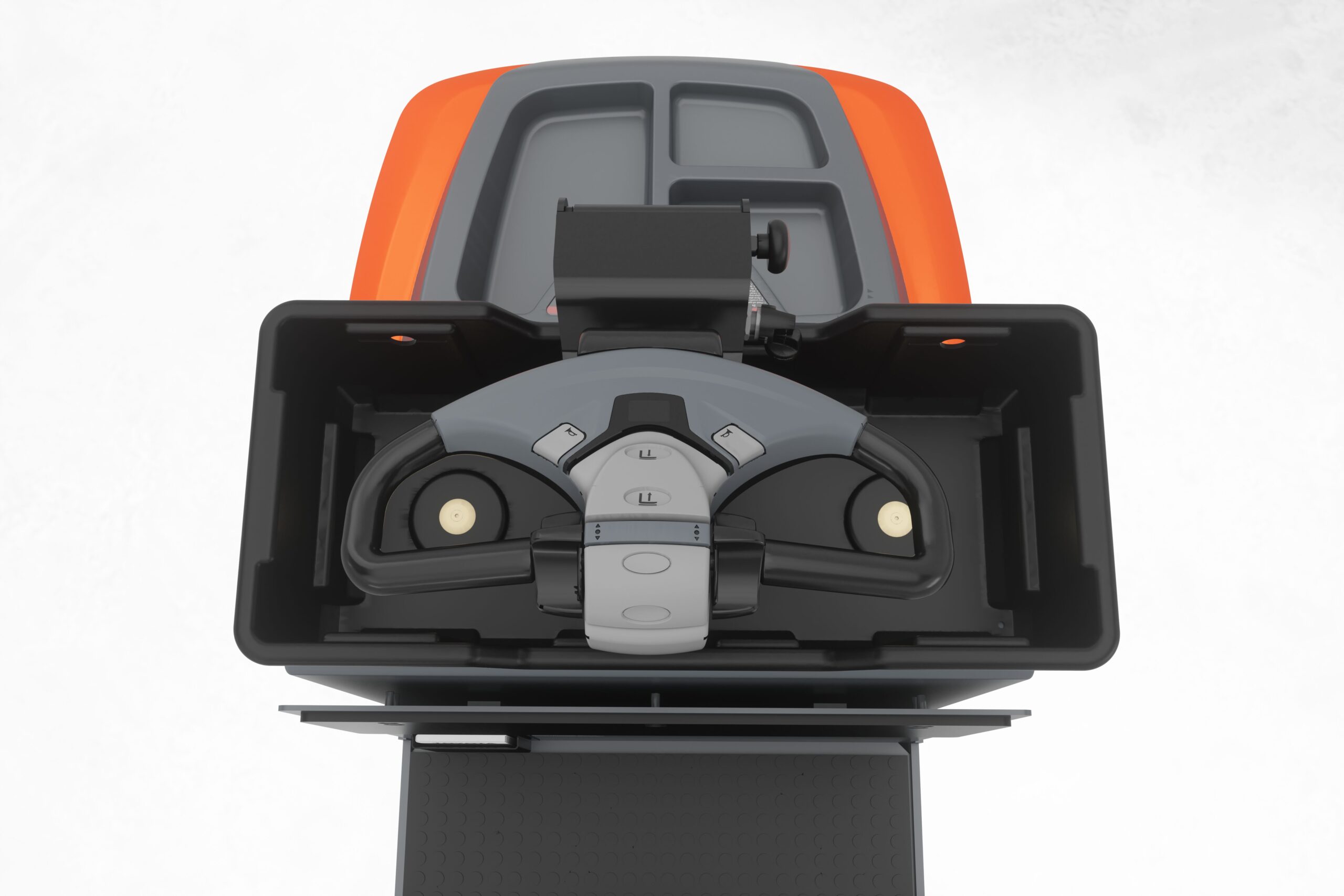

Angled handgrips and directional thumbwheels: Keep travel controls conveniently positioned.

Operator compartment sensor: Encourages proper operator positioning.
Emergency power disconnect: Allows the operator to quickly disconnect power.
Electronic travel alarm: Provides an audible indication of equipment movement.
Battery gate interlocks: Included as part of the battery compartment design.
Wrap-around hand guard: Provides a protective barrier around the controls.

Towing capacity: Up to 15,000 lbs. on flat surfaces or 7,500 lbs. on grades up to 11%.
Travel speed: Up to 6 mph with or without a load.
Drawbar pull: 350 lbs. continuous; 1,600 lbs. maximum.
AC drive motor: Supplies electric power for towing tasks.
Regenerative plugging: Recovers energy during deceleration.

The hour meter provides a reference for tracking equipment use and planning maintenance. Cold storage conditioning helps protect components from condensation and cold temperatures.

Beverage
General manufacturing
General warehousing
Food processing
Retail
Furniture
