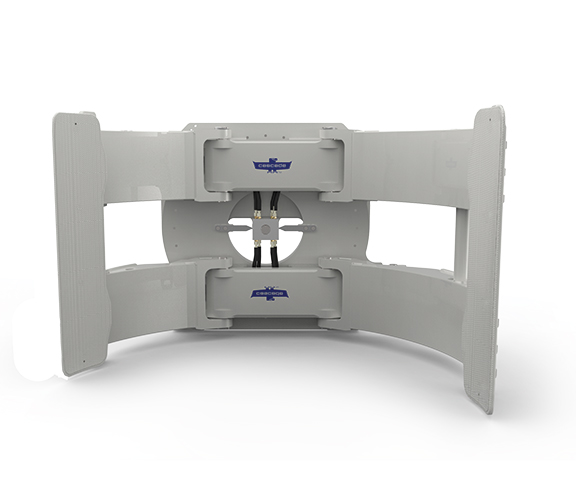

42H_Front1

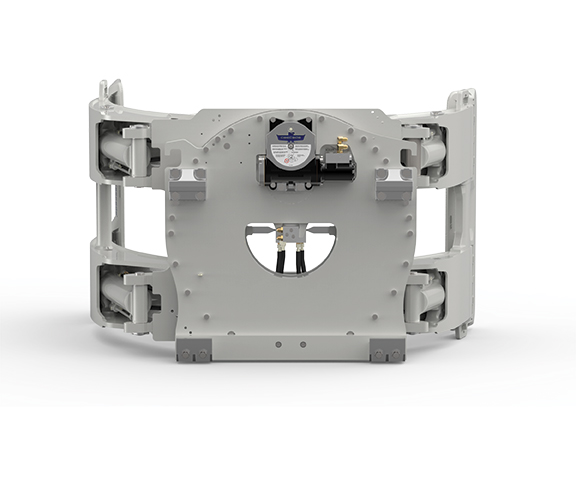

42H_back

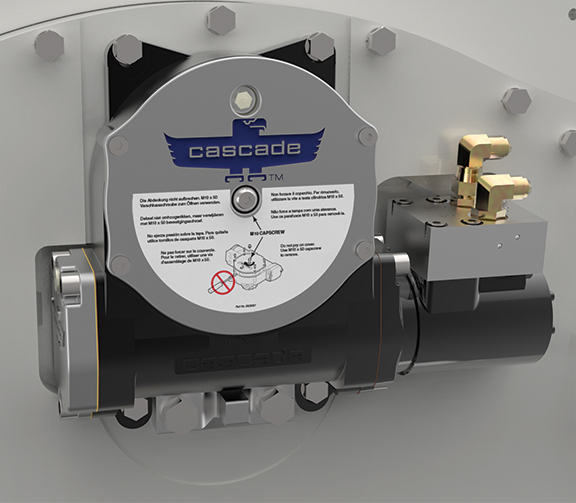

42H_drive
PRC_42H-App2
PRC_34H-App2
PRC_38H-App1
PRC_42H-App1

Cascade 34H-38H-42H Paper Roll Clamp

  • 6,250 – 9,920 lb. Capacity
  • III – IV Mounting Class
  • 8 – 85 in. Roll Range
  • 2,850 – 4,500 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

The Cascade 34H, 38H, and 42H Paper Roll Clamps are built to handle the toughest demands in the paper industry. Perfect for mills, stevedores, and shippers, these clamps are designed to manage large rolls of packaging paper with ease.

As the go-to solution for the jumbo tissue roll industry, this clamp series provides exceptional strength and reliability, ensuring safe and efficient handling of oversized paper rolls across various applications.

Model Number: 34H-RCP | 34H-RDP | 38H-RCP | 38H-RDP | 38H-RCP | 38H-RDP

  • Highly durable arm structure and pad profile that eliminates damage from knifing between rolls in containers, trailers, and railcars
  • Pad protectors reduce wear to the contact pads
  • Pad alignment system using dual spring technology holds the contact pads in proper alignment
  • A variety of arm styles in any application
  • Short arm positioning to optimize small roll handling
  • Excellent visibility through arms
  • High-f;ow revolving connection provides fast arm speed and longer battery life on electric trucks and less fuel consumption on internal combustion trucks
  • Quick 360° rotation speed with 15-tooth pinion
  • High-torque, heavy-duty rotator drivetrain proven to provide superior durability.
  • Can be configured with 2, 3 or 4 pads
  • High-strength castings provide structural life needed for robust applications
  • Profile arms and pads easily knife between rolls
  • High-flow revolving connection reduces heat and energy consumption
  • Excellent visibility facilitates second tier roll handling
  • Streamlined pad with serviceable wear tiles extends pad life
  • High-torque, heavy-duty rotator drivetrain for demanding applications
  • Wide range pf contact pads for every type of paper
  • Split or solid arm
  • Fixed short arm for applications with roll sizes on the high side of the clamp’s capacity range
  • 180° Stop Group
  • AFC – Adaptive Force Control
  • HFC – Hydraulic Force Control
  • ERC – Electronic Rotational Control
  • Paper Mills
  • Warehousing
  • Printing & Publishing
  • Converters
  • Packaging
