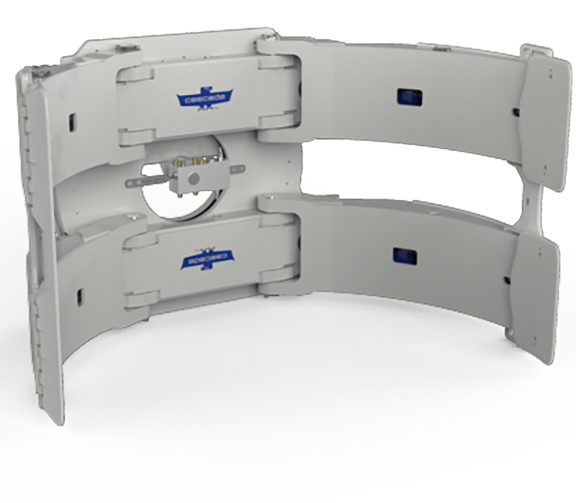

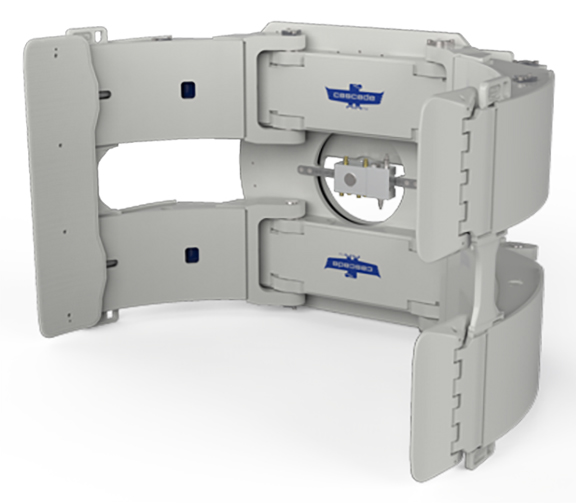

Cascade 46H-55H Paper Roll Clamp

  • 7,300 – 14,000 lb. Capacity
  • IV Mounting Class
  • 8 – 85 in. Roll Range
  • 2,730 – 3,810 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade 46H and 55H Paper Roll Clamps are heavy-duty forklift attachments designed for handling large rolls of kraft paper, linerboard, heavily coated stocks, and other packaging papers. Built for demanding applications in paper mills, converting facilities, warehouses, and shipping operations, these attachments provide rated capacities from 7,300 to 14,000 lbs., depending on the model and load center.

The 46H and 55H feature streamlined arms and contact pads designed to enter narrow spaces between closely positioned rolls while helping reduce handling damage. High-visibility construction supports accurate load positioning, while a high-flow revolving connection and heavy-duty rotator drivetrain provide responsive arm movement and continuous 360° rotation.

Available with solid or split long arms, adjustable short arm positioning, and application-specific contact pad configurations, these clamps can accommodate different roll diameters and paper grades. The 55H also features a high-torque dual rotator drivetrain, with optional clamping force and rotation control systems available to meet specific handling requirements.

Model Numbers: 46H-RCP | 46H-RDP | 55H-RCP | 55H-RDP

  • Designed for handling large, heavy rolls of kraft paper, linerboard, and coated paper in demanding industrial applications.
  • Streamlined arms and contact pads help reduce paper damage when entering narrow spaces between closely positioned rolls.
  • Continuous 360° rotation allows operators to reposition rolls for vertical or horizontal storage, loading, and unloading.
  • Available solid and split arm configurations accommodate different roll sizes and handling requirements.
  • High-visibility construction supports accurate roll placement, including second-tier stacking applications.
  • High-flow hydraulic design provides responsive arm movement while helping reduce energy consumption.
  • Available clamping force control systems help facilities manage clamping pressure for different paper grades and roll weights.
  • High-strength arm structure and castings designed for heavy-duty paper roll handling applications.
  • Streamlined arm and contact pad profiles for positioning between closely stacked rolls.
  • Contact pad protectors designed to reduce wear during operation.
  • Dual-spring pad alignment system that helps maintain proper contact pad positioning.
  • High-visibility arm construction for improved visibility during roll engagement and placement.
  • Short arm positioning capability to accommodate smaller roll diameters.
  • High-flow revolving connection for responsive hydraulic arm movement.
  • Continuous 360° rotation with a 15-tooth pinion.
  • High-torque, heavy-duty rotator drivetrain designed for demanding applications.
  • 55H models feature a high-torque dual rotator drivetrain for continuous rotation.
  • Field-serviceable contact pad wear tiles.
  • Open arm construction provides visibility through the attachment during roll engagement and positioning.
  • High-visibility design helps operators align rolls during loading, unloading, and second-tier stacking.
  • Continuous 360° rotation allows operators to change roll orientation using forklift hydraulic controls.
  • High-flow revolving connection provides responsive clamp movement during roll engagement and release.
  • Short arm positioning capability accommodates varying roll diameters during handling operations.
  • Dual-spring pad alignment helps maintain proper contact pad positioning throughout clamp operation.
  • Streamlined arm and contact pad profiles help reduce the risk of damaging adjacent paper rolls during engagement and removal.
  • High-visibility construction supports operator awareness during roll engagement, rotation, and placement.
  • Dual-spring pad alignment system helps maintain proper contact between the pads and paper rolls.
  • High-strength arm structure and heavy-duty rotator drivetrain are designed for demanding load handling applications.
  • Optional Adaptive Force Control (AFC) helps prevent overclamping by electronically controlling clamping force.
  • Optional Hydraulic Force Control (HFC) automatically adjusts clamping force in proportion to load weight.
  • Optional Drop Stop System helps prevent contact pads from sliding down and damaging the paper after the roll is released.
  • Optional Electronic Rotational Control (ERC) provides automatic 180° rotation stops for controlled roll positioning.
  • Rated Capacity: Available configurations ranging from 7,300 to 14,000 lbs., depending on model and load center.
  • 46H Models: Rated capacities ranging from 7,300 to 11,000 lbs. for documented configurations.
  • 55H Models: Rated capacities ranging from 8,600 to 14,000 lbs. for documented configurations.
  • Roll Diameter Range: Configurations accommodate roll diameters up to 85 inches, with minimum diameters varying by model.
  • Mounting Class: Class IV.
  • Rotation: Continuous 360° rotation with a 15-tooth pinion and heavy-duty rotator drivetrain.
  • 55H Rotator: High-torque dual rotator drivetrain, with an optional single-drive configuration available.
  • Hydraulic Operation: High-flow revolving connection supports responsive arm movement during clamping and release.
  • Arm Configurations: Available with solid or split long arms and different short arm arrangements.
  • Contact Pad Configurations: Available with two, three, or four pads to accommodate different applications.
  • Mounting Angles: Documented configurations include 0° and 2° mounting arrangements for different handling applications.
  • Field-serviceable contact pad wear tiles allow worn contact surfaces to be serviced without replacing the complete pad assembly.
  • Contact pad protectors help reduce wear during routine paper roll handling operations.
  • High-strength arm castings provide structural durability for demanding industrial applications.
  • Heavy-duty rotator drivetrain is designed to withstand repeated rotation during material handling operations.
  • Dual-spring pad alignment system helps maintain proper contact pad positioning during use.
  • Available replacement contact pads allow facilities to select suitable contact surfaces for different paper grades.
  • Cascade provides model-specific service documentation and replacement parts information to support attachment maintenance.
  • Paper Mills: Handling large rolls of kraft paper, linerboard, and coated paper during production, storage, and shipping.
  • Paper Converting: Moving and positioning heavy paper rolls used in cutting, coating, printing, and converting processes.
  • Warehousing & Distribution: Storing, retrieving, and loading heavy paper rolls in facilities handling multiple paper grades and roll sizes.
  • Printing & Publishing: Transporting large rolls of printing stock for production and material storage.
  • Packaging: Handling linerboard, kraft paper, and other heavy paper grades used in packaging manufacturing.
  • Ports & Shipping: Loading and unloading heavy paper rolls in shipping containers, trailers, and railcars.
