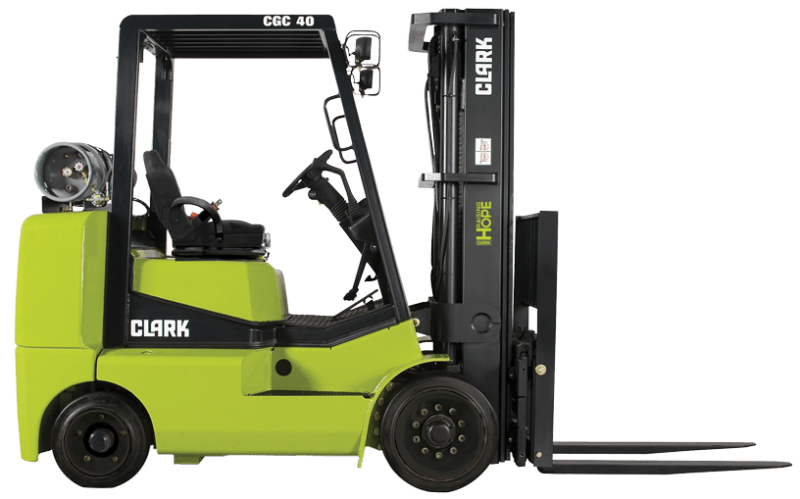

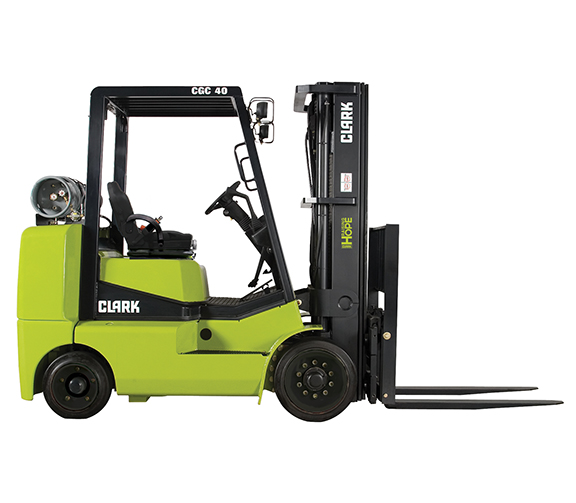

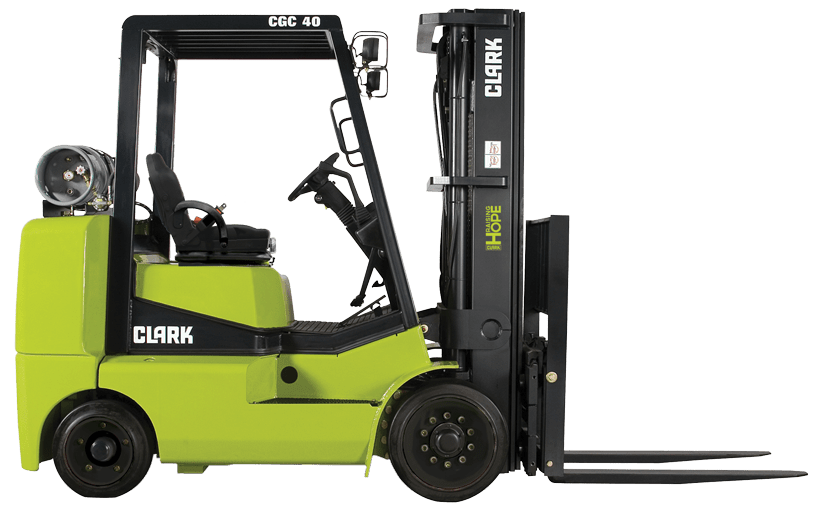

CLARK Large IC Cushion Forklift

8,000 – 15,500 lb. Capacity
EPA-Compliant 4.3L V6 GM LPG Engine
Hydraulic servo-type power brakes
High Visibility “Silent Staging” Uprights
No Tools Required Engine Compartment Access

Documents

Product Documents

Financing Information

Forklift Leasing: The Ultimate Guide

Forklift Information

Product Description

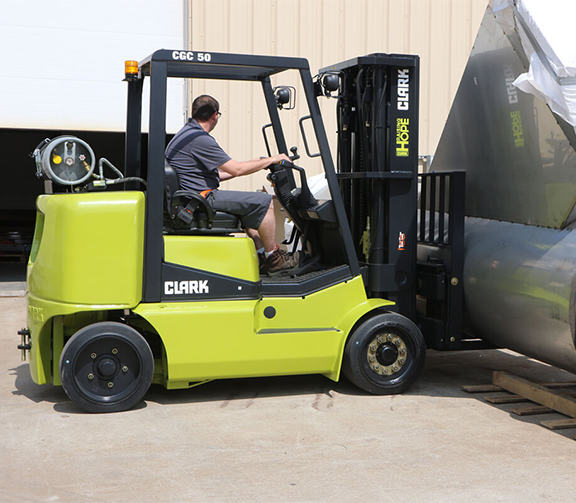

The CLARK Large IC Cushion Forklift is built to tackle your toughest loads while operating smoother and quieter. With a rugged single piece frame, “Double Shear” steer axle, and covered drive-train components, you’ll maximize your return on investment through a longer lifespan.

Model Numbers: CGC40 | CGC50 | CGC55 | CGC60 | CGC70

Equipment Details

Forklift Type	Internal Combustion – Cushion Tire
Brand	CLARK
Capacity	8,000 lbs., 10,000 lbs., 12,000 lbs., 13,500 lbs., 15,500 lbs.
Condition	New
Fuel Type	LPG

Field-proven 4.3L PSI – 4X GM LPG Engine is built for smooth, quiet operation while providing plenty of power to handle the toughest tasks
Hydraulic system uses a load-sensing flow control valve for steering to reduce heat build-up and operate with maximum horsepower
Fully adjustable, full suspension seat with non-cinching belt, tilting steering column, and fingertip controls minimize operator fatigue and improve productivity
Covered seals and driveshaft minimize wear and the collection of debris for longer service life
Nested mast I-channels improve visibility while the hydraulic cushioning valve minimizes shock and vibration for easier, safer loading

Compact Design
One Piece Frame
Isolated Operator Cell
Offset Drive Axle
Full Hydraulic Brake System – No Brake Fluid
Self-Adjusting Disc Brakes
Lift Out Floorboard – No Service Tools Required
Easy to Remove Bolt-On 22” Steer Wheels
Single Speed Transmission on the CGC40
Two Speed Transmission on the CGC50-55
Isolated Operator Cell
Cowl Mounted Levers
Single Auxiliary Valve
Power Steering
Tilt Steering Wheel
Rear Handle With Horn
Full Suspension Vinyl Seat
Orange Seat Belt
Traction Disable Seat Switch
Operator Presence System
Automatic Engine Shutdown System
Power Assisted Disc Brakes
High Intake with Heavy Duty Air Cleaner
Low LPG Fuel Warning Light
Tow Pin

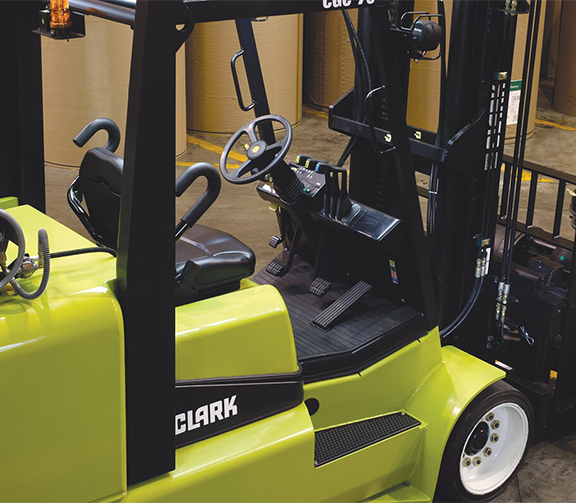

Fully adjustable, full suspension seat is contoured for support with a non-cinching, retractable seat
Tilt steering column adjusts to suit the operator
Power steering reduces operator fatigue and improves safety
Fingertip control operation minimizes fatigue and ensures ease-of-use
Thick molded floor mat optimizes operator comfort by reducing vibration and noise level

PSI-4X 4.3L V6 GM LPG engine
- EPA-compliant
- Field-proven and built for smooth, quiet operation
- Computer-controlled fuel system
- Hardened exhaust and intake valves which lengthen the lifespan of the lift truck
- Single speed powershift transmission on CGC40 and two speed powershift on the CGC50-70
- High air intake
- Heavy duty air cleaner
Hydraulic System
- Load-sensing flow control valve for steering to reduce heat build-up and operate with maximum horsepower
- Main hydraulic valve incorporates adjustable flow controls for tilt and auxiliary functions
- Sectional design allows for the easy addition of extra functions which simplifies service
- Upright-mounted load lowering valve allows for controlled lowering, independent of engine speed
Braking and Steering
- Brakes are applied with a hydraulic servo-type power brake valve for simple and error-proof use
- Transmission disengages when the parking brake is set, preventing the operator from driving against the brakes
Upright
- Standard, Triple and Quad uprights
- Full range of lift heights
- High visibility “Silent Staging” uprights
- Nested I-channel allows space for cylinders, hoses, and chains, providing the operator with maximum visibility
- Hydraulic cushioning valve’s silent staging reduces shock and vibration
- Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play

Hydraulic valve sectional design simplifies service
Engine auto shut-down feature helps you protect your investment in the event of excessive engine coolant, high transmission oil temperature, or low engine oil pressure

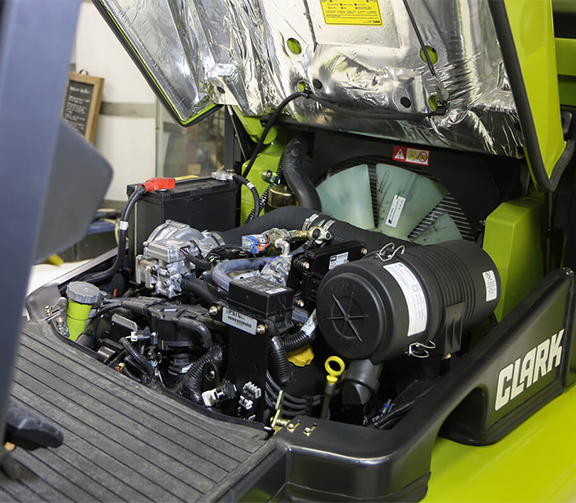

Access the engine compartment in less than 30 seconds with no tools required
System can be diagnosed using an automotive-style malfunction light and fault codes

Rear handle with horn button
Full suspension vinyl safety seat
High visibility orange seat belt
Traction disable seat switch
Operator presence system
Automatic engine shutdown system

Rugged “Double Shear” steer axle design withstands impact without loosening or breaking
No exposed seals or driveshafts to wear or collect debris
Modulated shift protection ensures smooth engagement and cushioned shifting
Common sump for the axle and transmission lube allows both to be cooled with the transmission cooling system
Heavy duty air cleaner
Heavy duty, welded & formed steel single piece frame protects from impact damage and extends the life of the truck
Tilt cylinders anchored to the frame for maximum durability

Double Auxiliary Valves
Double Hose Adaptation
Side Shifters
Rear View Mirrors
Strobe Lights
Back-Up Alarm
Unitrol
Speed Limit Control

Manufacturing

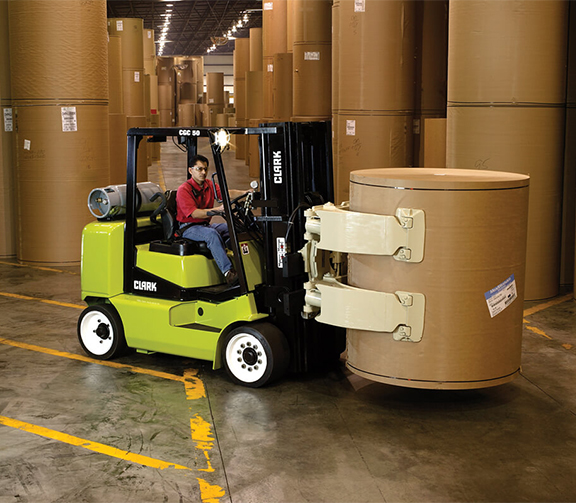

Paper Roll Handling
Processing Mills
Machinery Movers
