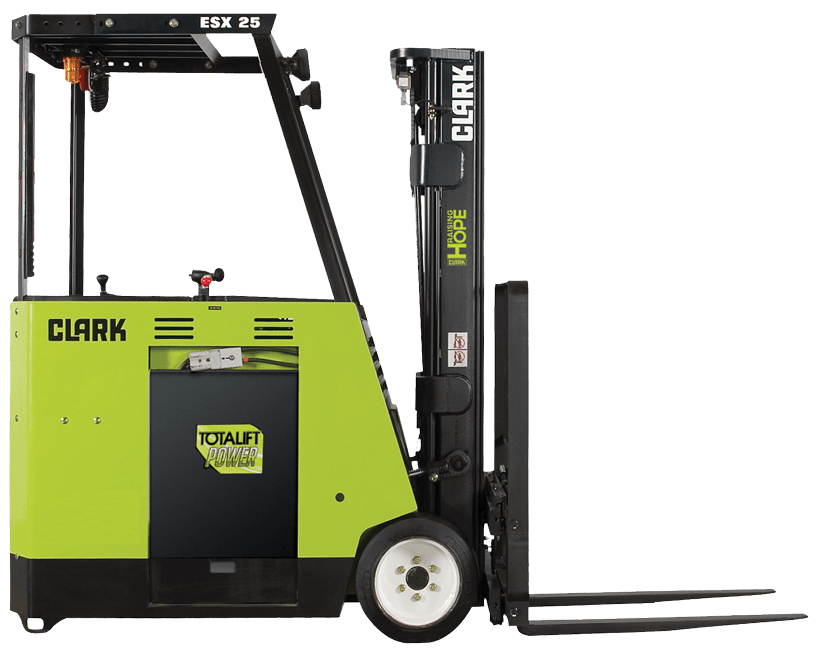

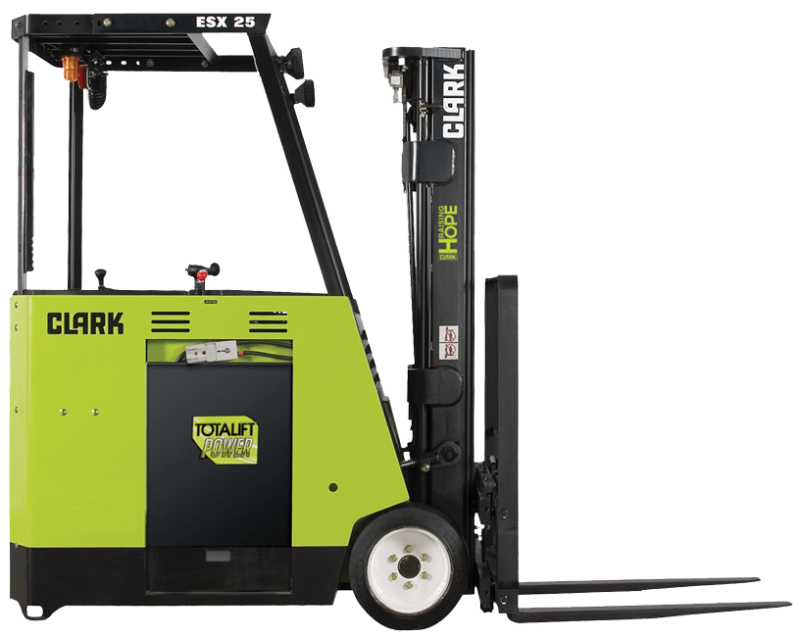

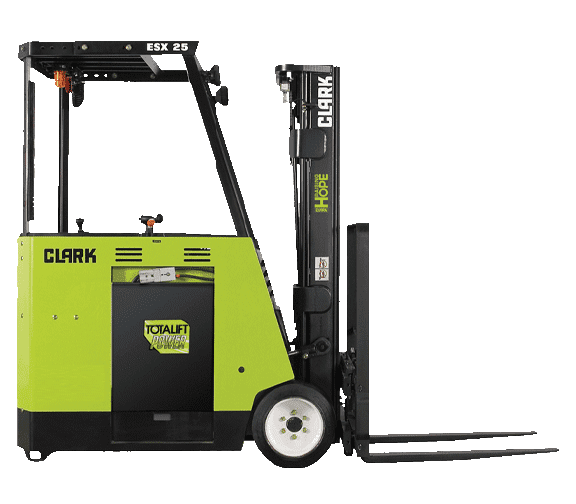

CLARK Stand-Up Electric Forklift

2,500 – 5,000 lb. Capacity
100% AC Electric Motor
Multifunctional Control Handle
Enclosed Electromagnetic Brakes
Fully Adjustable/Programmable Handset

Documents

Product Documents

CLARK ESX12/15S/17/20/22/25 Stand-Up Rider Spec Sheet

Financing Information

Product Description

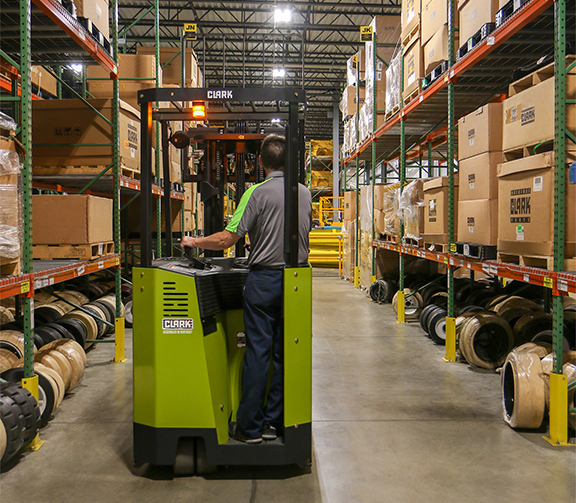

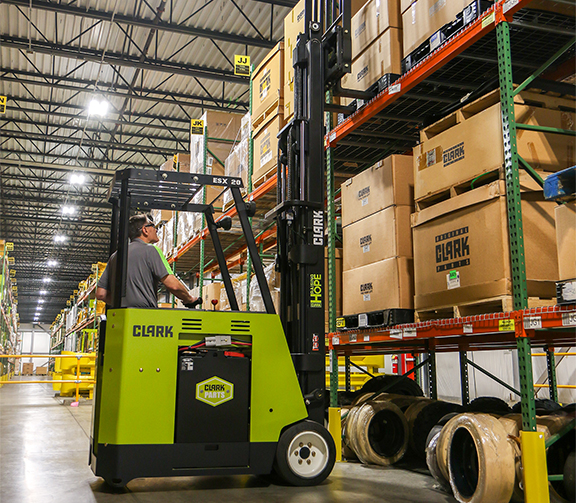

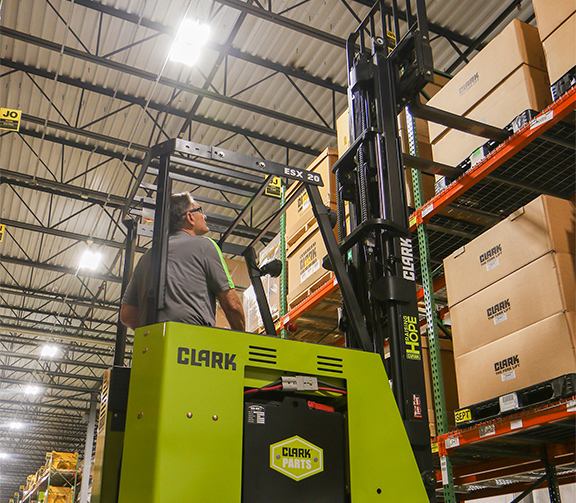

Aisle space is always at a premium. So the 100% AC CLARK ESX is not only designed to be fast, energy efficient and inexpensive to operate, we also made sure that your operators can use the ESX to negotiate those tighter spaces. “Well-Engineered” would be an understatement, so let’s go with… “Tenacious”.

Model Numbers: ESX 12 | ESX 15S | ESX 15 | ESX 17 | ESX 20 | ESX 22 | ESX 25

Equipment Details

Forklift Type	Electric Motor Riders
Brand	CLARK
Capacity	2,500 lbs., 3,500 lbs., 3,000 lbs., 4,000 lbs., 4,500 lbs., 5,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 36 Volt, Electric/Battery, 48 Volt

High efficiency, low maintenance, and powerful 100% AC electric system available in 36 or 48 volt
Enclosed electromechanical brakes eliminate master cylinder, seals, and fluids while being easily serviceable
Product enhancement package for two-way fork leveling, full range of tilt, and faster tilt speeds
“Best in Class” power with larger motors for cooler operation and increased efficiency
Clark-designed control handle featuring 3-function design, integrated mini thumb stick, and “custom fit” feel

“Custom fit” feel control handle is molded to fit a wide range of hand sizes for better ergonomics and less operator fatigue

100% AC electric system
- Enclosed, brushless smart lift lock out
- One motor for both steering and hydraulics
- Thermal and stall protection
- Larger motors for cooler operation and increased efficiency
Hydraulic System
- Two-way forklift leveling levels backward and forward, reducing broken pallets or bent racks
- Full forward tilt when forks are low allowing for broken pallet pick up and general chiseling operation/li>
- Faster tilt speeds allow for faster cycle times when forks are low
- Featherable, adjustable, and sealed pump motor adjusts speed to match hydraulic requirements
- Fly-by-wire design means no mechanical linkage and no wear
- Less battery use and no overheating increases ease of operation and allows faster cycle times
Brakes and Steering
- Enclosed electromagnetic brakes have no master cylinder, no seals, and no hydraulic fluids, resulting in no leaks
- Anti-roll away and ramp hold feature for increased control and enhanced safety/li>
- On the fly self-checking software increases control and enhances safety
Upright
- Nested I-channel mast allows space for cylinders, hoses and chains for maximum visibility
- Hydraulic cushioning valve allows for silent staging and reduces shock and vibration
- Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play
Controls
- 3-function control handle design allows simultaneous operation of (1) travel, (2) lift or lower and (3) one other hydraulic function
- Integrated mini thumb stick controls tilt and side shift + auxiliary function
- Two-way fork leveling [thumb stick + right button]

Maintenance-free AC motors
Fewer parts and minimum wear = less downtime = higher ROI
Enclosed electromagnetic brakes have no master cylinder, seals, or hydraulic fluid to eliminate leaks
Brakes are easy to service and rebuilt
Heavy duty drive motors and axles are easily accessible and serviceable

Travel speed reduction limits the speed of the truck when the forks are elevated to promote safer operation when dealing with high loads
Anti-roll away and ramp hold feature increases control and enhances safety
Completely customize parameters to operator’s preference, including acceleration rate, deceleration rate, and separate FW/RV max speed
