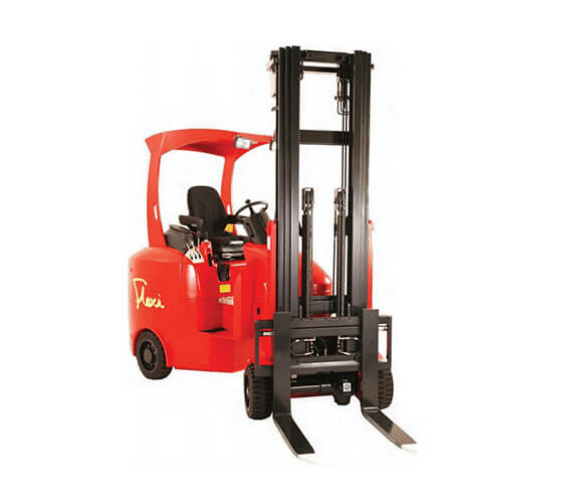

The Flexi 15VN is an electric articulated forklift designed to maximize warehouse storage capacity in very narrow aisle applications. Featuring 230° Over-Rotation™, a compact 40-inch chassis, and lift heights up to 25 feet, it allows operators to transport, stack, and retrieve pallets in confined warehouse environments. Its Road-to-Rack™ capability combines pallet transportation and narrow-aisle stacking in a single forklift, reducing the need for additional material handling equipment.
Flexi 15VN Forklift
- 2,850 lb. Rated Capacity
- Up to 25 ft. Maximum Lift Height
- 72 in. Minimum Aisle Width (48 x 40 in. Pallets)
- 230° Over-Rotation™ Articulation
- 48V Electric Power
Product Documents
Product Documents
Forklift Information
- Description
- Additional Information
- Advantages
- Standard Features
- Ergonomics
- Safety
- Performance
- Ease of Service
- Industries
- Sales Terms & Conditions
Additional Information
| Forklift Type | Narrow Aisle Forklifts |
|---|---|
| Forklift Capacity | Up to 3,000 lbs |
- Maximized Storage Capacity: Operates in aisles as narrow as 72 inches with standard 48 x 40-inch pallets, allowing facilities to increase pallet positions within existing warehouse space.
- Road-to-Rack™ Capability: Combines pallet transportation and high-level stacking in one forklift, reducing the need for separate equipment and additional pallet handling.
- Very Narrow Aisle Maneuverability: 230° Over-Rotation™ provides clearance for stacking and retrieving pallets in confined aisles.
- Flexible Warehouse Layouts: Supports conventional pallet racking, block stacking, and drive-in rack applications.
- Free-Ranging Operation: Can operate without fixed aisle guidance systems, providing flexibility for warehouse layout changes and existing guided VNA facilities.
- Reduced Rack Contact: The curved TrueRadius™ chassis helps minimize contact with racking and stored products during turning.
- 230° Over-Rotation™ articulated steering system
- Compact 40-inch TrueRadius™ chassis
- 48V electric power system
- Clear-view triplex mast with full free lift
- HiVIS twin-post overhead guard
- Compact front axle with continuous drive to both front wheels
- Zapi digital AC drive technology
- Independent electric drive, lift, and steering motors
- Four-wheel chassis with solid rubber tires
- Forward-facing seated operator position
- Forward-Facing Operator Position: Provides a seated operating position with direct visibility during travel and pallet handling.
- Clear-View Mast: Mast design improves sightlines when aligning forks with pallets and positioning loads at elevated rack locations.
- HiVIS Overhead Guard: Twin-post construction reduces structural obstructions to the operator’s forward field of view.
- Independent Power Steering: Dedicated electric steering motor provides responsive control without interference from lifting hydraulics.
- Precise Steering Control: Hydrostatic steering supports controlled maneuvering and pallet positioning within confined aisles.
- Four-Wheel Stability: Distributes truck weight across four wheels to support stability during travel and elevated load handling.
- 230° Over-Rotation™: Provides additional stacking clearance when maneuvering near pallet racking and stored products.
- HiVIS Overhead Guard: Provides overhead operator protection while maintaining forward visibility.
- TrueRadius™ Chassis: Curved chassis design helps reduce the potential for contact with racking during tight turns.
- Hydraulic and Regenerative Braking: Combines braking systems for controlled deceleration and stopping.
- Optional Visibility Equipment: Available cameras, blue LED spotlight, and red perimeter lighting support awareness in busy warehouse environments.
- 2,850 lb. Rated Capacity: Supports pallet handling in very narrow aisle warehouse applications.
- 25-Foot Maximum Lift Height: Provides access to elevated pallet storage positions in multi-level racking systems.
- 230° Articulation: Allows precise pallet positioning with reduced turning clearance requirements.
- Compact Front-Wheel Drive: Continuous drive to both front wheels provides traction and maneuverability in confined aisles.
- Digital AC Motor Technology: Electronically controlled drive, lift, and steering systems support responsive operation and efficient power use.
- Travel Speeds: Up to 7 mph loaded and 7.4 mph unloaded.
- 48V Battery System: Supports electric indoor material handling with available lead-acid and lithium-ion battery solutions.
- Accessible Battery Compartment: Easy-access design simplifies routine battery inspection and maintenance.
- Digital AC Drive Technology: Electronically controlled drive components are designed to reduce routine servicing requirements.
- Independent Motor Systems: Separate drive, lift, and steering motors allow individual systems to be inspected and serviced.
- Electric Powertrain: Eliminates combustion-engine oil changes, fuel-system maintenance, and exhaust-system servicing.
- Solid Rubber Tires: Eliminate tire pressure maintenance associated with pneumatic tires.
- Warehousing & Distribution
- Third-Party Logistics (3PL)
- Manufacturing
- Retail & E-Commerce Fulfillment
- Food & Beverage Warehousing
- Automotive Parts Distribution
- Wholesale Distribution
