Genie GS-2669 Scissor Lift

32 ft. 2 in. Working Height
1,500 lb. Platform Capacity
14 ft. 2 in. Extended Platform Length
DC or Diesel Power Options
Rough Terrain Capability

Documents

Product Documents

Aerial Lift Information

Videos

The Genie GS-2669 gives operations teams a rugged scissor lift solution for jobs that require more reach, workspace, and terrain capability than a standard slab scissor lift can provide. Available in electric DC and diesel RT configurations, this model delivers a 32 ft 2 in working height, a 1,500 lb platform capacity, and a large slide-out extension deck to help crews work efficiently at height.

Its rough terrain tires, active oscillating axle, and full-height drive capability make it well-suited for demanding jobsites, while features like proportional controls, folding rails, platform power, and built-in safety alarms support productive day-to-day operation. As your equipment dealer, we can help you compare the GS-2669 DC and GS-2669 RT to choose the right fit for your facility, jobsite, or fleet.

Model Numbers: GS-2669 DC | GS-2669 RT

Additional Information

Condition	New
Brand	Genie
MEWP Type	Scissor Lift
Power	Electric, Engine
MEWP Lift Height	26 – 40ft
MEWP Capacity	1,001 – 2,000 lbs

Available in two rough terrain configurations: the GS-2669 DC for quiet, emissions-free electric operation and the GS-2669 RT for diesel-powered outdoor performance.
Offers a 32 ft 2 in maximum working height and 1,500 lb platform capacity.
Designed for indoor and outdoor construction, maintenance and installation applications.
Large rough terrain platform provides a 5 ft 3 in platform width and 9 ft 2 in platform length.
Single slide-out extension deck expands the platform length to 14 ft 2 in for added reach and workspace.
Full-height drive capability allows operators to drive the machine at maximum platform height.

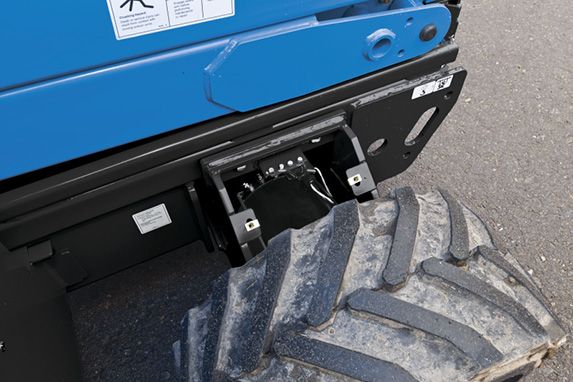

9.5 in ground clearance helps the machine travel across uneven jobsite surfaces.
Folding rails reduce stowed height to 6 ft 3.5 in with rails lowered, helping with transport and storage.

Folding rails with full-height swing gate.
Single slide-out extension deck.
AC power to platform.
Diamond plate platform deck.
Electronic horn.
Lanyard attachment points.
Platform control guard.
Platform load sense system.
Proportional drive and lift controls.
Self-closing entry gate.
Active oscillating axle.
Descent, tilt and motion alarm.
Dual LED flashing beacons.
Dual wheel multi-disc brakes.
Lift Connect telematics.

Auto-leveling hydraulic outriggers.
Air line to platform.
Lift Connect with Access Manager upgrade.
High-floatation foam-filled tires.
Cold weather package on RT models.
3kW AC generator on RT models.
Biodegradable hydraulic oil and cold weather hydraulic oil on RT models.
Power inverter on DC models.
High-capacity DC battery on DC models.
Lift Tools productivity tools, Lift Connect telematics and Tech Pro Link handheld device accessories.

Proportional drive and lift controls help operators make smooth, controlled movements.
Self-closing entry gate and full-height swing gate support easier platform entry and exit.
Single slide-out extension deck gives operators more room to work and reach tasks without repositioning as often.
AC power to platform supports the use of tools at height.
Diamond plate platform deck provides a durable work surface.
Electronic horn supports communication around busy jobsites.
DC model operates at less than 70 dBA at both the ground and platform workstations, making it a quieter choice for indoor or noise-sensitive environments.

Platform load sense system helps monitor platform loading.
Lanyard attachment points support proper fall protection practices.
Descent, tilt and motion alarms help alert operators and nearby workers during operation.
Dual LED flashing beacons increase machine visibility on the jobsite.
Dual wheel multi-disc brakes support controlled stopping performance.
Platform control guard helps protect the control box from jobsite impacts.
Self-closing entry gate helps keep the platform entrance secured during operation.
6 in toeboards help keep materials and tools contained on the platform.
Tilt sensor activation is rated at 3 degrees front-to-back and 2 degrees side-to-side.

GS-2669 DC features a 48V DC drive system with sealed AC drive motors for emissions-free performance.
GS-2669 RT features a 24.8 hp Kubota diesel engine for rough terrain outdoor applications.
GS-2669 DC offers 35% gradeability when stowed.
GS-2669 RT offers rough terrain capability with up to 40% gradeability in the specification sheet and up to 45% gradeability listed on the product webpage.
GS-2669 DC provides a 4.5 mph stowed drive speed and 0.3 mph raised drive speed.
GS-2669 RT provides a 3.5 mph stowed drive speed and 0.3 mph raised drive speed.
GS-2669 DC uses 2-wheel drive with rough terrain, foam-filled, non-marking tires.
GS-2669 RT uses 4-wheel drive with foam-filled rough terrain tires and positive traction control.
Active oscillating axle helps maintain traction by automatically adjusting to ground conditions.
GS-2669 DC lift speed is 34 seconds up and 36 seconds down.
GS-2669 RT lift speed is 34 seconds up and 36 seconds down.
Inside/outside turning radius is 83 in / 181.2 in.

Lift Connect telematics supports fleet visibility and machine monitoring.
Tech Pro Link connector on DC models supports diagnostics and service access.
On-board diagnostic system with battery charge indicator on DC models helps simplify troubleshooting and battery monitoring.
Rear axle sealed AC drive motors on DC models help protect drive components in demanding conditions.
Swing-out engine tray on RT models improves service access.
Platform control with fault indicator on RT models helps operators and technicians identify machine issues.
Dual wheel multi-disc brakes and foam-filled tires are designed for rugged jobsite use.

Construction.
Outdoor jobsites and rough terrain work areas.
Facility maintenance.
Installation work.
Warehousing and distribution.
Industrial maintenance.
Indoor applications requiring quiet, emissions-free electric operation.
Jobsites with dirt, sand or mud where rough terrain capability is needed.
