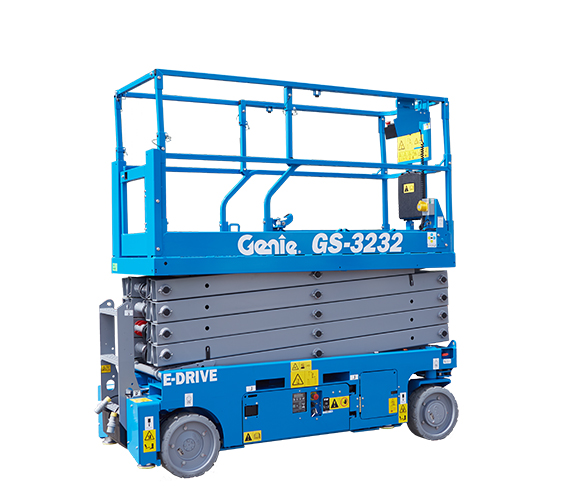

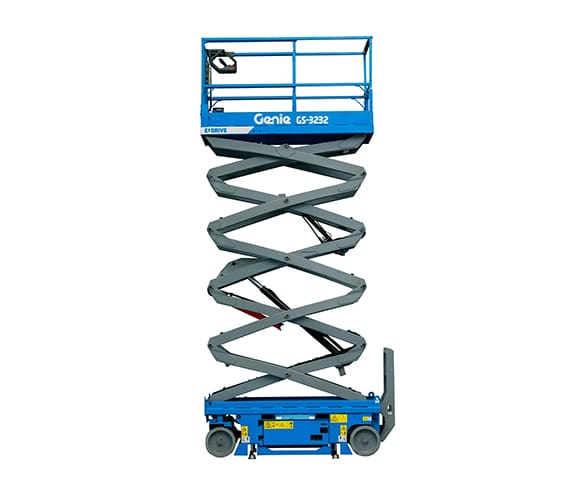

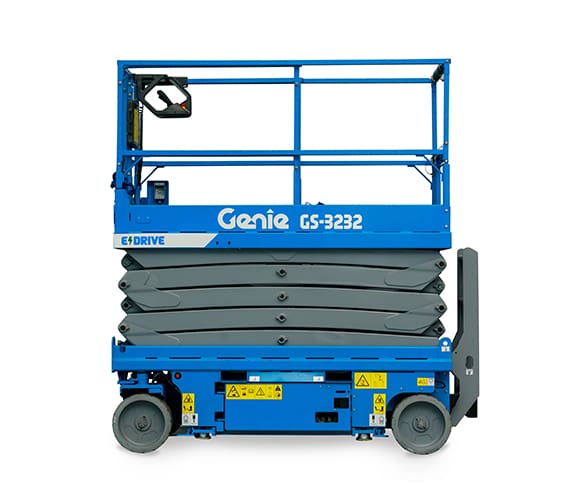

Genie GS-3232 Scissor Lift

38 ft. Working Height
500 lbs. Capacity
32 in. Machine Width
89 in. Machine Length
5,185 lbs. Machine Weight

Documents

Product Documents

The Genie GS-3232 self-propelled electric scissor lift is ideal for maneuvering in tight spaces, making them the right equipment choice for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.

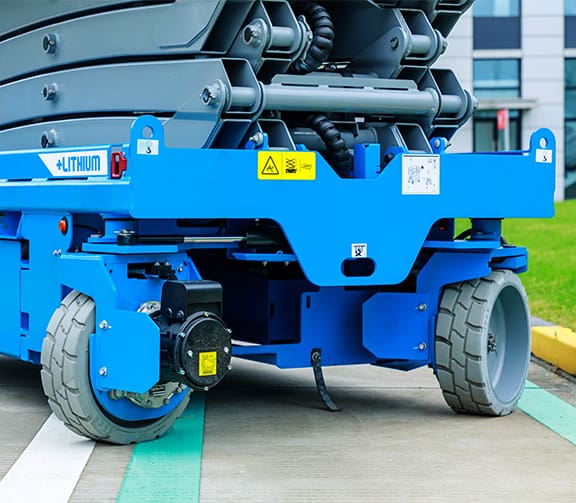

With front-wheel drive and zero inside turning radius, the GS-3232 boasts excellent maneuverability in tight spaces.

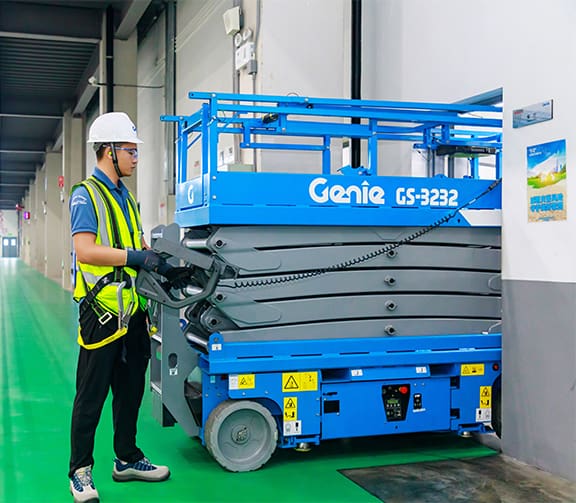

Characterized by low noise levels, this lift provides excellent capacity and generous platform work space. Low-emission electric scissor lifts deliver a quiet, convenient solution for sound-sensitive environments like office buildings, shopping malls, hotels, schools and more. Gain access to even loftier jobs with the Genie GS-3232 lift.

Additional Information

MEWP Type	Scissor Lift

Front-wheel drive for excellent maneuverability in tight, congested spaces or narrow aisles
Roll-out platform extension provides maximum work space for workers and tools

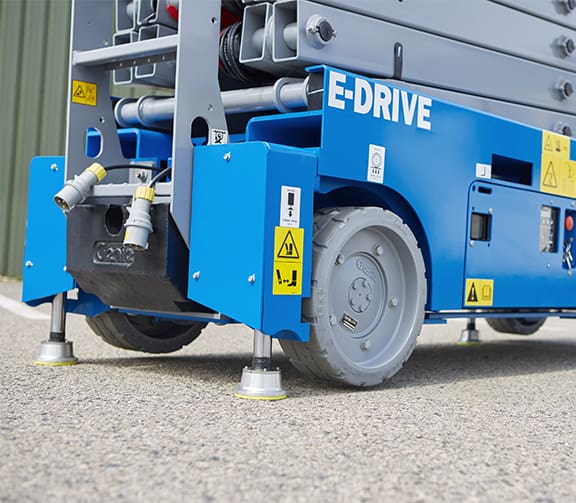

Automatic leveling hydraulic outrigger system levels machine on slopes up to 5˚

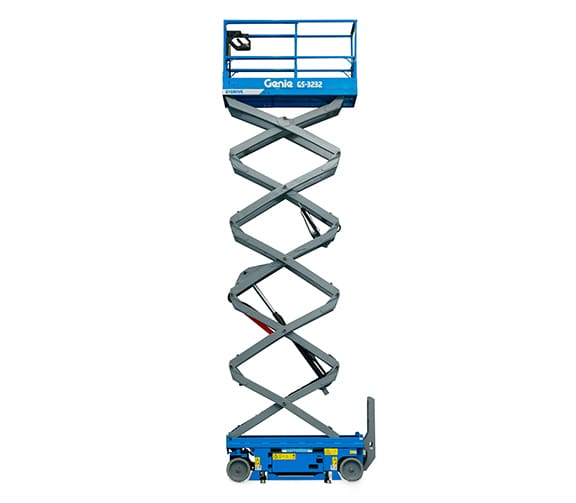

Link stack is centered at full elevation and platform extension for machine rigidity
Compact dimensions and folding guardrails ensures the GS-3232 can easily pass through standard single doors

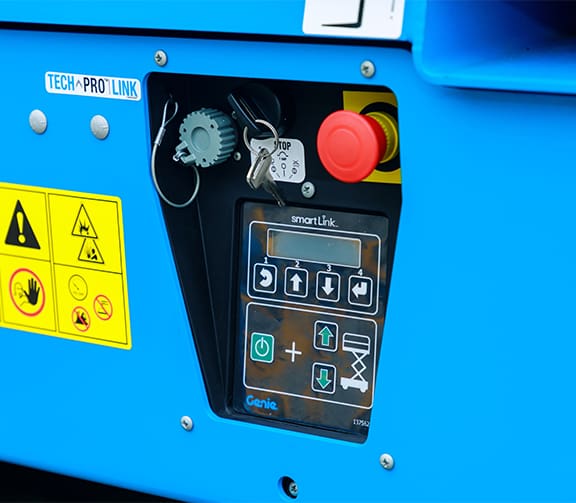

On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field to increase uptime
Swing-out battery box and power module trays allow easy access to engine components for convenient service
Zero-emission electric power delivers a quiet, convenient solution for sound-sensitive environments

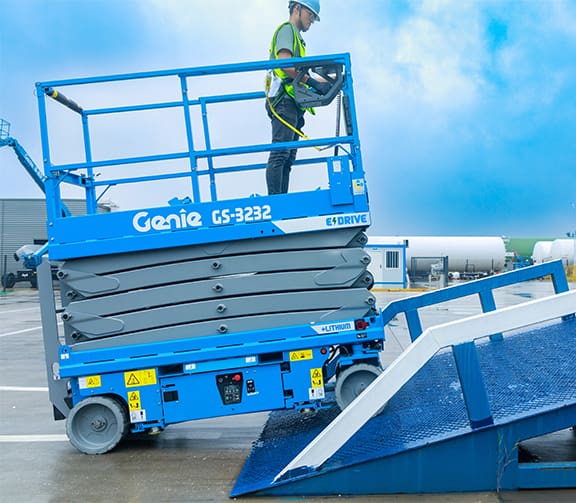

Outdoor functionality on firm, level surfaces providing accessibility for a wide variety of applications

89 x 32 in (2.26 x .81 m) steel platform

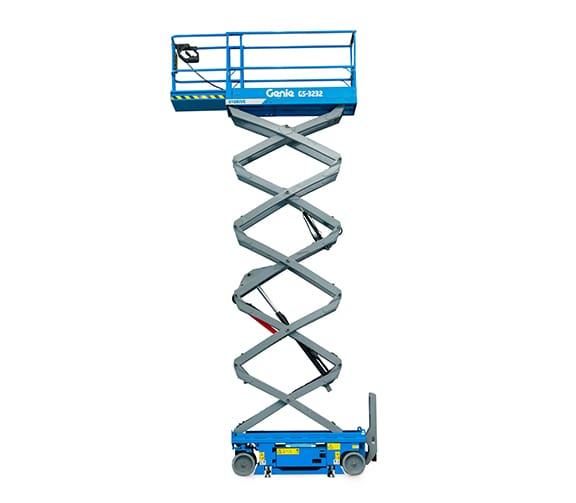

36 in (.91 m) extension deck
Fixed rail with chain entry gate (standard GS™-2032)

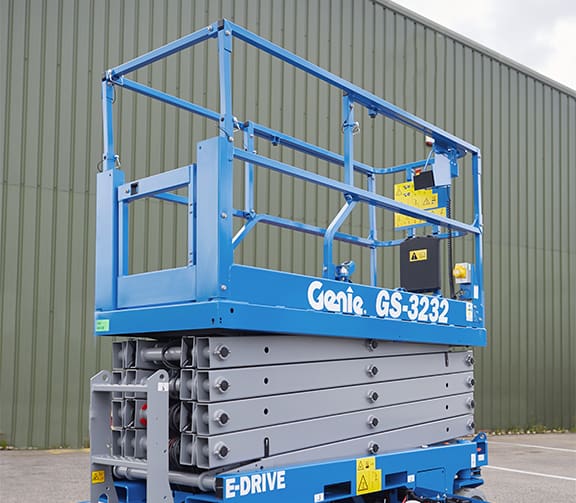

Folding rails with half-height swing gate (standard on all CE, GS™-2632, GS™-3232)
Automatic leveling outriggers (GS™-3232 only)
Dual front wheel drive
Universal 20 amp smart charger
Rear recessed charger receptacle

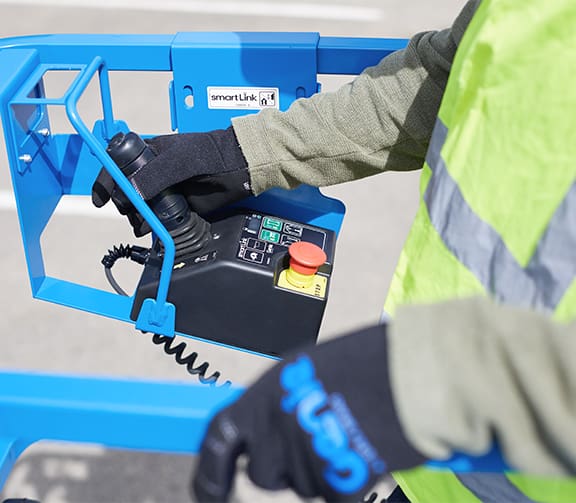

SmartLink^™– proportional lift and drive
Platfrom control with battery charge indicator and diagnostic display
On-board diagnostic system
AC power to platform
Lanyard attachment points
Manual platform lowering valve
Emergency stop at both platform and ground controls
Rear wheel multiple disc brakes
Front wheel hydraulic dynamic braking
Brake release
Swing-out component trays
Solid non-marking tires
Pothole guards
Tilt level sensor with audible alarm
Descent alarm
Electronic horn
Hour meter
24 V DC (four 6 V 225 Ah batteries)
