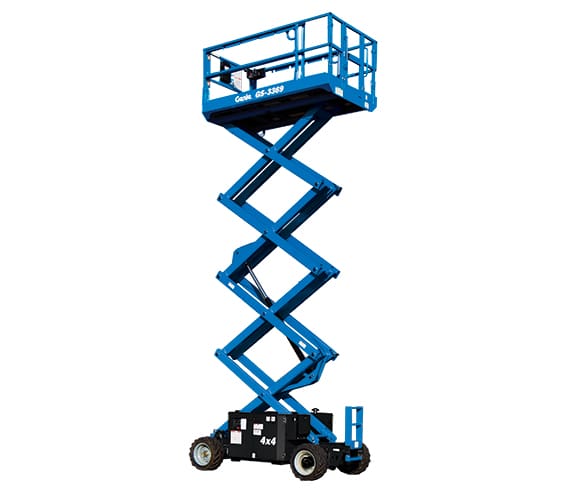

Genie GS-4069 Scissor Lift

46 ft 3 in Working Height
800 lb Platform Capacity
5 ft Slide-Out Extension Deck
Full-Height Drive Capability
Rough Terrain Performance

Documents

Product Documents

Aerial Lift Information

Videos

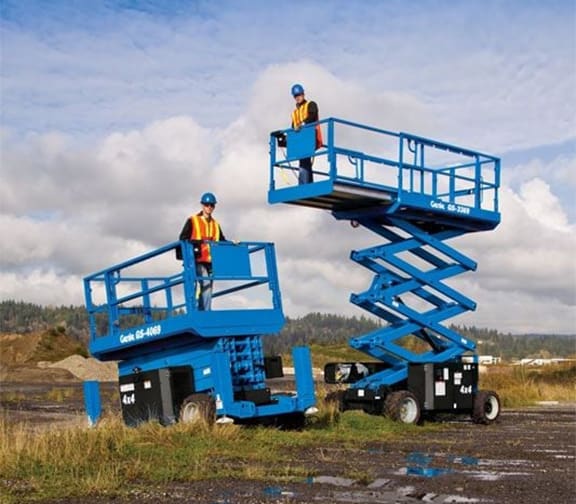

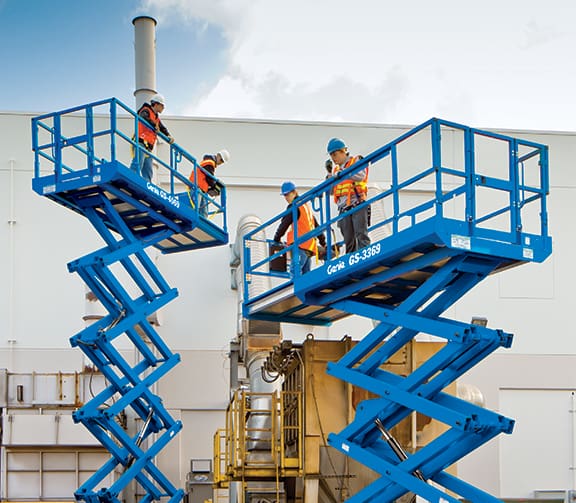

The Genie GS-4069 rough terrain scissor lift gives operations managers a reliable way to reach elevated work areas while keeping crews productive, stable, and supported on demanding jobsites. With a 46 ft 3 in working height, 800 lb platform capacity, and 5 ft slide-out extension deck, this lift provides the space and reach needed for maintenance, installation, construction, and facility work. Full-height drive capability helps operators reposition the lift without lowering the platform, reducing downtime between tasks.

Available in diesel RT and electric DC configurations, the GS-4069 can be matched to outdoor rough terrain work or quieter, emissions-free applications. As your equipment dealer, Conger can help you choose the right configuration, options, and support plan for your operation.

Model Numbers: GS-4069 RT | GS-4069 DC

Additional Information

Condition	New
Brand	Genie
MEWP Type	Scissor Lift
Power	Electric, Engine
MEWP Lift Height	26 – 40ft
MEWP Capacity	501 – 1,000 lbs

Both models provide a 46 ft 3 in maximum working height and 800 lb platform capacity for productive elevated work.
Full-height drive capability allows operators to reposition the lift at maximum platform height, helping reduce downtime between tasks.
A 5 ft slide-out extension deck expands the work platform to improve reach and access.

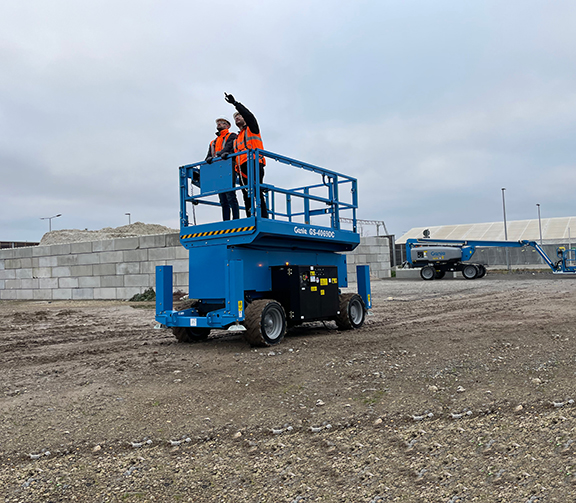

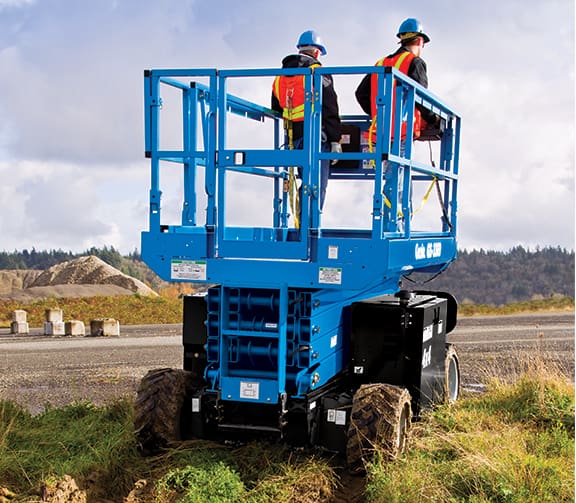

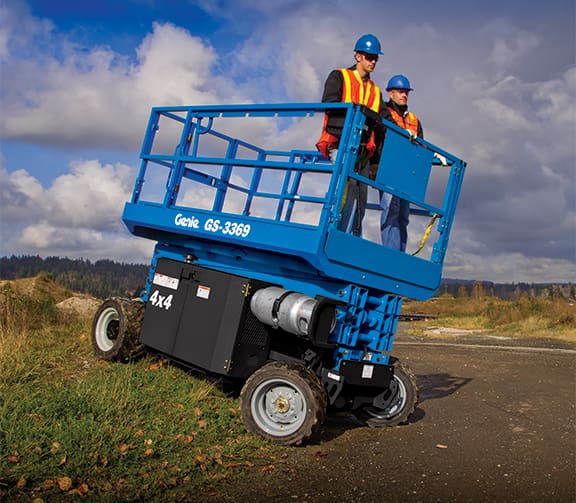

Rough-terrain capability makes the GS-4069 series suitable for demanding jobsites where traction and ground clearance matter.

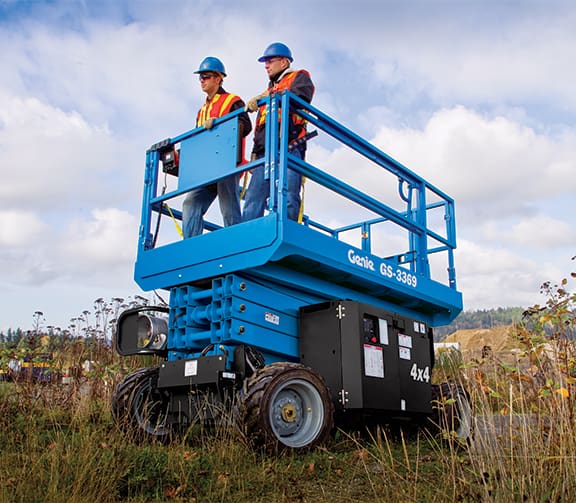

The GS-4069 RT offers diesel power, four-wheel drive, positive traction control and up to 35% gradeability for outdoor construction environments.

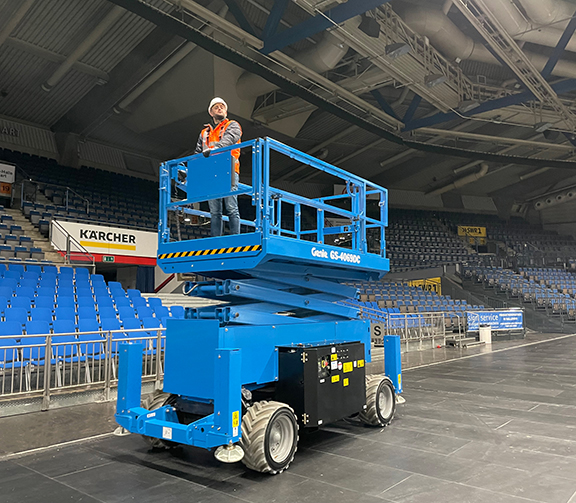

The GS-4069 DC offers quiet, emissions-free electric operation for indoor/outdoor applications on firm, level surfaces.

46 ft 3 in maximum working height

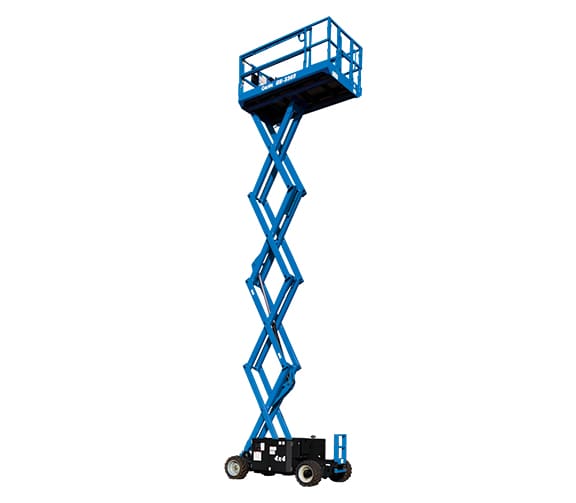

40 ft 3 in maximum platform height
800 lb lift capacity
300 lb capacity on the extension deck
5 ft slide-out platform extension deck

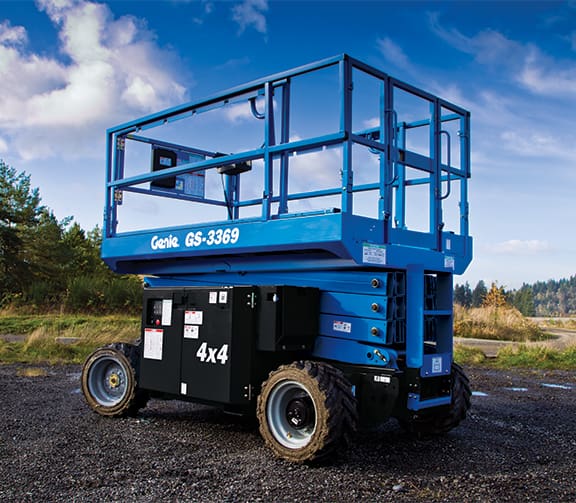

Folding rails
Full-height swing gate
Diamond plate platform deck
AC power to platform
Electronic horn
Lanyard attachment points
Platform control guard
Platform load sense system
Proportional drive and lift controls
Self-closing entry gate
Active oscillating axle
Dual LED flashing beacons
Dual wheel multi-disc brakes
Descent, tilt and motion alarm

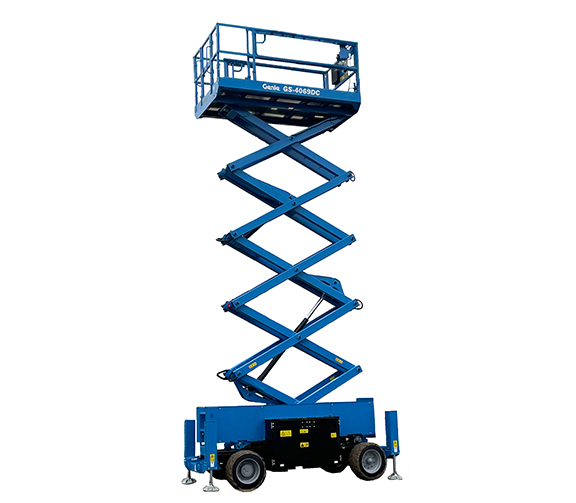

Auto-leveling hydraulic outriggers
Air line to platform
Lift Connect telematics
Lift Connect with Access Manager upgrade
Biodegradable hydraulic oil
Cold weather hydraulic oil
Cold weather package on RT models
3 kW AC generator on RT models
Power inverter on DC models
High-capacity DC battery on DC models
Genie Genuine Accessories, including Lift Tools productivity tools, Lift Connect telematics and Tech Pro Link handheld device

Proportional drive and lift controls support smooth, controlled machine movement.
Full-height drive capability helps operators make fewer trips up and down while repositioning.

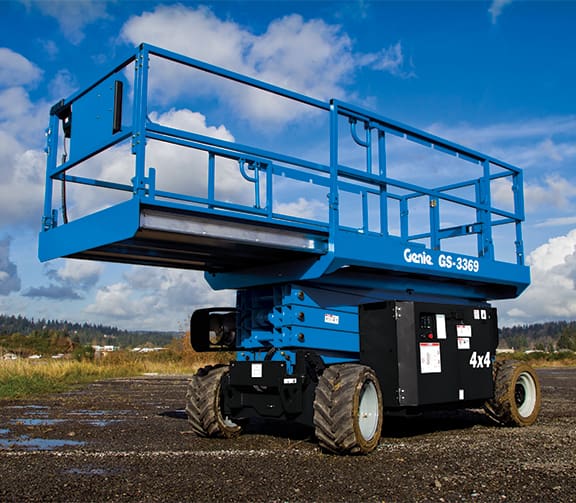

The slide-out extension deck provides additional reach from the platform.

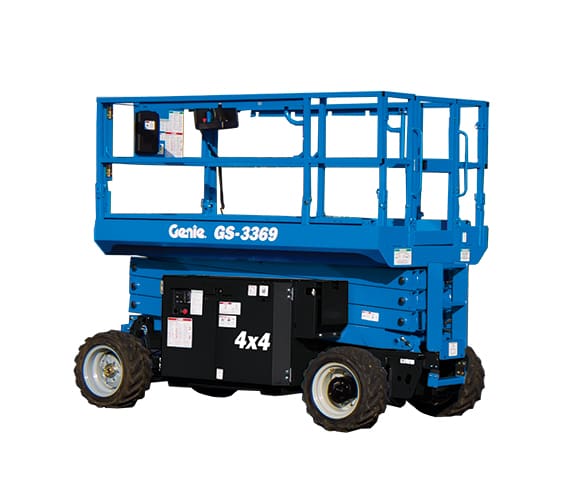

Folding rails help reduce stowed height for transport and access through height-restricted areas.
AC power to the platform supports power tools and jobsite accessories.
The GS-4069 DC operates at less than 70 dBA at both ground and platform workstations, supporting quieter work environments.

Platform load sense system helps monitor platform capacity.
Descent, tilt and motion alarms alert operators during key operating conditions.
Lanyard attachment points support fall protection requirements.
Platform control guard helps protect platform controls during operation.
Self-closing entry gate and full-height swing gate help secure platform access.
Dual LED flashing beacons improve jobsite visibility.
Dual wheel multi-disc brakes provide controlled stopping performance.
Tilt sensor activation is rated at 3 degrees front-to-back and 2 degrees side-to-side.

Maximum working height: 46 ft 3 in
Maximum platform height: 40 ft 3 in
Platform capacity: 800 lb
Extension deck capacity: 300 lb
Machine width: 5 ft 9 in
Ground clearance: 9.5 in
Inside/outside turning radius: 83 in / 181.2 in
Lift speed: 61 seconds up / 43 seconds down
GS-4069 RT: diesel power, four-wheel drive, foam-filled rough-terrain tires and 3.5 mph stowed drive speed
GS-4069 DC: 48V DC electric drive system, non-marking rough-terrain tires and 4.5 mph stowed drive speed

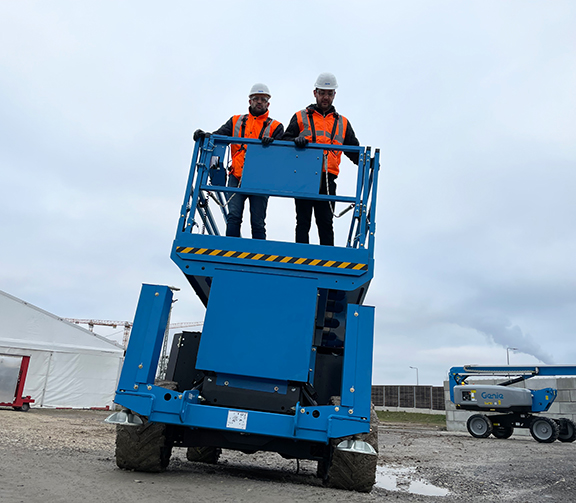

Both models offer 35% stowed gradeability.

Lift Connect telematics helps support fleet visibility and equipment management.

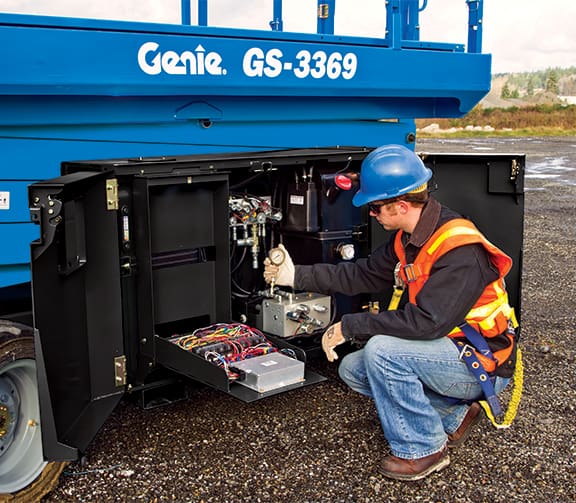

Tech Pro Link compatibility supports service and diagnostic access.

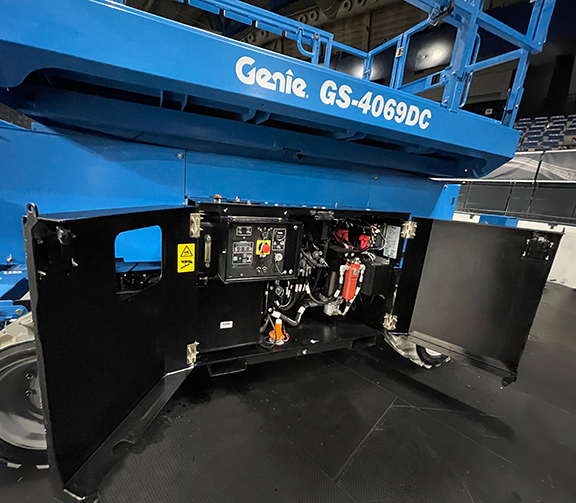

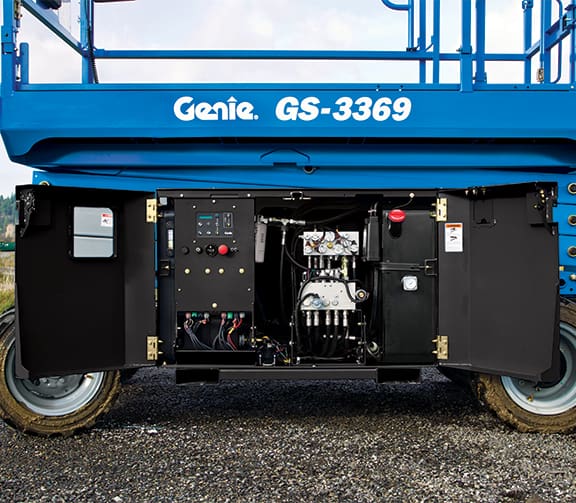

The GS-4069 RT includes a swing-out engine tray for improved engine access.
The GS-4069 DC includes an onboard diagnostic system with battery charge indicator.
The GS-4069 DC includes rear axle sealed AC drive motors.

Construction
Outdoor jobsite work
Maintenance
Installation
Warehousing
Facility maintenance
Steel erection
Glass installation
Mining and industrial environments
