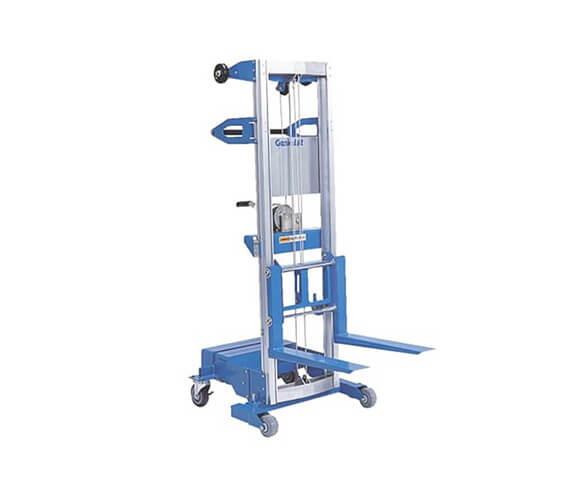

Genie Lift

350 – 500 lb. Capacity
13 ft. 9.5 in. Lift Height
5 ft. 7.5 in. Minimum Stowed Height
126-154 lbs. Machine Weight

Documents

Product Documents

With three base models and many accessories to choose from, the Genie® Lift™ is ideal for all your material handling needs. Perfect for a variety of jobs in material handling, the Genie Lift can be used as a hand truck, forklift or dolly.

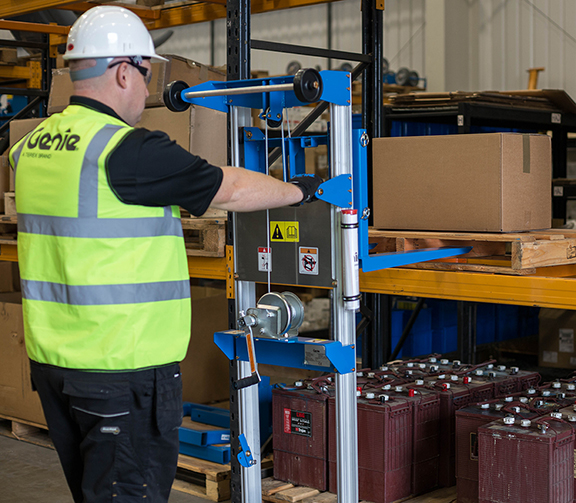

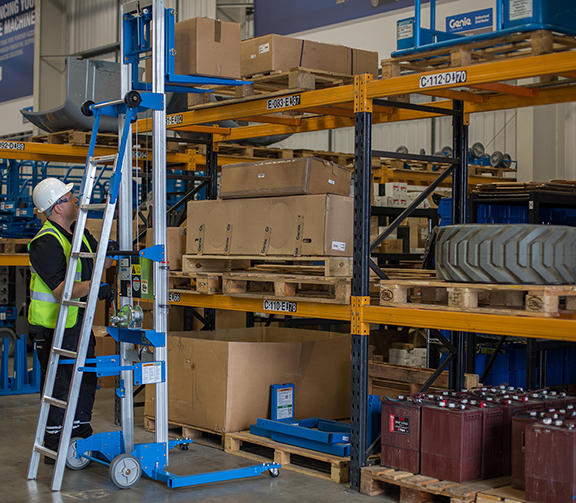

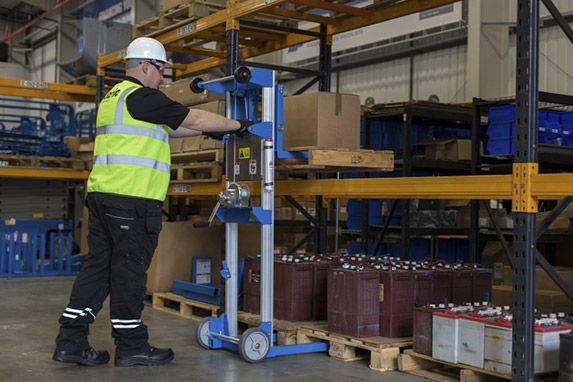

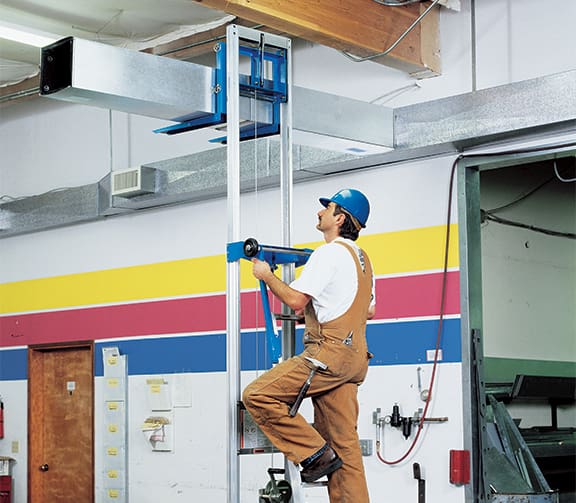

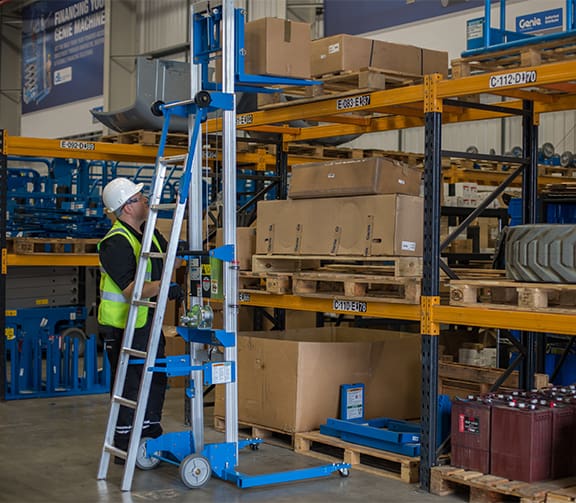

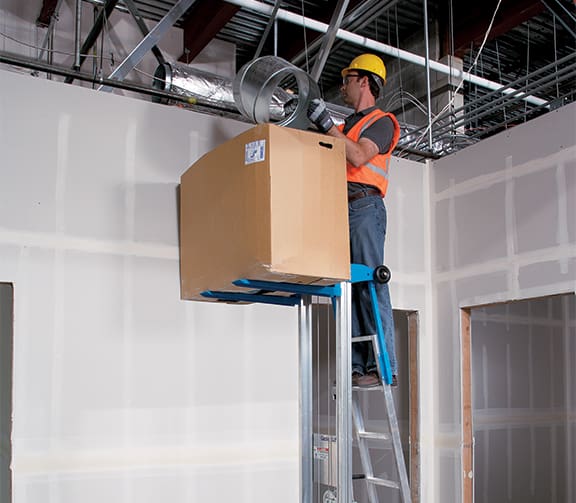

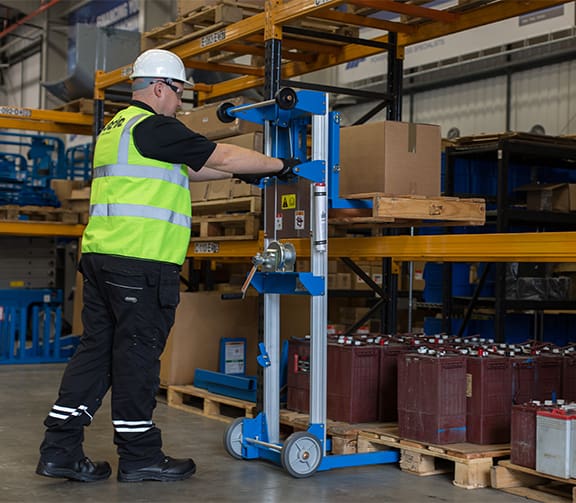

The Genie Lift is well suited for shipping/receiving, lifting heavy material to or from shelves, installing and repairing HVAC components, lifting and moving automotive parts, transporting computer and server components, as well as other manufacturing applications. Compact and versatile, this unit is also easily loaded in a pickup truck for convenient transport.

Additional Information

MEWP Type	Material Lift

Telescoping aluminum frame design makes the unit extremely compact
Reversible winch handle and hold-down mechanism secures the carriage for easy transport and storage

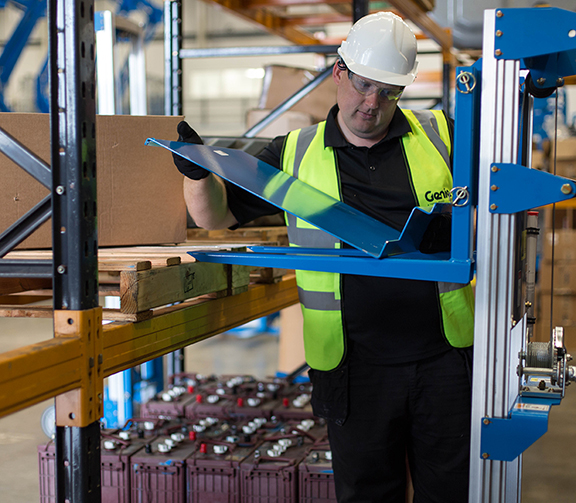

Durable steel forks can be reversed for greater access

Portable and compact design

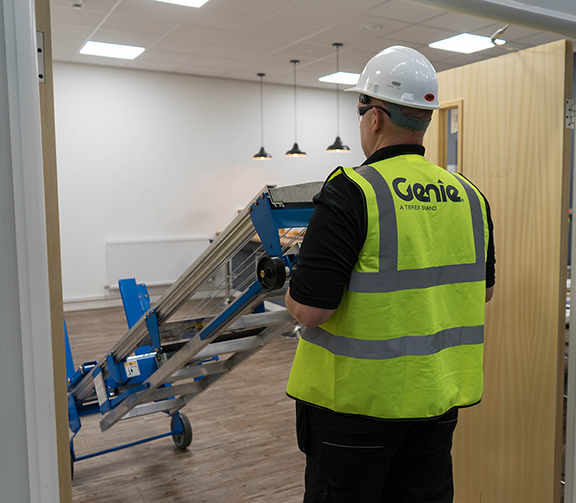

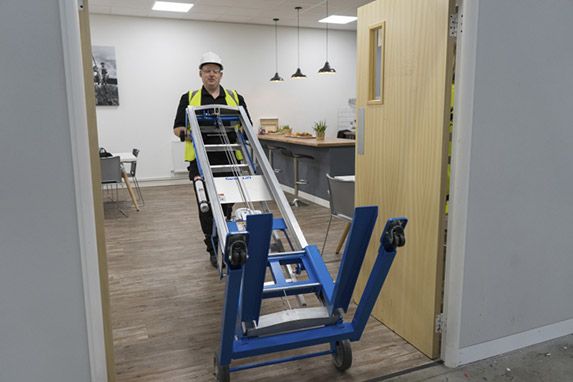

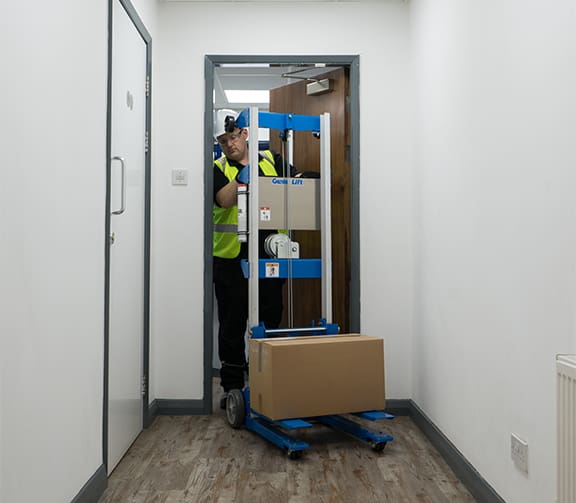

Rolls easily through a single door
Durable standard steel forks

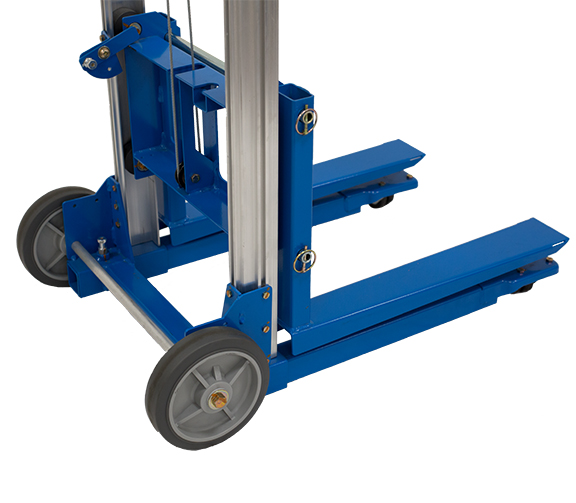

8 in (20 cm) non-marking rear wheels and 2 in (5 cm) dual wheel front swivel casters (standard and straddle base only)
5 in (12 cm) rear swivel casters with side brakes and 4 in (10 cm) fixed front wheels (counterweight base only)
Loads easily into a pickup truck for transporting
Hold-down mechanism secures carriage during transport

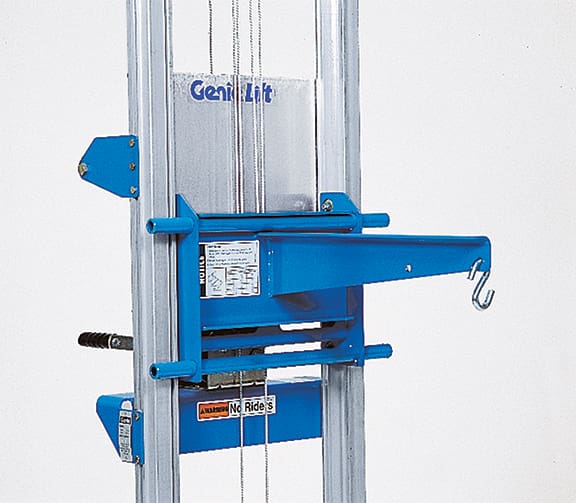

Boom
Load platform

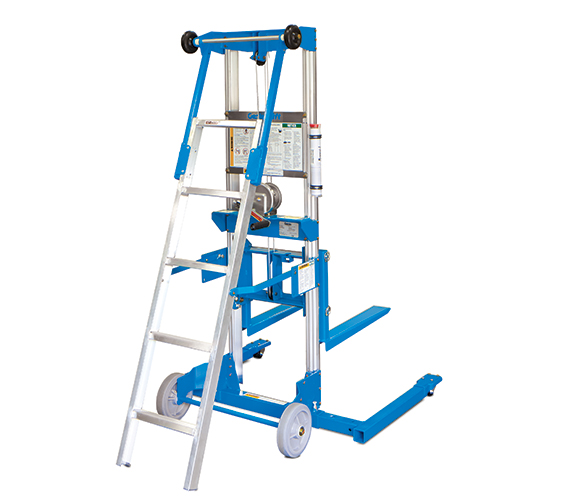

Aluminum ladder (standard and straddle base only)
Foot-release brake (standard and straddle base only)

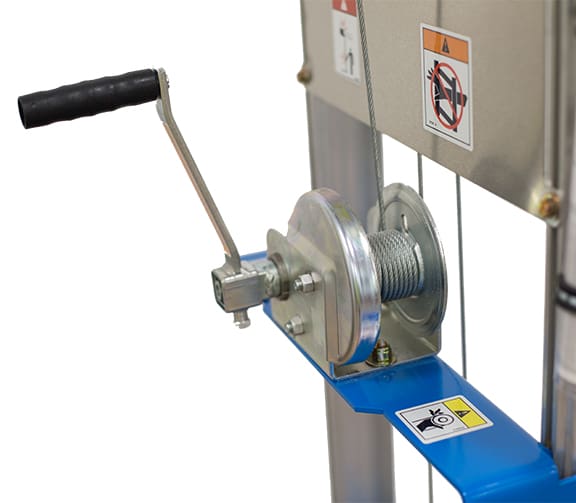

Heavy duty winch
Winch operates while ladder is in use or stowed

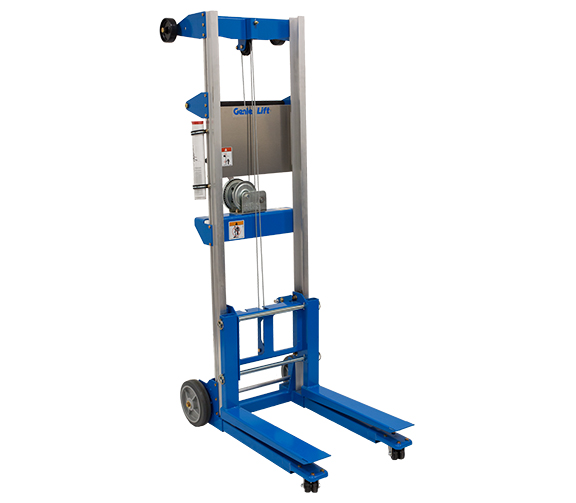

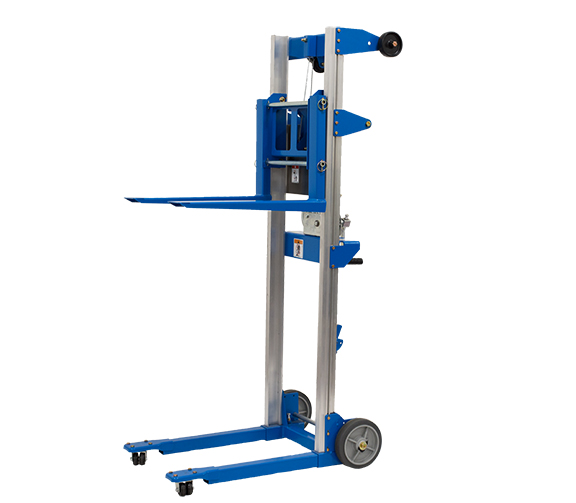

Standard base (GL-4, -8 only)
Straddle base (all units)

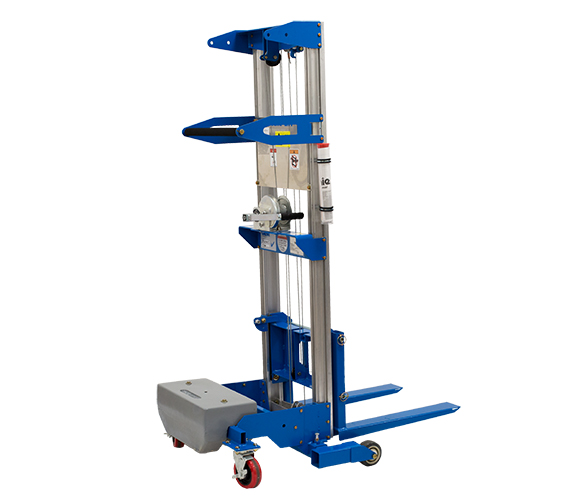

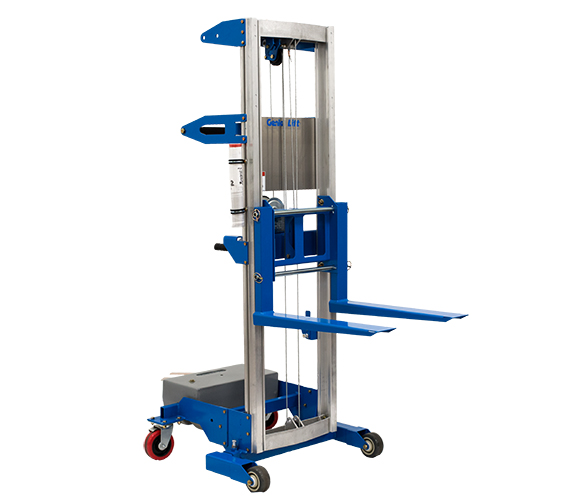

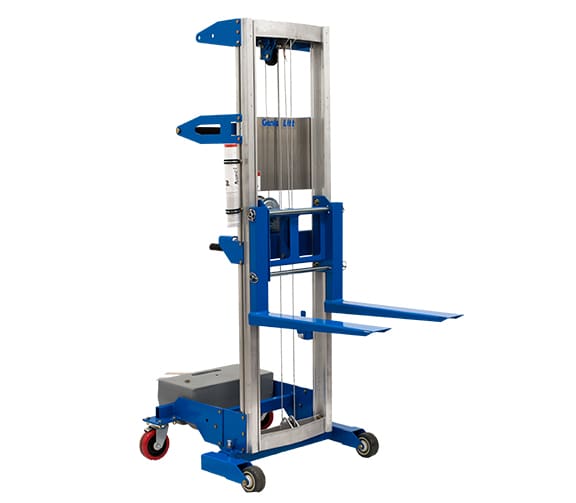

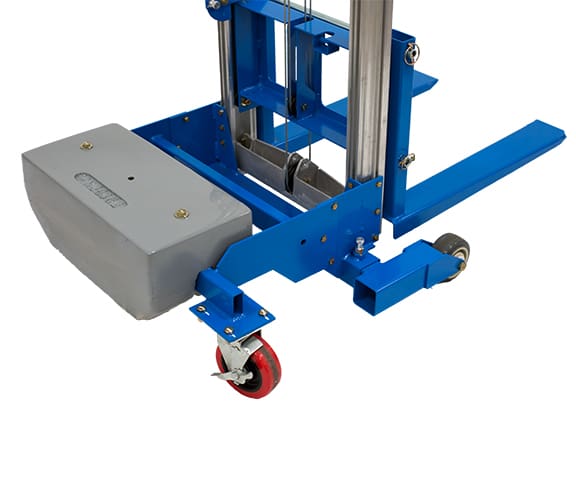

Counterweight base (GL-4, -8, -10 only)
10 in (25 cm) pneumatic rear wheels, 2.5 in (6.5 cm) front swivel casters
4 point caster option A: 4 in (10 cm) rear swivel casters, 2 in (5 cm) front swivel casters
4 point caster option B: 5 in (12 cm) rear swivel casters, 2.5 in (6.5 cm) front swivel casters
