Genie Runabout

17 ft 4 in. – 25 ft 9 in. Indoor Working Height
15 ft 1 in. – 21 ft 6 in. Outdoor Working Height
350 – 500 lb. Platform Capacity
Zero Inside Turning Radius
2 ft 5.5 in. – 2 ft 7.5 in.

Documents

Product Documents

Aerial Lift Information

The Genie GR-12, GR-15 and GR-20 vertical mast lifts give operations teams a compact, efficient way to handle elevated work in tight indoor spaces. Their narrow footprint, zero inside turning radius and low entry height make them easy to position through doorways, around equipment and in busy facility environments.

With proportional lift and drive controls, solid non-marking tires, platform extension options and built-in safety features like pothole protection, load sensing and motion alarms, these lifts are designed to help crews work confidently and productively. As a Genie equipment dealer, Conger can help you choose the right GR model for your height, capacity and facility needs.

Model Numbers: GR-12 | GR-15 | GR-20

Additional Information

Condition	New
Brand	Genie
Power	Electric
MEWP Lift Height	Up to 25ft
MEWP Capacity	Up to 500 lbs

Compact, lightweight vertical mast lifts designed to enhance workplace productivity.
Economical access solution for operators who need a low-cost alternative to larger aerial lifts.
Easy to maneuver, use and transport, helping support excellent uptime.

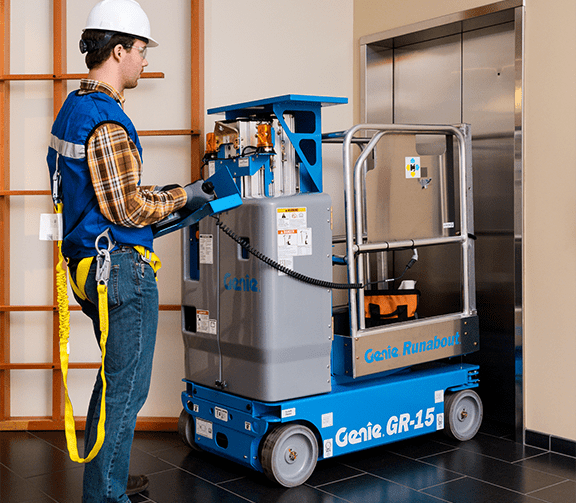

Compact size allows the units to fit through doorways and most passenger elevators.
Zero inside turning radius improves maneuverability in tight work areas.
Narrow access design makes these lifts well-suited for confined indoor spaces.
Low entry height helps make platform access easier for operators.
Available in three height ranges to match different access needs: GR-12, GR-15 and GR-20.

24V DC proportional lift and drive controls.
SmartLink dual zone control system.
AC power to platform.
Auxiliary platform lowering.
Platform control guard.
Platform load sense system.
Descent, tilt and motion alarm.
Dual LED flashing beacons.
Dual wheel multi-disc brakes.
Hinged rear ABS covers for easy access.
Hour meter.
Hydraulic brake release.
Large forklift pocket access.
Lift Tools Spill Guard.
On-board diagnostic system with battery charge indicator.
Overhead crane attachment point.
Pothole protection.
Solid non-marking tires.
Tech Pro Link connector.
Tie-down attachment points.
Standard FLA flood lead acid batteries.
Gated extension aluminum platform.

AGM maintenance-free batteries.
Power inverter.
Retractable charging cord.
Sliding mid-rail standard aluminum platform.
Sliding mid-rail extension aluminum platform.
Automotive-style horn.
Lift Tools Work Tray.
Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Biodegradable hydraulic oil.
Drive cut-out while charging.
Lift Guard White Noise Alarm.
Lift Tools productivity tools.
Lift Connect Telematics subscription extension.
Tech Pro Link Connector.

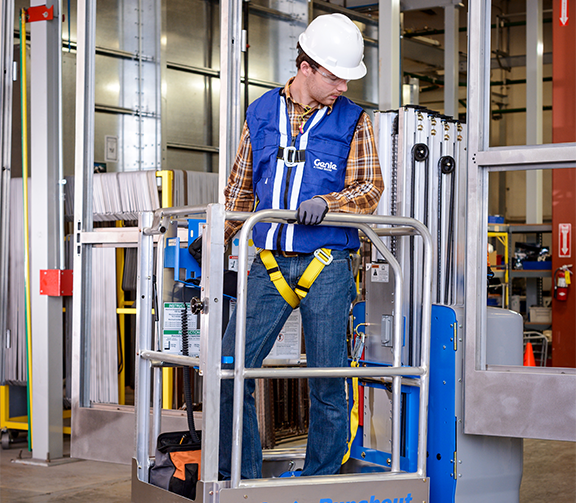

Low entry height supports easier access to the platform.

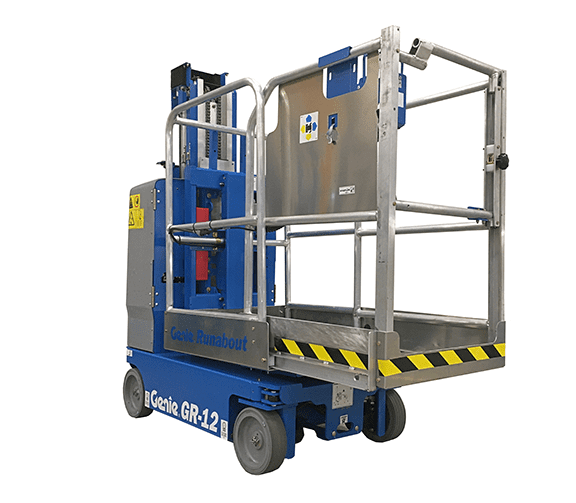

Compact platform design helps operators work in tight indoor areas.

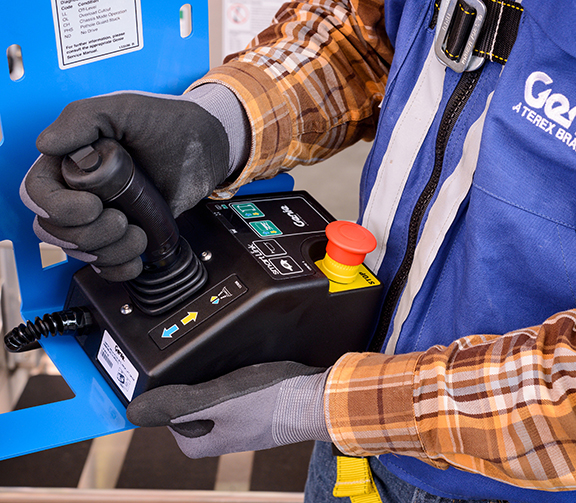

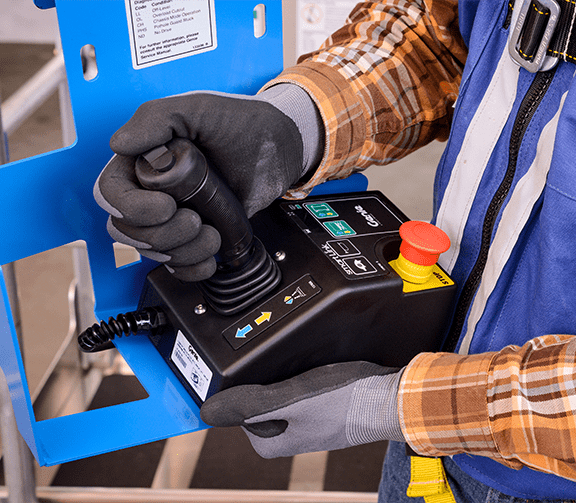

Proportional controls provide smoother lift and drive operation.

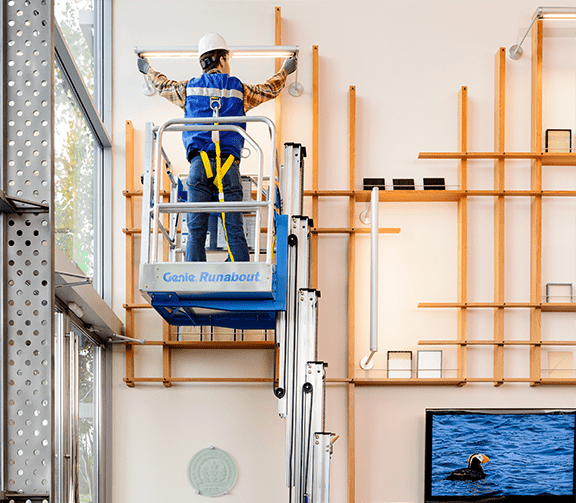

Extension platform options provide additional reach within the work area.
AC power to the platform supports powered tools and jobsite accessories.
Lift Tools Work Tray option helps keep tools and small parts organized while working.

Platform load sense system helps monitor platform capacity.
Descent, tilt and motion alarm provides operator and jobsite alerts.
Dual LED flashing beacons increase machine visibility.
Dual wheel multi-disc brakes support controlled stopping.
Pothole protection helps improve stability while elevated.
Platform control guard helps protect controls during operation.
Auxiliary platform lowering provides a backup lowering function.
Lift Guard White Noise Alarm option provides an audible warning solution.
Drive cut-out while charging option helps prevent operation during charging.
Tilt sensor activation is rated at 3 degrees front-to-back and 1.5 degrees side-to-side.

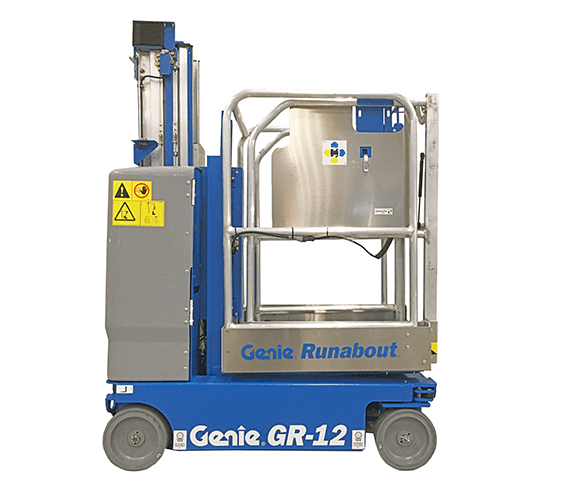

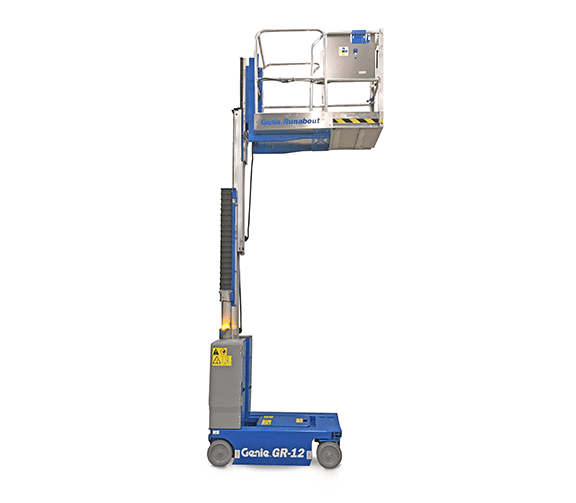

GR-12 provides a maximum indoor working height of 17 ft 4 in and maximum outdoor working height of 15 ft 1 in.
GR-15 provides a maximum indoor working height of 20 ft 8 in and maximum outdoor working height of 17 ft 1 in.

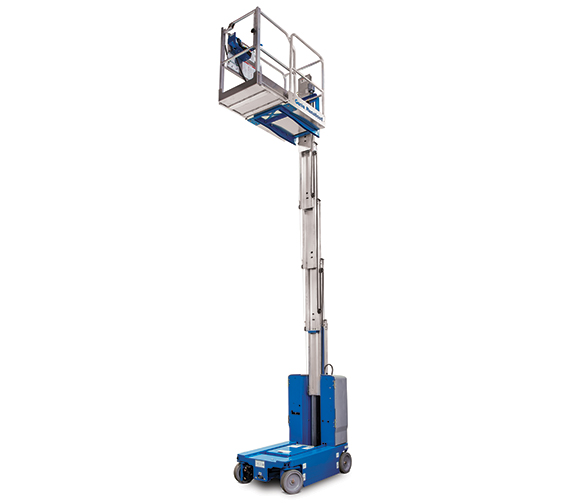

GR-20 provides a maximum indoor working height of 25 ft 9 in and maximum outdoor working height of 21 ft 6 in.
GR-12 and GR-15 offer 500 lb lift capacity.
GR-20 offers 350 lb lift capacity.
Extension deck lift capacity is 250 lb across all three models.
Zero inside turning radius helps operators maneuver in tight spaces.
30% gradeability supports travel on slopes when conditions and machine configuration allow.
Stowed drive speed is 2.5 mph.
Raised drive speed is 0.5 mph.

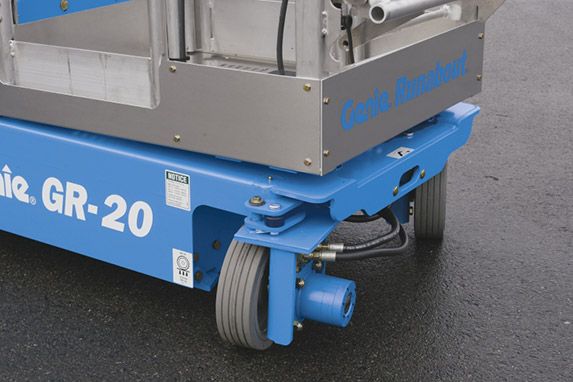

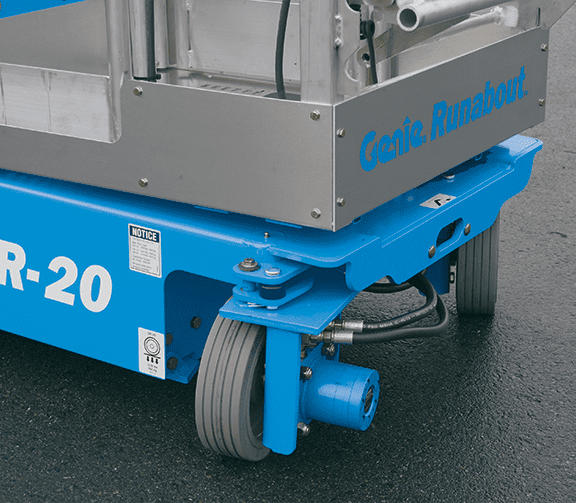

Solid non-marking tires help protect finished floors.
Quiet operation with sound pressure levels below 70 dBA at both the ground and platform workstations.

Hinged rear ABS covers provide easy service access.
On-board diagnostic system with battery charge indicator supports troubleshooting and battery monitoring.
Tech Pro Link connector supports service connectivity.
Hydraulic brake release assists with service and machine movement when needed.
Hour meter helps track usage and maintenance intervals.
Large forklift pocket access helps simplify loading, transport and positioning.
Lift Connect Telematics option supports fleet visibility and equipment monitoring.
AGM maintenance-free battery option can reduce battery maintenance requirements.

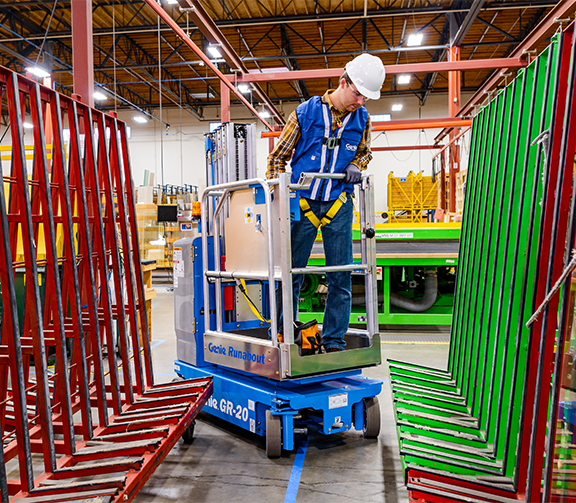

Warehousing and distribution.

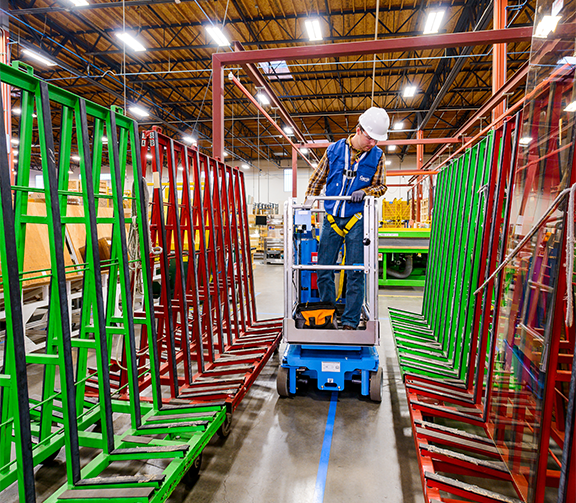

Inventory management and stock picking support.

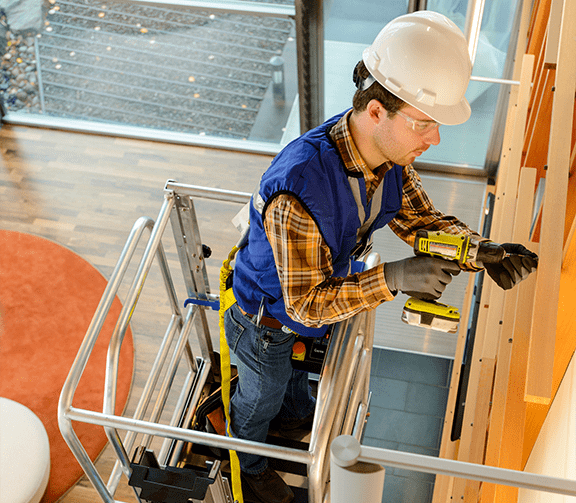

Facility maintenance.

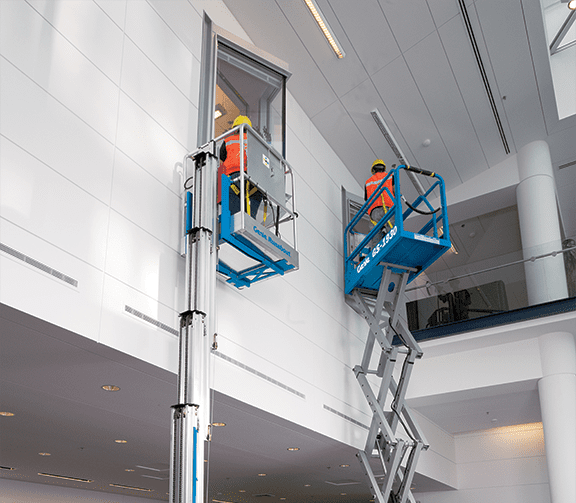

Retail and commercial buildings.

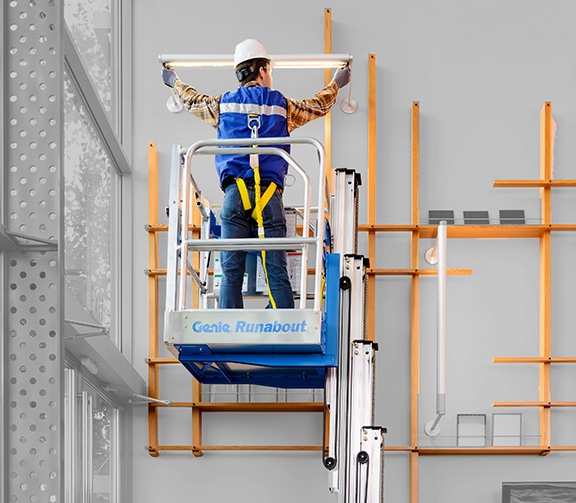

Indoor construction and finishing work.
Property management and building operations.
Applications requiring compact access through doorways and passenger elevators.
