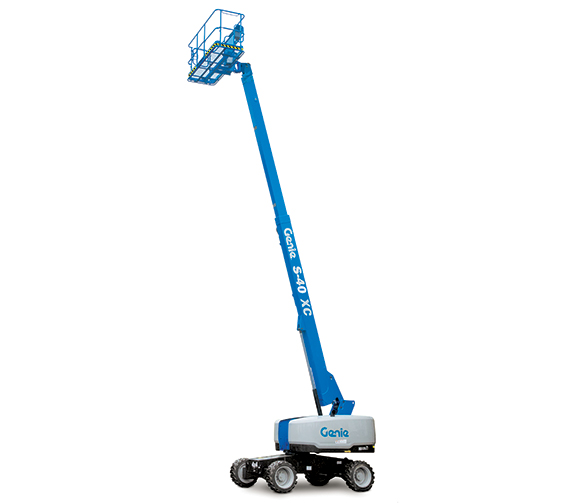

S-40 XC-Studio

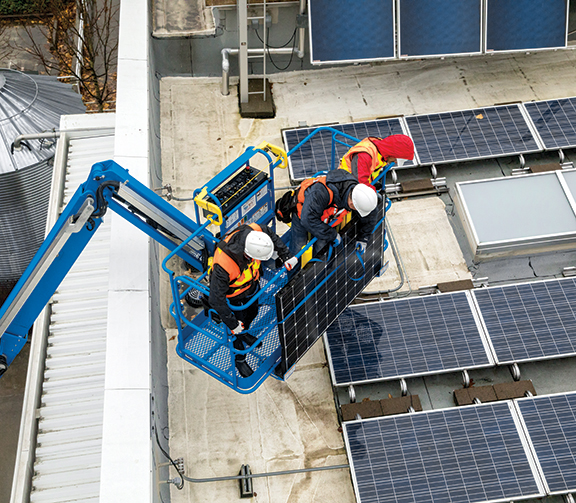

S-40XC-Operators

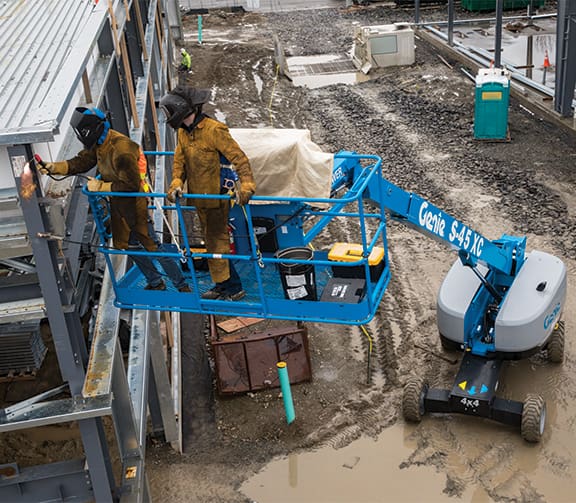

S-40XC-Elevated

Genie S-40 Boom Lift

  • 45 ft. 6 in. Working Height
  • 28 ft. 11 in. – 31 ft. 1in. Maximum Horizontal Reach
  • 1 ft Below Ground Reach
  • 600 Lbs. (HF), 660 Lbs. unrestricted – 1,000 Lbs. restricted (XC) Capacity
  • 8 ft. 2 in. Machine Width
  • 26 ft. 4 in. Machine Length
Request a Quote

Documents

Product Documents

The Genie® S®-40 HF high float telescopic booms are built for heavy-lifting in delicate environments like sand or turf. Designed to “float” on soft surfaces, they help protect against damage that might occur with standard rough-terrain tires.

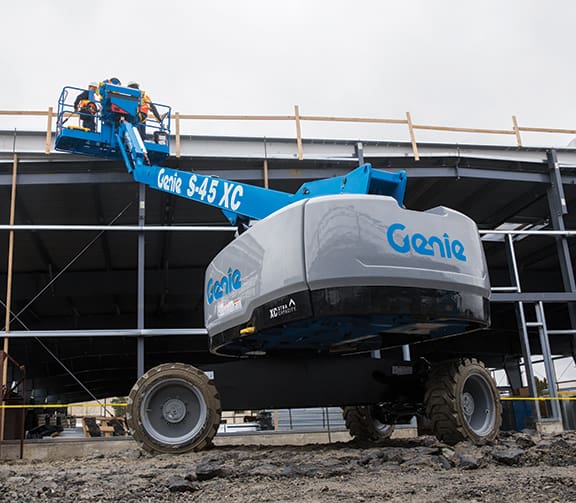

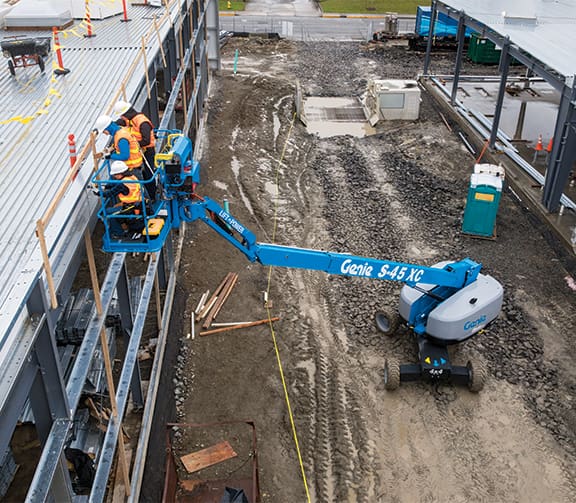

For a wider range of heavier tasks on construction and industrial sites, the Genie® S®-40 XC™ and S-40 TraX models offer dual lift capacities—660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted, supporting up to three people. These models are also available with a four-point track system, enabling year-round use for contractors.

Model Number: S-40 HF | S-40 XC and TraX

Additional Information

Brand

Genie
Condition

New
MEWP Type

Boom Lift, Telescopic
Working Height

40 – 49 ft.
Power

Engine

HF Advantages:

  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight (13,544 lb)
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes
  • 60˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning

XC Advantages:

  • Load sense technology for accurate load weighing and zero-load field calibration
  • Automatic envelope control enables boom to retract when it reaches its operating envelope
  • Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach work areas
  • Robust jib is capable of easily handling increased maximum capacity
  • CAN-bus control system with onboard diagnostics maximizes serviceability
  • Design focus on user interface and simplicity makes this machine easy-to-use
  • Can be equipped with the new Genie Lift Power™ generator system
  • Commonality in design and parts with other Genie booms

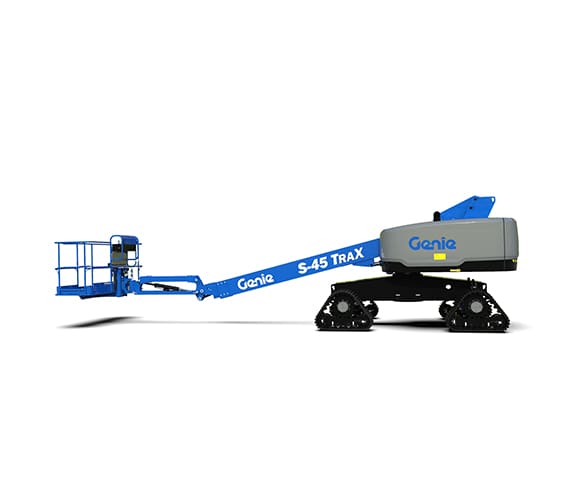

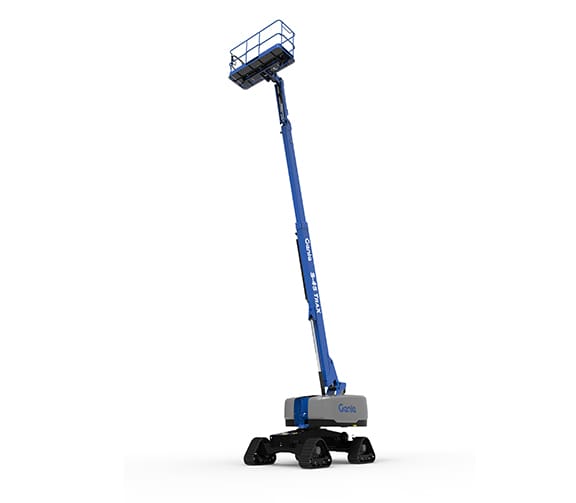

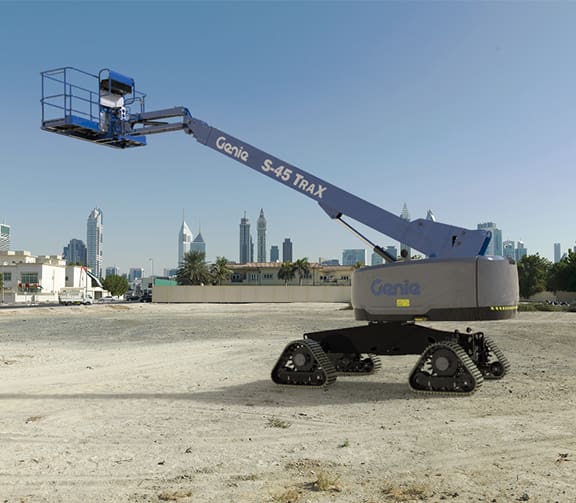

S-40 TraX Advantages:

  • Same features as above
  • Patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions
  • 30° steer angle for easy maneuvering

HF Standard Features:

  • Diesel air intake pre-cleaner
  • Light Package: drive and work lights
  • Control box covers

XC Standard Features:

  • 660lb/300kg & 1000lb/454kg dual load capacity with automatic envelope control
  • Chassis tilt lift and drive function cut-out
  • Telematics-ready
  • Rough terrain, foam-filled tires

Both HF and XC Standard Features:

  • 49 hp, 37 kW, Deutz D2.9L, Diesel, T4f
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • In cylinder glow plug (diesel only)

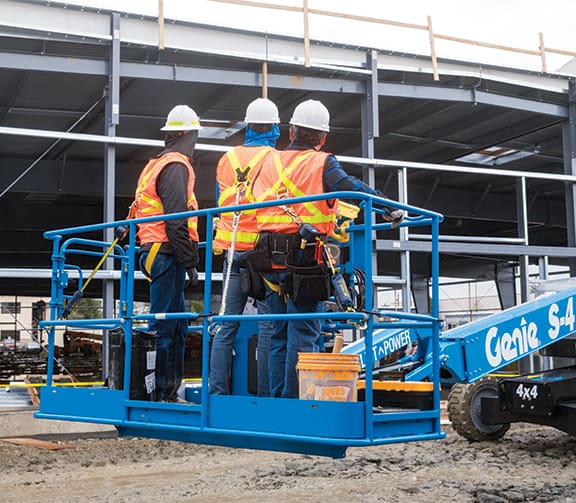

  • 8ft/2.44m tri-entry platform with side swing gate
  • Dual axis joystick steering
  • Drive enable system
  • Horn
  • Lift Guard Contact Alarm
  • Lift Tools Work Tray
  • Platform load sense system
  • Proportional controls
  • Self-leveling platform
  • Lift Connect Telematics
  • Active oscillating axle
  • Alarm package: includes flashing beacon and travel alarm
  • Descent, tilt and motion alarm
  • Dual battery system
  • Hour meter
  • Hydraulic oil cooler
  • Tech Pro Link connector
  • 2 speed wheel motors

HF Popular Options:

  • 6ft/1.83m Aircraft protection platform with sliding mid-rail
  • 6ft/1.83m Aircraft protection platform with side swing gate
  • High floatation, air-filled tires

XC Popular Options:

  • Rough terrain, foam-filled tires
  • Rough terrain, foam-filled, non-marking tires
  • TraX track drive system

Both HF and XC Popular Options:

  • 49 hp, 37 kW, Deutz D2.9L, Diesel, T4f
  • 60 hp, 45 kW, Ford 2.5L, Gas/LPG
  • Cold weather package
  • Positive air shutdown system
  • 6ft/1.83m dual-entry platform with side swing gate
  • Thumb rocker steering
  • Airline to platform
  • Lift Guard Full Mesh panels
  • Lift Guard Half Mesh panels
  • Platform auxiliary top rail
  • Lift Power 3kW AC Generator, 110V/60Hz
  • Lift Power 3kW AC Generator, 220V/50Hz
  • Lift Power 12kW Welder Ready
  • Lift Connect with Access Manager upgrade
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
  • Fire resistant hydraulic oil
  • Deluxe hostile environment kit
  • Hostile environment kit
  • LPG tank 33.5 lb
  • Tow package
