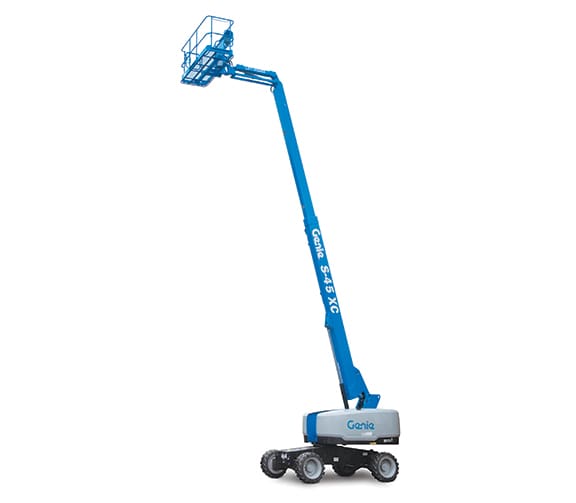

Genie S-45 Boom Lift

50 ft. 6 in. Working Height
34 ft. – 36 ft. 2 in. Maximum Horizontal Reach
4 ft. 2 in. Below Ground Reach
600 Lbs. (HF), 660 Lbs. unrestricted – 1,000 Lbs. restricted (XC) Capacity
8 ft. 5 in. Machine Width
31 ft. 1 in. Machine Length

Documents

Product Documents

Video

Aerial Lift Information

The Genie S-45 is a telescopic boom lift built to give crews strong reach, precise positioning, and more flexibility across a range of outdoor jobsites. Depending on the configuration, it can be set up for sensitive ground conditions with the HF model, heavier lifting with the XC model, or improved traction on soft and uneven terrain with the TraX track system.

With up to 50 ft. 6 in. of working height, up to 1,000 lbs. of restricted capacity on select models, and features that support easier operation and serviceability, it is a practical choice for operations managers looking for one platform family that can cover multiple jobsite demands. As a dealer, we see it as a strong fit for contractors and facilities teams that need dependable reach equipment without overcomplicating fleet decisions

Model Number: S-45 HF | S-45 XC | S-45 TraX

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Telescopic
Power	Engine
MEWP Lift Height	41 – 60ft
MEWP Capacity	501 – 1,000 lbs

Gives crews a 50 ft. 6 in. working height with model-dependent configurations for soft ground, higher-capacity lifting, or tracked travel.
The HF model is built for sensitive terrain like sand and turf, helping reduce surface damage compared to more aggressive rough-terrain tires.

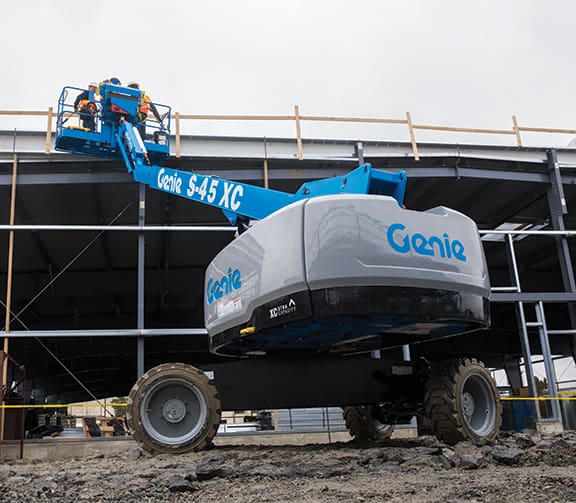

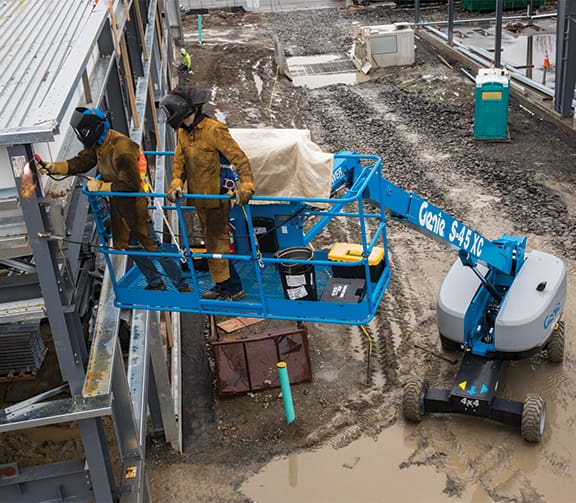

The XC and TraX models offer dual lift capacity, allowing operators to carry heavier materials and, in restricted mode, up to three people.

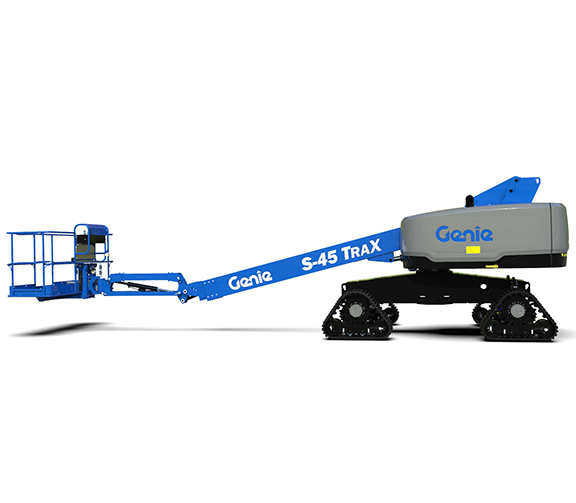

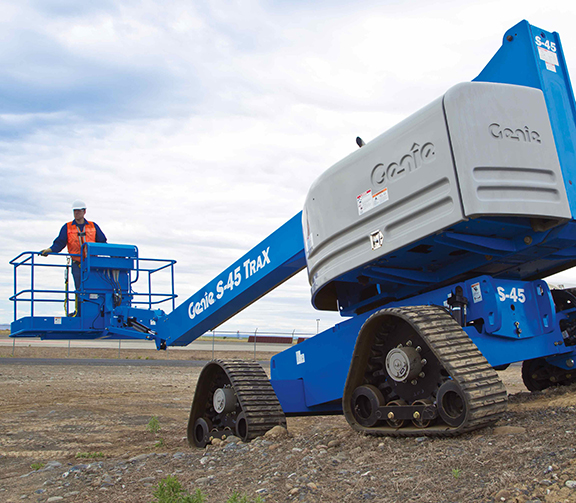

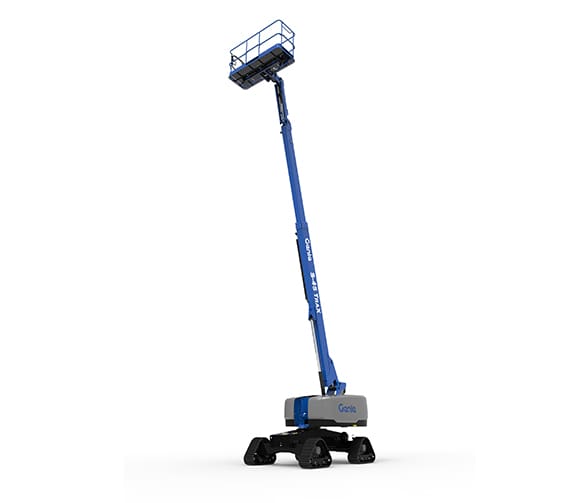

The TraX undercarriage adds a fixed four-point track system for improved traction and smoother travel on rough or soft ground.
Commonality in design and parts with other Genie booms can help simplify service, fleet support, and parts management.

4WD and positive traction drive.
360-degree continuous turntable rotation.
160-degree platform rotation.
Self-leveling platform.
Proportional controls.
Platform load sense system.
Lift Guard Contact Alarm.
Drive enable system.
Alarm package with flashing beacon and travel alarm.
Chassis tilt lift and drive function cut-out.
Descent, tilt, and motion alarm.
Dual battery system.
Hydraulic oil cooler.
Lift Connect telematics readiness and Tech Pro Link connector.

Lift Power 3 kW AC generator.
Lift Power 12 kW welder-ready AC generator.

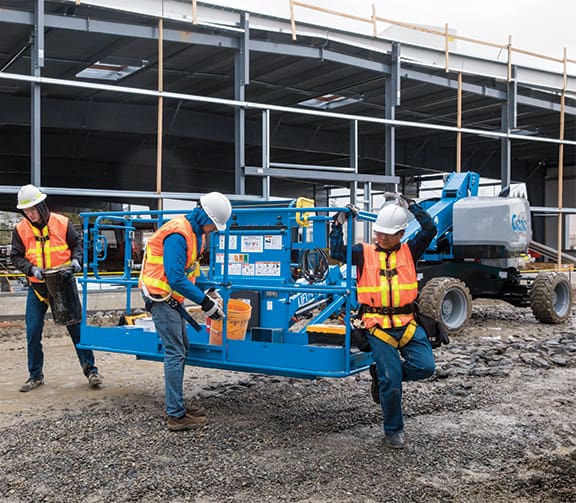

6 ft dual-entry or 8 ft tri-entry platform choices.
Air line to platform.
Platform auxiliary top rail.
Lift Guard mesh panels and lanyard alert systems.
Light package with drive and work lights.
Biodegradable, cold weather, or fire-resistant hydraulic oil.
Hostile environment and deluxe hostile environment kits.
High flotation tires for HF applications or TraX track drive system for tracked configurations.

Designed with a focus on user interface simplicity to make operation easier for crews that may be new to this class of boom lift.
Proportional controls support smoother, more precise boom and drive functions.
Dual-axis joystick steering and available thumb rocker steering help improve control feel.
Multiple platform entry and size options give crews more flexibility based on the task and tools being carried.

Automatic envelope control helps keep the machine within its operating range.
Load sense technology supports accurate load weighing and zero-load field calibration on XC and TraX models.
Chassis tilt sensor technology helps operators work more confidently when accessing hard-to-reach areas.
Lift Guard Contact Alarm and available lanyard alert features add another layer of operator protection.
Chassis tilt lift and drive cut-out, plus descent, tilt, and motion alarms, help reinforce safer operation on the jobsite.

Up to 50 ft. 6 in. working height across the S-45 family.

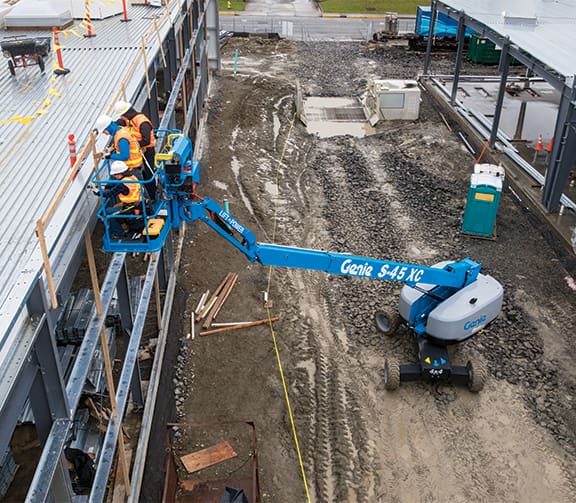

Maximum horizontal reach ranges from 34 ft. on the HF model to 36 ft. 2 in. on XC and TraX models.
Below-ground reach is 4 ft. 2 in.
HF models provide a 600 lb. platform capacity.
XC and TraX models provide 660 lb. unrestricted capacity and 1,000 lb. restricted capacity.
45% gradeability helps support rough-terrain travel.

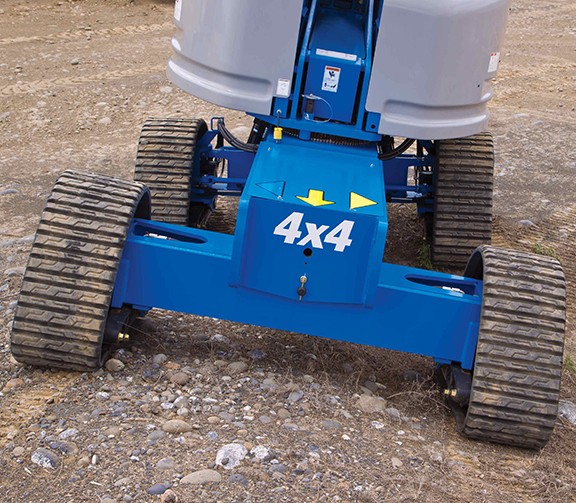

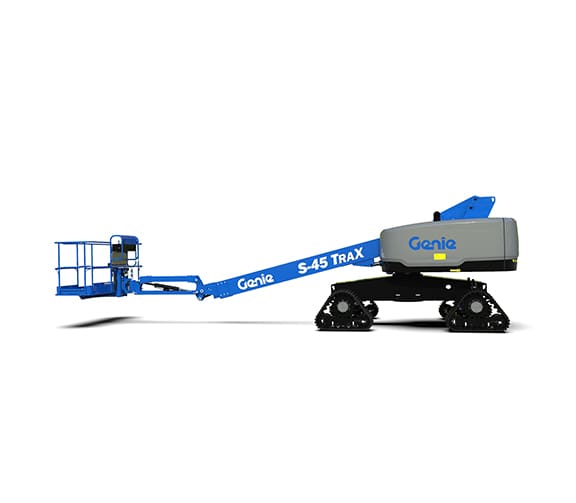

TraX models use a patented track design with four independent tracks that swivel vertically up to 20 degrees for rough ground conditions.
TraX models also feature a 30-degree steer angle for maneuverability.

CAN-bus control system with onboard diagnostics helps streamline troubleshooting on XC models.
Tech Pro Link connector and Lift Connect telematics support service visibility and fleet management.
Commonality in parts and design with other Genie booms can help reduce service complexity.
Zero-load field calibration support on XC and TraX models can help simplify setup and ongoing operation.

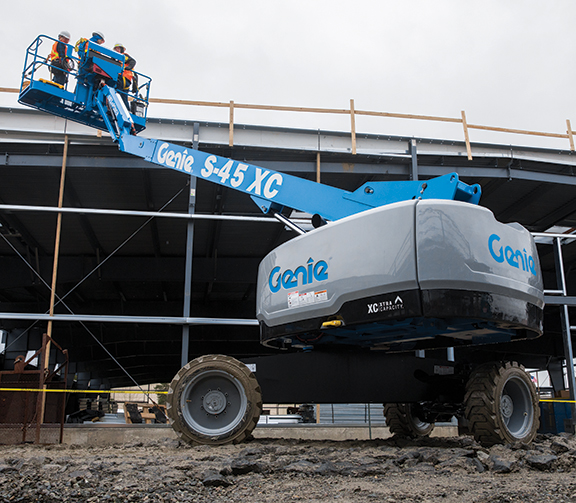

Construction jobsites.
Industrial maintenance and plant work.
Facility and property maintenance.
Outdoor projects on turf, sand, and other sensitive ground conditions.

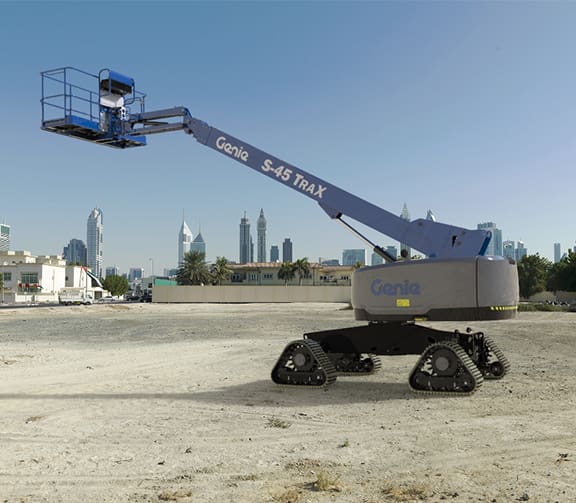

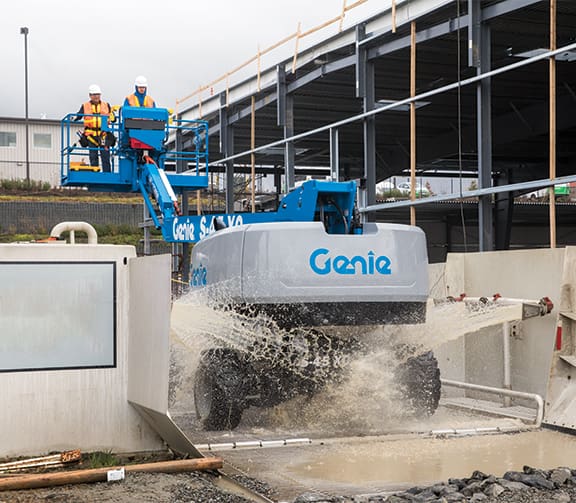

Sites with soft, muddy, or uneven terrain where a tracked boom lift may be a better fit.
