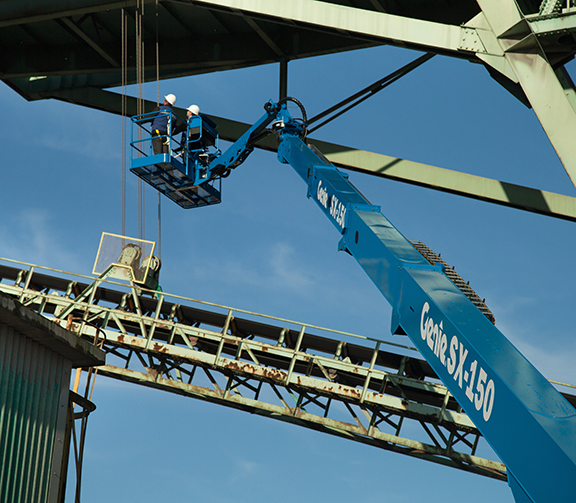

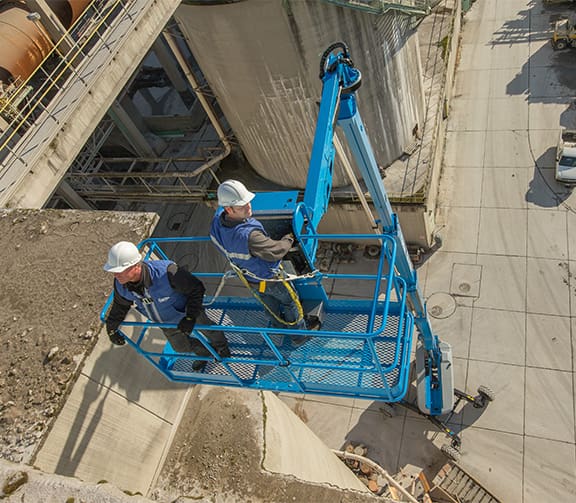

SX-150 Operator in Platform (Action Shot)

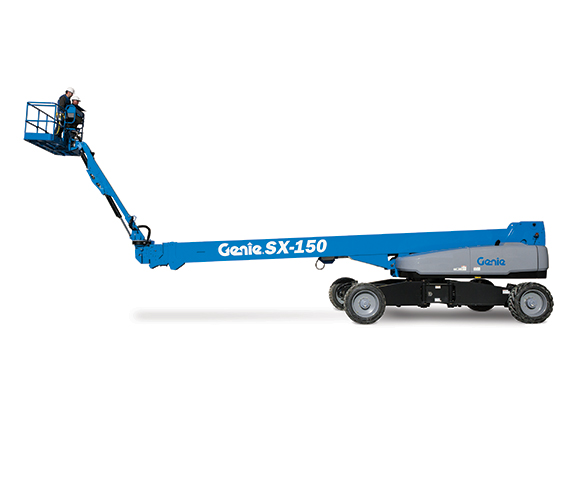

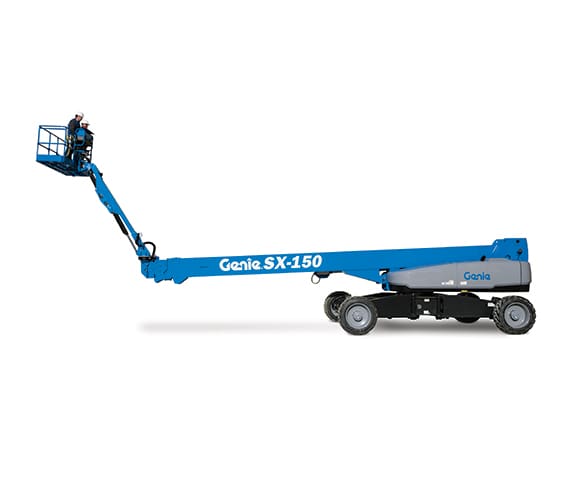

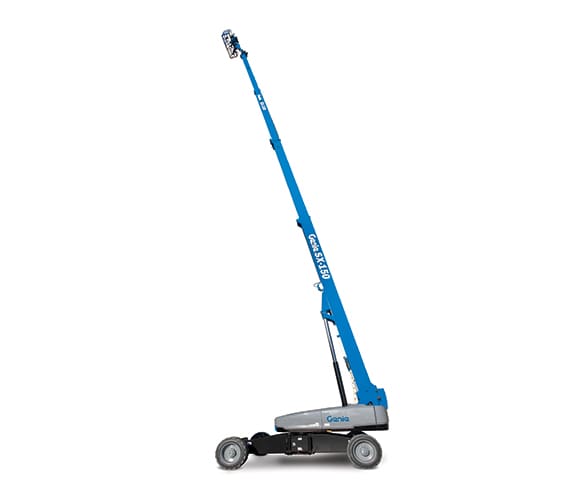

Genie SX-150 Boom Lift

158 ft. Working Height
750 lbs. Capacity
80 ft. Maximum Horizontal Reach
8 ft. 2 in. Machine Width (Axles Retracted)
16 ft. 6 in. Machine Width (Axles Extended)
49,950 lbs. Machine Weight

Documents

Product Documents

Videos

Aerial Lift Information

The Genie SX-150 telescopic boom lift is built for jobs that demand extreme reach and reliable performance at height. With an impressive working height of 158 feet and 80 feet of horizontal outreach, it allows operators to access hard-to-reach areas quickly and safely. Its 750 lb lift capacity, rotating jib, and smooth proportional controls make it ideal for handling tools and materials while maintaining precision on the job.

Designed for tough environments, features like four-wheel drive, extendable axles, and rough-terrain tires provide the stability and mobility needed on challenging worksites. Backed by advanced safety systems and telematics-ready capabilities, this lift helps teams stay productive while reducing downtime.

Model Number: SX-150

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Telescopic
Power	Engine
MEWP Lift Height	Over 100ft
MEWP Capacity	501 – 1,000 lbs

Exceptional working height up to 158 ft, enabling access to extreme jobsite elevations.

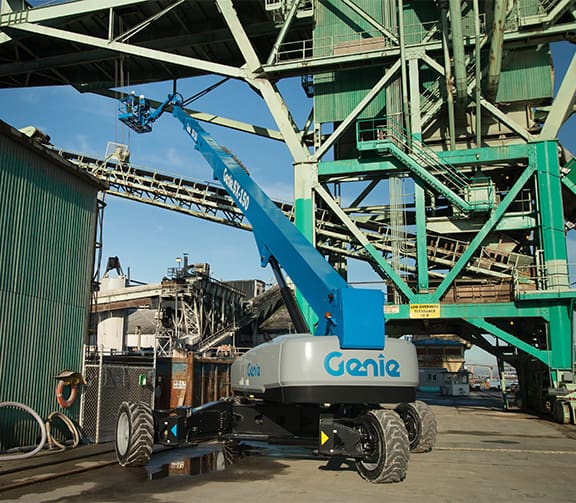

Strong horizontal outreach of up to 80 ft for reaching over obstacles.

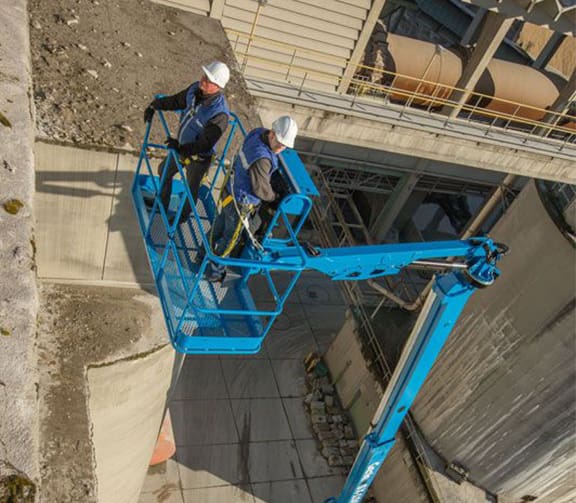

High lift capacity of 750 lb supports two occupants plus tools.
360° continuous turntable rotation improves jobsite positioning efficiency.

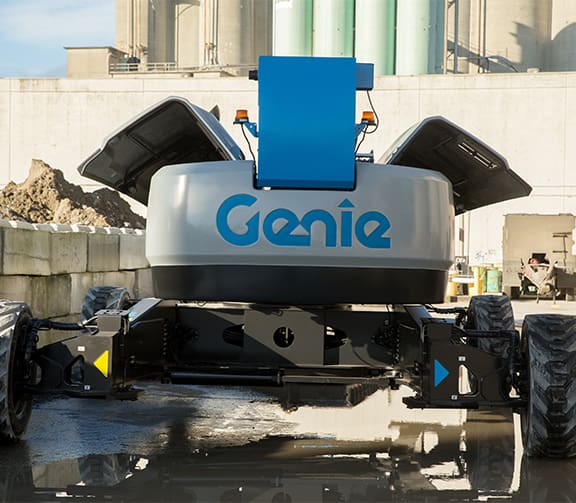

Extendable axle chassis enhances stability and jobsite adaptability.

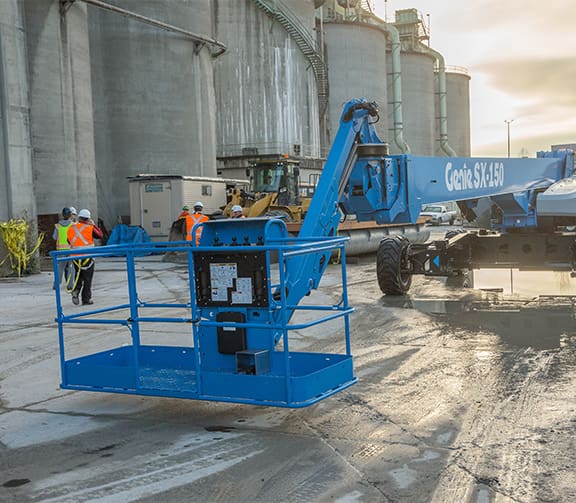

10 ft rotating jib with 135° vertical and 60° horizontal movement.
8 ft tri-entry platform with side swing gate.
Proportional controls and dual-axis joystick steering.
Self-leveling platform and platform load sense system.
Drive enable system and four steering modes.
Rough terrain, foam-filled tires.
Lift Connect telematics-ready system.
Hydraulic oil cooler and dual battery system.

Cold weather package and specialized hydraulic oils.
Welder-ready AC generators (7.5kW or 12kW).
Air line to platform.
Light packages for drive and work illumination.
Lift Guard advanced safety and alert systems.
Hostile environment kit for harsh jobsite conditions.

Dual-axis joystick and thumb rocker steering for precise control.

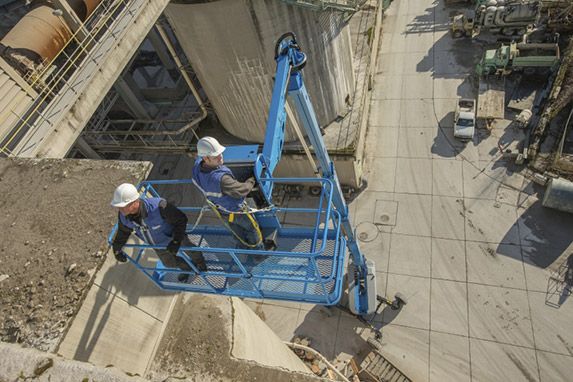

Spacious 8 ft platform allows comfortable operator movement.

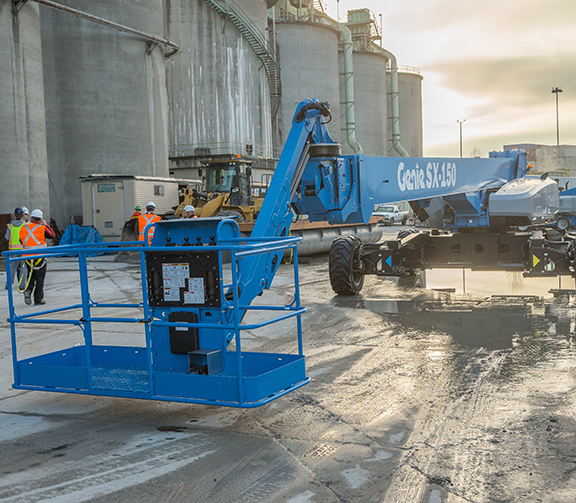

Tri-entry platform improves ease of access.
Proportional controls enable smooth operation.

Tilt sensor with activation limits for safe operation on slopes.
Drive enable system prevents unsafe machine movement.
Lift Guard contact alarm and lanyard alert systems.
Alarm package including flashing beacon and travel alarm.
Chassis tilt, lift, and drive function cut-out for enhanced protection.
Descent, tilt, and motion alarms.

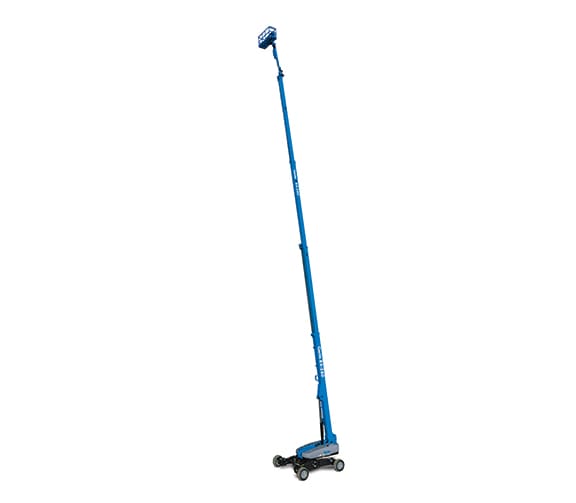

Working height: 158 ft; platform height: 152 ft.

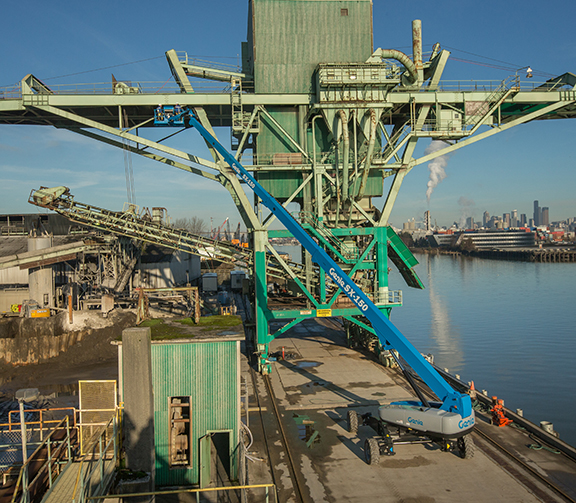

Horizontal reach: 80 ft with below-ground reach capability.
Drive speed up to 2.3 mph (stowed).
Gradeability up to 35% for rough terrain capability.
2-speed wheel motors for improved traction and control.
Diesel engine delivering reliable power for demanding applications.

Telematics-ready with Lift Connect for remote diagnostics and fleet management.
Tech Pro Link connector for maintenance and troubleshooting.
Auto engine fault shutdown and anti-restart protection.

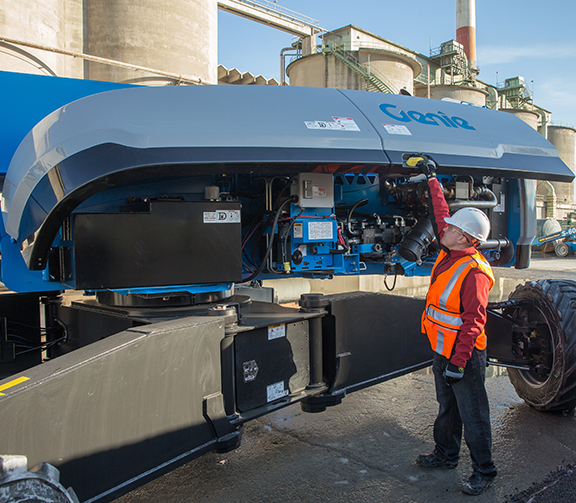

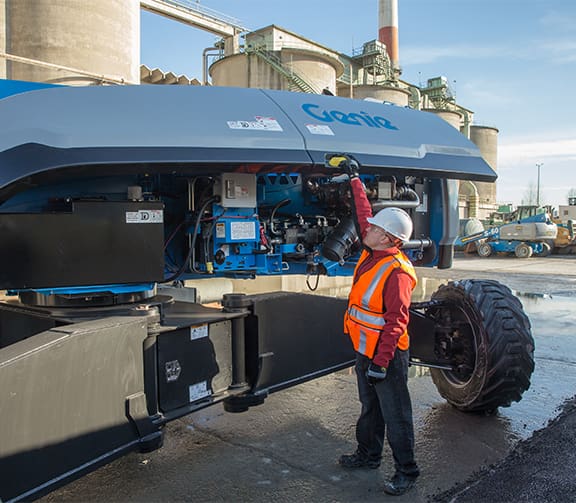

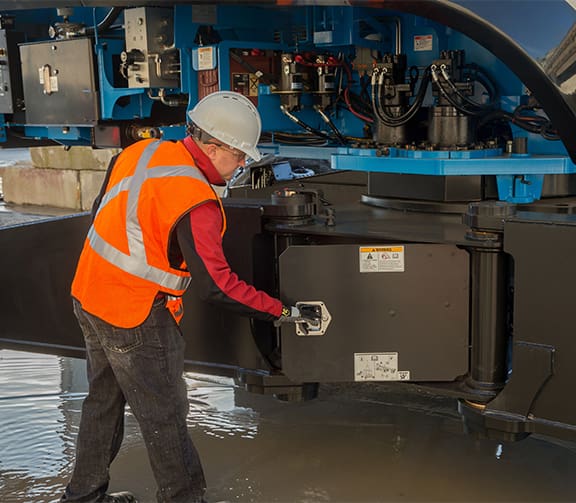

Accessible hydraulic and fuel systems for routine service.

Construction and high-rise building projects.
Industrial maintenance and plant operations.
Oil, gas and heavy infrastructure.
Utilities and large-scale facility management.
Bridge, stadium, and large structure work.
