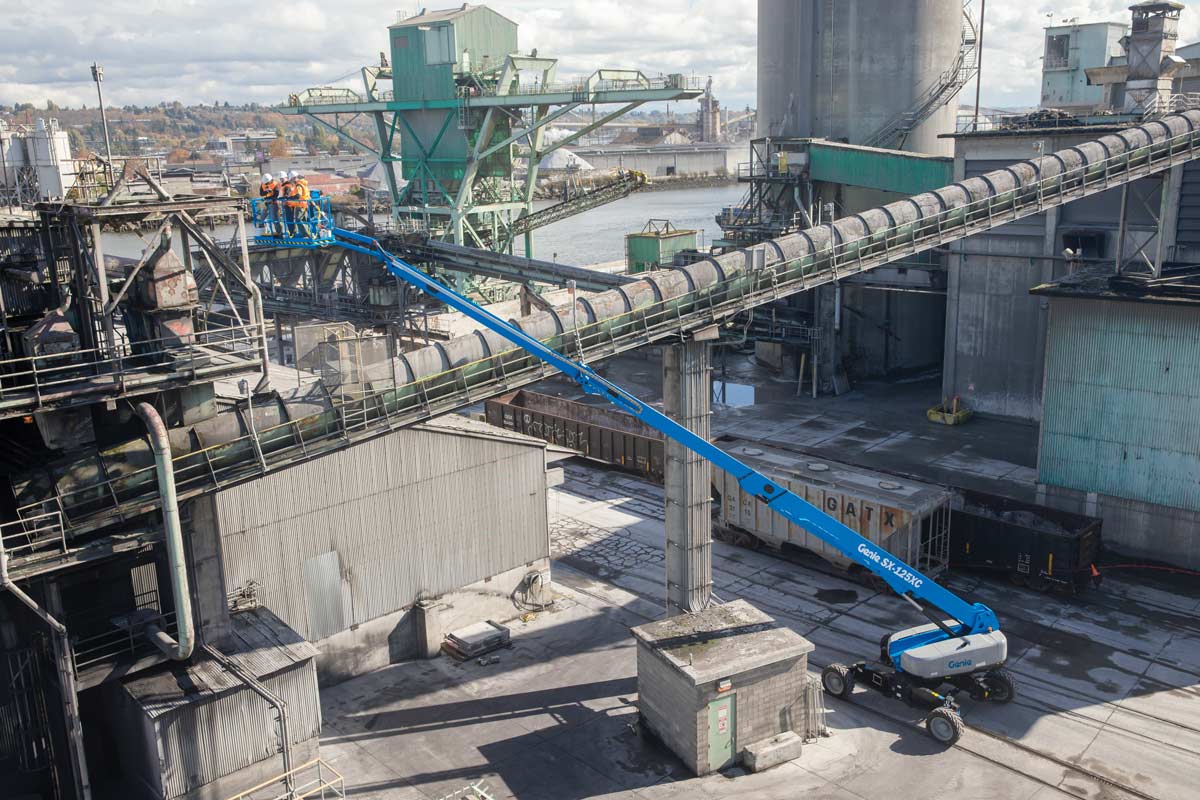

SX -125XC Extended Outreach Over Obstacles

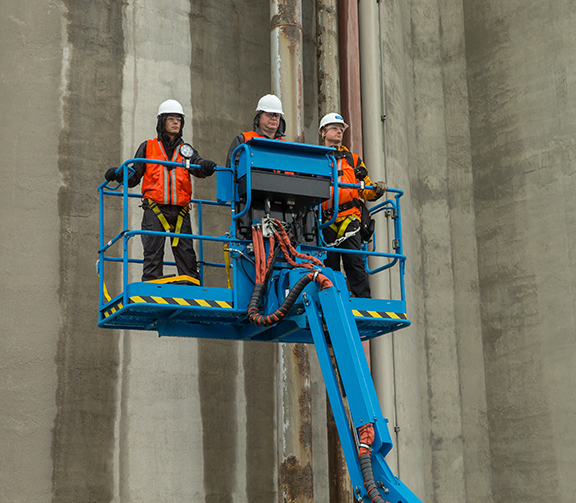

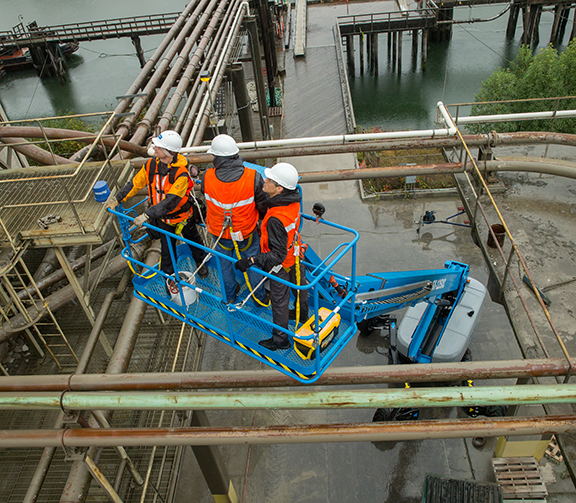

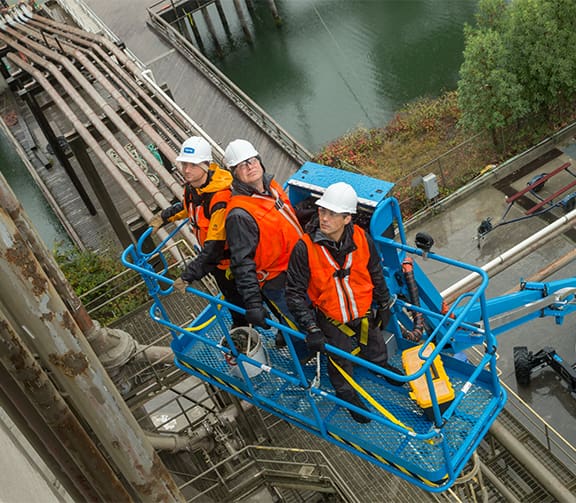

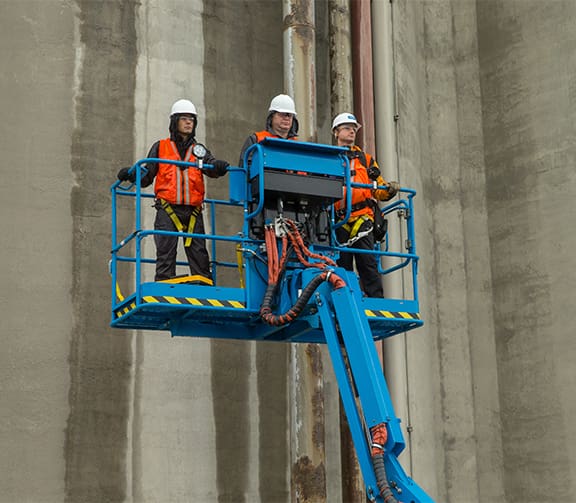

SX-125XC Operator in Platform (Action Shot)

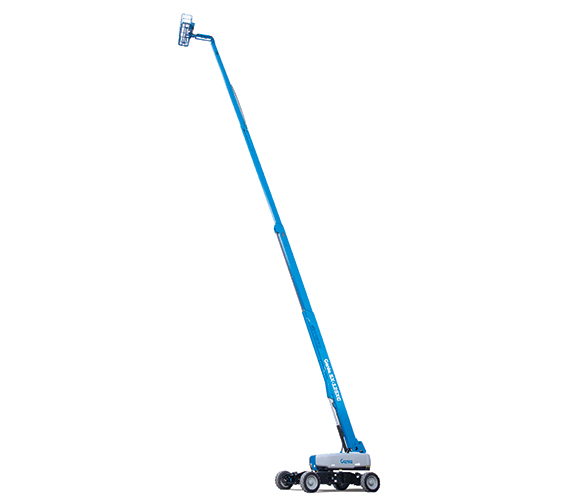

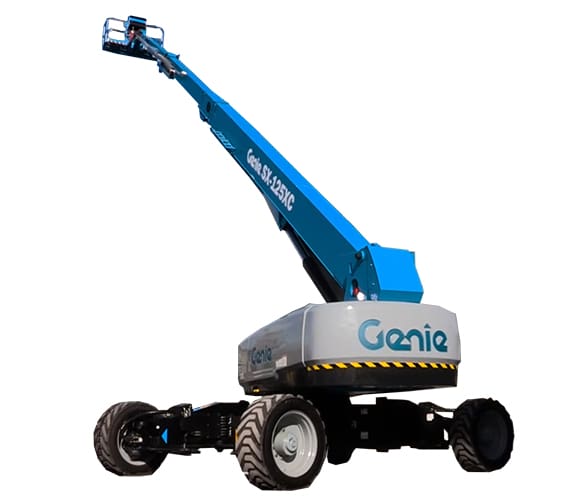

Genie SX-125 Boom Lift

131 ft. Working Height
660 lbs. Unrestricted Capacity
1,000 lbs. Restricted Capacity
80 ft. Maximum Horizontal Reach
45,636 lbs. Machine Weight

Documents

Product Documents

Videos

Product Walk-Around: SX-125 XC

Aerial Lift Information

The Genie SX-125 XC telescopic boom lift delivers exceptional reach and lifting performance for demanding jobs at height. With up to 131 feet of working height and dual lift capacity, it allows operators to handle heavier tools and multiple workers without sacrificing stability.

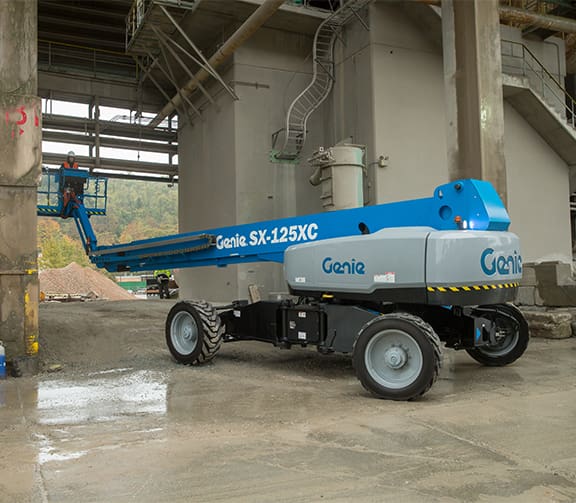

Its extendable Mini XChassis and smooth operating envelope provide precise positioning, even in tight or challenging environments. Designed for rough terrain and equipped with advanced safety and control features, it helps crews work more efficiently and confidently on large-scale projects.

Model Number: SX-125 XC

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Telescopic
Power	Engine
MEWP Lift Height	Over 100ft
MEWP Capacity	501 – 1,000 lbs

High working height up to 131 ft and horizontal outreach up to 80 ft for maximum jobsite access
Dual lift capacity (660 lb unrestricted / 1,000 lb restricted) increases versatility for heavier loads and multiple workers
Mini XChassis with extendable axles improves stability while maintaining transportability
Smooth operating envelope allows precise positioning at height
360° continuous turntable rotation enhances productivity and reduces repositioning

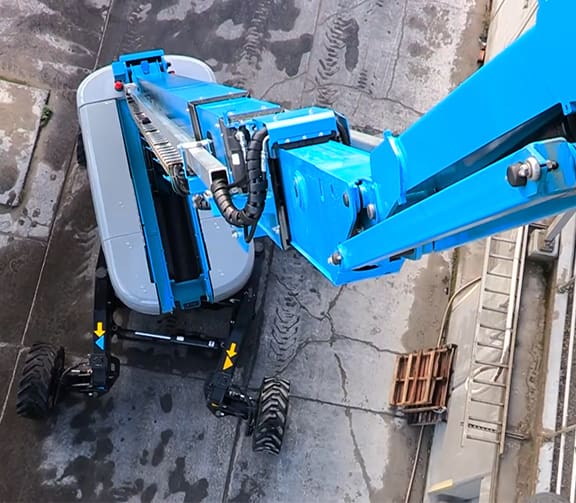

Self-leveling platform with 160° platform rotation and 135° vertical jib rotation

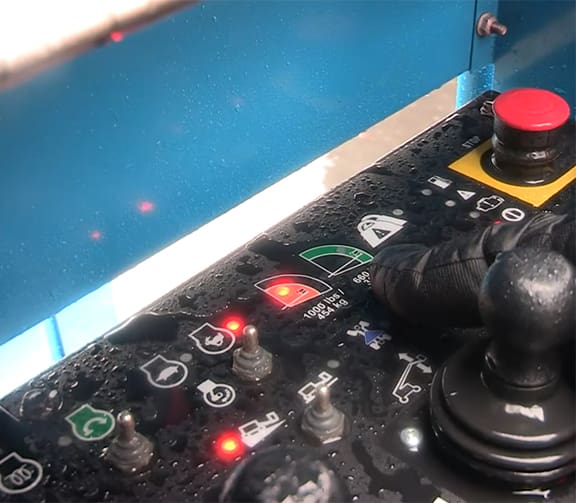

Proportional controls for smooth and precise operation
Dual load capacity system with automatic envelope control
Rough terrain, foam-filled tires and 4WD capability

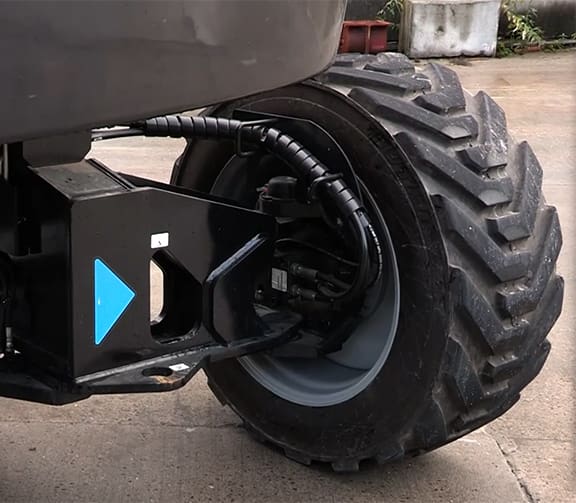

Mini XChassis with extendable axles
Hydraulic oil cooler and dual battery system
Telematics-ready with Lift Connect compatibility
Alarm package including flashing beacon and travel alarm

12kW Lift Power welder-ready AC generator
Cold weather package and cold weather hydraulic oil
Hostile environment kit for demanding applications
Light package with drive and work lights
Lift Guard full or half mesh panels
Air line to platform
Lift Connect with Access Manager upgrade
Biodegradable or fire-resistant hydraulic oil

Dual-axis joystick steering and thumb rocker steering for intuitive control

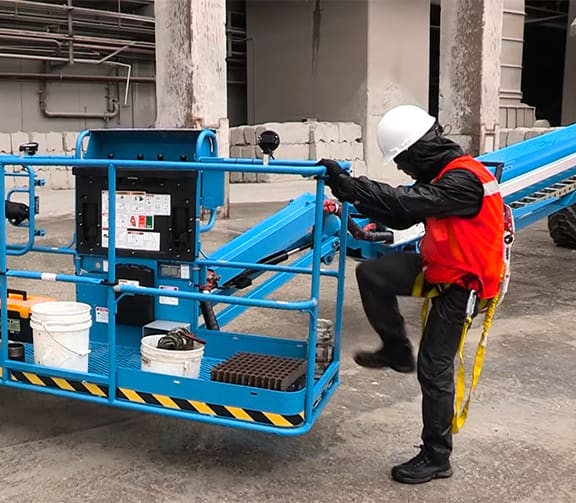

Spacious platform options (6 ft or 8 ft wide) with multiple entry points
Smooth proportional controls improve operator comfort and precision
Self-leveling platform reduces operator fatigue during positioning

Lift Guard Contact Alarm and optional Lanyard Alert systems
Platform load sense system to prevent overload conditions
Tilt sensor with automatic cut-out for unsafe angles
Drive enable system and chassis tilt lift/drive function cut-out
Descent, tilt, and motion alarms for operator awareness
Positive air shutdown and auto engine fault shutdown for engine protection

Maximum working height: 131 ft; platform height: 125 ft
Maximum horizontal reach: 80 ft with below-ground reach capability
Gradeability up to 40% for rough terrain applications
Drive speed up to 3.0 mph (stowed)
Powerful 74 hp diesel engine with large fuel and hydraulic capacities
360° turntable rotation and tight turning radius with extendable axles

Telematics-ready system with Lift Connect for remote diagnostics and fleet management
Tech Pro Link connector for advanced service diagnostics
Auto engine fault shutdown and anti-restart protection simplify maintenance
Hydraulic oil cooler and accessible service components support reliability

Construction and steel erection
Industrial maintenance and plant operations
Oil, gas and energy sector applications
Infrastructure projects such as bridges and highways
Large-scale commercial and institutional building projects
