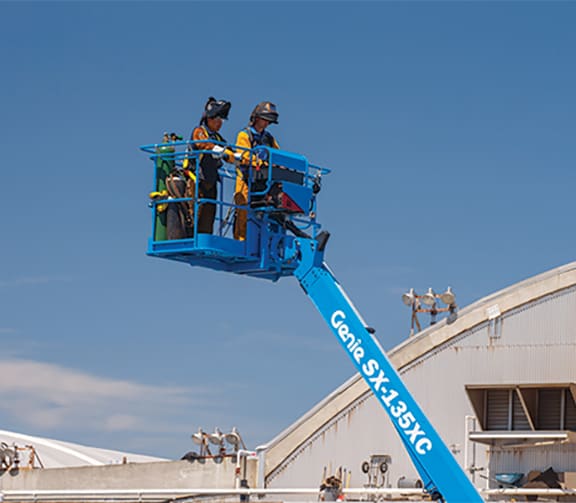

SX-135XC Operator in Platform (Action Shot)

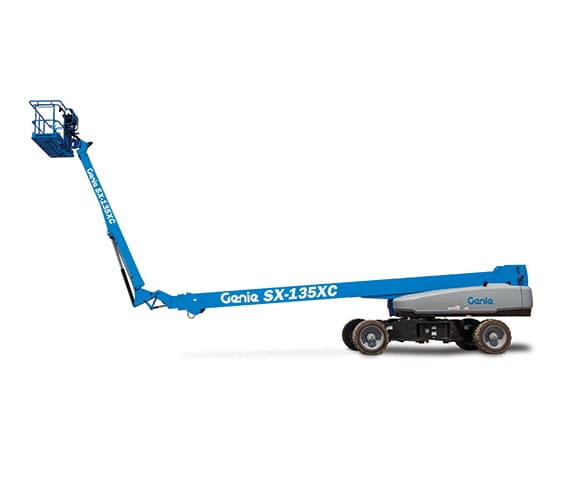

Genie SX-135 Boom Lift

141 ft. Working Height
660 lbs. Unrestricted Capacity
1,000 lbs. Restricted Capacity

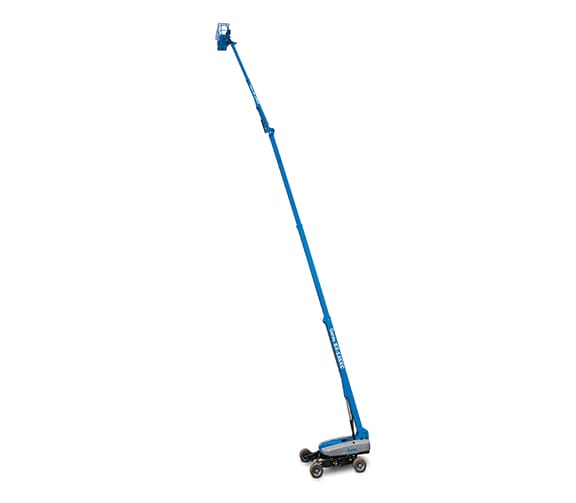

90 ft. Maximum Horizontal Reach
19 ft. 8 in. Below Ground Reach
46,900 lbs. Machine Weight
8 ft. 2 in. Machine Width
64 ft. 10 in. (stowed length)

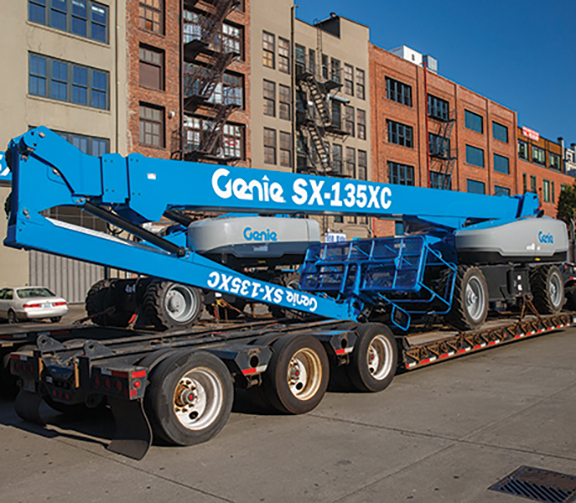

43 ft. 7 in. (transport length, jib tucked)

Documents

Product Documents

Videos

Aerial Lift Information

The Genie® SX-135 XC™ telescopic boom offers exceptional outreach and capacity across its full working range, providing versatility and accessibility on the job. With a dual platform capacity of 660 lb (300 kg) and 1,000 lb (454 kg), it ensures smooth motion while lifting heavy loads, making it ideal for even the toughest jobsite applications.

Model Number: SX-135 XC

Additional Information

Brand	Genie
Condition	New
MEWP Type	Boom Lift, Telescopic
Power	Engine
MEWP Capacity	501 – 1,000 lbs
MEWP Lift Height	Over 100ft

Extended working height up to 141 ft with 90 ft horizontal reach for accessing difficult, high-reach applications.
Dual lift capacity (660 lb unrestricted / 1,000 lb restricted) increases flexibility for heavier tools and multiple workers.

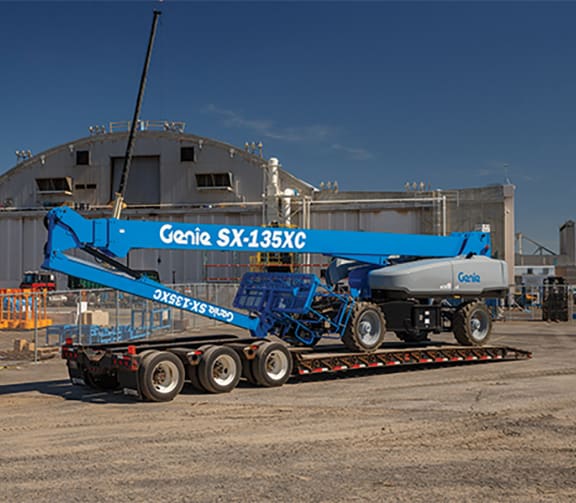

360° continuous turntable rotation and long jib (up to 30 ft) improve jobsite versatility and positioning.

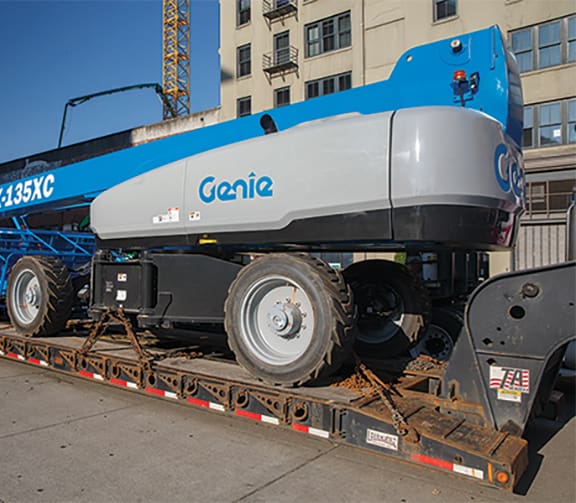

Mini XChassis with extendable axles enhances stability while maintaining transport efficiency.

Dual load capacity system with automatic envelope control.
Self-leveling platform with proportional controls for smooth operation.
4 steering modes for enhanced maneuverability.
Drive enable system and platform load sense system.
Lift Guard Contact Alarm and alarm package (travel alarm and flashing beacon).
Rough terrain foam-filled tires and 2-speed wheel motors.
Telematics-ready connector with Lift Connect compatibility.
Hydraulic oil cooler and dual battery system.

AC generators (3kW and 12kW welder-ready options).
Cold weather package and specialized hydraulic oils.
Hostile environment kit for demanding job sites.
Lift Guard Lanyard Alert (standard and advanced versions).
Light packages for drive and work illumination.
Air line to platform and work tray attachments.
Lift Connect with Access Manager upgrade.

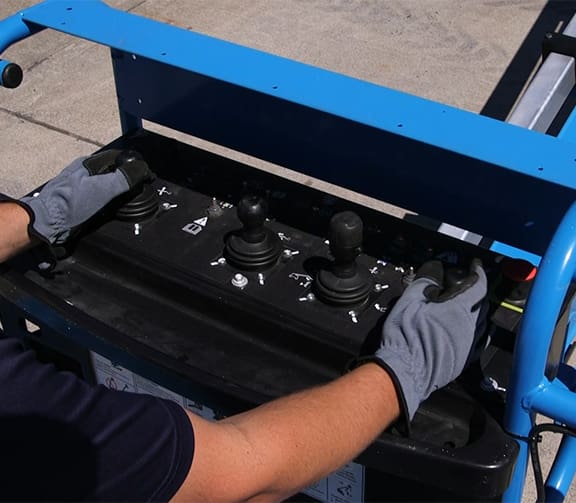

Dual-axis joystick and thumb rocker steering for intuitive control.
Spacious platform options (6 ft dual-entry or 8 ft tri-entry with swing gate).
Smooth proportional controls for precise positioning.
Low vibration levels (< 2.5 m/s²) for improved operator comfort.

Tilt sensor with activation at 4.5° to prevent unsafe operation.
Drive and lift function cut-outs when unsafe conditions are detected.
Descent, tilt, and motion alarms for operator awareness.
Platform load sensing system to prevent overload.
Lift Guard systems for operator protection.
Positive air shutdown and engine protection systems.

Maximum working height: 141 ft; platform height: 135 ft.

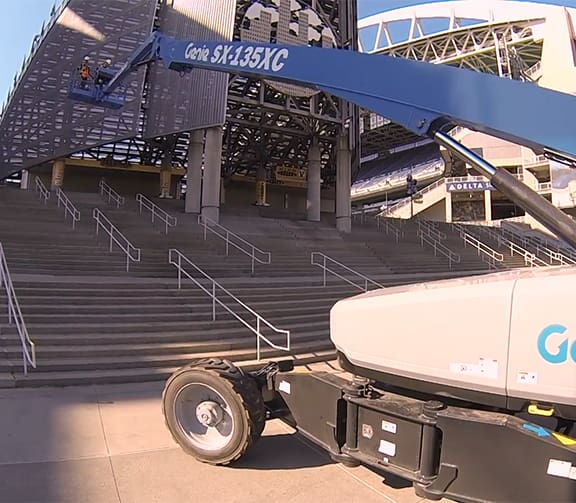

Horizontal outreach up to 90 ft with below-ground reach of 19 ft 8 in.
Gradeability up to 35% for rough terrain applications.
Drive speed up to 2.7 mph (stowed) with diesel-powered performance.
High-capacity hydraulic system with 60-gallon tank.

Telematics integration (Lift Connect) for remote diagnostics and fleet management.
Tech Pro Link connector for service tool access.
Auto engine fault shutdown and anti-restart protection simplify maintenance.
Hour meter for tracking service intervals.
Accessible diesel engine with standard service protections.
