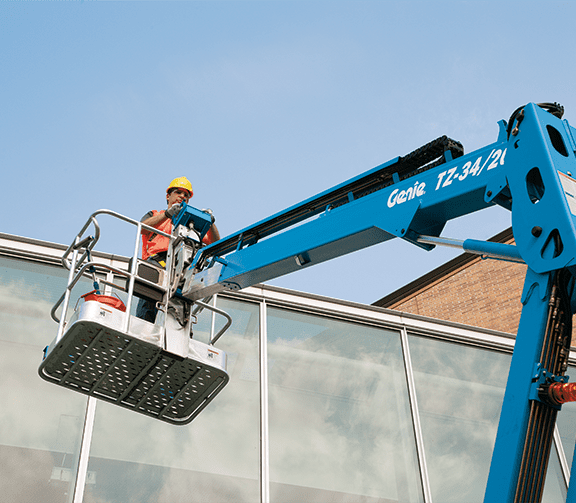

TZ-34 Operator in Platform (Action Shot)

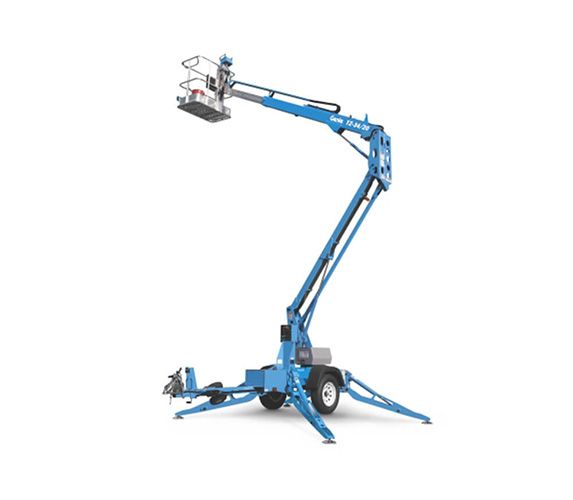

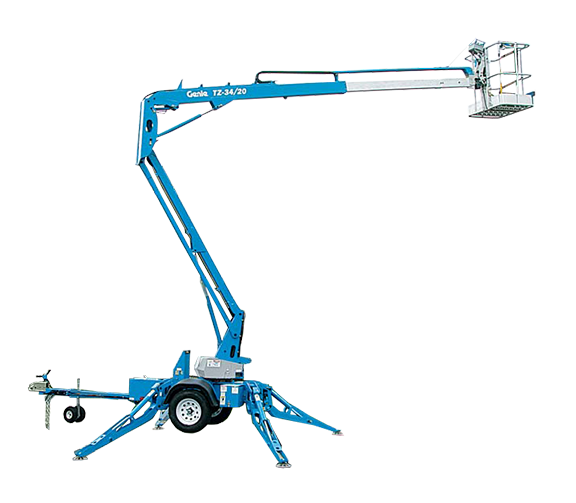

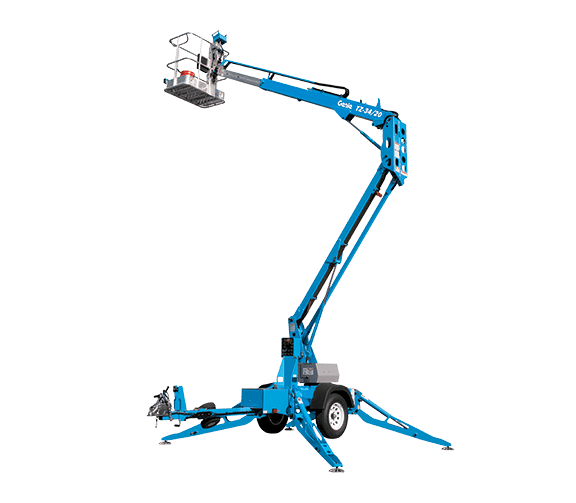

Genie TZ-34/20 Boom Lift

40 ft. Working Height
500 lbs. Capacity
18 ft. 4 in. Horizontal Reach
16 ft. 1 in. Up and Over Clearance
3,155 lbs. Machine Weight

Documents

Product Documents

Aerial Lift Information

The Genie TZ-34/20 trailer-mounted boom lift delivers reliable height access in a compact, easy-to-tow package that’s ideal for a wide range of job sites. With working heights up to 55 feet, smooth variable speed controls, and a stable hydraulic outrigger system with automatic leveling, it’s built to help your team work efficiently and confidently.

Its electric power system keeps operation quiet and low-emission for indoor or outdoor use, while optional bi-energy capability adds flexibility for longer jobs. Designed for quick setup and simple transport, this lift helps reduce downtime and maximize productivity wherever your work takes you.

Model Number: TZ-34/20

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Trailer-Mounted
MEWP Lift Height	26 – 40ft
MEWP Capacity	Up to 500 lbs

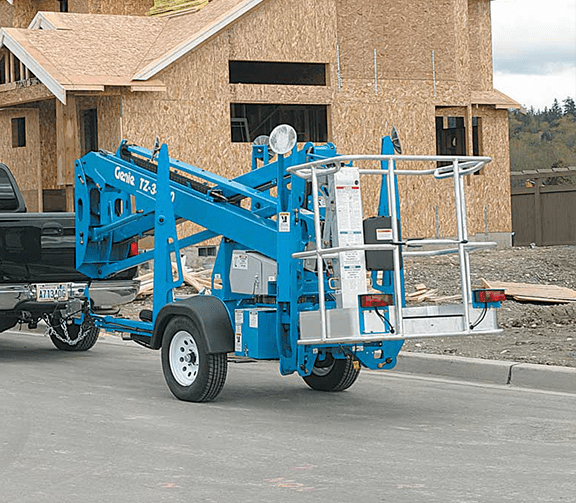

Truck-towable design allows easy transport between job sites without specialized hauling equipment
Quick setup with hydraulic outriggers and automatic leveling system
Low floor loading enables operation in sensitive or indoor environments
Compact stowed dimensions for maneuverability in tight spaces
Bi-energy (electric + gas) option provides flexibility for indoor and outdoor use

24V DC power system with standard battery
Hydraulic outriggers with automatic 11° leveling capability
355° turntable rotation
Variable speed control system
Auxiliary platform descent
Aluminum platform with AC wiring
Tilt alarm sensor

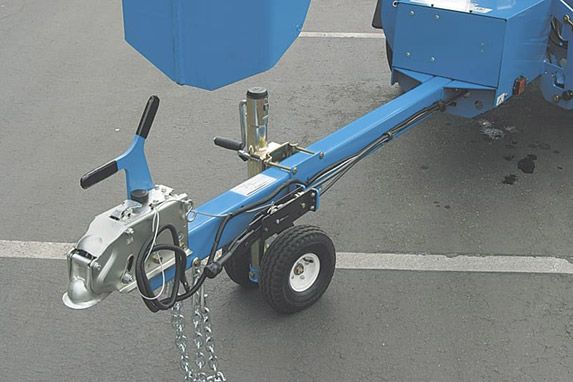

Hydraulic surge brakes and mechanical parking brake
LED brake lights and illuminated outrigger indicators
Outrigger interlocks for safe operation

Bi-energy Honda gas engine for extended runtime
High-capacity battery upgrade
Lift Connect telematics with Access Manager
Drive and set option (TZ-50)
Flashing beacon and horn
Non-marking outrigger foot pads
Spare tire and multiple coupler configurations
Battery charge indicator

Spacious aluminum platform (approx. 26.8 in x 44 in)
Smooth variable speed controls for precise positioning
Low entry height improves operator access
Quiet operation with sound levels below 70 dBA

Tilt alarm sensor alerts operator to unsafe positioning
Outrigger interlocks prevent operation unless properly set
Hydraulic surge brakes and parking brake for secure transport
Illuminated outrigger indicators improve setup visibility
Auxiliary lowering system for emergency descent
Highway safety chains with snap lock

Working heights up to 55 ft 6 in (TZ-50)
Horizontal outreach up to 29 ft 2 in
Lift capacity up to 500 lbs
Up-and-over clearance up to 22 ft
359° rotation for maximum jobsite coverage
Towable at speeds up to 60 mph

Electric DC system reduces engine maintenance requirements
Optional telematics (Lift Connect) for remote diagnostics and fleet monitoring
Simple hydraulic system with accessible components
Hour meter for maintenance tracking

Construction and general contracting
Building maintenance and facility management
Electrical and lighting installation

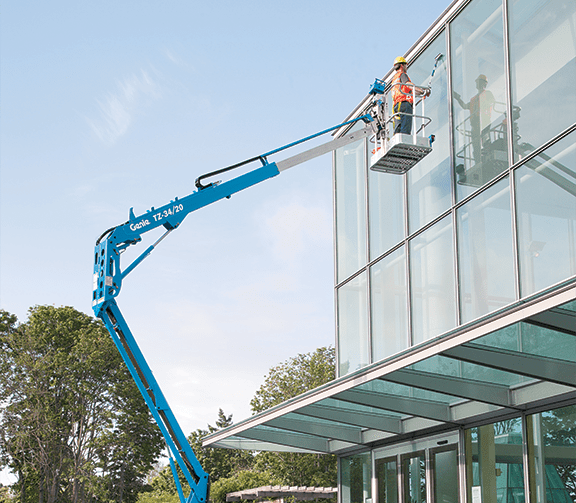

Signage and exterior cleaning

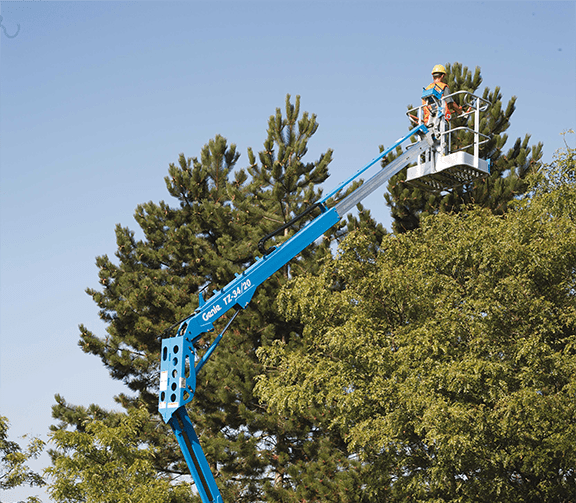

Landscaping and tree care
Industrial and commercial maintenance
