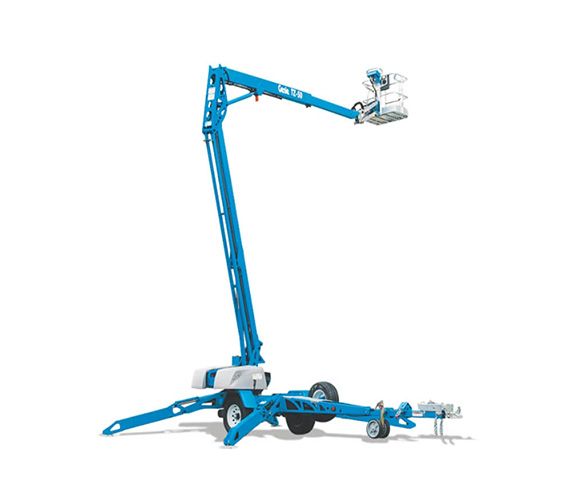

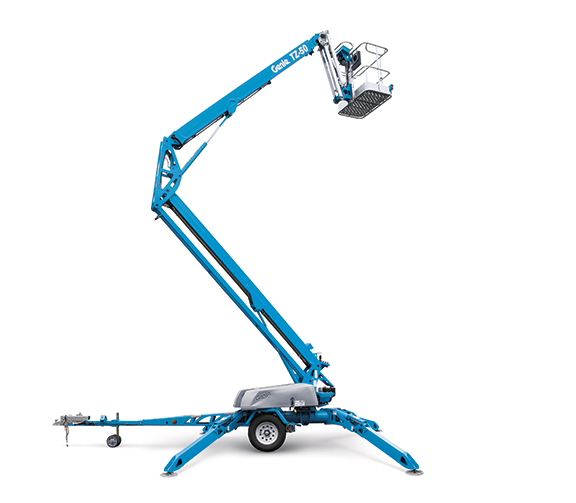

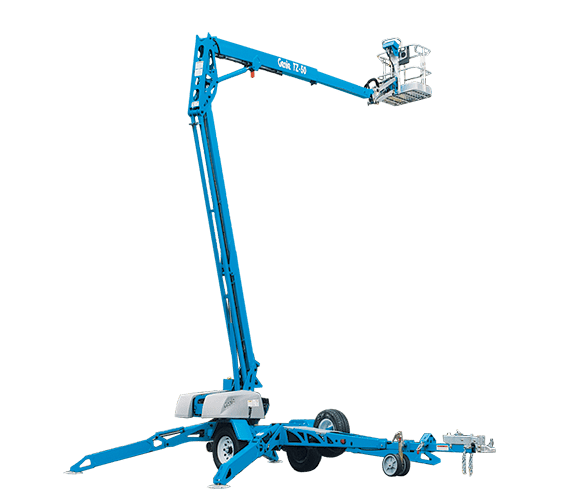

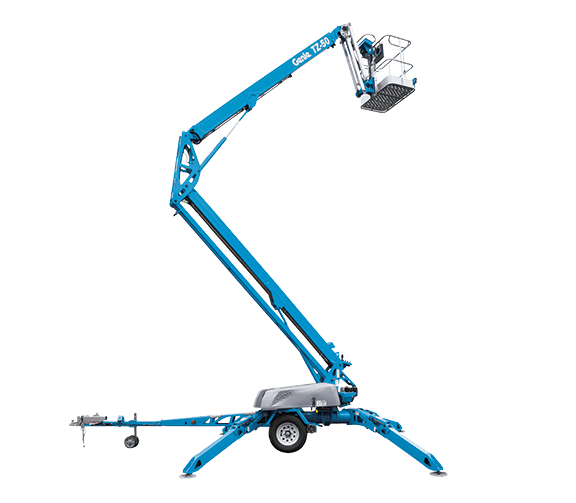

Genie TZ-50 Boom Lift

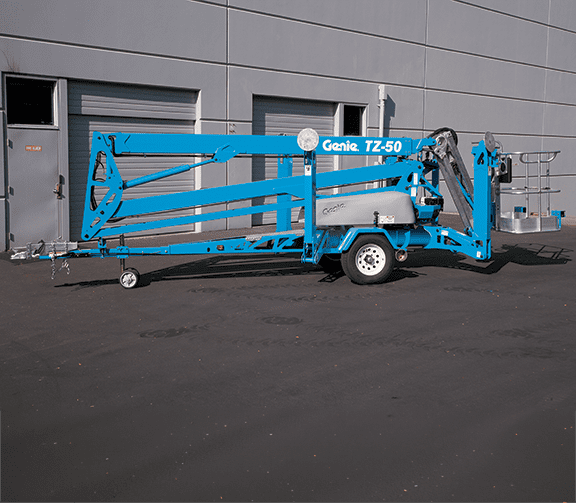

genie tz-50 towable boom lift

Genie TZ-50 Boom Lift

  • 55 ft. Working Height
  • 500 lbs. Capacity
  • 29 ft. 2 in. Maximum Horizontal Reach
  • 22 ft. Up and Over Clearance
  • 4,400 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie TZ-50 Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

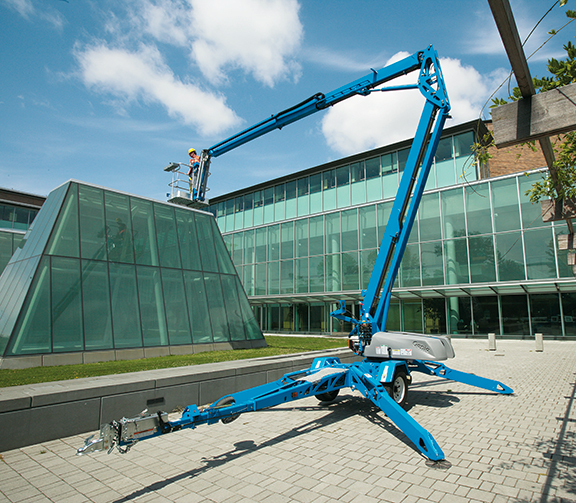

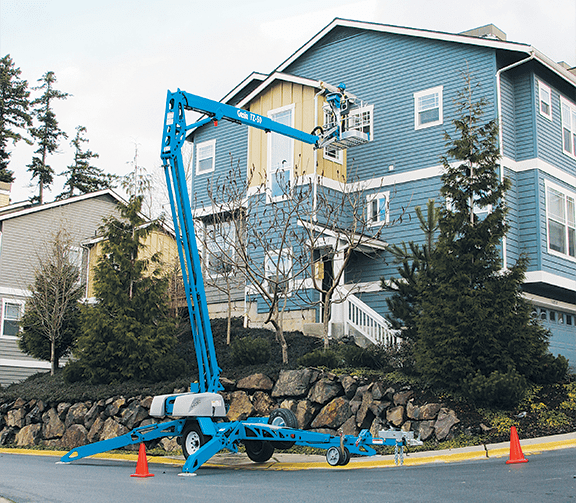

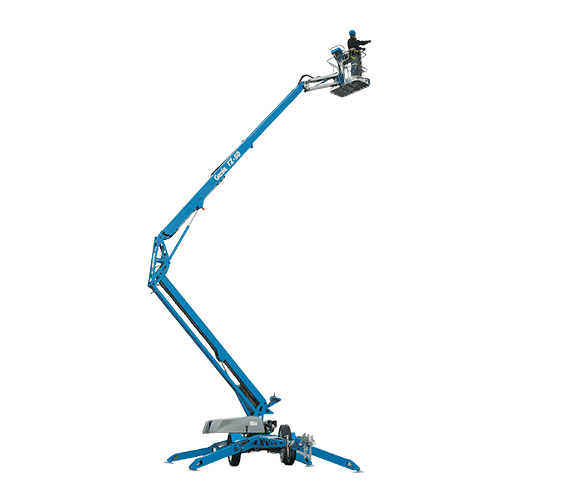

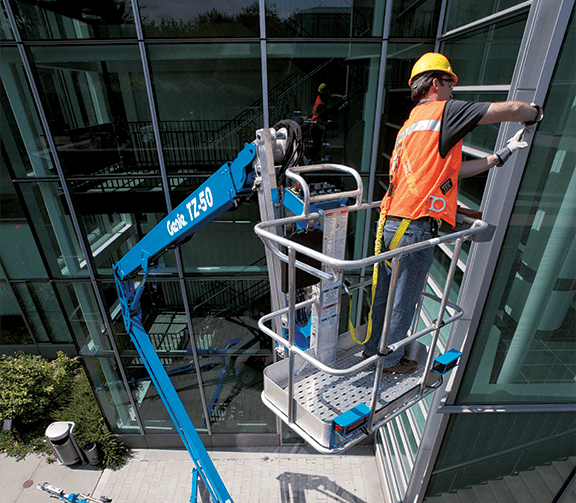

For the ultimate in towable reach and range, the Genie TZ-50 boom offers an outstanding working envelope and intuitive controls that allow operators to efficiently work right where they need to be. The Genie TZ-50 unit boasts a working height of 55 ft 6 in, 29 ft 2 in of outreach and 22 ft of up-and-over clearance, making it a favorite for contractors.

Durability is built in. The rigid chassis has a heavy-duty base and robust outriggers, making it the best solution for large and small contractors, maintenance crews and painting contractors. Plus, these machines are built to make service simple, including easy access to batteries. Simply release the clamp and remove the cover.

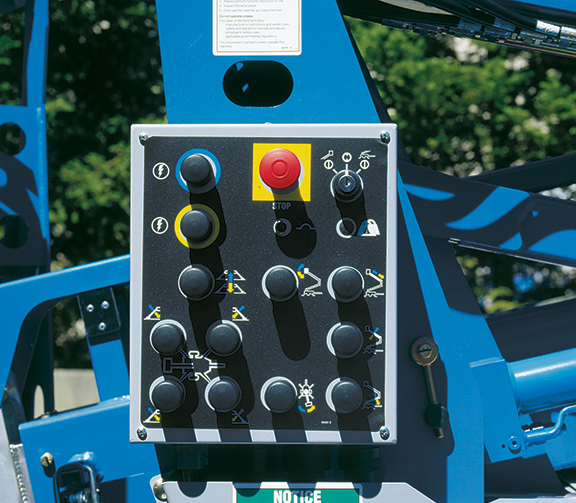

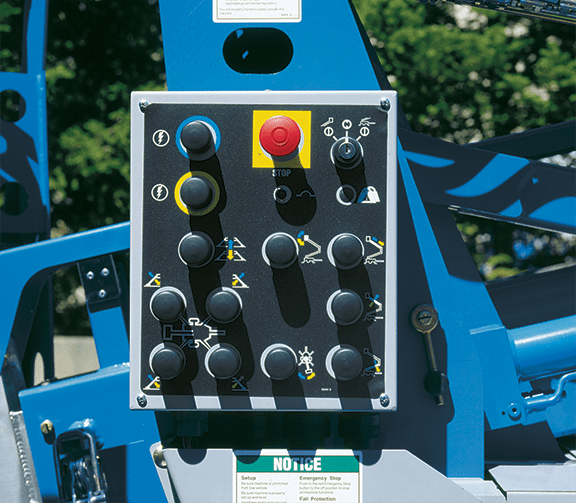

  • Ground and platform controls use symbols to simplify operation
  • Optional drive and set feature lets operators drive the unit from the platform when fully lowered
  • 359-degree non-continuous turntable rotation for versatile positioning
  • Tilt alarm/sensor for added safety
  • Industry leading working envelope
  • Extension boom

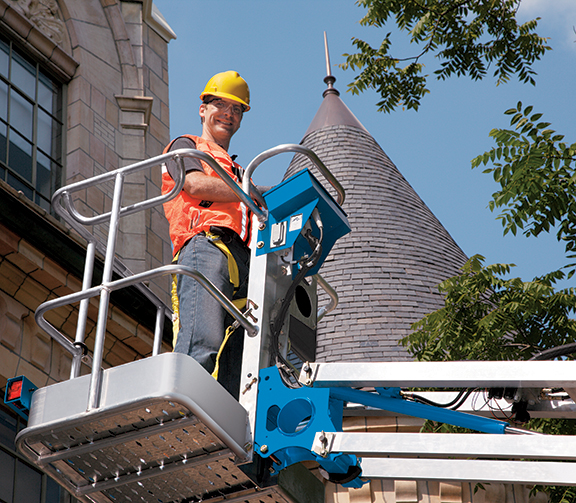

  • Self-leveling platform
  • 4 ft jib with 135° working range
  • AC wiring to platform

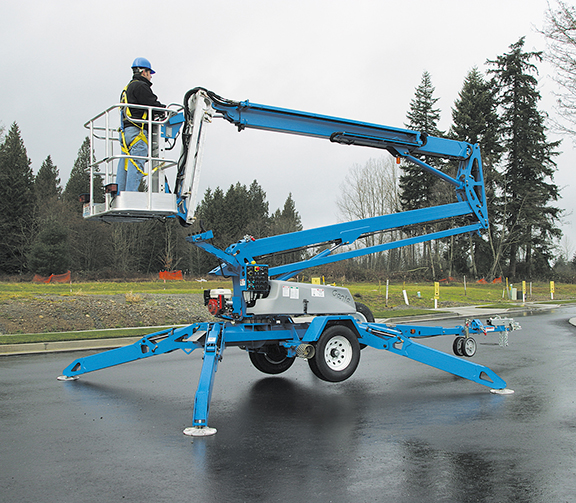

  • Hydraulic outriggers
  • Automatic 10° leveling system
  • Outrigger interlocks
  • Mechanical parking brake
  • Hydraulic surge brakes
  • Adjustable hitch with coupler lever lock
  • Dual jockey wheels
  • 359° non-continuous turntable rotation
  • Easy to access batteries
  • Hour meter
  • Tilt alarm / sensor
  • Illuminated outrigger indicators
  • Highway safety chains with snap hook
  • 24V DC power source (four 6V 225 Ah batteries)
  • 160° hydraulic platform rotation
  • Drive and set option
  • Wheel chocks
  • Fluorescent tube caddy
  • Full size spare tire
  • Flashing beacon
  • Non-marking outrigger footpads
  • Battery charge indicator (BCI)
  • Tool tray
  • Bicycle guard (CE only)
  • Horn
  • LED brake lights
  • High capacity battery
  • Ladder option (CE and AUS only)
  • Hybrid Honda 5.5 Hp (4.1 Kw) 45 amp charging system option
