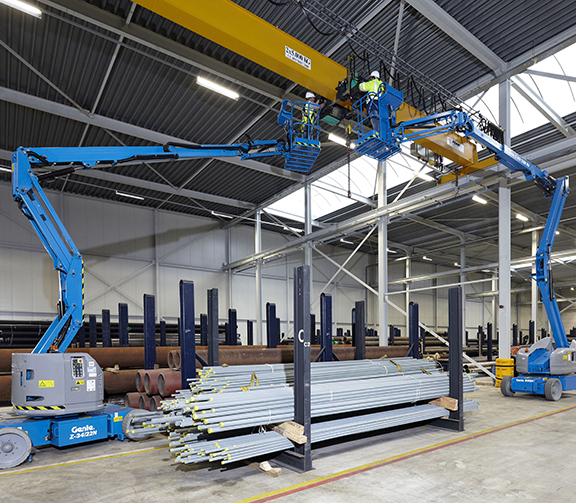

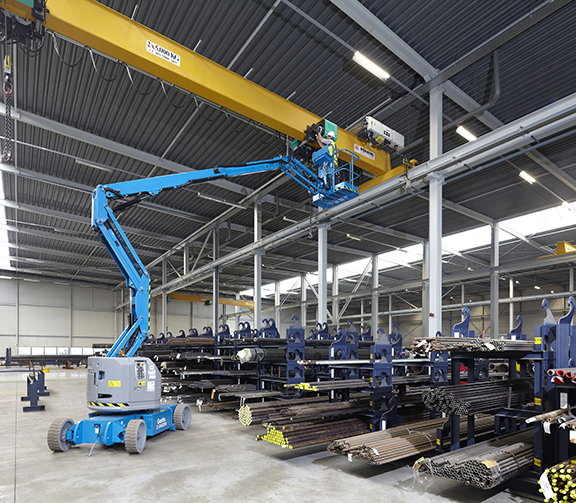

The Genie® Z®-34/22 N electric articulating boom lift operates quietly and emission-free, powered by a 48V DC system, making it ideal for sensitive environments.
Model Number: Z-34/22 N | Z-34/22 DC | Z-34/22 IC
Genie Z-34/22 Boom Lift
- 40 ft. 7 in. Maximum Working Height
- 22 ft. 3 in. Maximum Horizontal Reach
- 500 Lbs. Platform Capacity
- 15 ft. 3 in. Max Up and Over Clearance (riser extended)
Documents
Additional Information
| Brand | Genie |
|---|---|
| Condition | New |
| MEWP Type | Boom Lift, Articulated |
| Power | Electric, Engine |
| MEWP Lift Height | 26 – 40ft |
| MEWP Capacity | Up to 500 lbs |
Z-34/22N Advantages:
- 30% gradeability drive performance and 4.0 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
- Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
Z-34/22 DC Advantages:
- Zero tail swing and zero front arm swing in stowed and raised positions allow for work in tight spaces
- Compact chassis for narrow aisle access
- 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers
- 180° hydraulic platform rotation and self-levelling platform for easy operation
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system

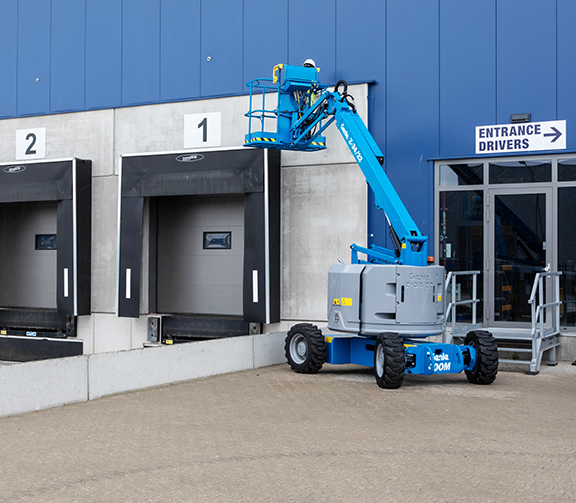

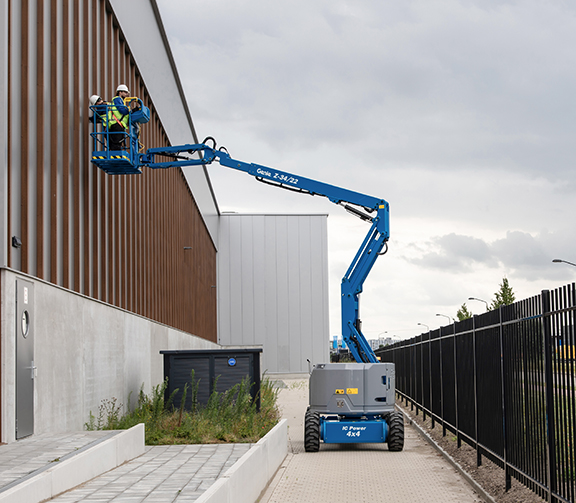

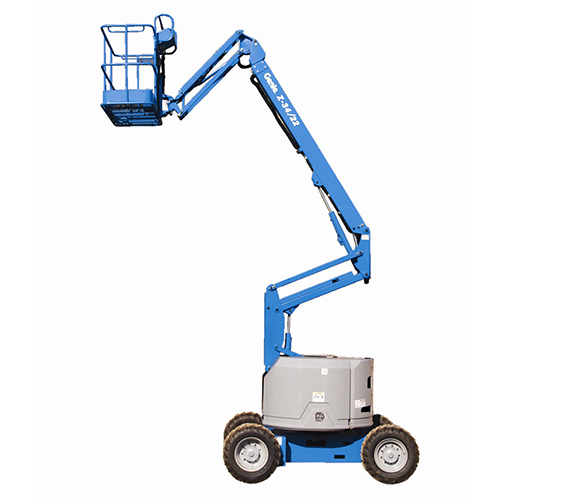

Z-34/22 IC Advantages:
- Zero tail swing and nose swing in all positions allow excellent maneuverability in confined areas
- Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
- 4WD and up to 45% gradeability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
Z-34/22N Standard Features:
- Standard FLA flooded lead acid battery
- Travel alarm package: flashing beacons, descent, travel and tilt alarms
- Lift Connect Telematics
Z-34/22 DC Standard Features:
- Industrial, foam-filled tires
Z-34/22 IC Standard Features:
- 24.8 hp, 18.5 kW, Kubota D1105, Diesel, T4i/T4f, Stage IIIA/V, CN IV
- Alarm package: flashing beacons, descent, travel and tilt alarms
- Telematics-ready
- Rough terrain, foam-filled tires
- 2 speed wheel motors
- 2 wheel steering
- Chassis tilt lift function cut-out
- Hydrostatic drive system
All Models Standard Features:
- Standard FLA flooded lead acid battery
- 4ft 8in/ 1.42m steel platform
- 4ft/1.2m Jib
- AC Power cord to platform
- Drive enable system
- Horn
- Lift Guard Contact Alarm
- Platform load sense system
- Proportional controls
- Self-leveling platform
- Chassis tilt drive function cut-out
- Dual parallelogram lift linkage
- Hour meter
