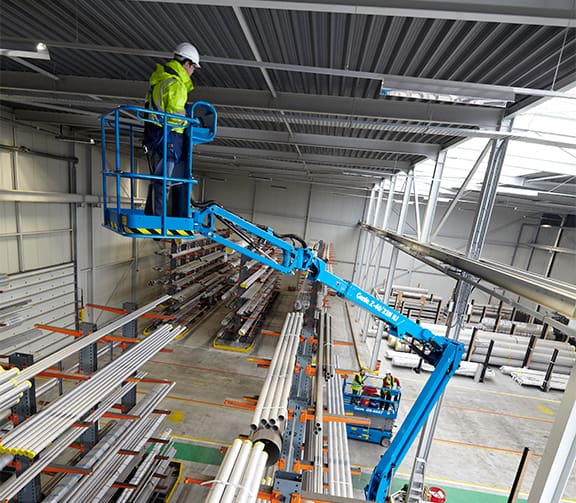

Z-4023 Operator in Platform (Action Shot)

Genie Z-40/23 Boom Lift

46 ft. 5 in. Maximum Working Height
22 ft. 8 in. Maximum Horizontal Reach
500 Lbs. Platform Capacity
21 ft. 3 in. Max Up and Over Clearance (riser extended)

Documents

Product Documents

Videos

Aerial Lift Information

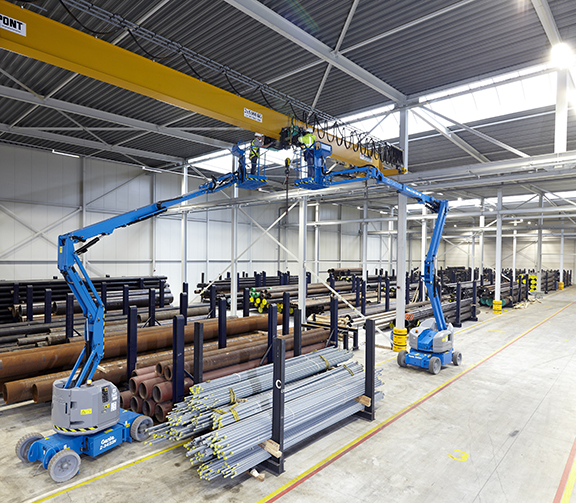

The Genie Z-40/23N and Z-40/23N RJ electric articulated boom lifts are designed to help you safely reach elevated work areas in tight, indoor, or noise-sensitive environments. Their compact footprint, zero-emission operation, and minimal tailswing make them ideal for navigating narrow aisles, doorways, and congested job sites without disrupting operations.

With a 500 lb platform capacity, smooth proportional controls, and strong up-and-over reach, these lifts give your team the flexibility to handle maintenance, installation, and facility work more efficiently. The rotating jib option on the RJ model adds even greater precision when working around obstacles, helping reduce repositioning time and improve productivity.

Model Number: Z-40/23 N | Z-40/23 N RJ

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Articulated
Power	Electric
MEWP Capacity	Up to 500 lbs
MEWP Lift Height	26 – 40ft

Quiet, emission-free electric operation makes these lifts well suited for sensitive indoor, urban, and noise-conscious work environments.

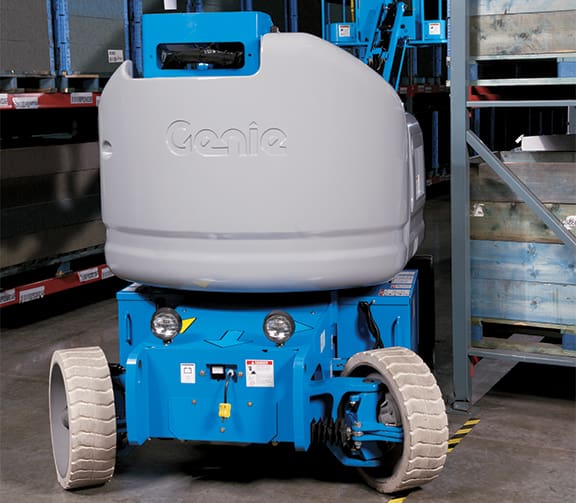

Compact dimensions, narrow chassis, minimal tailswing, and a tight turning radius help operators maneuver in confined jobsites and congested aisles.
The machines can drive through standard double doorways, making them practical for indoor facility work and access-restricted areas.
A 500 lb unrestricted platform capacity supports workers, tools, and materials without reducing rated capacity.

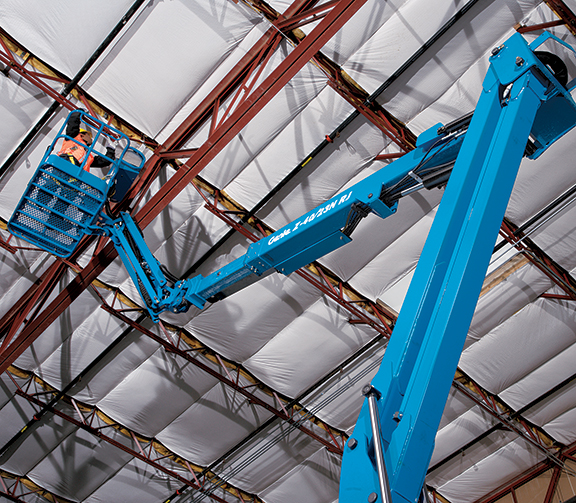

The Z-40/23N RJ adds a rotating jib with 180° horizontal rotation for added positioning flexibility around obstacles and structures.
AC drive technology is designed to improve drive performance while simplifying maintenance.

48V DC power system with 48V 3-phase AC drive system.
Low voltage interrupt (LVI) with battery charge indicator (BCI).
AC power cord to platform.
Alarm package including flashing beacons, descent alarm, travel alarm, and tilt alarm.
Drive enable system.
Horn.
Lift Guard Contact Alarm.
Platform load sense system.
Proportional controls.
Self-leveling platform.
Telematics-ready chassis.
Chassis tilt drive function cut-out.
Chassis tilt lift function cut-out.
Dual parallelogram lift linkage.
Electric brake release.
Hour meter.
On-board diagnostic system.
Sealed AC electric drive motors.

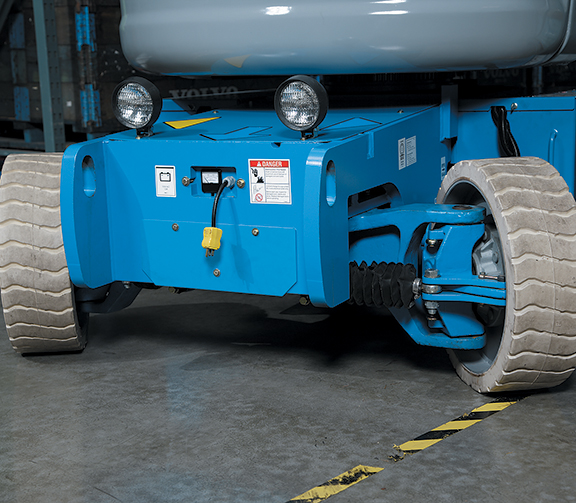

Solid, non-marking tires.

AGM maintenance-free batteries.
800W power inverter with 120V AC, 60Hz output.
Air line to platform.
Control box covers.
Lift Guard half mesh panels with swing gate.
Light package with drive and work lights.
Platform auxiliary top rail.
Platform swing gate.
Lift Guard Lanyard Alert.
Lift Guard Lanyard Alert Advanced.
Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Biodegradable hydraulic oil.
Cold weather hydraulic oil.
Fire resistant hydraulic oil.
Hostile environment kit.
Genie Genuine Accessories such as Lift Tools Productivity Tools, Lift Connect Telematics, and the Tech Pro Link handheld device.

180 deg; hydraulic platform rotation helps operators position the platform more precisely with less repositioning of the machine.

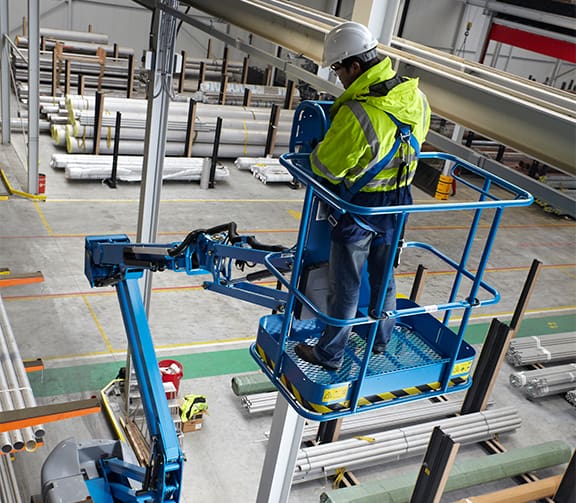

Self-leveling platform helps maintain a stable operator working position while elevating and positioning.

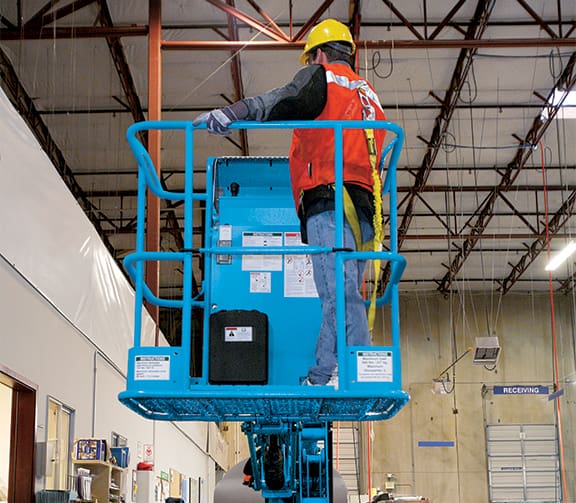

Proportional controls support smoother machine operation and finer positioning.

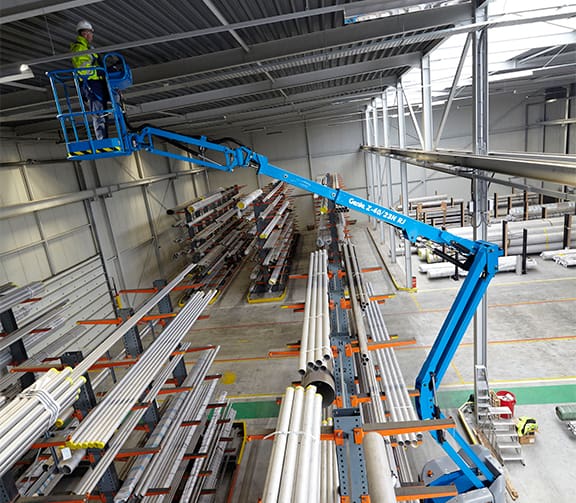

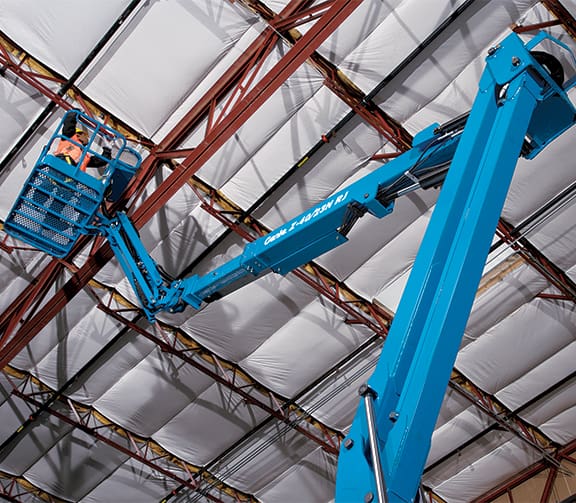

The articulating jib improves access over and around obstacles, reducing the need for repeated machine moves.
Compact overall width of 4 ft 11 in helps operators work in tighter spaces.

Lift Guard Contact Alarm is standard.
Alarm package includes flashing beacons plus descent, travel, and tilt alarms.
Drive enable system helps support proper travel operation.
Platform load sense system is standard.
Chassis tilt drive function cut-out and chassis tilt lift function cut-out are standard.

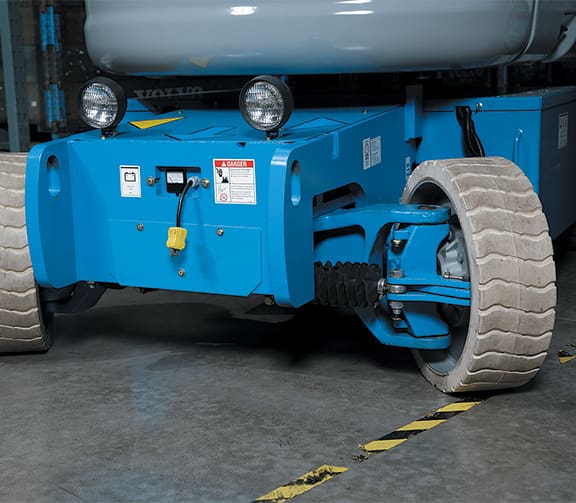

Solid, non-marking tires support indoor operation while reducing floor marking.
Available Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced add additional operator awareness options.
The models are listed to ANSI A92.20 and CSA B354.6 standards.

Maximum working height: 46 ft 5 in.
Maximum platform height: 40 ft 5 in.
Maximum horizontal reach: 22 ft 8 in.
Maximum up-and-over clearance: 21 ft 3 in.
Maximum unrestricted platform capacity: 500 lb.
Drive speed when stowed: 4.5 mph.
Drive speed when raised: 0.68 mph.
Gradeability: 30%.
Turntable rotation: 355°.
Platform rotation: 180°.
Jib length: 4 ft.
Z-40/23N jib vertical rotation: 128°.
Z-40/23N RJ jib rotation: 128° vertical and 180° horizontal.
Turning radius: 2 ft 11 in inside / 10 ft 6 in outside.
Minimal 5 in tailswing supports operation in tighter work zones.

AC drive system is promoted as simplifying maintenance.
Sealed AC electric drive motors help reduce maintenance exposure.
On-board diagnostic system supports troubleshooting and serviceability.
Hour meter helps technicians and fleet managers track service intervals and machine usage.
Available Lift Connect Telematics and Lift Connect with Access Manager upgrade can support fleet visibility and management.
Tech Pro Link handheld device is available through Genie Genuine Accessories.

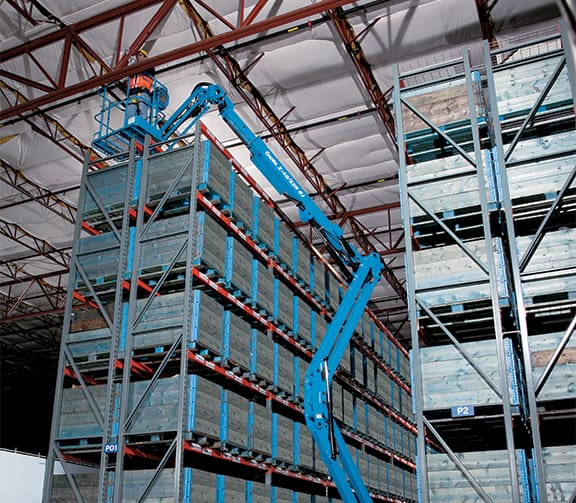

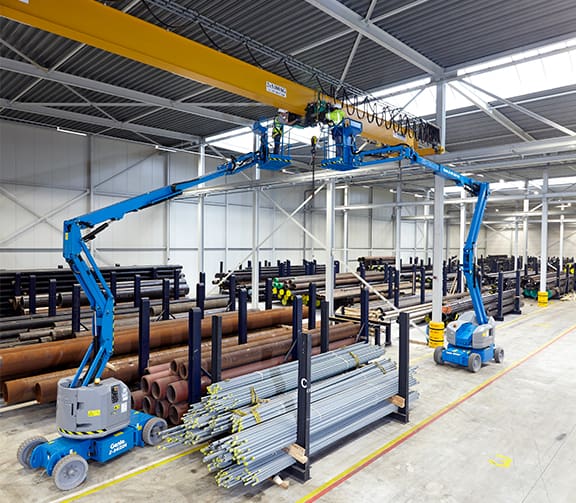

Warehousing and distribution facilities.
Manufacturing plants.
Facility maintenance.
Urban job sites.
Sensitive indoor environments requiring quiet, emission-free equipment.
Congested work areas with narrow aisles, overhead obstacles, and limited access points.
