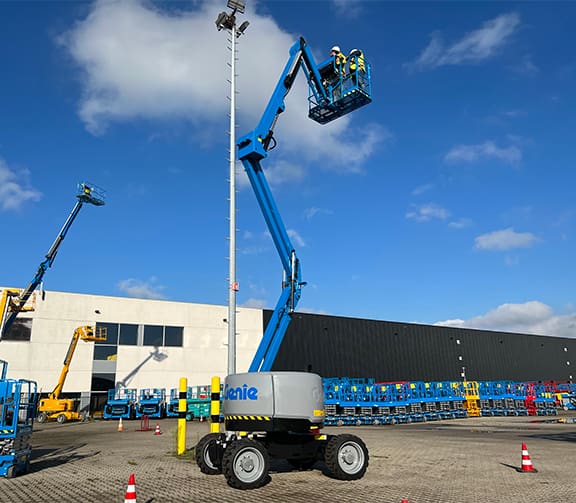

Z-45_25 Extended Outreach Over Obstacles

Genie Z-45/25 Boom Lift

51 ft. 9 in. Working Height
25 ft. 1 in. Maximum Horizontal Reach
500 Lbs. Platform Capacity
23 ft. 9 in. Max Up and Over Clearance (riser extended)

Documents

Product Documents

Aerial Lift Information

Videos

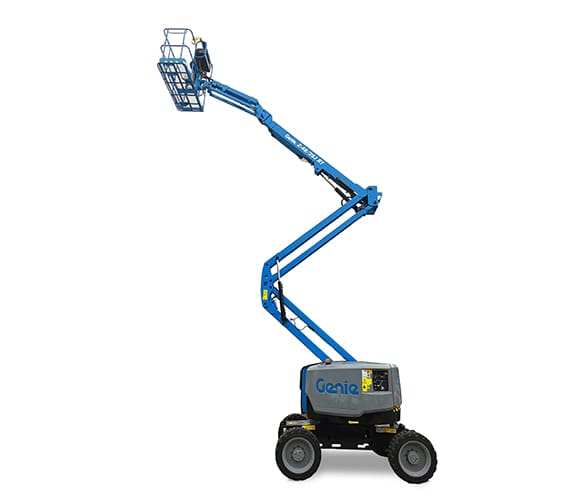

The Genie Z-45/25J DC articulated boom lift is designed to help you work efficiently in tight, indoor, or noise-sensitive environments without sacrificing reach or performance. Its electric drive system delivers zero emissions and quiet operation, while the articulating boom and jib provide excellent up-and-over access to hard-to-reach areas.

With a 500 lb platform capacity and smooth, proportional controls, operators can position themselves confidently and work with the tools they need. Compact, maneuverable, and built for versatility, it’s a practical solution for facilities looking to improve productivity without disrupting operations.

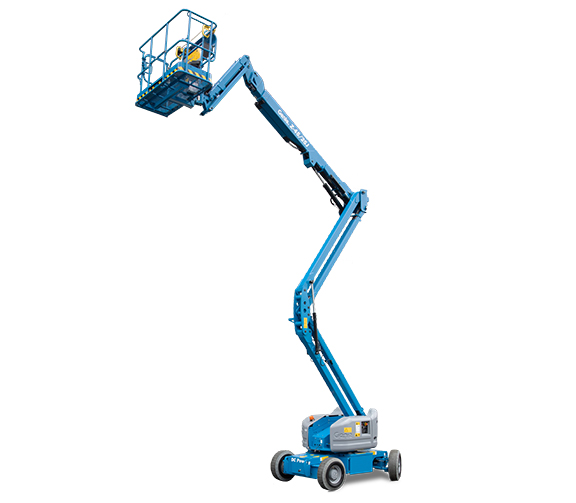

Model Number: Z-45/25J DC

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Articulated
Power	Electric
MEWP Lift Height	41 – 60ft
MEWP Capacity	Up to 500 lbs

Quiet, emission-free electric operation makes it well-suited for indoor use and other noise-sensitive environments.

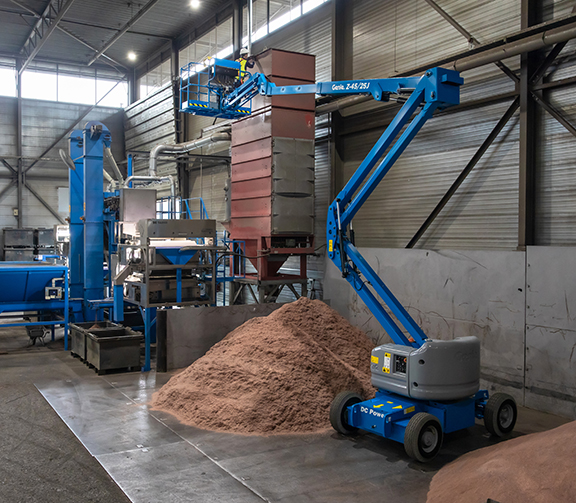

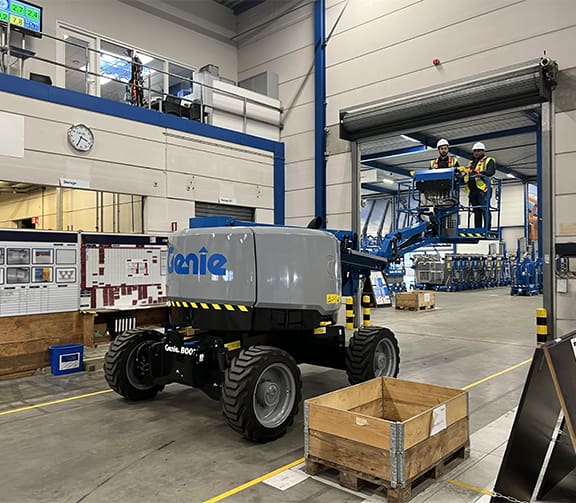

Zero tail swing and a tight turning radius help operators maneuver in confined or congested work areas.

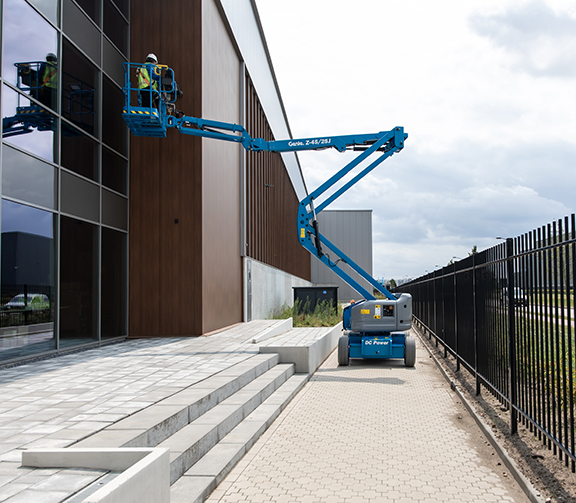

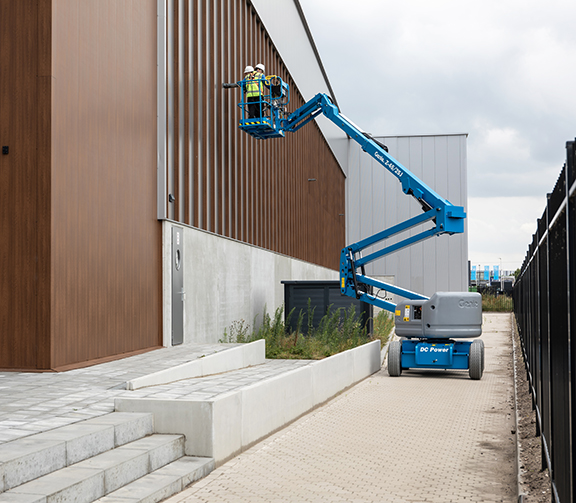

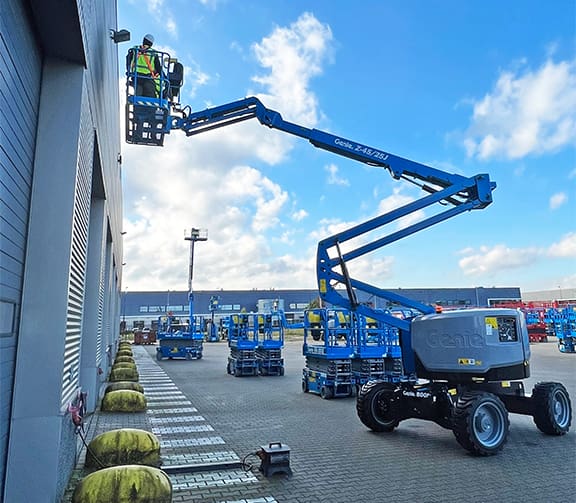

Articulating boom design, horizontal reach, and up-and-over clearance make it easier to work around obstacles and close to structures.
Dual parallelogram lift linkage supports smooth positioning and jobsite versatility.
Large platform with 500 lb capacity allows room for workers, tools, and materials.

48V DC power system with standard flooded lead acid battery.
Battery charge indicator and low voltage interrupt with battery charge indicator.
6 ft dual-entry steel platform with side swing gate.
AC power cord to platform.
Alarm package with flashing beacons, descent, travel, and tilt alarms.
Drive enable system and horn.
LCD display and hour meter.
Lift Guard Contact Alarm.
Platform load sense system.
Proportional controls and self-leveling platform.
Telematics-ready chassis.

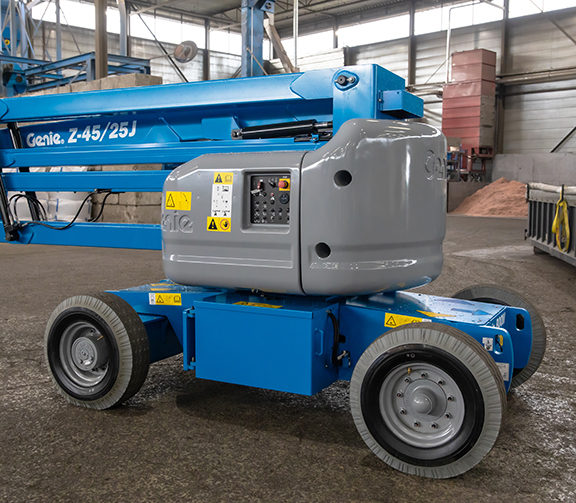

Industrial foam-filled tires.
Chassis tilt drive function cut-out and chassis tilt lift function cut-out.
Dual parallelogram lift linkage.
Zero tail swing.

AGM maintenance-free batteries.
800W power inverter.
3 ft 10 in steel platform.
Air line to platform.
Control box covers.
Lift Guard half mesh panels.
Light package with drive and work lights.
Platform auxiliary top rail.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced.
Lift Connect telematics and Lift Connect with Access Manager upgrade.
Biodegradable, cold weather, and fire-resistant hydraulic oil options.
Non-marking foam-filled tires.
Hostile environment kit.
Tow package.
Genie Genuine Accessories such as Lift Tools productivity tools and Tech Pro Link handheld device.

160° hydraulic platform rotation helps operators position the platform more precisely.
Self-leveling platform helps maintain a more stable working position as the boom moves.

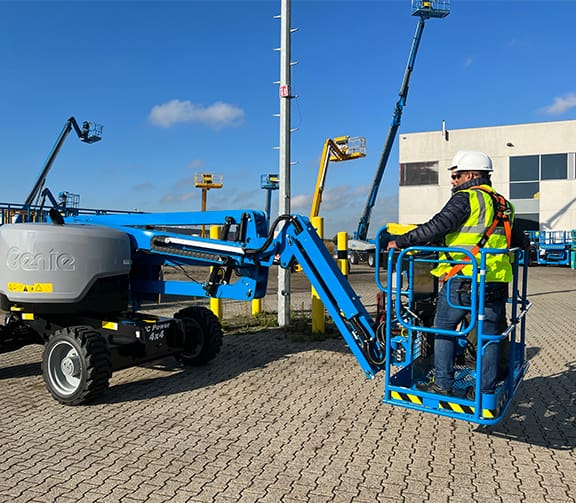

Dual-entry platform with side swing gate improves platform access.
Proportional controls support smoother, more controlled machine movement.

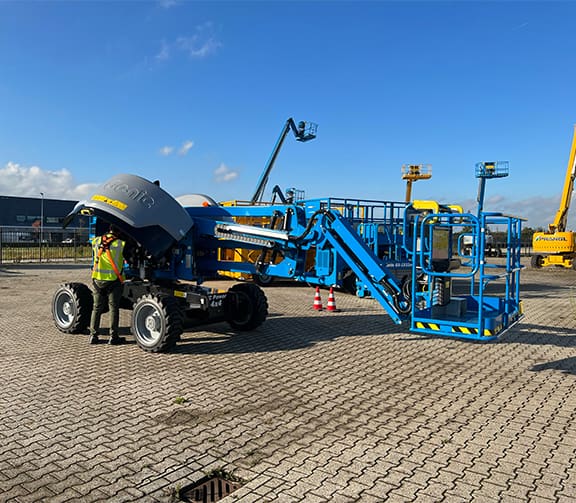

5 ft jib with 135° vertical rotation allows more accurate placement in elevated work areas.

Lift Guard Contact Alarm is designed to improve operator and ground crew awareness.
Platform load sense system helps monitor rated platform capacity.
Drive enable system supports safer machine operation.
Alarm package includes descent, travel, and tilt alarms plus flashing beacons.
Chassis tilt drive and lift function cut-outs add protection on out-of-level conditions.
Low voltage interrupt helps protect battery-powered operation.
Optional Lift Guard Lanyard Alert systems can add another layer of operator awareness.

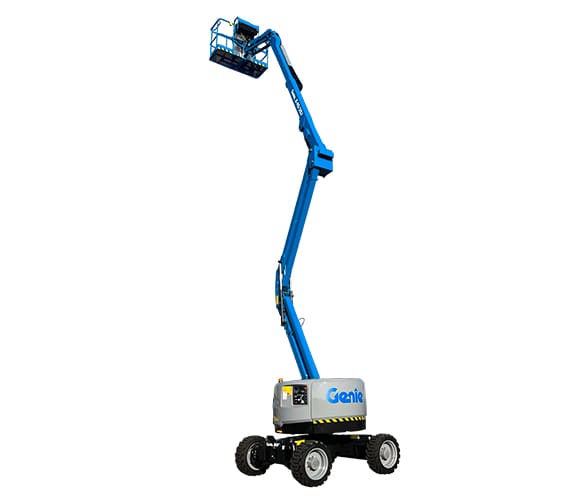

Maximum working height: 51 ft 9 in.
Maximum platform height: 45 ft 9 in.

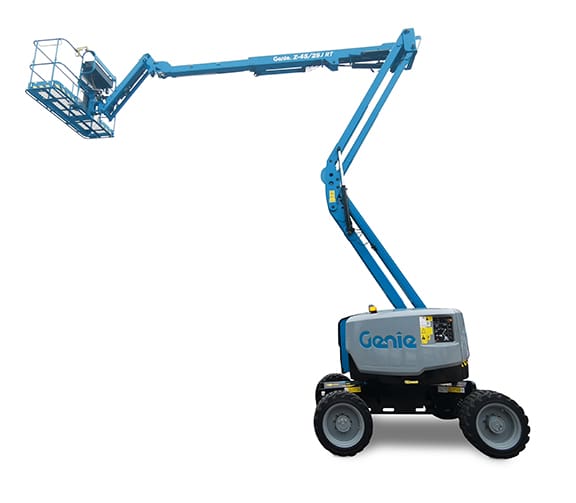

Maximum horizontal reach: 25 ft 1 in.
Maximum up-and-over clearance: 23 ft 9 in.
Maximum unrestricted platform capacity: 500 lb.
Drive speed up to 3.0 mph when stowed.
30% gradeability for solid drive performance on slopes.
Inside turning radius of 6 ft supports maneuverability in tighter spaces.
Zero tail swing helps maximize usable performance in narrow aisles and near walls.

Telematics-ready design can support fleet monitoring and service visibility.
Optional Lift Connect telematics can help track machine data and maintenance-related information.
LCD display and hour meter help operators and technicians monitor machine status and usage.
Tech Pro Link handheld device is available as an accessory for service support.

Warehouse and distribution facilities.
Indoor maintenance and facility management.

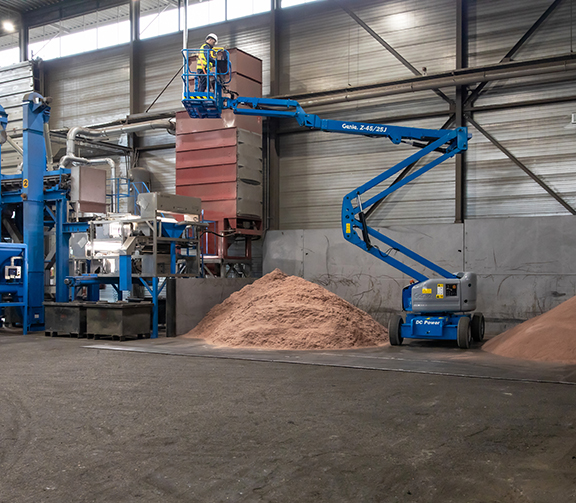

Manufacturing environments.

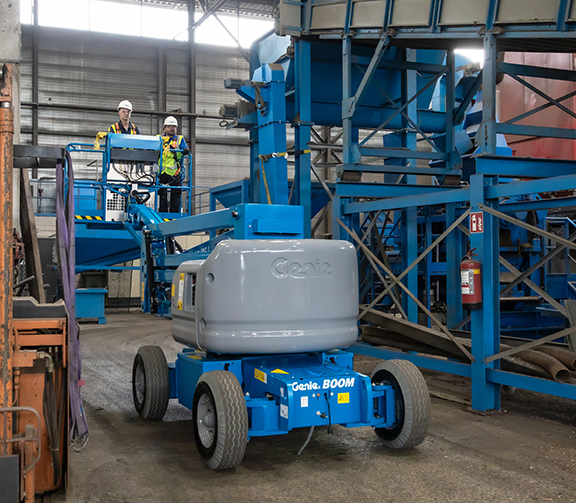

Construction jobsites with confined working areas.
Operations that need quiet, low-emission equipment near buildings or in sensitive environments.
