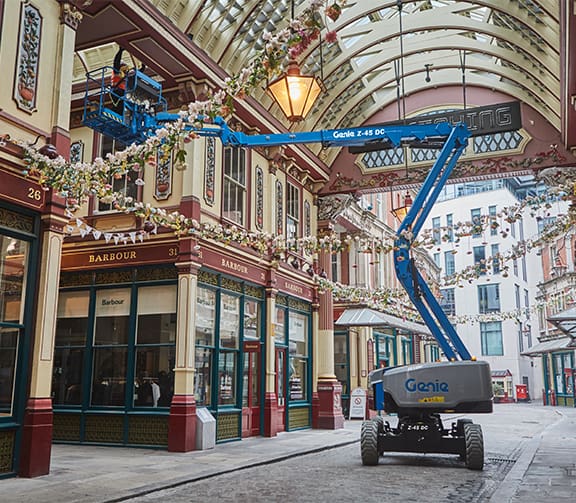

Z-45 DC Extended Outreach Over Obstacles

Genie Z-45 Boom Lift

51 ft 8 in working height
24 ft 9 in horizontal reach
1,000 lb platform capacity (model dependent)
24 ft 7 in up-and-over clearance

Documents

Product Documents

Aerial Lift Information

Videos

Product Walk-Around Z-45 XC

The Genie Z-45 series articulated boom lifts deliver versatile, mid-range access with the reach and flexibility needed to navigate obstacles and position operators precisely where work gets done. With multiple power options—including electric, hybrid, and diesel—these machines adapt to indoor, outdoor, and rough-terrain environments while maintaining strong performance and efficiency.

High lift capacities on XC and HF models allow crews to carry more tools and materials, reducing trips and increasing productivity. Designed with intuitive controls, advanced safety systems, and durable components, the Z-45 lineup helps operations managers keep projects moving while minimizing downtime and operating costs.

Model Number: Z-45 XC | Z-45 DC | Z-45 FE | Z-45 HF

Additional Information

Brand	Genie
Condition	New
MEWP Type	Boom Lift, Articulated
Power	Electric, Engine
MEWP Capacity	501 – 1,000 lbs
MEWP Lift Height	41 – 60ft

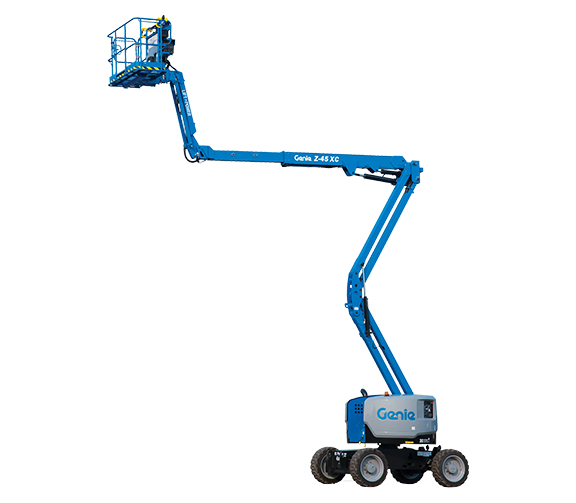

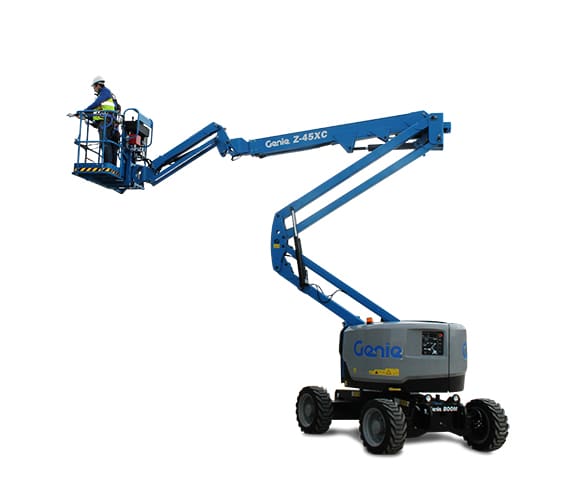

Z-45 XC offers dual-envelope capacity, with 660 lb unrestricted capacity and up to 1,000 lb restricted capacity for heavier tools and materials.

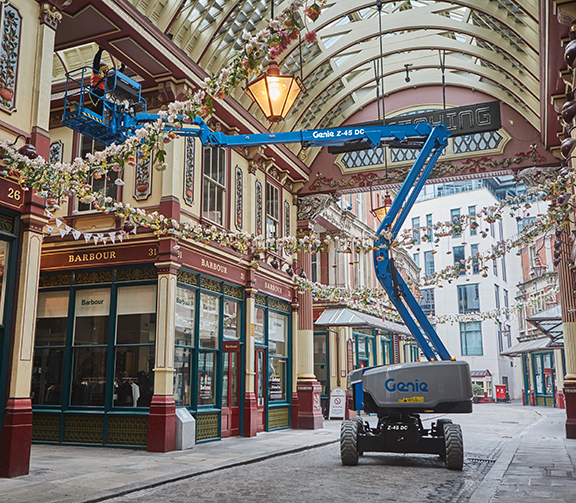

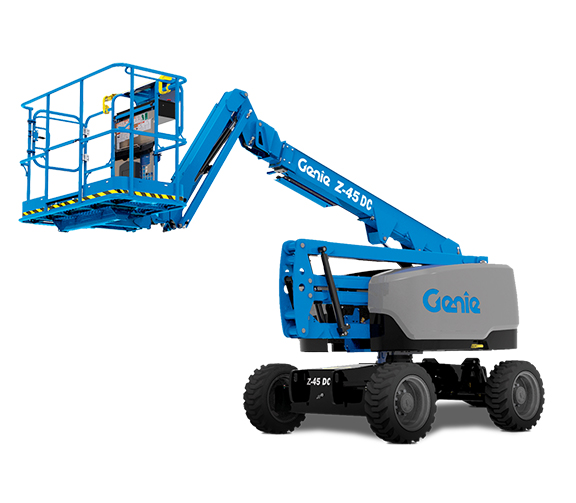

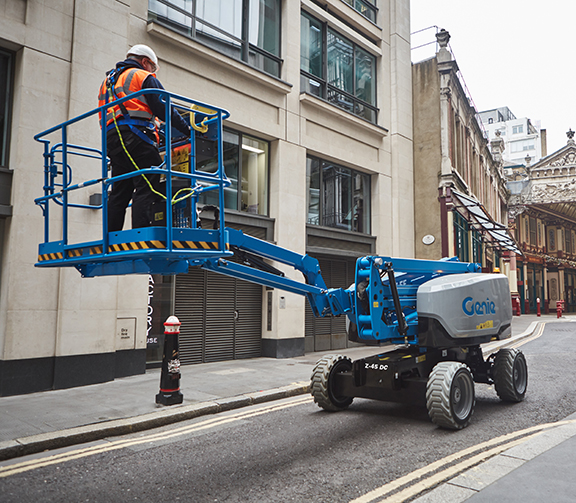

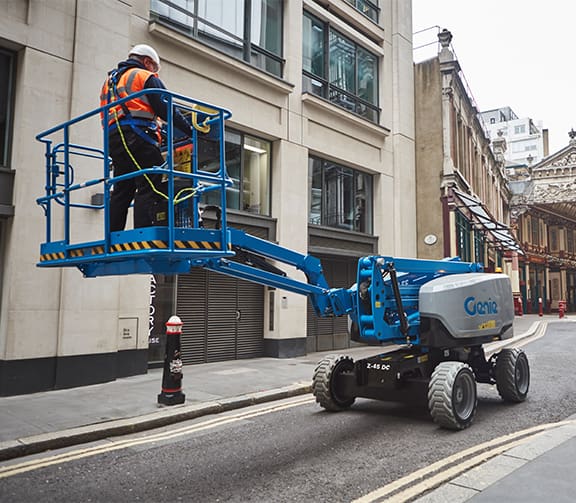

Z-45 DC delivers quiet, clean, all-electric operation suited for both indoor and outdoor applications.

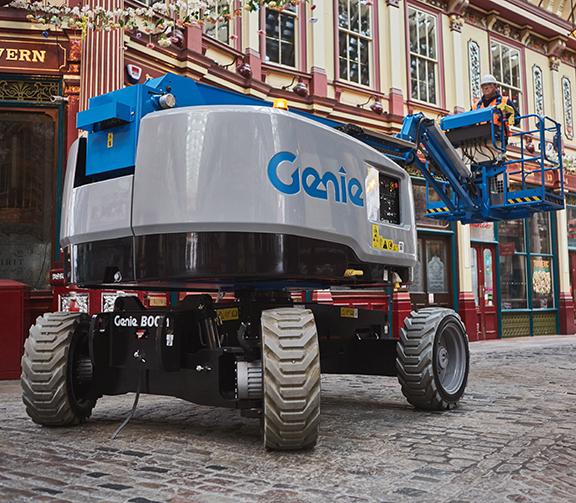

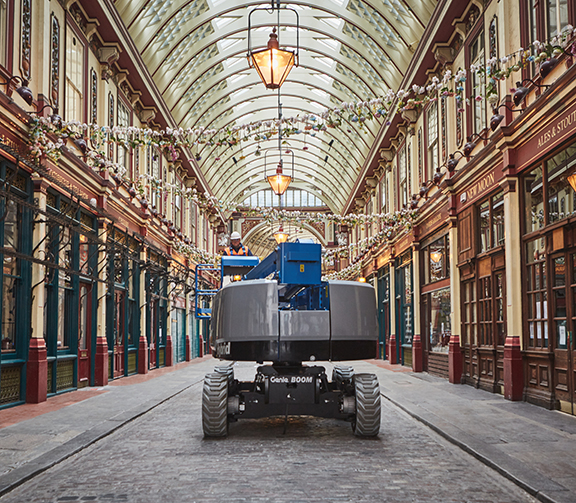

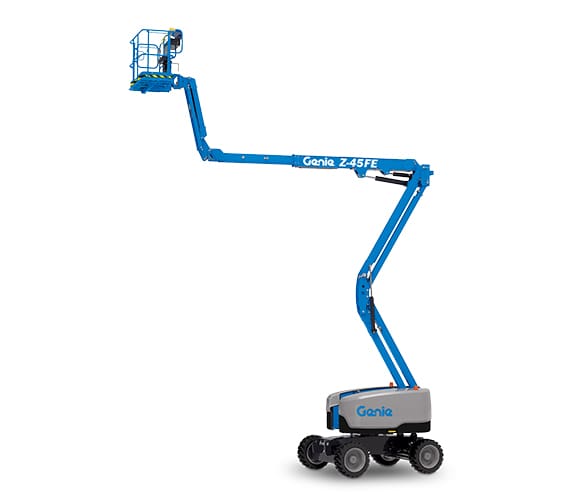

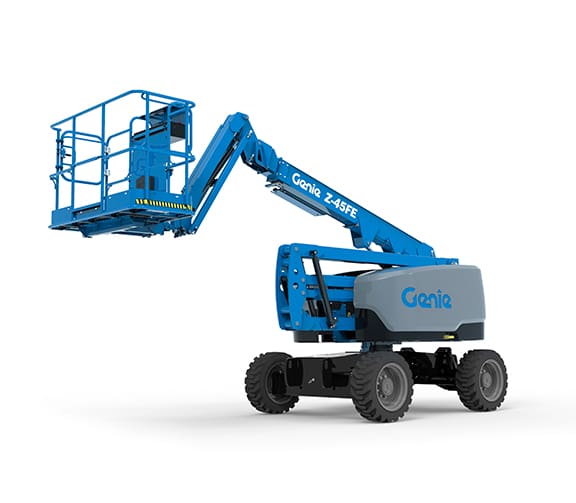

Z-45 FE provides two machines in one, with all-electric operation for emissions-free work and hybrid operation for extended runtime and flexibility.
Z-45 HF is designed for sensitive ground conditions like sand and turf, helping reduce surface damage while maintaining jobsite productivity.
All models provide strong rough-terrain capability with 45% gradeability and 4WD configurations.

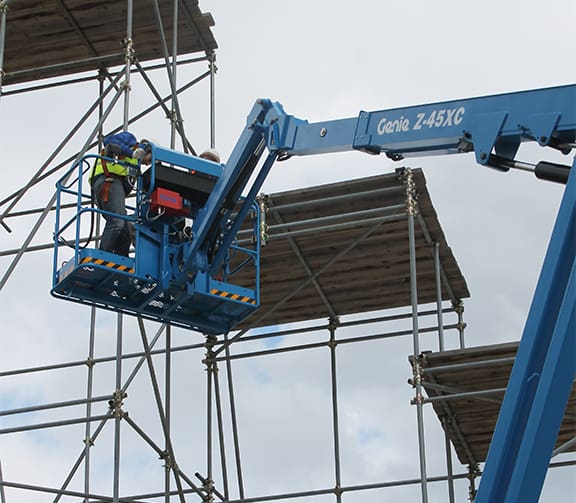

Articulated boom design provides strong up-and-over access for positioning around structures and obstacles.

6 ft dual-entry platform with side swing gate.
5 ft jib for added reach and positioning flexibility.
AC power cord to platform.
Dual axis joystick steering.

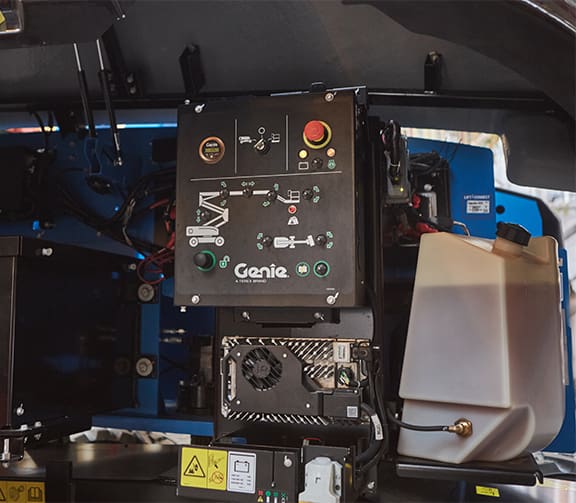

Proportional controls.
Self-leveling platform.
Platform load sense system.
Drive enable system.
Alarm package with flashing beacons, descent, travel, and tilt alarms.
Horn.
Lift Guard Contact Alarm.
Telematics-ready architecture.
Active oscillating axle.
Chassis tilt drive function cut-out.
Chassis tilt lift function cut-out.
Dual parallelogram lift linkage.
Hour meter.

Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Lift Tools Work Tray and other productivity accessories.
Tech Pro Link handheld device compatibility.
Air line to platform.
Control box covers.
Lift Guard full mesh or half mesh panels.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced.
Light package with drive and work lights.
Platform auxiliary top rail.
Cold weather package.
Biodegradable, cold weather, or fire-resistant hydraulic oil.
Power inverter on DC/FE models.
Lift Power generators and welder-ready generator packages on XC/HF models.
Non-marking, foam-filled, or high flotation tire packages depending on model.

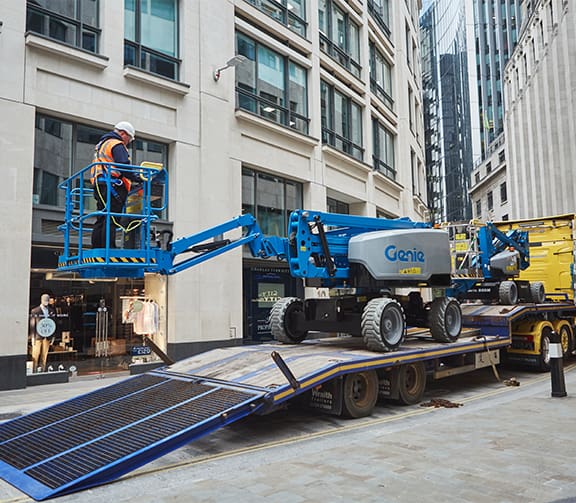

Tow package and hostile environment kit on XC/HF models.

Dual axis joystick steering supports intuitive machine control.
Fully proportional controls help operators make smooth, precise movements.
Self-leveling platform helps maintain operator comfort and stability while positioning.

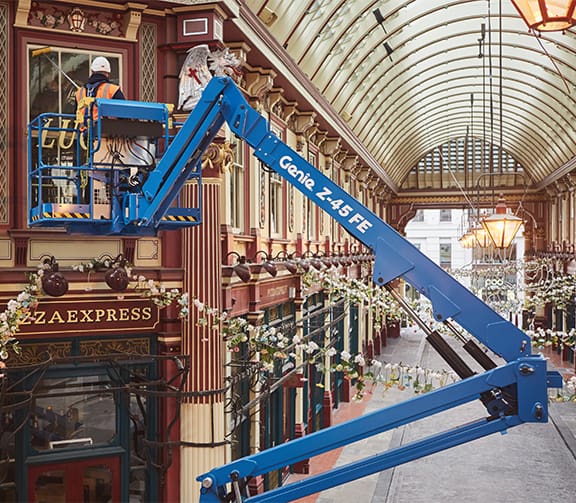

160° platform rotation and articulating jib improve access when working around obstacles.
Dual-entry platform with side swing gate improves platform access and egress.

Platform load sense system helps monitor capacity.
Lift Guard Contact Alarm helps alert ground personnel if the operator contacts the control panel.
Optional Lift Guard Lanyard Alert systems support tie-off awareness.
Tilt sensor activation and chassis tilt cut-out functions help protect against unsafe operating angles.
Drive enable system helps maintain controlled operation.
Alarm package includes descent, travel, tilt, and beacon alerts.
XC models feature load sense technology for accurate load weighing and zero-load field calibration.
XC/HF diesel models include anti-restart engine protection and auto engine fault shutdown.
Positive air shutdown system is available on applicable XC configurations.

Working height reaches approximately 51 ft 6 in to 51 ft 8 in, depending on model.
Horizontal reach extends up to 24 ft 9 in on XC and HF models.
Up-and-over clearance reaches up to 24 ft 7 in on DC and FE models.
45% gradeability supports travel on slopes in stowed position.

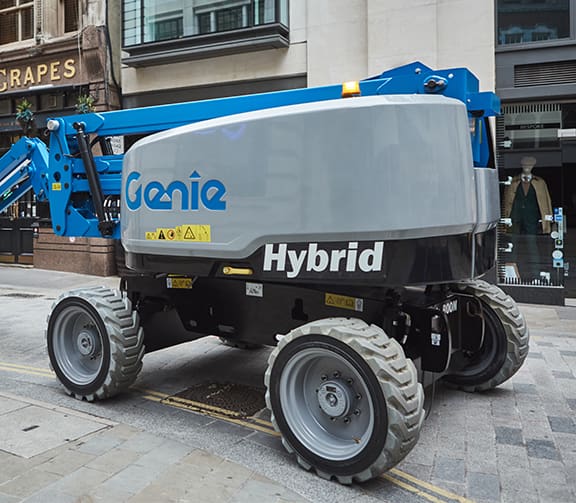

4WD configurations and active oscillating axle improve traction on uneven terrain.
Z-45 XC provides 660 lb unrestricted capacity and 1,000 lb restricted capacity with auto envelope control.
Z-45 HF provides 600 lb capacity with auto envelope control and high flotation performance for softer ground.
Z-45 FE can operate a full workday in electric mode on a single charge or up to a week in hybrid mode with one tank of diesel.
Sealed AC drive motors and high-efficiency AC drive systems support strong drive performance on DC and FE models.

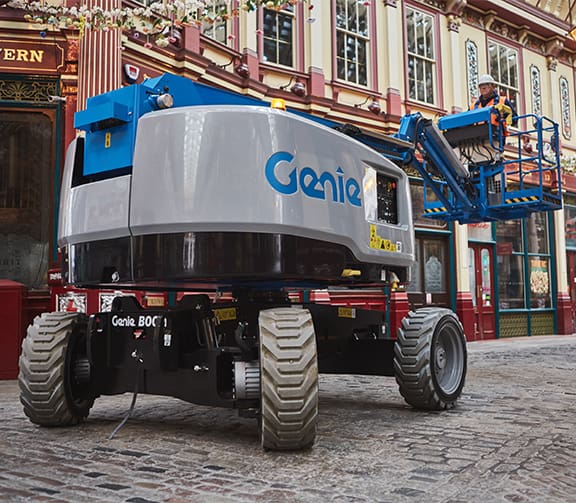

XC/HF models offer zero tailswing for improved maneuvering in tighter work areas.

High-efficiency AC drive systems are designed to simplify maintenance on DC and FE models.
Commonality in design and accessories with other Genie booms can make parts stocking easier on the XC.
On-board diagnostic system supports troubleshooting on DC and FE models.
Telematics-ready machines can support fleet monitoring and service visibility.
Sealed AC electric drive motors on DC and FE models help reduce maintenance exposure.

Commercial construction.
Industrial applications.
Facilities maintenance.
Sports arenas.
Malls and large retail environments.
Pedestrian-sensitive or low-emission work zones.

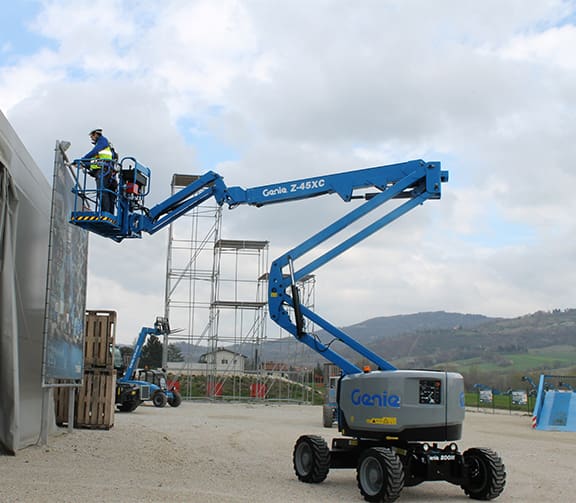

Jobsites with rough terrain or uneven ground.
Turf, sand, and other soft-surface environments for the Z-45 HF.
