RAVAS 256X Hand Pallet Jack Scale

FM approved for USA: Class I, II, III Division 1, Groups A-G
5,000 lb capacity with 1 lb graduation.
Explosion-proof mobile weighing system
Rotating display visible from all sides
Rechargeable, exchangeable battery

Documents

Product Documents

Financing Information

Product Description

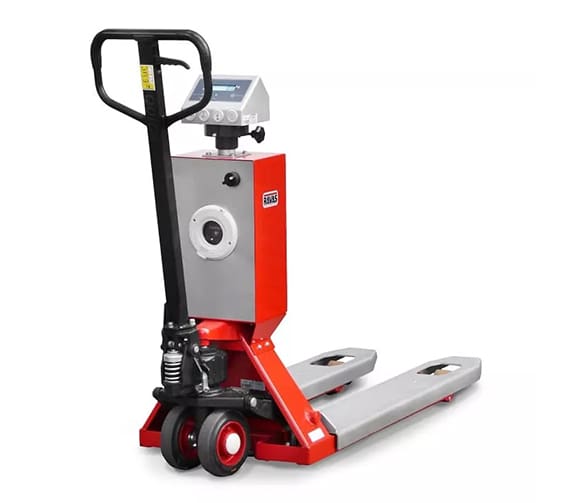

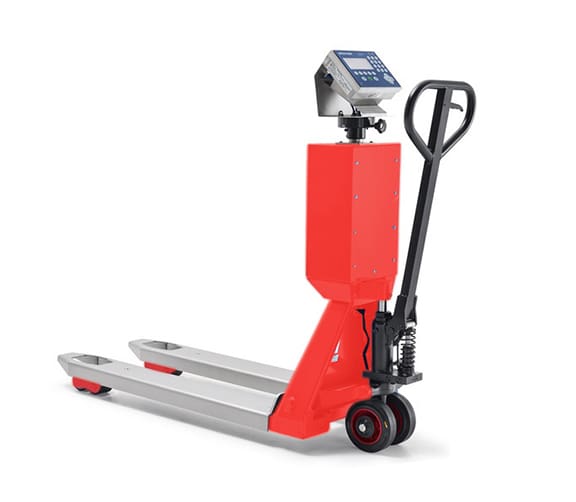

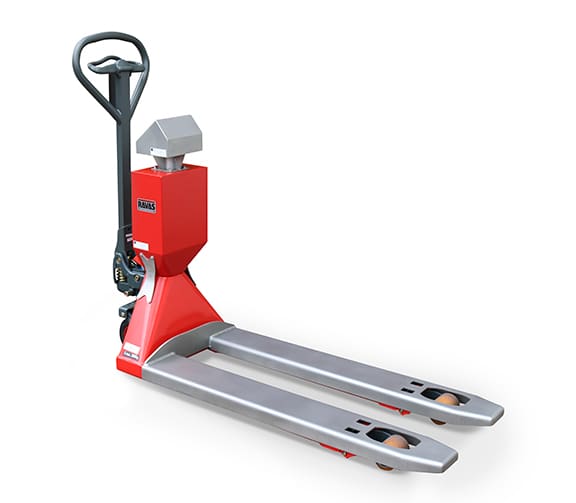

The RAVAS 256X is an explosion-proof hand pallet jack scale built for weighing in hazardous environments where standard mobile scales are not appropriate.

FM approved for the USA and Canada, it is rated for Class I, II, III Division 1, Groups A-G and is designed for applications such as mixing, batching, and weighing materials in volatile areas.

The 5,000 lb capacity, 1 lb graduation, rotating display, and large keypad help operators weigh palletized loads clearly and efficiently while they work. Standard stainless steel fork covers, antistatic steering wheels, IP-rated components, and a rechargeable exchangeable battery make it a practical fit for chemical and pharmaceutical material handling.

Model Numbers: Ravas 256X

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	RAVAS
Forklift Capacity	Up to 3,000 lbs, 3,001 – 5,000 lbs
Condition	New

Combines pallet transport and weighing in one hand pallet jack, helping operators capture weight at the point of handling.
Standard NTEP approval supports Legal for Trade weighing applications.
Piece counting and programmable routines support repeatable warehouse processes and counting tasks.
Integrated data connectivity helps move weight data into printers, USB storage, apps, or connected warehouse systems.
Level compensation to 3 degrees helps support accurate weighing when floors or load positions are not perfectly level.

5,000 lb weighing capacity.
0-3,000 lb graduation in 1 lb increments, or 5,000 lb graduation in 2 lb increments.
Full-color 5 inch touchscreen display with approximately 1 inch high digits.
Automatic and manual zero correction, gross/net weighing, and tare memory for 10 values.
Internal clock for date and time.
Onboard RS232 printer connection and USB output for data transfer with a USB stick.
USB output can also be used to connect a barcode scanner.
Connectivity for the RAVAS Indicator App.
Rechargeable removable Li-ion battery pack with charger included.

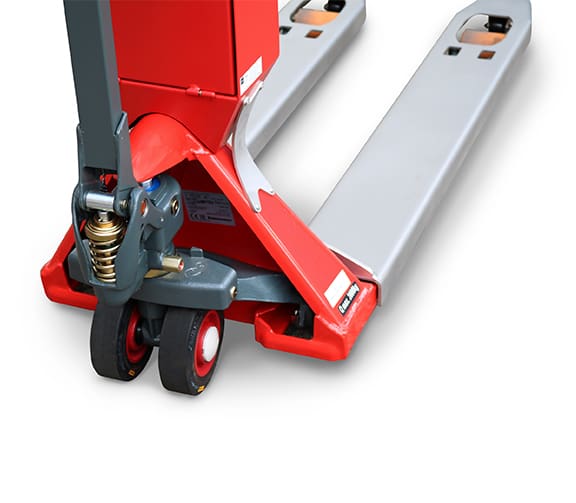

Quick-lift pump, rubber steering wheels, and single polyurethane loading wheels.

Thermal or matrix 12V printer.
Wireless or Wi-Fi data transfer.
Reference scale via RS232 for more accurate piece counting.
Parking brake.
1D USB barcode scanner, not in combination with Legal for Trade use.
Additional Li-ion battery pack.

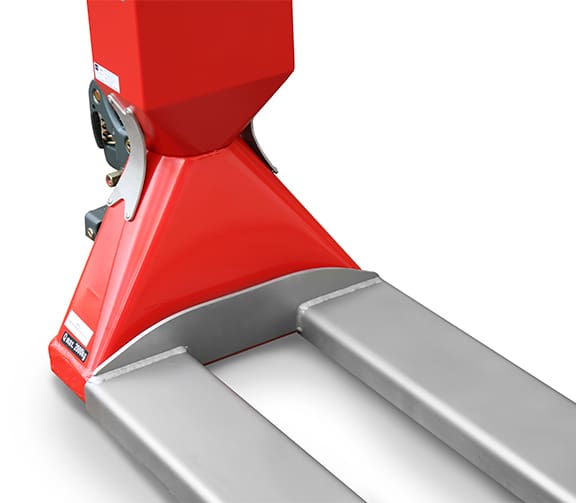

Stainless steel chassis.
RDC RAVAS Data Collector Software and RIS RAVAS Integration Software.

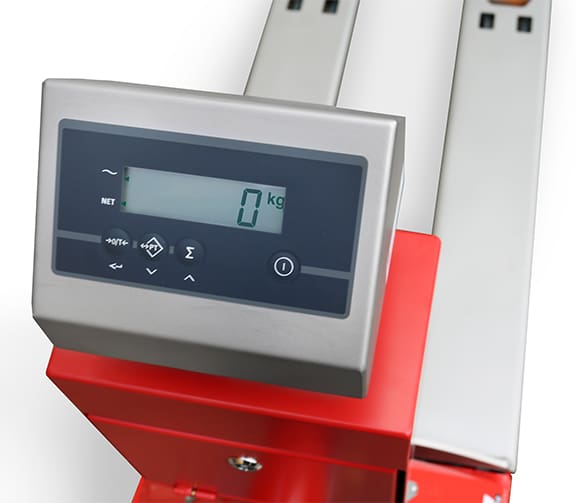

Rotating and tiltable indicator mounting helps operators position the display for easier viewing.
Touchscreen display shows only the active keys, keeping operation clear for the task at hand.
Large display digits improve readability during weighing and handling.
Handle controls support lifting and driving from the operator position.
Quick-lift pump helps reduce the effort needed to raise loads.

5,000 lb capacity supports common palletized warehouse loads.
Maximum tolerance is 0.1% of applied load.
Li-ion battery provides up to 25 hours of continuous use, or up to 50 hours with sleep modes.

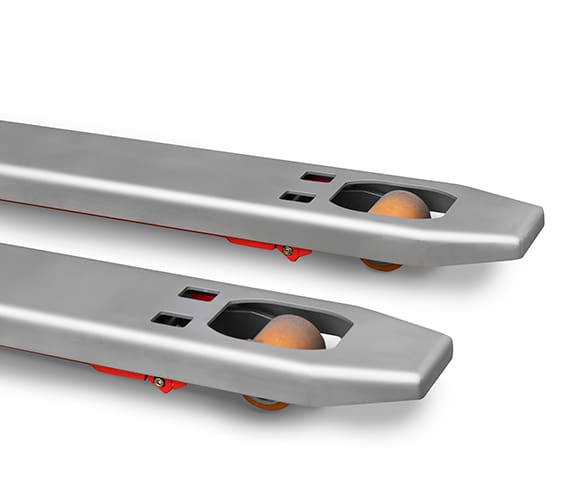

Standard fork size is 48 inches long with 27.2 inches width over forks.
Minimum fork height is 3.35 inches, with 7.9 inches maximum fork height.
Own weight is 255 lb.

Removable Li-ion battery pack supports straightforward charging and battery replacement.
Optional additional Li-ion battery pack can help keep the scale available across longer shifts.
Sleep modes help conserve power during use.
Load cells are rated NEMA 5 and the indicator is rated NEMA 4.

Warehouse operations that need weighing during pallet movement.
Logistics and distribution facilities handling high-volume shipping or receiving workflows.
Operations that use piece counting, order picking, stock control, or repeatable weighing routines.
Facilities that need certified mobile weighing for weight-based billing or verification.
