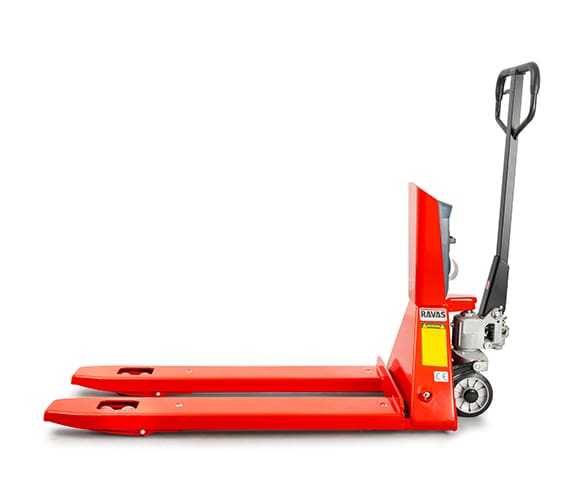

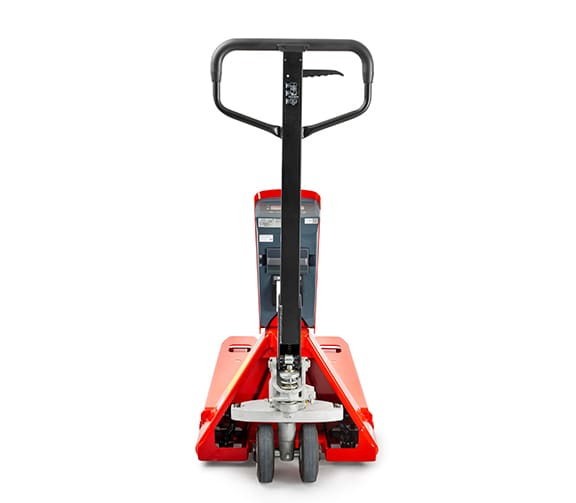

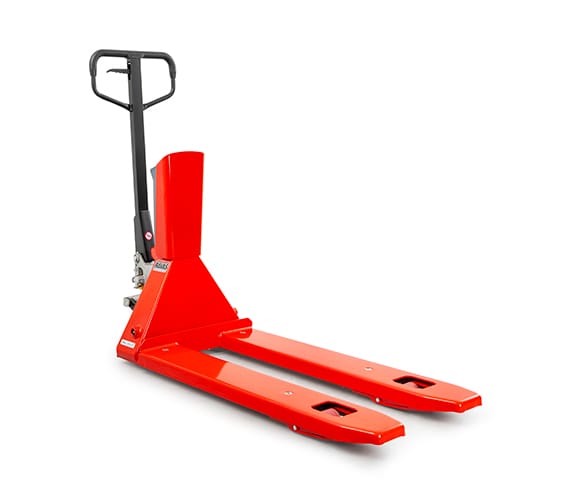

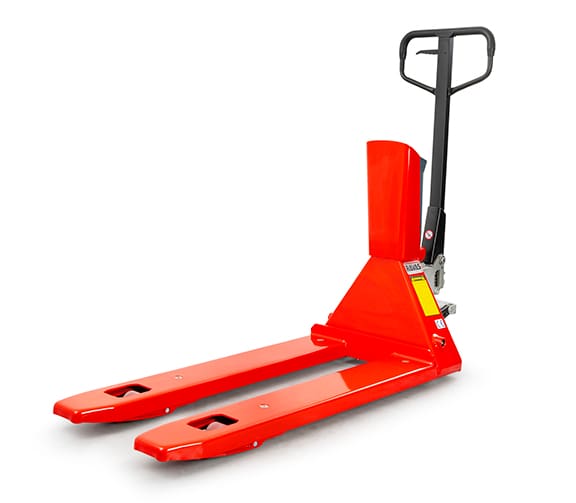

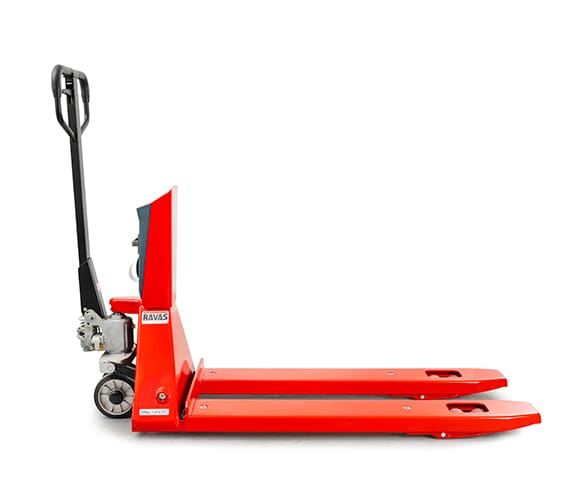

RAVAS 320 Hand Pallet Jack Scale

5,000 lb maximum weighing capacity
M0.1% maximum tolerance of the load lifted
75-hour exchangeable Li-ion battery pack
Standard NTEP Legal-for-Trade certification
Printer, wireless output, app, software, and dosing-control options

Documents

Product Documents

Financing Information

Product Description

The RAVAS 320 is a weighing hand pallet truck built for operations that need pallet movement and weight capture in the same workflow.

With a 5,000 lb capacity, 0.1% maximum tolerance, and 75-hour Li-ion battery life, it supports mobile weighing in warehouses, cross docking, production, quality control, and dosing applications. Standard weighing functions include gross/net weighing, tare, totaling, code entry, lb/kg toggle, and automatic switch-off.

Connectivity options, printer support, RAVAS software compatibility, and optional dosing controls make it a practical fit for teams that need weight data available beyond the scale display.

Model Numbers: Ravas 320

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	RAVAS
Forklift Capacity	Up to 3,000 lbs, 3,001 – 5,000 lbs
Condition	New

Combines pallet movement and weighing in one hand pallet truck, so operators can capture weight during normal material handling workflows.
Designed for warehouses, production environments, cross docking, quality control, and dosing or mixing processes.
U.S. specification sheet lists NTEP Legal-for-Trade certification as standard for customers who buy, sell, or charge by weight.
Maximum tolerance of 0.1% of the load lifted supports accurate pallet-level weighing.
75-hour Li-ion battery life supports extended mobile weighing between charges.

5,000 lb maximum weighing capacity with 2 lb graduation.

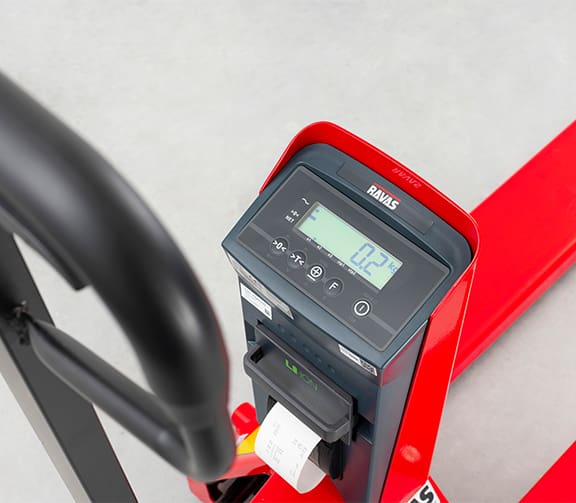

LCD display with backlight, dual-color readout, and 0.79″ digit height.
Automatic and manual zero correction, gross/net weighing, automatic and manual tare, and totaling with sequence number.
5-digit code entry, internal clock, display error messages, and lb/kg toggle.
RS232 port for printer connection, extra port for WiFi option board, and three communication portals.
Automatic switch-off after 30 minutes of non-use.

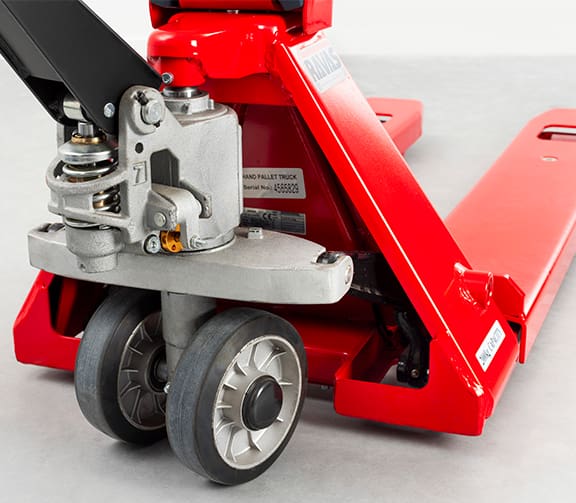

Quick-lift pump, rubber steering wheels, and single polyurethane loading wheels.

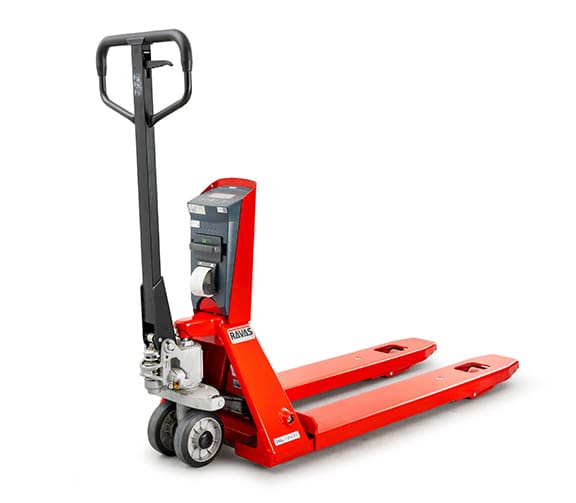

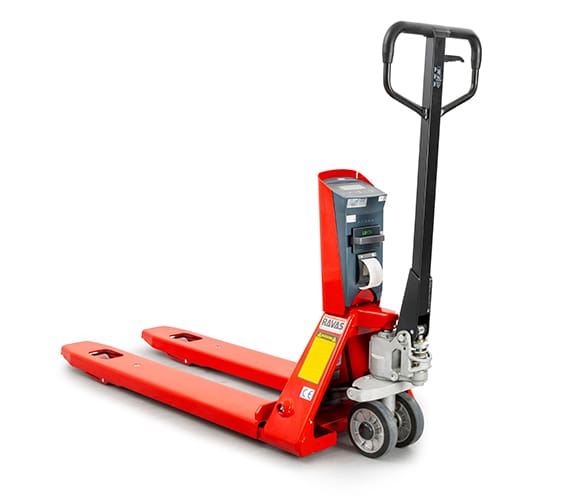

Built-in thermal printer for printing weights, totals, numeric ID, date/time, and order or article information.
Wireless output and compatibility with the RAVAS Indicator App.
Relay setpoint switch for automatic dosing applications.
Extra exchangeable Li-ion battery pack.
RAVAS Data Collector Software and RAVAS Integration Software.
Stainless steel fork shoes, stainless steel truck, or galvanized truck configurations.
Pivoting indicator for readout from multiple angles during dosing.
Footbrake or handbrake, alternate fork dimensions, and different steering or loading wheels.

Handle controls allow operators to lift and drive from the pallet truck handle.
Slanted fork tips help the truck enter low pallets more easily.
Optional pivoting indicator improves visibility when operators need to view the readout from different positions.
Quick-lift pump helps reduce the effort needed to raise loads during everyday pallet handling.

Optional footbrake or handbrake is available when a braking feature is needed for the application.
Low battery indication in the display helps operators identify when the battery needs attention.
Error messages in the display support operator awareness during weighing use.

5,000 lb maximum capacity supports common pallet handling and weighing requirements.
0.1% maximum tolerance of the lifted load supports accurate mobile weighing.
75 hours of continuous operation from the exchangeable Li-ion battery pack.
Approximately 6-hour charging time with included 110/120V charger.
Fork dimensions include 48″ fork length, 7.1″ fork width, 27.2″ width over forks, and 3.35″ minimum fork height.

Exchangeable Li-ion battery pack allows batteries to be swapped when needed.
Battery charger is included with the standard configuration.
Load cells are rated NEMA 5 and the display is rated NEMA 4, excluding printer.
Automatic switch-off after 30 minutes of non-use helps conserve battery life.

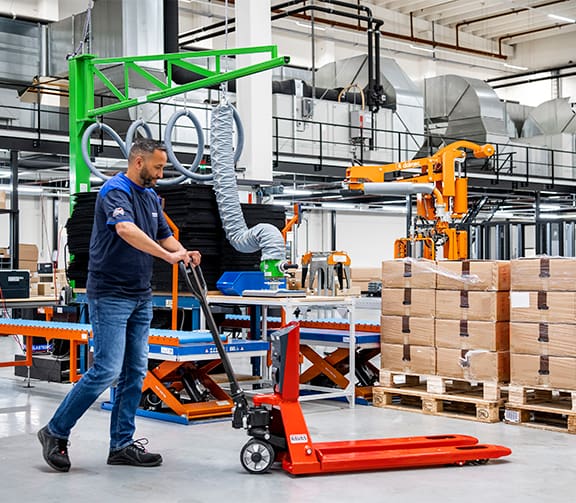

Warehousing and distribution operations that need pallet weights during handling.
Cross docking processes where inbound pallets can be re-weighed while moving through the facility.
Production environments where weight data supports process control.
Quality control applications where pallet or material weight must be checked.
Dosing, batching, and mixing processes that benefit from mobile weighing and optional setpoint control.
