RAVAS 520 Hand Pallet Jack Scale

5,000 lb weighing capacity
Standard NTEP approval
Full-color 5 inch touchscreen
Integrated connectivity through RS232
Piece counting, tare memory, programmable routines, and gross/net weighing

Documents

Product Documents

Financing Information

Product Description

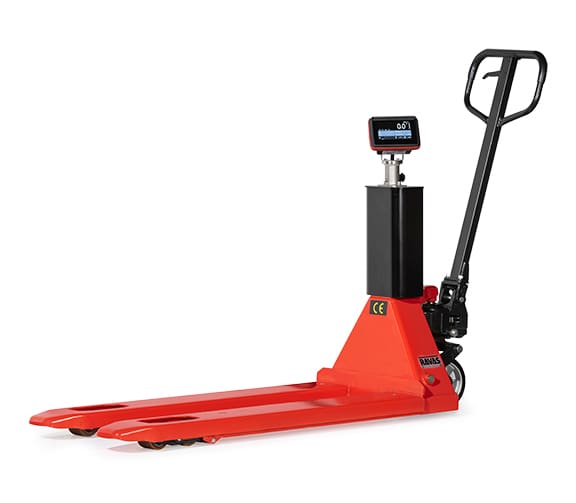

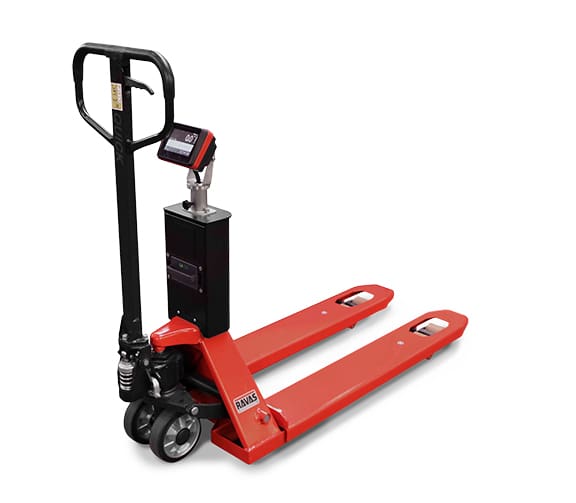

The RAVAS 520 is a high-function hand pallet jack scale designed for warehouse and logistics operations that need certified weighing without moving loads to a separate floor scale.

It combines a 5,000 lb capacity pallet jack with a full-color touchscreen indicator, NTEP approval, piece counting, tare memory, programmable routines, and integrated data connectivity.

Operators can weigh, count, totalize, and transfer data directly from the pallet handling process, helping reduce extra handling steps in receiving, picking, shipping, and stock control workflows. A removable Li-ion battery, rotating and tiltable display, quick-lift pump, and large readable digits make the unit practical for daily use on the warehouse floor.

Model Numbers: Ravas 520

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	RAVAS
Forklift Capacity	Up to 3,000 lbs, 3,001 – 5,000 lbs
Condition	New

Combines pallet transport and weighing in one hand pallet jack, helping operators capture weight at the point of handling.
Standard NTEP approval supports Legal for Trade weighing applications.
Piece counting and programmable routines support repeatable warehouse processes and counting tasks.
Integrated data connectivity helps move weight data into printers, USB storage, apps, or connected warehouse systems.
Level compensation to 3 degrees helps support accurate weighing when floors or load positions are not perfectly level.

5,000 lb weighing capacity.
0-3,000 lb graduation in 1 lb increments, or 5,000 lb graduation in 2 lb increments.

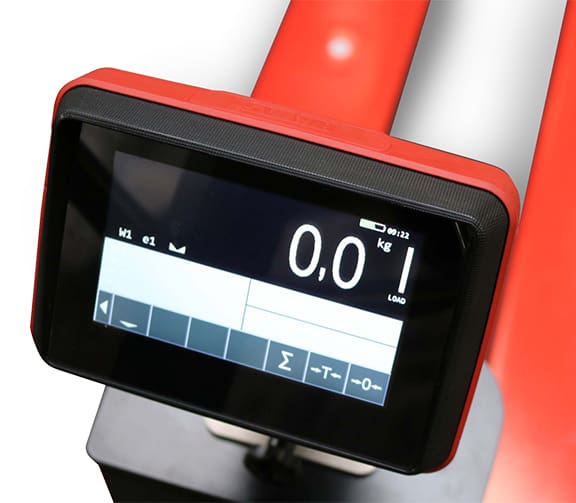

Full-color 5 inch touchscreen display with approximately 1 inch high digits.
Automatic and manual zero correction, gross/net weighing, and tare memory for 10 values.
Internal clock for date and time.
Onboard RS232 printer connection and USB output for data transfer with a USB stick.
USB output can also be used to connect a barcode scanner.
Connectivity for the RAVAS Indicator App.
Rechargeable removable Li-ion battery pack with charger included.
Quick-lift pump, rubber steering wheels, and single polyurethane loading wheels.

Thermal or matrix 12V printer.
Wireless or Wi-Fi data transfer.
Reference scale via RS232 for more accurate piece counting.
Parking brake.
1D USB barcode scanner, not in combination with Legal for Trade use.
Additional Li-ion battery pack.
Stainless steel chassis.
RDC RAVAS Data Collector Software and RIS RAVAS Integration Software.

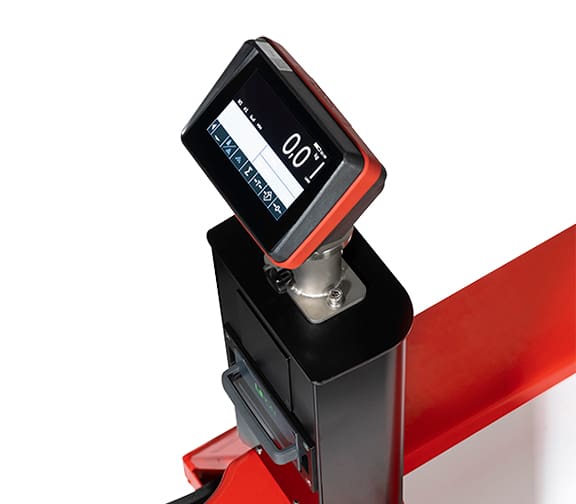

Rotating and tiltable indicator mounting helps operators position the display for easier viewing.
Touchscreen display shows only the active keys, keeping operation clear for the task at hand.
Large display digits improve readability during weighing and handling.
Handle controls support lifting and driving from the operator position.
Quick-lift pump helps reduce the effort needed to raise loads.

5,000 lb capacity supports common palletized warehouse loads.
Maximum tolerance is 0.1% of applied load.
Li-ion battery provides up to 25 hours of continuous use, or up to 50 hours with sleep modes.
Standard fork size is 48 inches long with 27.2 inches width over forks.
Minimum fork height is 3.35 inches, with 7.9 inches maximum fork height.
Own weight is 255 lb.

Removable Li-ion battery pack supports straightforward charging and battery replacement.
Optional additional Li-ion battery pack can help keep the scale available across longer shifts.
Sleep modes help conserve power during use.
Load cells are rated NEMA 5 and the indicator is rated NEMA 4.

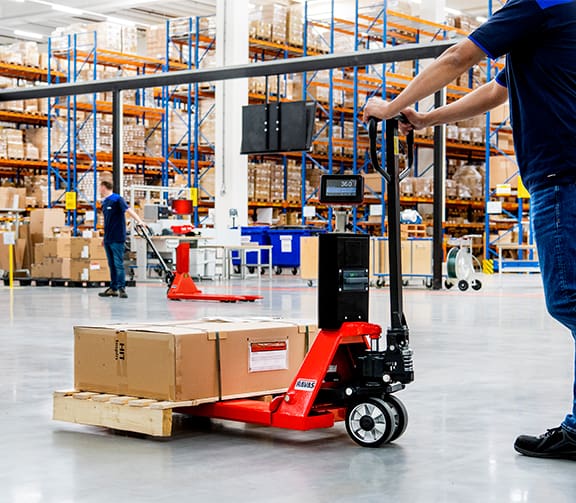

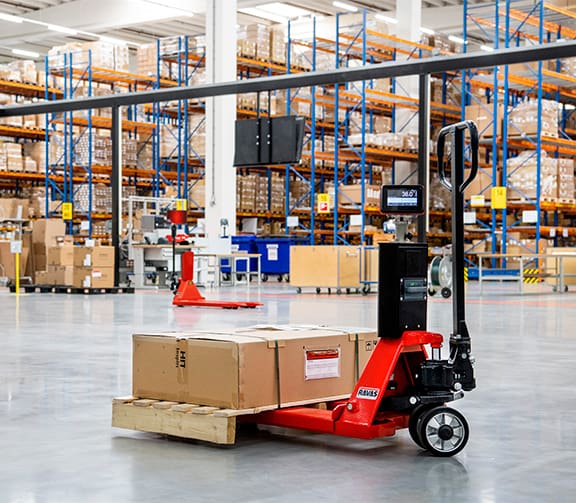

Warehouse operations that need weighing during pallet movement.
Logistics and distribution facilities handling high-volume shipping or receiving workflows.
Operations that use piece counting, order picking, stock control, or repeatable weighing routines.
Facilities that need certified mobile weighing for weight-based billing or verification.
