- Multi-function control handle with ergonomically positioned handgrips; dual thumbwheels; and lift, lower and horn buttons for simplified operation of all controls with either hand
- High-speed interlock to maintain top travel speed for long-distance transport without continuously pressing a button
- Solid steel pull rods add strength throughout the entire length of forks, and are much less likely to bend or flex than push rods, resulting in less maintenance
- Self-diagnostics simplify troubleshooting and eliminate the need for an external hand-held analyzer
- Glance and go display provides a quick summary of key information

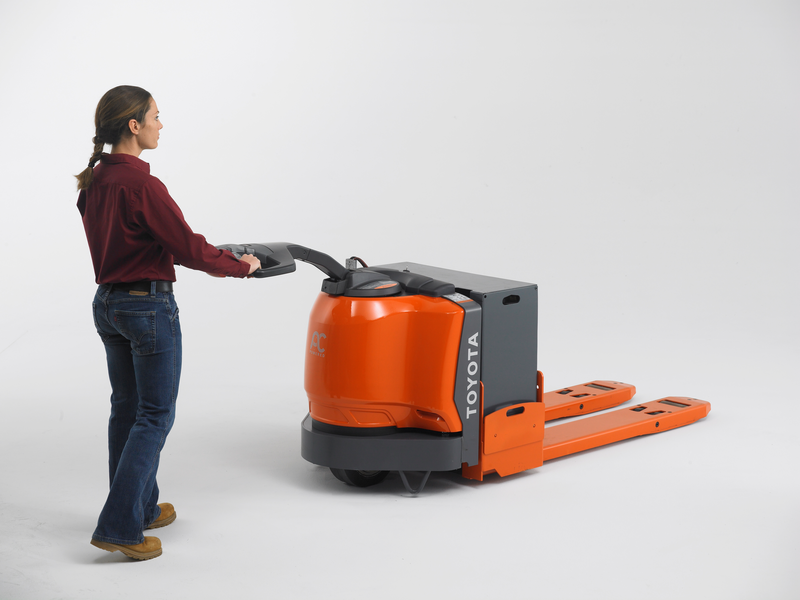

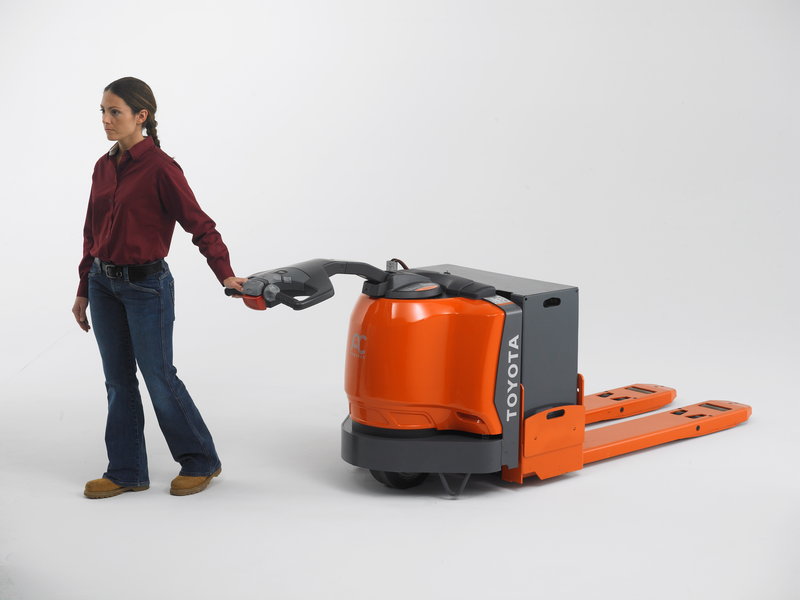

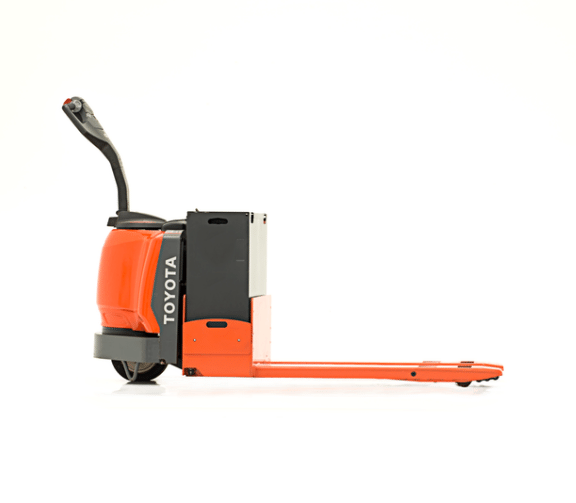

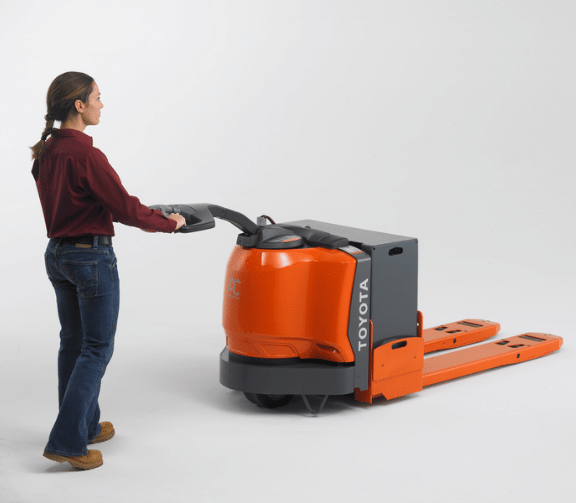

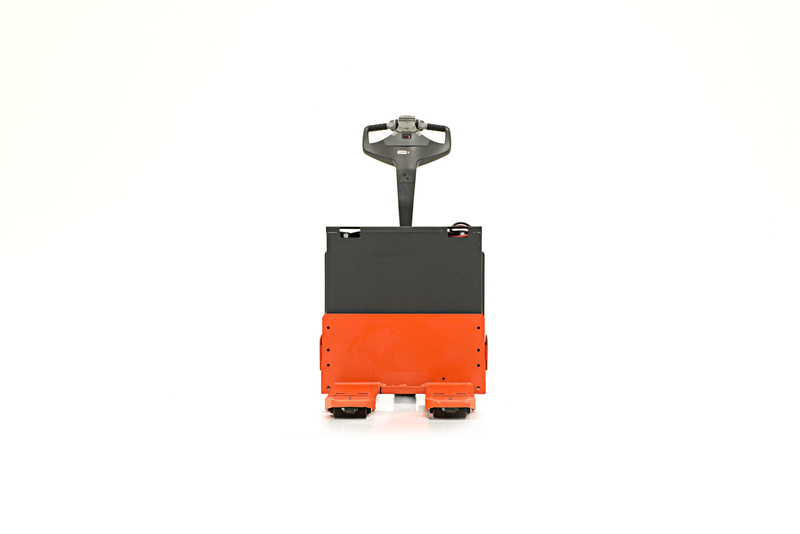

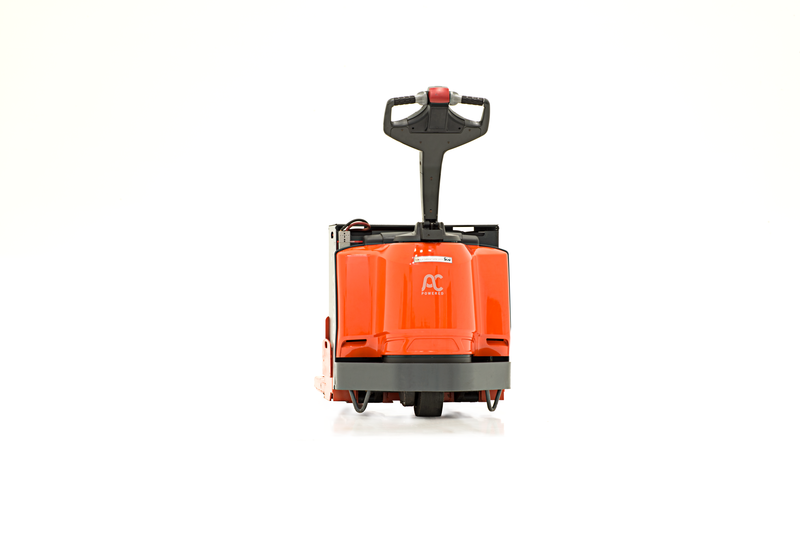

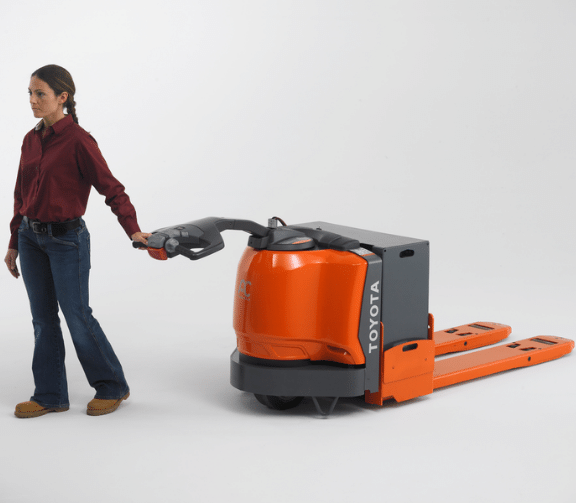

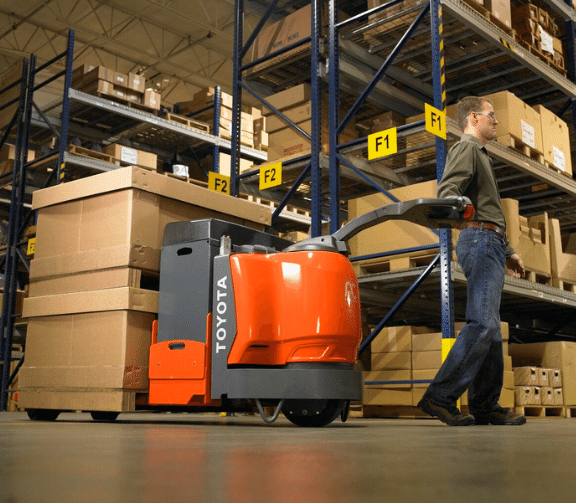

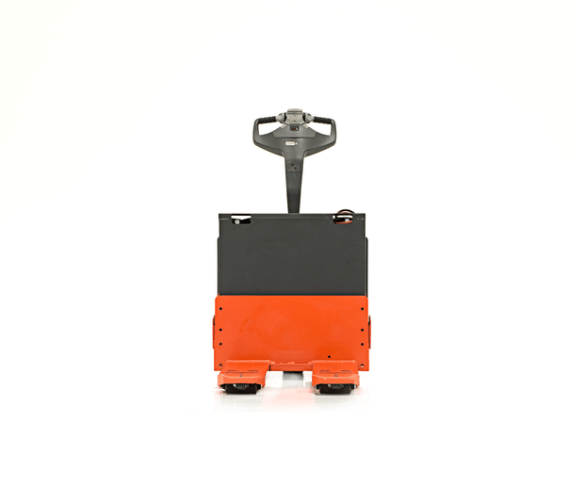

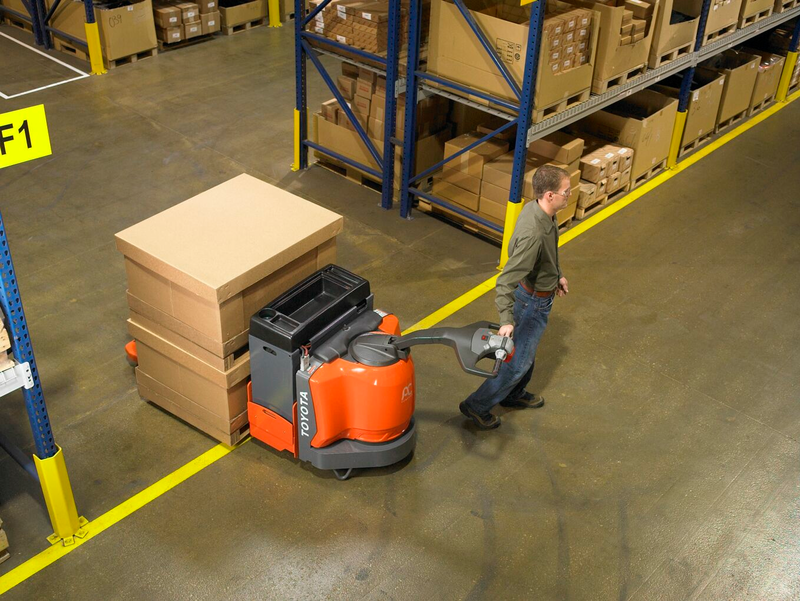

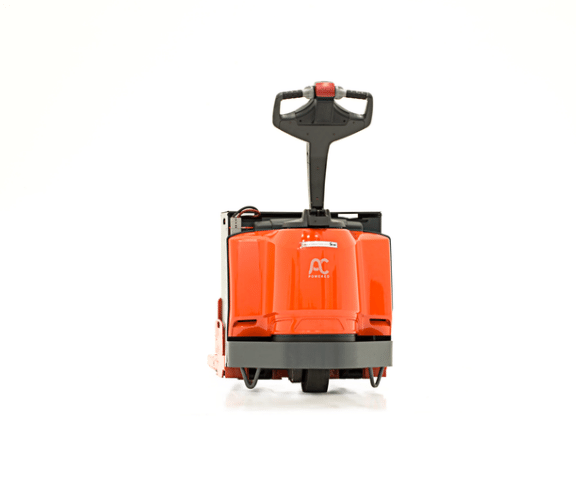

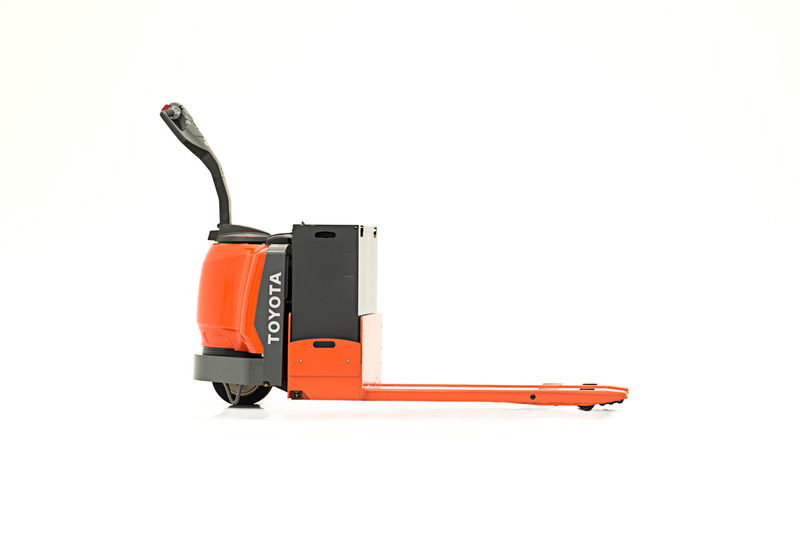

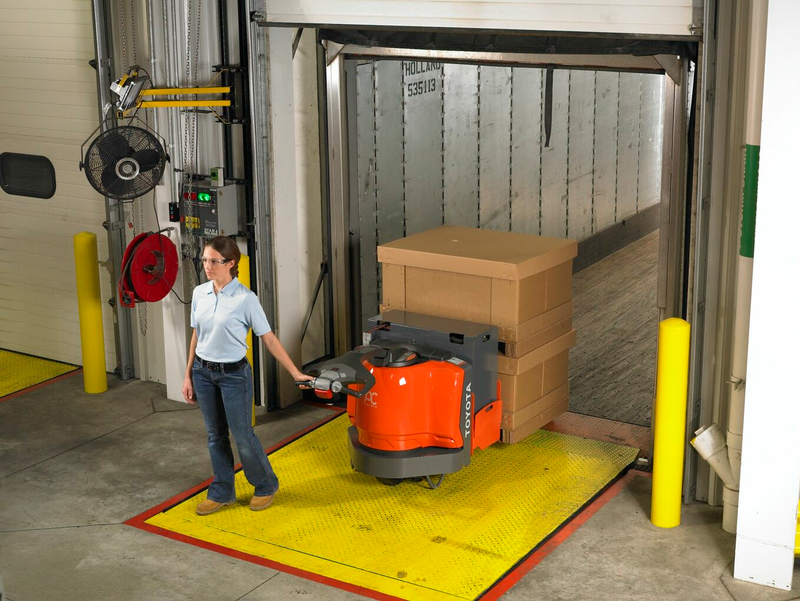

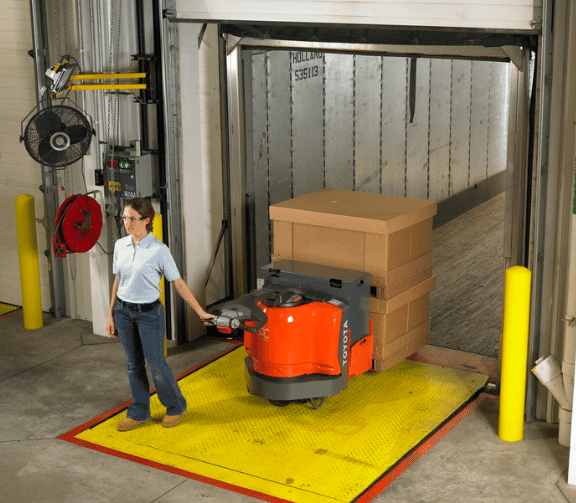

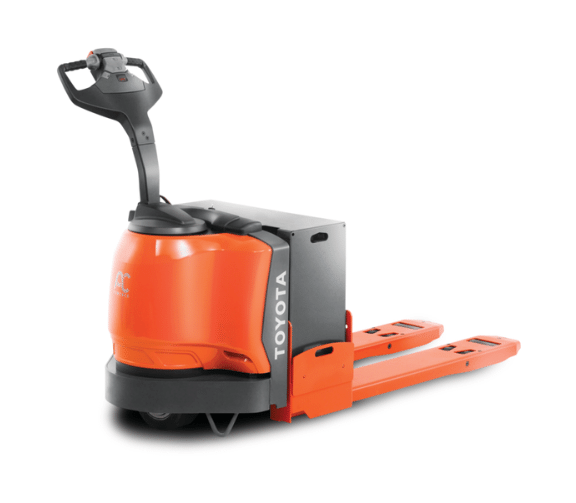

Toyota Large Electric Walkie Pallet Jack
6,000 lb. Capacity
Voltage: 24 V
Maximum Turning Radius: 51.4 – 79.4 in.
Machine Weight: 1,000 – 1,108 lbs.
Maximum Travel Speed: 3.7 mph
- Advantages
- Ergonomics
- Performance
- Ease of Service
- Safety
- Durability
- Recommended Industries
- Documents
- Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
- Dual thumbwheels for directional control & travel speed
- Intuitively positioned lift/lower buttons
- Low-effort control handle
- AC drive motor with thermal protection & current limiting
- 24-Volt electrical system
- 6” lift
- Fault code memory with hour meter reading
- Regenerative braking
- Programmable performance
- Adjustable maximum speed
- Adjustable acceleration
- On/off key switch
- Lift limit switch
- Multiple hour meter indicator
- Battery discharge indicator with lift interrupt
- Fused control & power circuits
- Hydraulic overload protection valve
- Dual 1.25”-diameter lift cylinders
- AC drive motor (no brushes or commutator)
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Error indicator with self-diagnostics
- Teflon®-coated Polylube™ lift linkage bushings (maintenance free)
- Wrap-around hand guard
- Spring-loaded control handle
- Runaway protection
- Side stabilizer steel bars
- Electric horn
- Directional reverse switch on control handle
- Control Area Network (CAN-bus) communications
- Welded construction with reinforced heavy-duty bumper
- Powder coat paint finish
- Box rail fork construction
- Steel bulkhead wrappers
- Forged rectangular steel tension rods
- Heavy-duty bushings & pins
- Solid trail fork casting (ductile iron)
- Tapered fork tips with pallet entry slides
- Four-point lift linkage
- High-strength polymer service cover
- Rubber drive tire
- Hall-effect switches
- General Manufacturing
- Retail
- Beverage

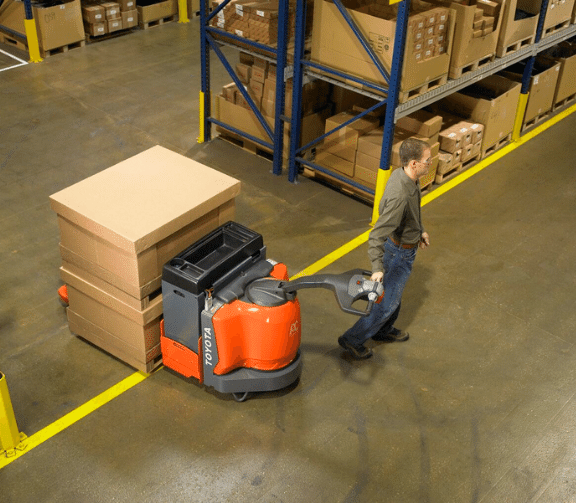

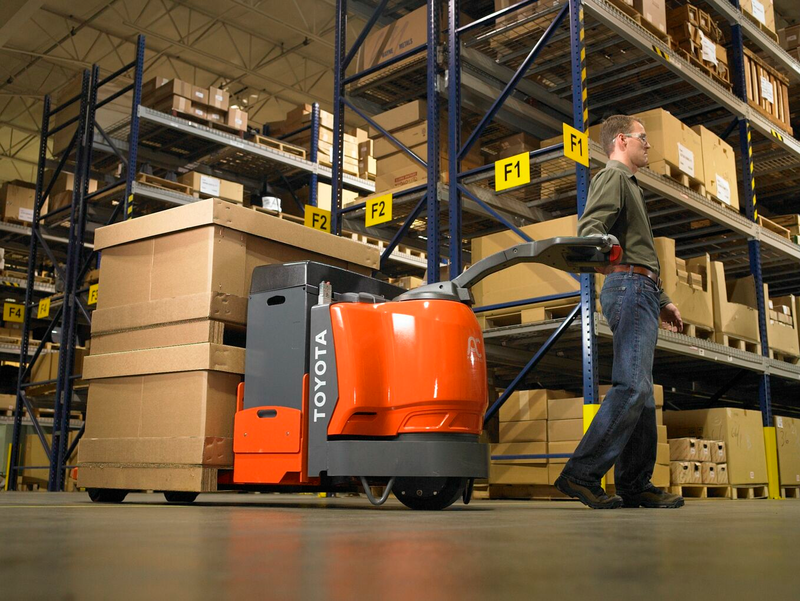

- General Warehousing
- Cold Storage
- Distribution
- Food Storage
