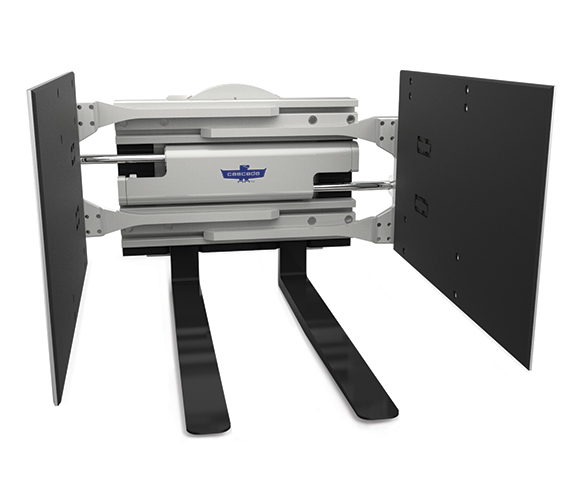

50D-BBH-RV

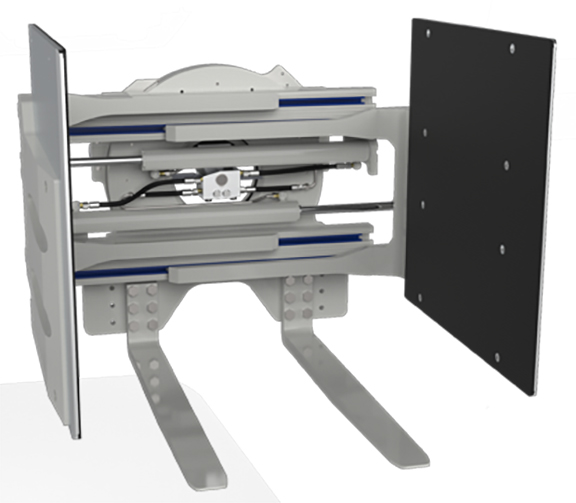

22J-BBH_L2

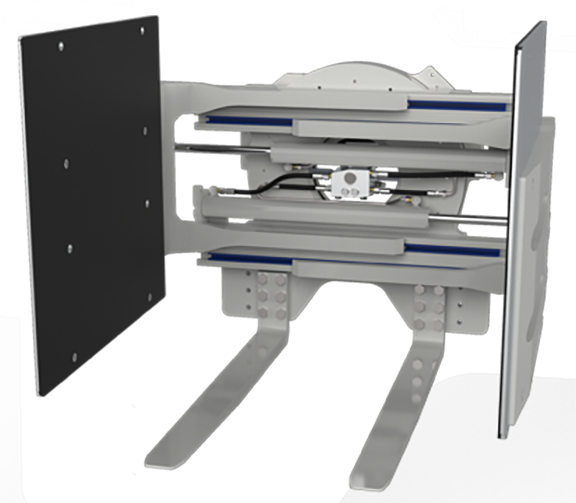

Cascade J-Series Bulk Box Handler

  • 2,600–5,100 lb. capacity
  • Class II – III mounting
  • 21.4–71.0 in. nominal opening range
  • 37-41 in. frame width
  • 24.3 in. hook spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade J-Series Bulk Box Handler enables lift trucks to clamp, rotate, and dump pallet-mounted bulk boxes used for produce, piece parts, and other materials. Four models provide capacities from 2,600 to 5,100 lb at a 24-inch load center, with Class II and Class III mounting configurations.
Continuous 360-degree rotation, equal arm movement, and efficient hydraulics support controlled handling, while the open frame maintains visibility through the attachment. High-strength construction, lubrication-free bearings, and top-mounted hydraulic components help simplify ownership and service.

Model Numbers: 14J-BBH-2A-0220 | 18J-BBH-2A-0220 | 22J-BBH-3A-0220 | 26J-BBH-3A-0220 | 25D-BBH | 35D-BBH | 50D-BBH

  • Clamps and rotates pallet-mounted bulk boxes containing produce, piece parts, and other materials.
  • Model capacities range from 2,600 to 5,100 lb at a 24-inch load center.
  • Efficient hydraulic system reduces energy consumption while supporting responsive attachment performance.
  • Open-frame design provides strong visibility through the attachment.
  • Flow divider promotes equal arm movement.
  • Regenerative hydraulic valve supports efficient arm speed.
  • High-strength steel frame and steel castings provide a rugged structural foundation.
  • Lubrication-free, full-length UHMW arm bearings require no routine lubrication.
  • Integrated true-centering key supports precise, secure installation.
  • Rubber-faced contact pads provide a secure grip on bulk-box loads.
  • Special frame widths, opening ranges, and arm dimensions.
  • High-pressure or low-pressure hydraulic configurations.
  • Basic, sideshifting, and revolving 360-degree models.
  • Fold-up forks and independent arm control.
  • Regeneration valve for faster opening on low-flow electric lift trucks.
  • External sideshifter mounting, valve guard, and bumper/cylinder cover.
  • Factory-installed load backrest and Quick Disconnect Mounting Kit.
  • Clamp and backhand protection is built into the hydraulic system.
  • Frame bumper helps protect hydraulic components.
  • Available body bumper and valve guard provide additional component protection.
  • Heavy-duty rotator provides continuous 360-degree rotation on revolving models.
  • Sideshift circuit relief helps optimize sideshift speed and performance.
  • Two pressure offerings allow the attachment to be matched to the lift truck hydraulic system.
  • Nominal opening ranges extend from approximately 21.4 to 71 inches across the J-Series lineup.
  • Forks can be positioned at 25- or 30-inch outside-to-outside spacing when equipped with the applicable bolt-on configuration.
  • Top-mounted hydraulic cartridges and a test port provide convenient access for adjustment and service.
  • Lubrication-free UHMW bearings reduce routine maintenance requirements.
  • Bolt-on fork configurations simplify fork changes.
  • Produce and agricultural material handling.
  • Manufacturing and piece-parts handling.
  • Operations that rotate or dump pallet-mounted bulk boxes.
