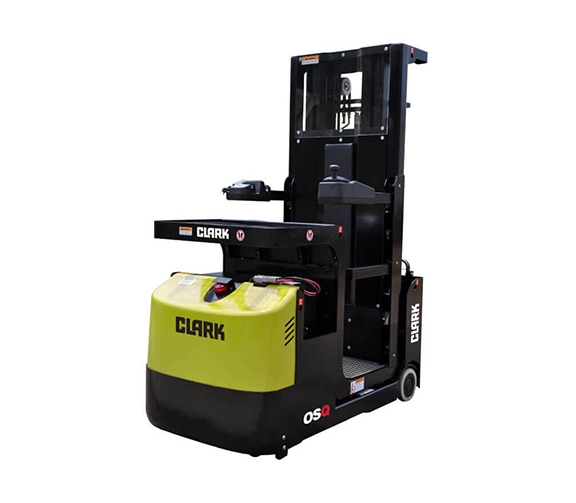

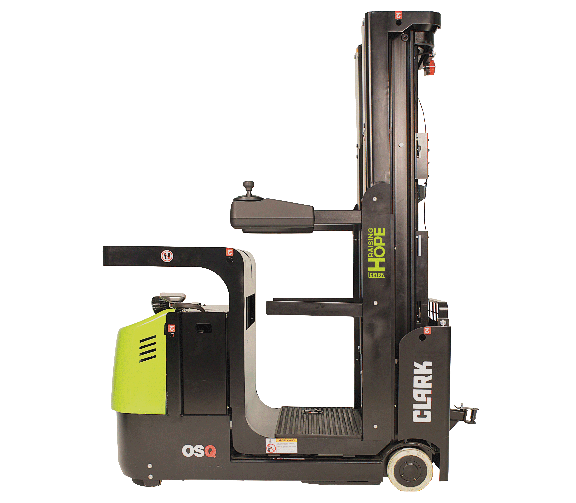

CLARK OSQ Order Picker

600 – 1,000 lb. Capacity
Up to 192″ Elevation
100% AC Brushless Drive Motor
Regenerative Braking
LCD Dashboard Display
Three Point Chassis Design
180° Drive Motor Steering Arc

Documents

Product Documents

CLARK OSQ Order Picker Spec Sheet

Financing Information

Product Description

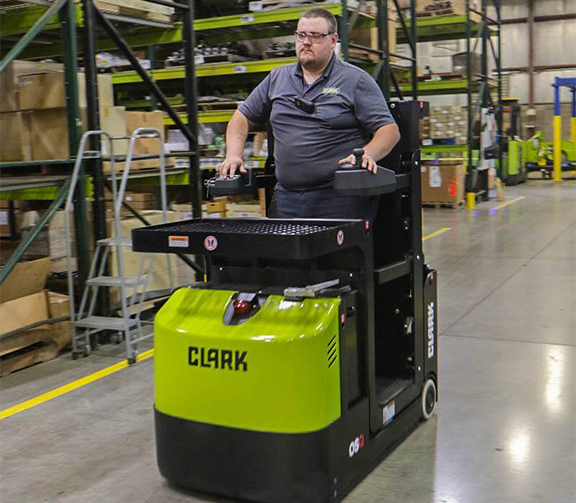

Build for manufacturing, warehousing, and narrow aisle applications, the CLARK OSQ working platform vehicle has all the features to maximize your productivity. With up to 192″ of lift and 1,000 lb. capacity, a low-maintenance AC electrical system, and regenerative braking, the OSQ is the perfect vehicle for all your picking and stocking needs.

Model Numbers: OSQ 126 | OSQ 162 | OSQ 192

Equipment Details

Forklift Type	Order Pickers
Brand	CLARK
Capacity	1,000 lbs., 600 lbs., 650 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

High efficiency, low maintenance, and powerful 100% AC electric system
Comes standard with an emergency power disconnect, key switch and horn
Roomy operator compartment is designed for productivity
Large storage compartment allows storage of clip boards, pens, and miscellaneous fulfillment tools
Heavy duty I-beam design provides excellent stability at height

Ergonomic fingertip control for travel, lift, and lower functions provide the operator with logical intuitive drive characteristics while traveling at elevation or lowered
Roomy operator compartment is designed for productivity
Large storage compartment allows storage of clip boards, pens, and miscellaneous fulfillment tools
Hide away rear work tray

100% AC electric system
- AC drive motor provides high torque throughout the entire drive range
- Brushless design of AC technology drastically reduces maintenance and extends battery range
- Lift and lower controls are single speed
- 4 operator selectable travel settings and turtle speed mode
- Standard travel speeds are variable from 0 to 3.4 mph with a high speed option available for ground level travel of up to 5 mph
- Lift speed up to 42 fpm
Braking
- Regenerative braking is applied when the operator removes their hand from travel control or when travel speeds are reduced
- Electromagnetic parking brake is applied after the truck is stopped
Upright
- 126″ to 192″ triple stage mast
- Heavy duty I-beam design provides excellent stability at height
- Steel mast channels and side mounted lift cylinders increases platform capacity
Chassis
- Three point chassis design, along with 180° drive motor steering arc, provides exceptional maneuverability
- Powerhead mounted stability casters add additional truck stability and operator confidence at working heights of up to twenty feet
Electronics
- Zapi LCD dashboard display includes fault code diagnostics, hour meter, battery state of charge, travel speed and drive wheel directional indicator
- Powerhead mounted stability casters add additional truck stability and operator confidence at working heights of up to twenty feet
Optional Equipment
- Tether and harness
- High speed travel
- Tow hitch (2,500 lb tow capacity)
- 224AH AGM battery pack w/ 120v charger
- Industrial battery with external charger
- 12 volt power outlet adapter

Zapi LCD dashboard display includes fault code diagnostics, hour meter, battery state of charge, travel speed and drive wheel directional indicator
Battery compartment rollers
