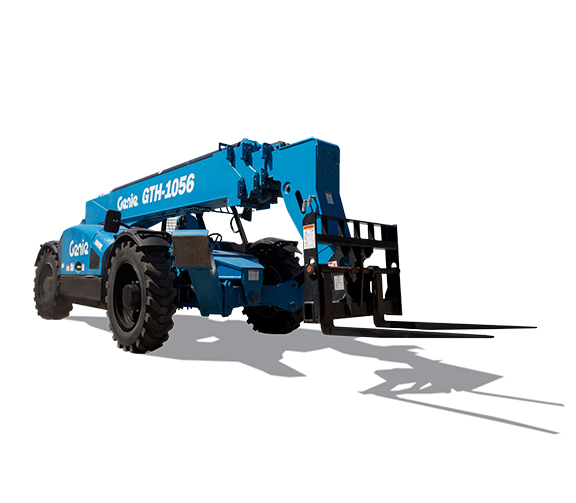

Genie GTH-1056 Telehandler

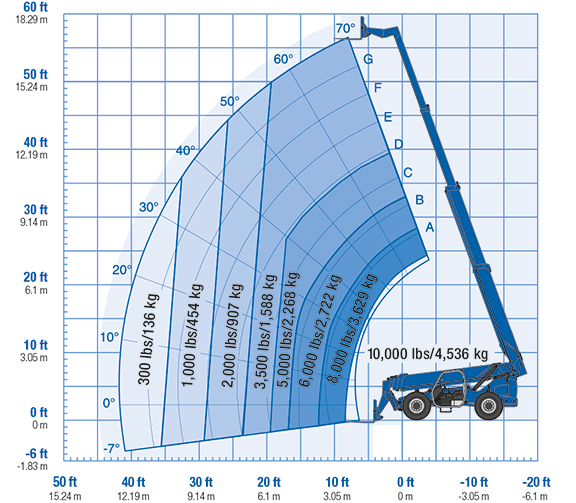

10,000 lb. Capacity
56 ft. 10 in. Lift Height
42 ft. Forward Reach
4,000 lbs. Capacity at Max. Height
3,000 lbs. Capacity at Max. Reach

Documents

Product Documents

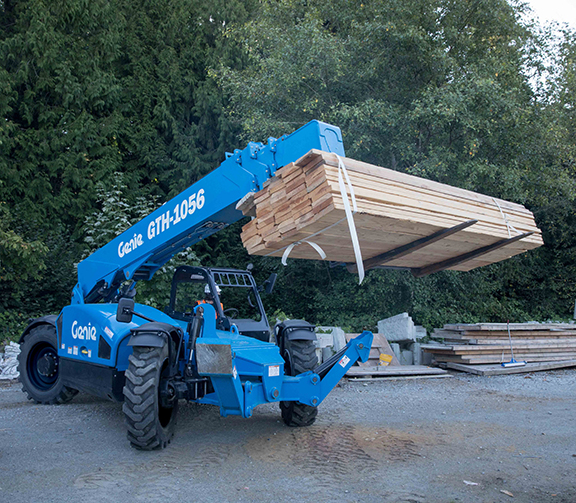

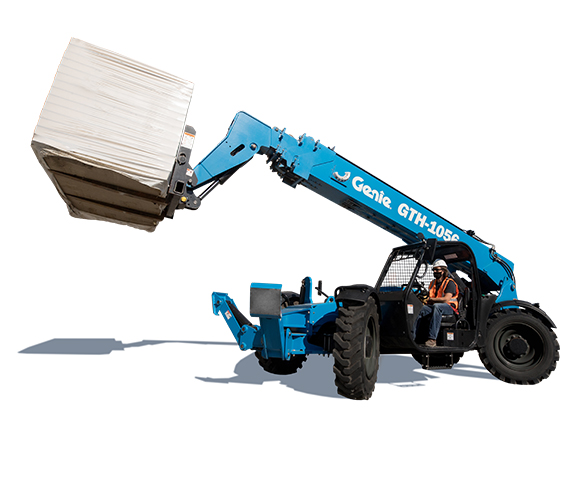

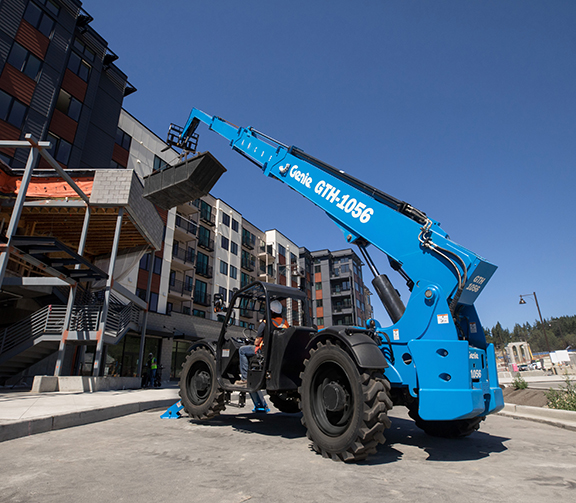

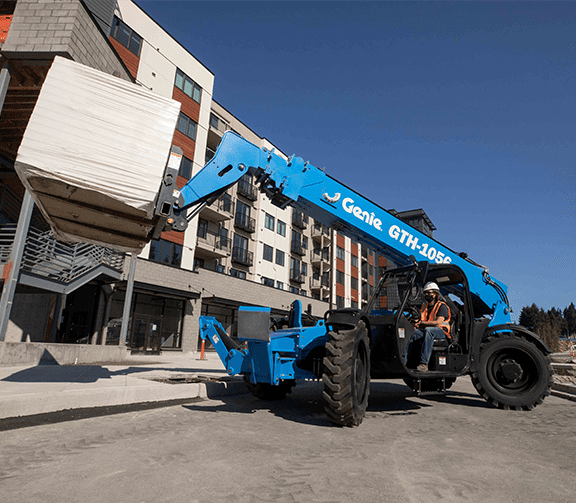

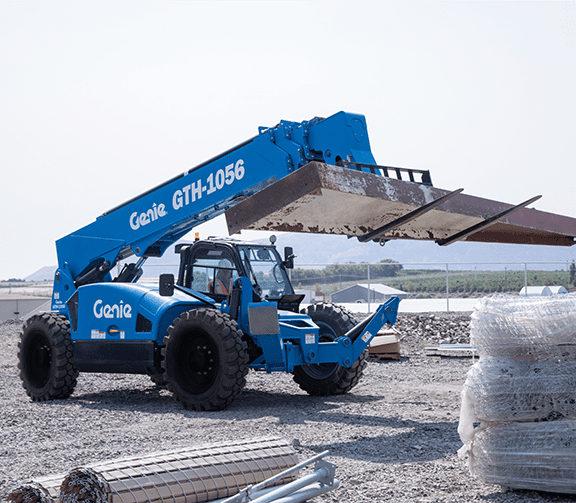

The Genie GTH-1056 10,000 lbs capacity high reach telehandler has the reach and performance capabilities for demanding jobs. The GTH-1056 telehandler offers you a lifting height of 56 ft 10 in, while a spacious cab and responsive controls enhance operator comfort. Heavy loads like steel, masonry and bricks are no trouble for these rough terrain telehandlers.

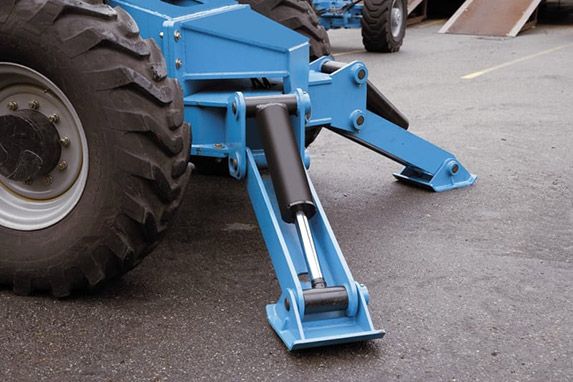

Increase your productivity and lift capacity with standard twin-axle mounted stabilizers. These stabilizers allow the operator to maintain frame leveling capability while deployed. Conveniently located stabilizer controls allow you to deploy them from the comfort of the cab. Think reliability when it comes to the Genie GTH-1056.

Additional Information

MEWP Type	Telehandler

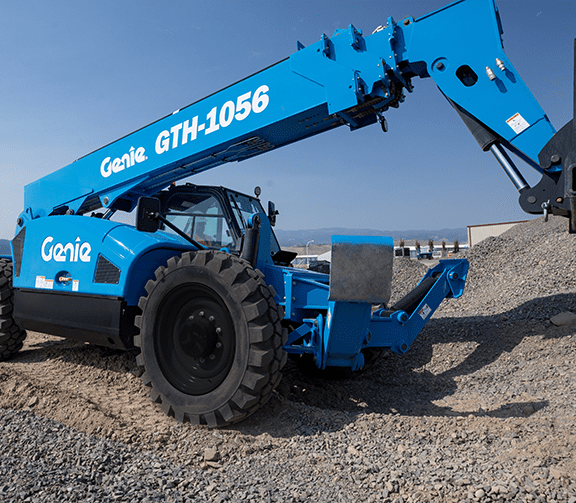

Twin axle-mounted stabilizers increase productivity and lift capacity
Conveniently located stabilizer controls allow operators to deploy them from the comfort of the cab

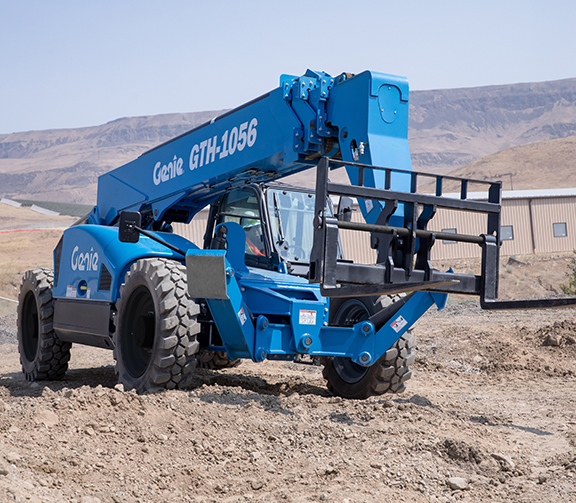

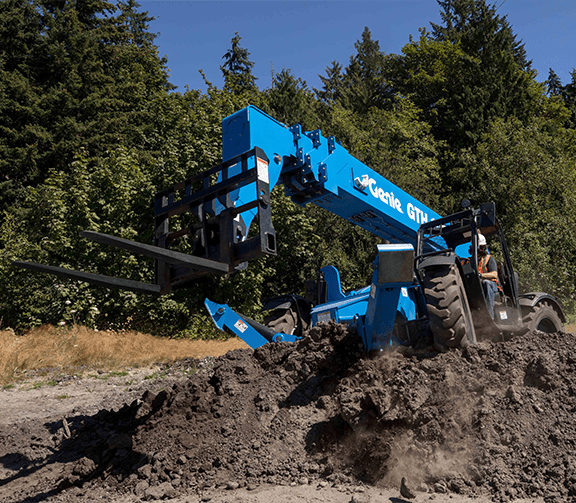

Powerful turbocharged diesel engine and powershift transmission coupled with four-wheel drive improve the terrainability and overall performance

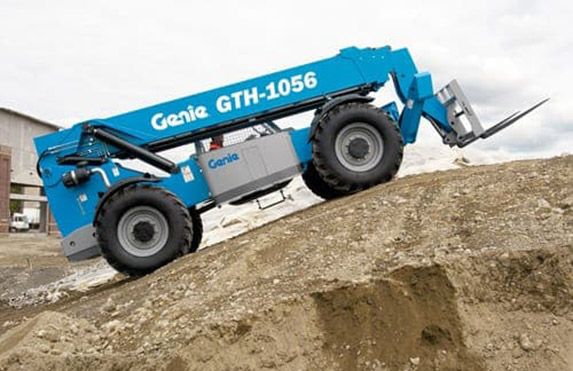

Frame leveling feature, with 10-degree side to side leveling capability, keeps the chassis level while on slopes, allowing you to work on challenging job sites

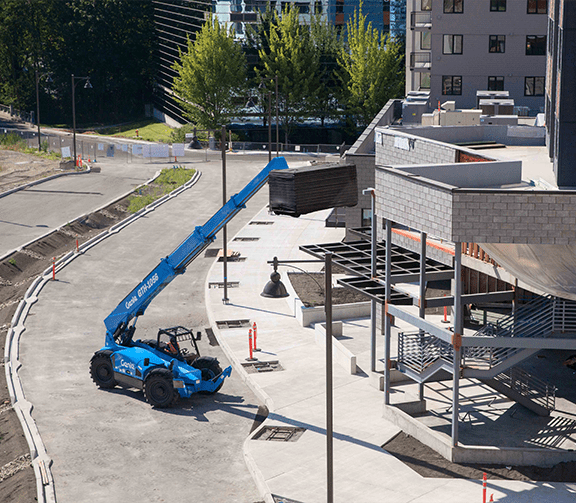

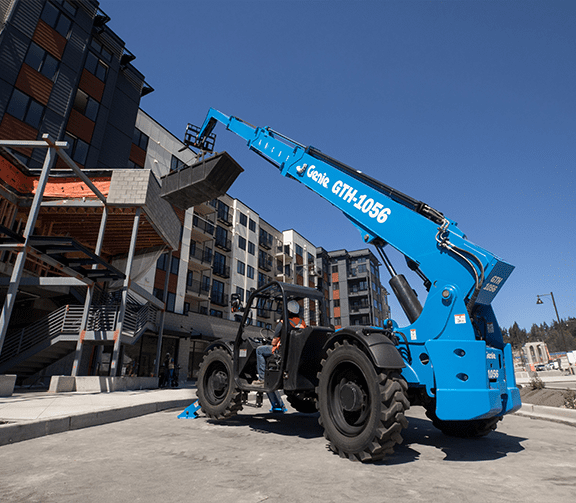

Maximum forward reach allowing the GTH-1056 to move substantial loads over obstacles

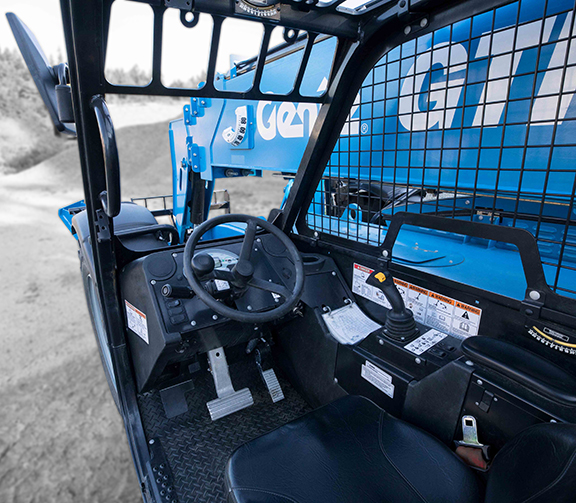

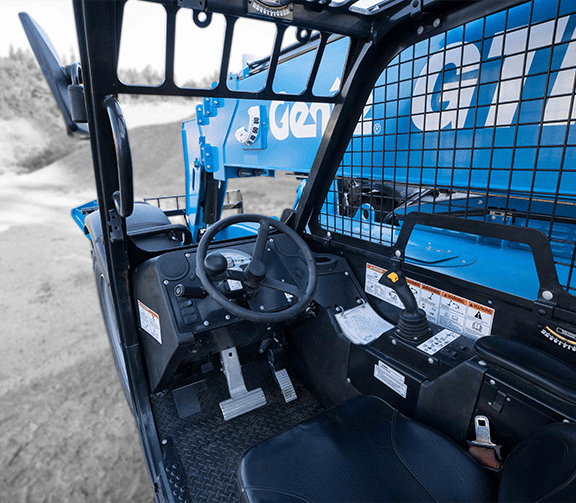

Multi-function proportional joystick control for fast, precise positioning

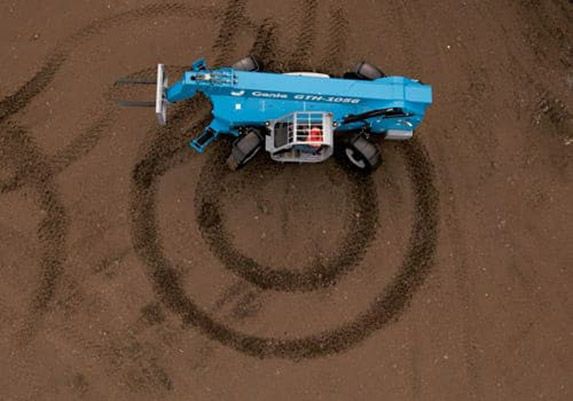

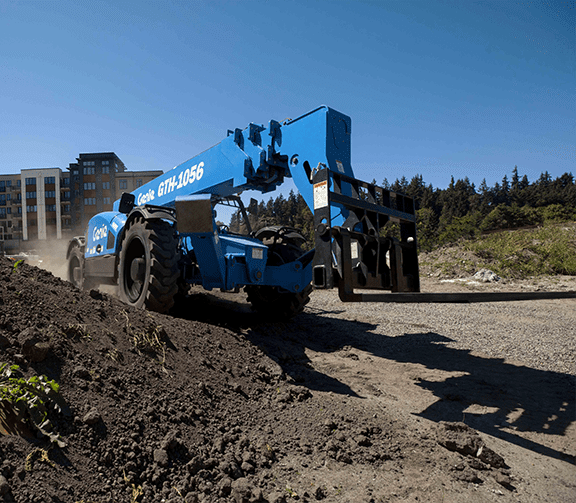

Three selectable steering modes and superior ground clearance and compact outside turning radius make it easy to maneuver on congested job sites without compromising reach and lifting capabilities
Easy no-tool access to daily inspection and service points make the GTH-1056 easy to service and manage

Full time 4WD
4WS
Operator selectable front, crab, coordinated steering modes
Frame leveling 10° side to side
3-speed forward and reverse powershift transmission
Power assisted steering
Inboard wet disc service brakes
Wet disc spring applied parking brake
14 x 24 in 12-ply air-filled rough terrain tires
Front axle differential lock
Rear axle stabilization system
Twin axle mounted stabilizers
High efficiency/variable displacement hydraulic pump
ROPS/FOPS canopy (ISO compliant)
Single, multi-function, proportional joystick
Machine level indicator
Full gauge cluster with engine diagnostics

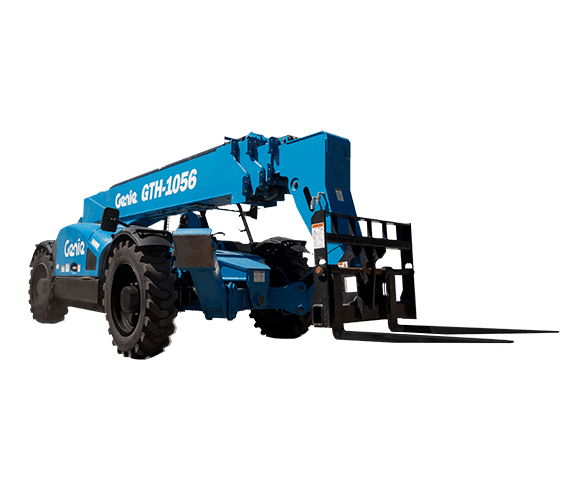

48 in carriage and pallet forks
Boom angle indicator
Retractable 3 in (8 cm) seatbelt
Left front and rear tire fenders
Reverse motion alarm
Adjustable suspension seat
Auxiliary hydraulic circuit (15 GPM)
Genie manual Quick-Attach™ system
Fenders (set of 4)

Fully enclosed cab (includes full glass, defroster, wiper, washer, right-side sliding window, split door)
Fully enclosed cab air conditioning
Front and top glass
Right-side screen
Dual joystick controls
Flashing beacon
Work lights (2 cab front mounted, 1 back-up, 1 stop/tail)
Road lights (2 cab front mounted, 1 back-up, 2 rear stop/turn/tail)
Auxiliary hydraulic circuit
Fire extinguisher
Deutz TCD 3.6 L Tier 4i 121 HP (90.23 kW)*
Perkins 1204E Tier 4i 124 HP (92.47 kW)
Perkins 1104E Tier 3 124 HP (92.47 kW)**
Engine block heater
14 x 24 in 12-ply foam-filled rough terrain tires
Firestone SGG foam-filled tires
Firestone SGG air-filled tires
