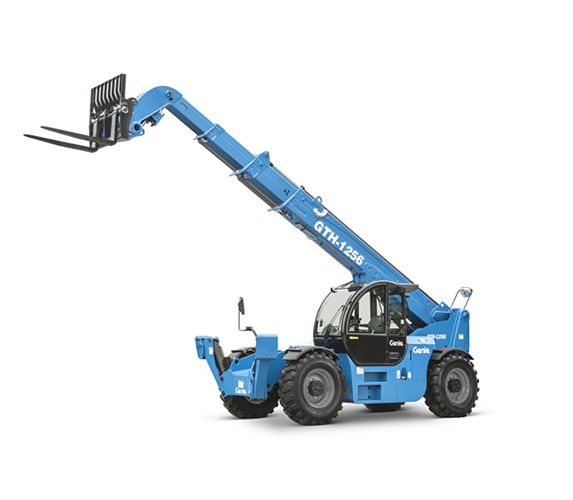

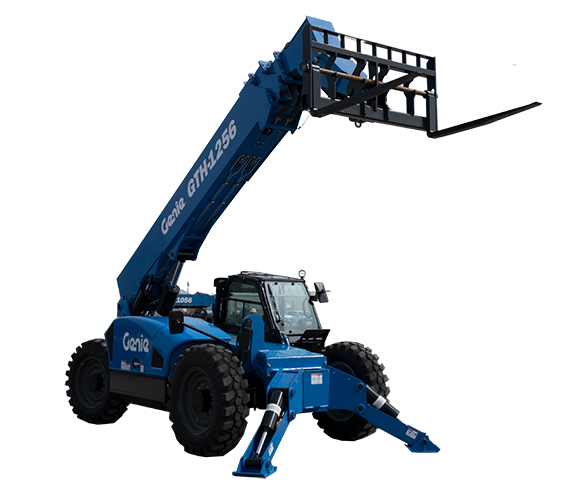

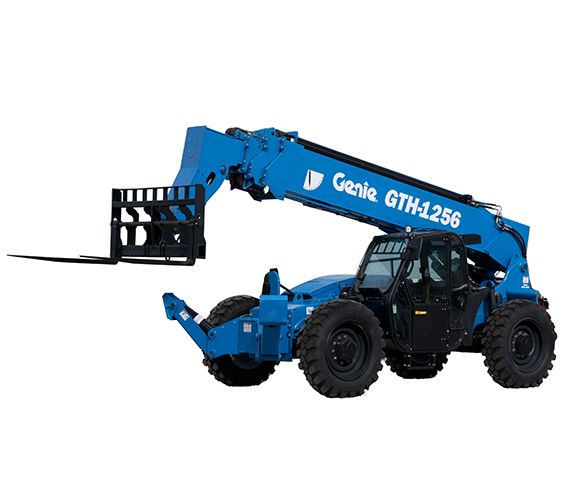

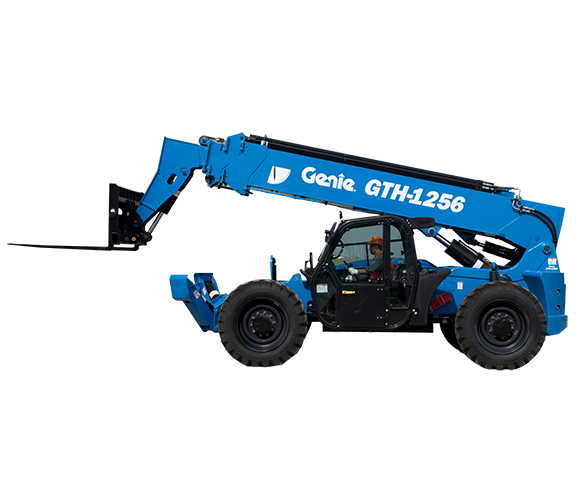

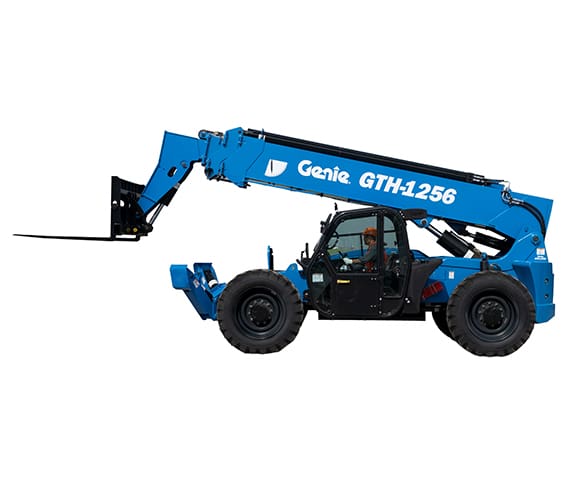

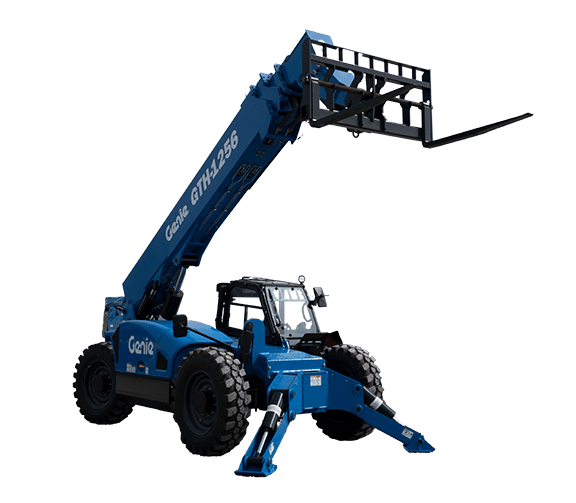

Genie GTH-1256 Telehandler

12,000 lb. Capacity

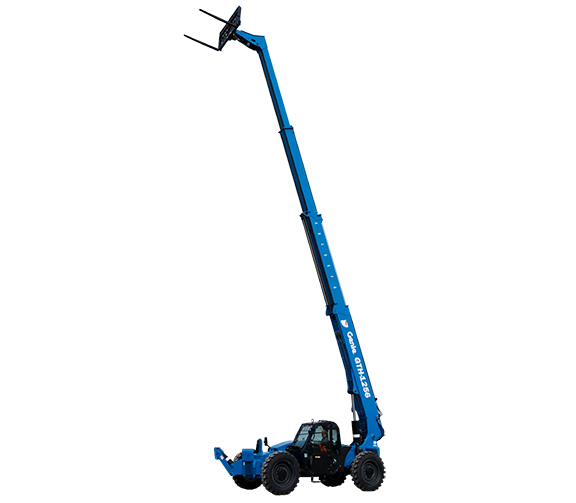

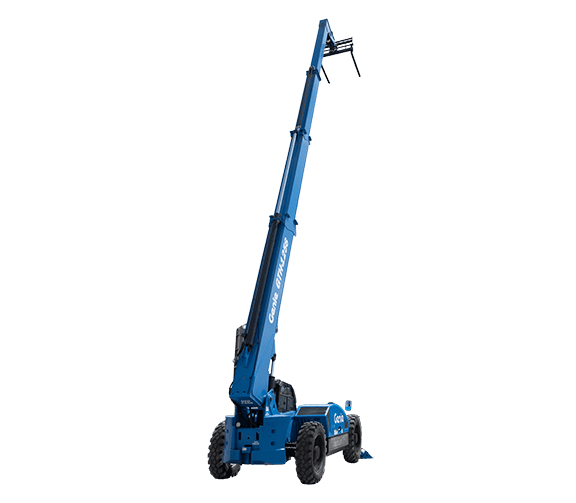

56 ft. Lift Height

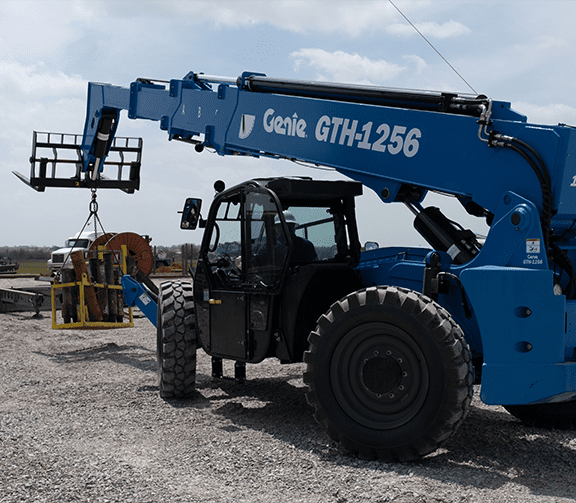

42 ft. Forward Reach
7,000 lbs. Capacity at Max. Height
3,500 lbs. Capacity at Max. Reach

Documents

Product Documents

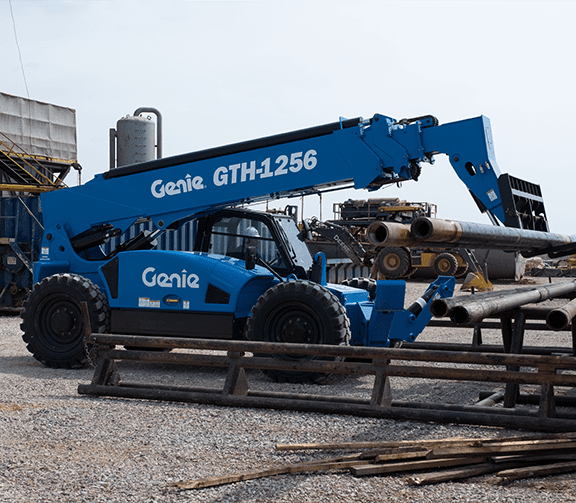

The Genie GTH-1256 telehandler delivers productivity thanks to its large lifting capacity, high reach, and compact maneuverability. No doubt, this telehandler was built to perform.

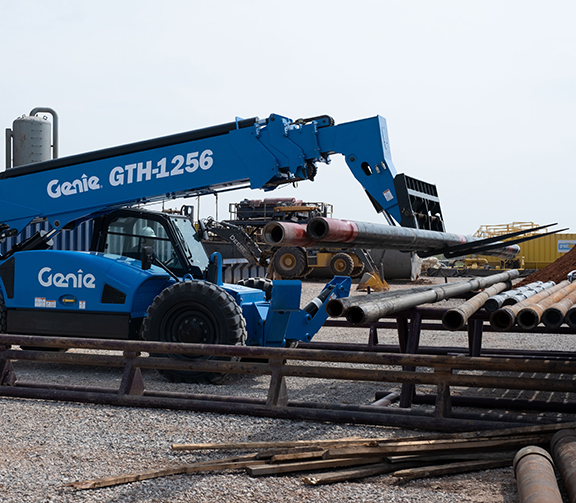

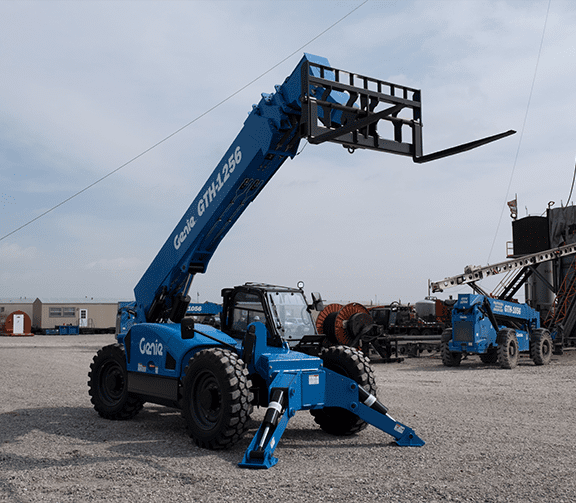

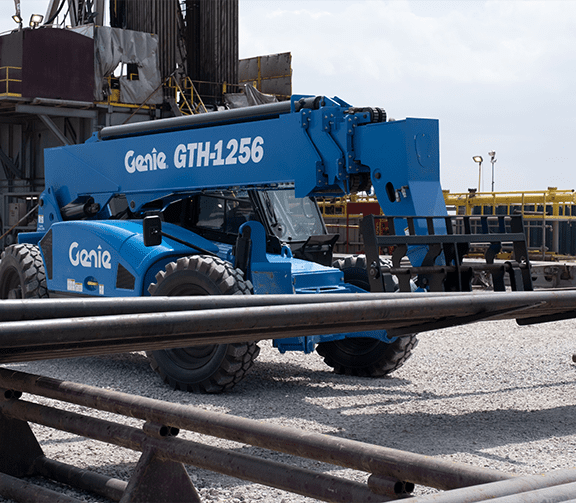

With a military grade chassis for use in heavy construction, it is for use in energy sectors for time sensitive maintenance and repair of oil and gas equipment at height.

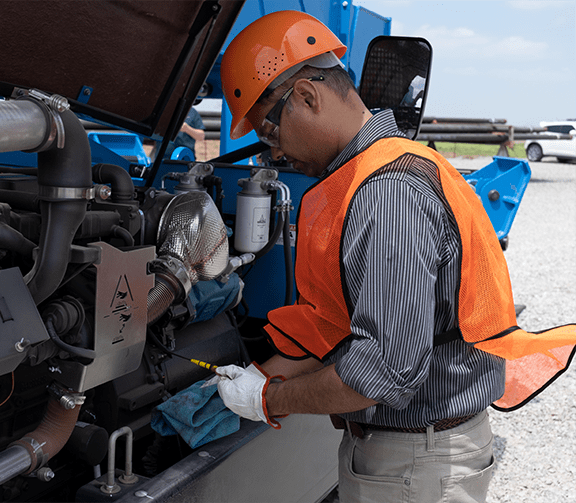

The GTH-1256 has a side mounted Deutz 4.1TCD turbo charged diesel, Tier 4i engine powered by 154 horsepower – making it environmentally friendly in various applications. Plus a variable speed hydrostat transmission for a smooth, efficient powerful drive.

Additional Information

MEWP Type	Telehandler

Variable speed hydrostatic transmission for a smooth, efficient powerful drive
Proportional frame-leveling chassis allows operators to pick up or place loads on up to 7˚ side slopes

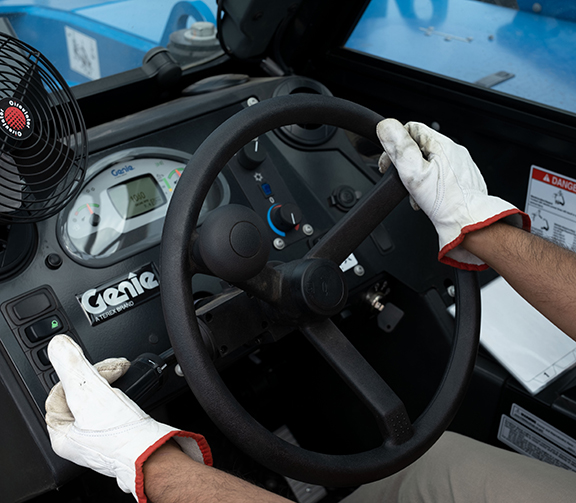

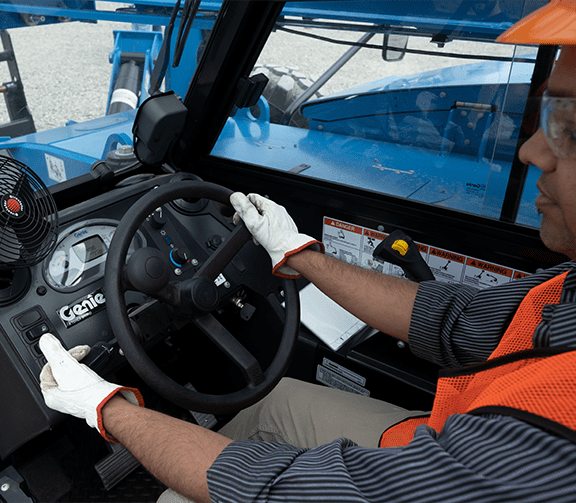

Multi-function proportional joystick control for fast, precise load positioning

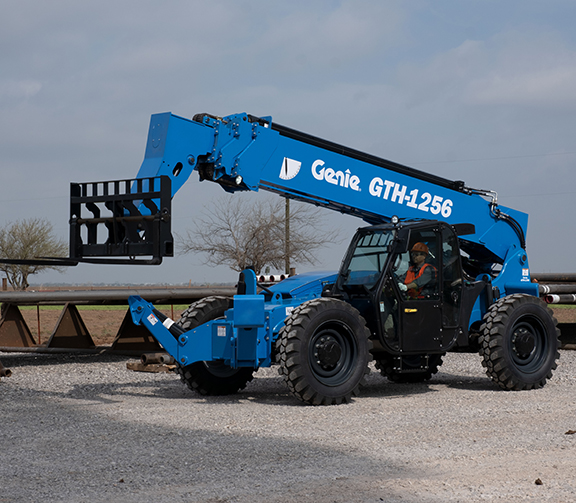

Low pivot boom allows the operator to see over the boom while in transport position providing excellent operator visibility while transporting loads
Quick attach system gives operators the flexibility to quickly change attachments

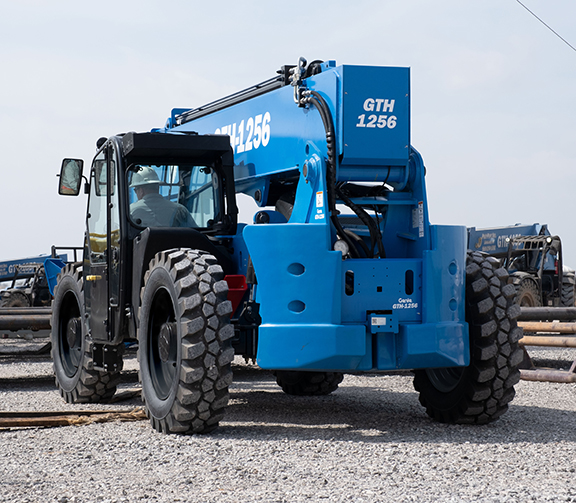

Rear cover allows easy to access to inspect cylinders and chains and make repairs – saving time and money over the life of the machine

Full time 4WD
4WS
Operator selectable front, crab, coordinated steering modes
2-speed forward and reverse “Shift-on-fly” hydrostatic transmission
Transmission inch valve, brake pedal actuated
Proportional frame leveling 7° each side
Power assisted steering
Inboard wet disc service brakes
Wet disc spring applied parking brake

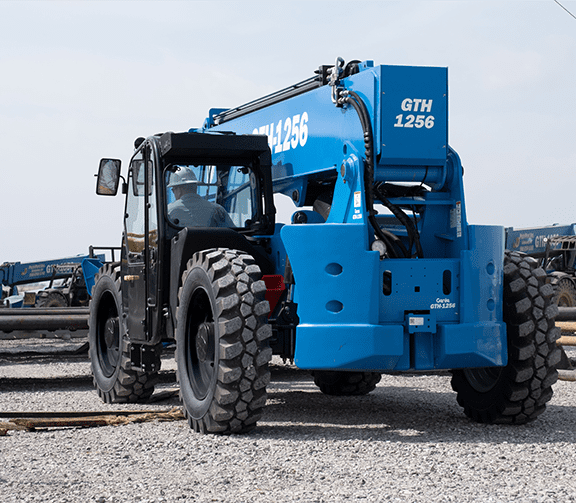

17.5 x 25 in. air-filled rough terrain tires
Front axle differential lock
High efficiency/variable displacement hydraulic pump
Auxiliary hydraulic circuit (15 GPM)
ROPS/FOPS canopy (ISO compliant)
Single, multi-function, proportional joystick
Machine level indicator

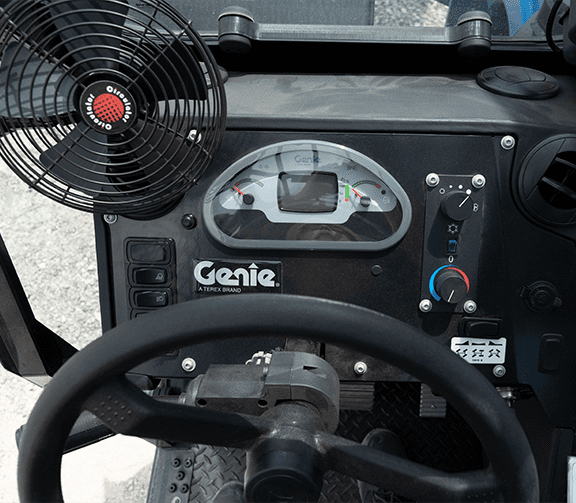

Full gauge cluster with engine diagnostics
Right-side screen standard on open cab

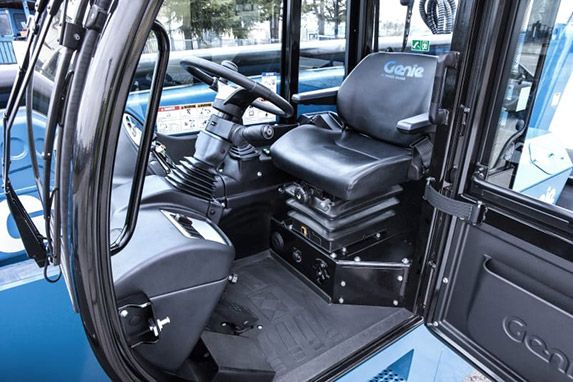

Adjustable suspension seat
Genie manual Quick-Attach™ system
Retractable 3 in (8 cm) seatbelt
60 in (1.52 m) carriage and pallet forks
Boom angle indicator
10 micron hydraulic return filter
1,000 cold cranking amps at 0° F (-18° C)
Reverse motion alarm
Mirror-LH canopy mounted
Mirror-RH chassis mounted
Fenders (set of 4)

Fully enclosed cab (includes full glass, defroster, wipers, heater, split door, washer)
Fully enclosed cab air conditioning
Flashing beacon
Work lights (2 cab front mounted, 2 tail)
Road lights (2 cab front mounts, 1 back-up, 2 rear stop/turn/tail)
Fire extinguisher
Windshield protection grid
Hydraulic Quick-Attach™
Rear back-up camera
Deutz 4.1TCD turbo charged diesel, Tier 4 154 hp (115 kW)
Perkins 1204E-E44TA turbo charged diesel, Tier 4 147 hp (110 kW)
Cold weather package (includes engine block heater, oil pan heater and battery heater)
17.5 x 25 in 20-ply foam-filled rough terrain tires
17.5 x 25 in 20-ply air-filled rough terrain tires
