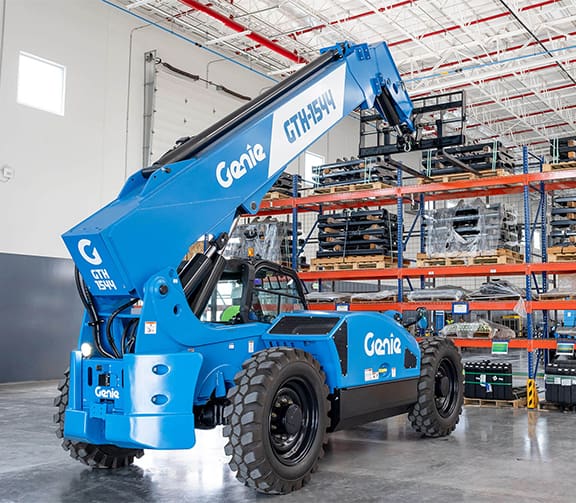

Genie GTH-1544 Telehandler

15,000 lb. Capacity

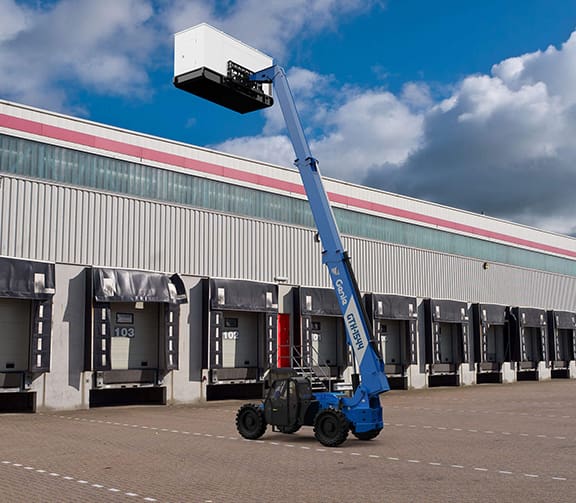

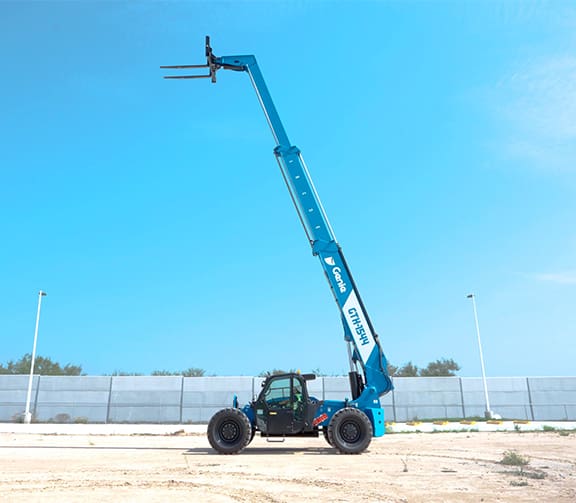

44 ft. Lift Height
27 ft. 3 in. Forward Reach
10,000 lbs. Capacity at Max. Height
3,500 lbs. Capacity at Max. Reach

Documents

Product Documents

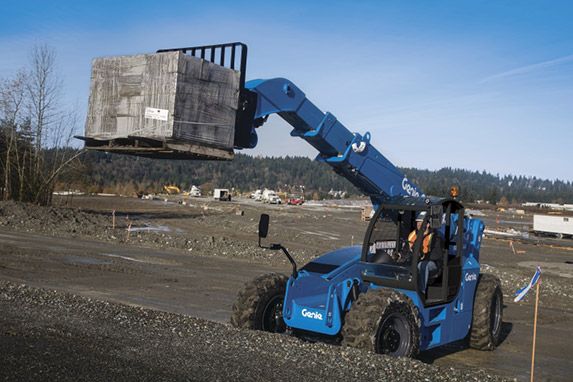

The Genie GTH-1544 telehandler is the first high-reach telehandler in its class. Perfect for industries from mining and oil and gas to heavy construction and ports, it’s among the most durable, reliable and powerful telehandlers on the market today.

When it comes to power and durability, the GTH-1544 telehandler is the industry workhorse. No other telehandler in this class can lift more weight higher.

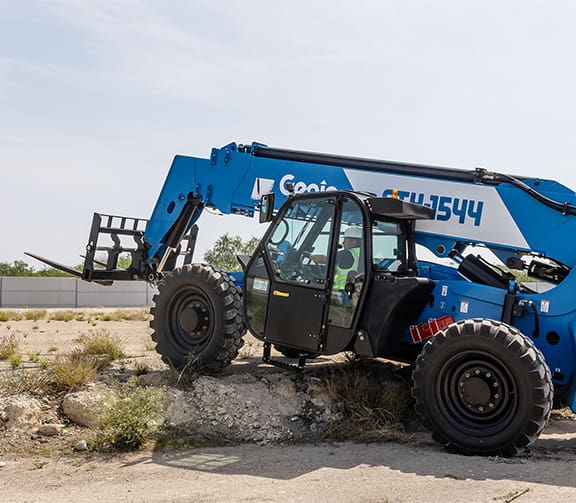

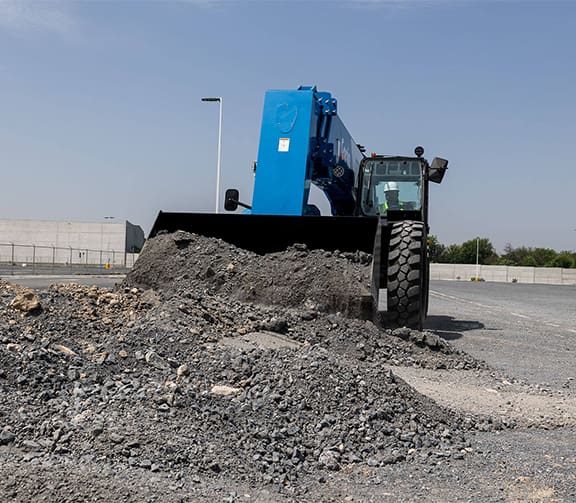

Rough terrain is no problem for the GTH-1544 telehandler. With four-wheel drive, three steering modes, and a hydrostatic transmission, it’s easy to handle on any work site. A frame leveling feature with 7˚ side-to-side leveling capability also helps you keep the chassis level on slopes.

Additional Information

MEWP Type	Telehandler

Four-wheel drive, three steering modes, and a hydrostatic transmission lets the GTH-1544 handle rough terrain no problem
Frame leveling feature with 7” side-to-side leveling capability helps keep the chassis level on slopes
Compact length makes the GTH-1544 telehandler is easy to maneuver and position exactly where you need it
Fits easily through narrow doorways and can be transported without a special over-width permit

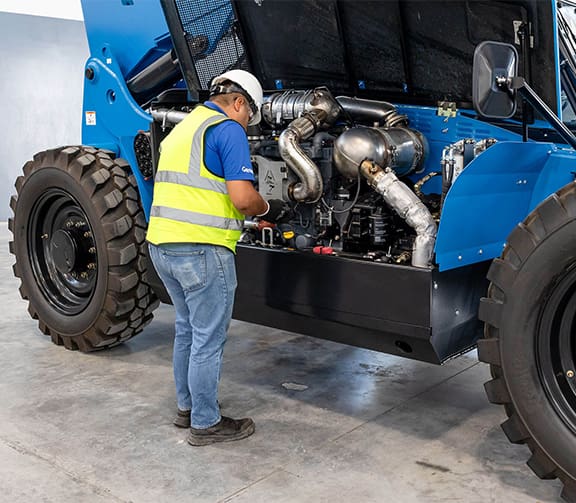

Low profile boom and side-mounted engine are positioned for excellent operator visibility – a boost for productivity on any job

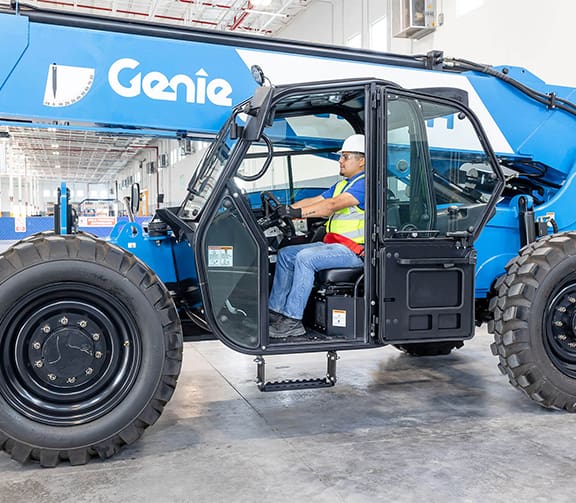

Ergonomic operator station features streamlined styling with a tilt steering wheel, a new single-lever joystick control, and highly visible gauge and switch packages

Full time 4WD
4WS
Operator selectable front, crab, coordinated steering modes
2-speed forward and reverse “Shift-on-fly” hydrostatic transmission
Transmission inch valve, brake pedal actuated
Proportional frame leveling 7° each side
Power assisted steering
Inboard wet disc service brakes
Wet disc spring applied parking brake
17.5 x 25 in. air-filled rough terrain tires
Front axle differential lock
High efficiency/variable displacement hydraulic pump
Auxiliary hydraulic circuit (15 GPM)
ROPS/FOPS canopy (ISO compliant)
Single, multi-function, proportional joystick
Machine level indicator
Full gauge cluster with engine diagnostics
Right-side screen standard on open cab
Adjustable suspension seat
Genie manual Quick-Attach™ system
Retractable 3 in (8 cm) seatbelt
60 in (1.52 m) carriage and pallet forks
Boom angle indicator
10 micron hydraulic return filter
1,000 cold cranking amps at 0° F (-18° C)
Reverse motion alarm
Mirror-LH canopy mounted
Mirror-RH chassis mounted
Fenders (set of 4)

Fully enclosed cab (includes full glass, defroster, wipers, heater, split door, washer)
Fully enclosed cab air conditioning
Flashing beacon
Work lights (2 cab front mounted, 2 tail)
Road lights (2 cab front mounts, 1 back-up, 2 rear stop/turn/tail)
Fire extinguisher
Windshield protection grid
Hydraulic Quick-Attach™
Rear back-up camera
