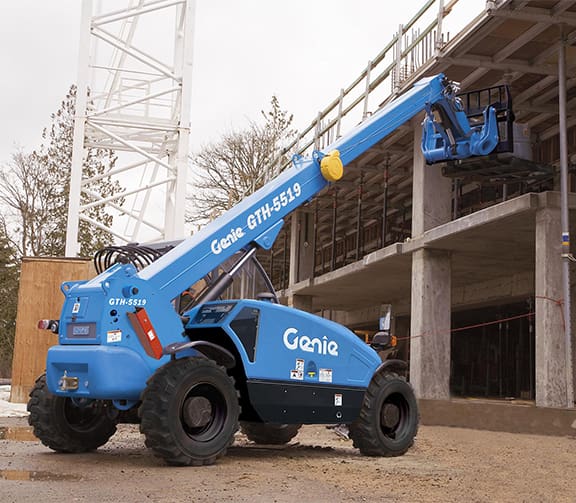

GTH-5519 Extended Outreach Over Obstacles

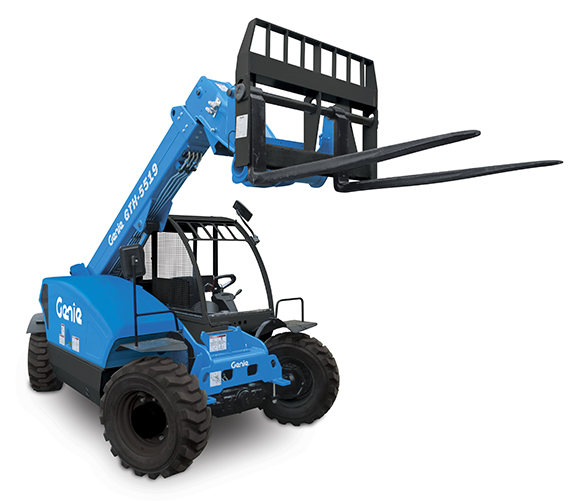

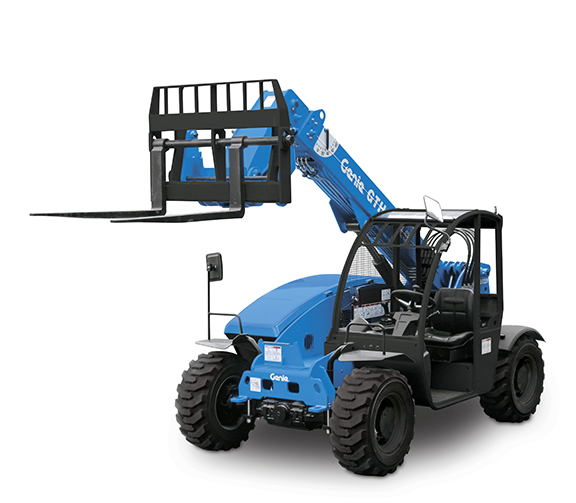

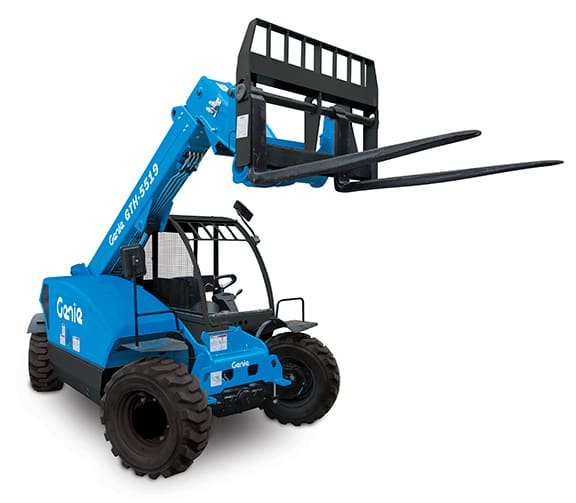

Genie GTH-5519 Telehandler

5,500 lb. Maximum Lift Capacity
18 ft. 10 in. Maximum Lift Height
11 ft. 3 in. Maximum Forward Reach
Full-Time 4WD
3-Mode Steering

Documents

Product Documents

Aerial Lift Information

Videos

The Genie GTH-5519 is a compact telehandler built to help crews lift, place, and move materials in tight or demanding jobsite conditions. With a 5,500 lb lift capacity, 18 ft 10 in maximum lift height, full-time 4WD, and three steering modes, it gives operations teams the reach and maneuverability needed for construction, masonry, landscaping, agricultural, and general material handling work.

Its side-mounted engine, ergonomic cab layout, proportional controls, and Quick-Attach system help simplify daily operation, maintenance, and attachment changes. As a Genie equipment dealer, we can help you evaluate whether the GTH-5519 is the right fit for your fleet, application, and work environment.

Model Numbers: GTH-5519

Additional Information

Condition	New
Brand	Genie
MEWP Type	Telehandler
Power	Engine
MEWP Capacity	Over 2,000 lbs
MEWP Lift Height	Up to 25ft

Compact telehandler designed for tasks both large and small.
Easy to maneuver and transport thanks to its compact footprint.
Convenient to service with a side-mounted engine layout.
Versatile machine suited for construction, masonry, landscape, and agricultural applications.

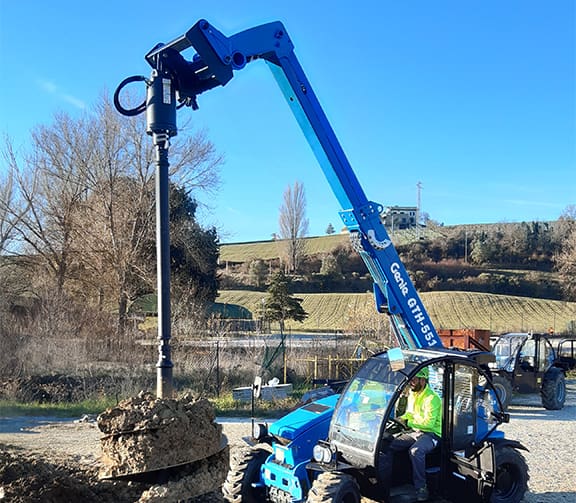

Manual Genie Quick-Attach system supports a variety of attachments for increased jobsite flexibility.
Full-time 4WD and multiple steering modes help improve maneuverability across rough terrain and confined spaces.

5,500 lb maximum lift capacity.
18 ft 10 in maximum lift height.
11 ft 3 in maximum forward reach.
4,400 lb lift capacity at maximum height.
1,900 lb lift capacity at maximum reach.
74 hp Deutz TCD 2.9 Tier 4 Final side-mounted engine.
Full-time 4WD with front limited slip differential.
3-mode steering: 2-wheel, 4-wheel, and crab steering.
Variable-speed hydrostatic drive.
Internal multiple wet disc brakes.
Spring-applied, hydraulic-release parking brake.
Air-filled rough terrain tires.

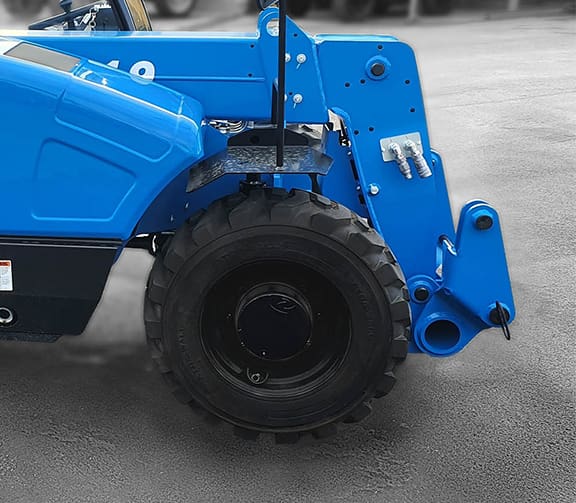

Manual Genie Quick-Attach system.
Auxiliary hydraulic circuit.
Boom angle indicator.
Lifting shackle at boom tip.
Self-leveling fork frame.
Adjustable suspended seat.
Tilt steering wheel.
Multi-function joystick controller.
Fully proportional boom and auxiliary hydraulic controls.
Machine level indicator.
Backup alarm.
Full gauge cluster with engine diagnostics.
Mirrors mounted for improved visibility.
Top glass and right-hand steel mesh screen.
Telematics-ready chassis.
Cold start intake glow plugs.

Closed cab with heater, defrost, wipers, washer, and split door.
Closed cab with air conditioning, heater, defrost, wipers, washer, and split door.
Lift Guard white noise alarm.
Rear proximity alarm.
Fire extinguisher.
Lift Connect telematics.
Lift Connect with Access Manager upgrade.
Brick guard.
Cold weather package.
Electric oil pan heater.
Lojack stolen vehicle recovery system.
Positive air shutdown system.
Flashing beacon.
High-output LED work lights.
Road and work light package.
Foam-filled rough terrain tires.
Air-filled turf tires.
Non-marking tires.
Solid rough terrain tires.
Hydraulic Genie Quick-Attach system.
Universal skid steer adapter.

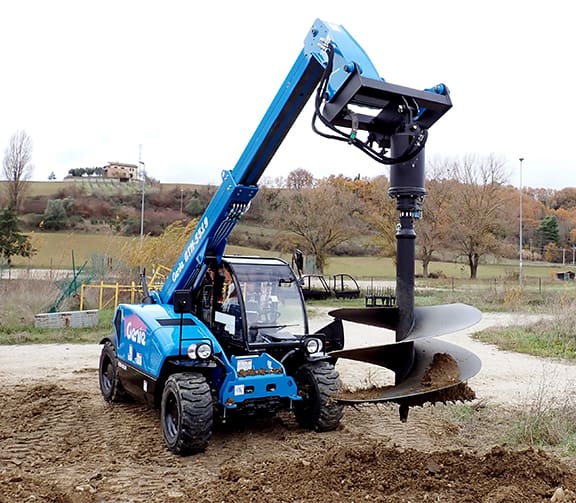

Quick-attach bucket options.
Quick-attach carriages, fork positioner carriage, side shift carriage, rotating carriage, and swing carriage.
Adjustable truss boom.
Cubing tines, lumber forks, and pallet forks in multiple lengths.

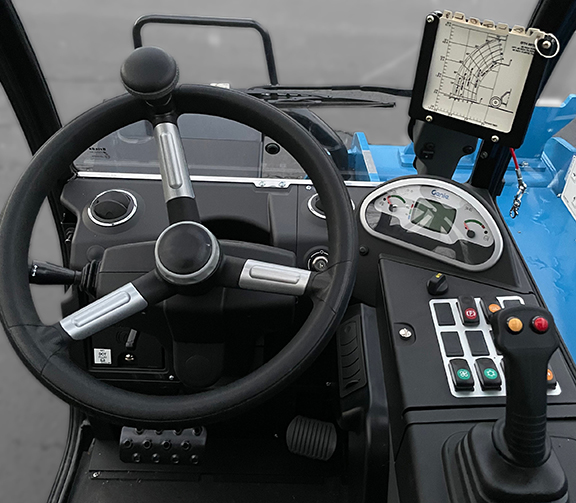

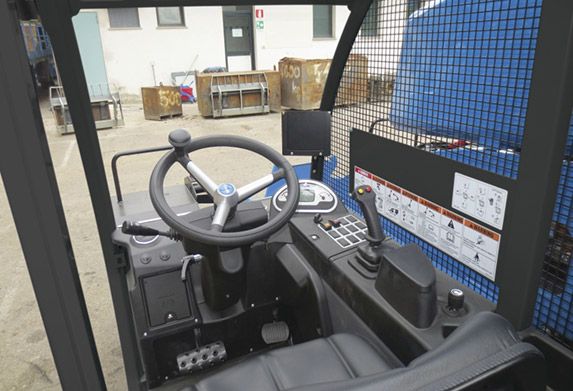

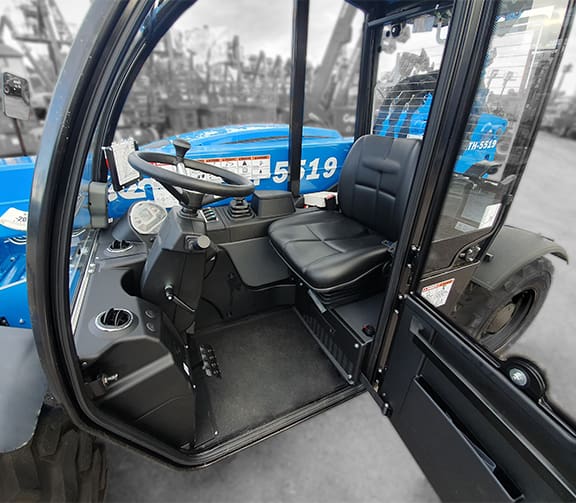

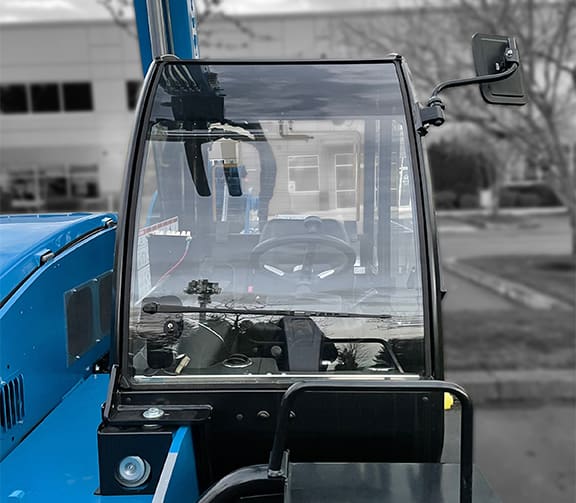

Comfortable, spacious cab designed for operator comfort.
Tilt steering wheel helps operators find a comfortable working position.
Ergonomic controls support intuitive machine operation.

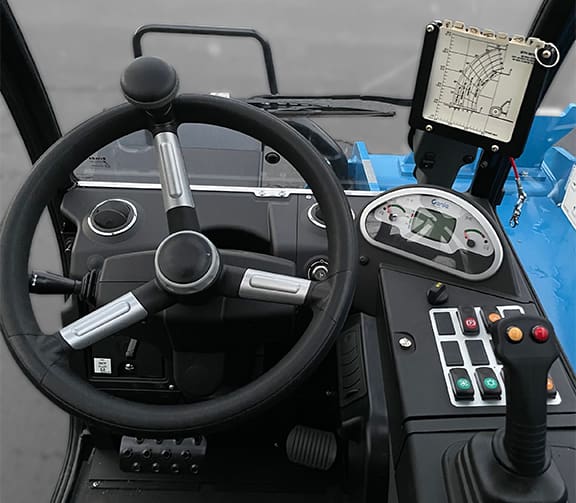

Easy-to-use multi-function joystick provides precise load positioning.
Adjustable suspended seat helps reduce operator fatigue.
Full gauge cluster with engine diagnostics keeps key machine information visible to the operator.
Fully proportional boom and auxiliary hydraulic controls support smooth, controlled operation.

ROPS/FOPS canopy or closed cab configurations available.
Backup alarm comes standard.
3 in high-visibility red retractable seat belt comes standard.
Machine level indicator helps operators monitor machine positioning.
Boom angle indicator supports proper boom positioning.
Self-leveling fork frame helps keep loads level during operation.
Mirrors improve operator visibility around the machine.
Internal multiple wet disc brakes provide dependable stopping performance.
Spring-applied, hydraulic-release parking brake helps secure the machine when parked.
Optional Lift Guard white noise alarm and rear proximity alarm help increase jobsite awareness.
Optional flashing beacon and LED work lights improve visibility in active work areas.
Optional fire extinguisher and positive air shutdown system are available for additional jobsite requirements.

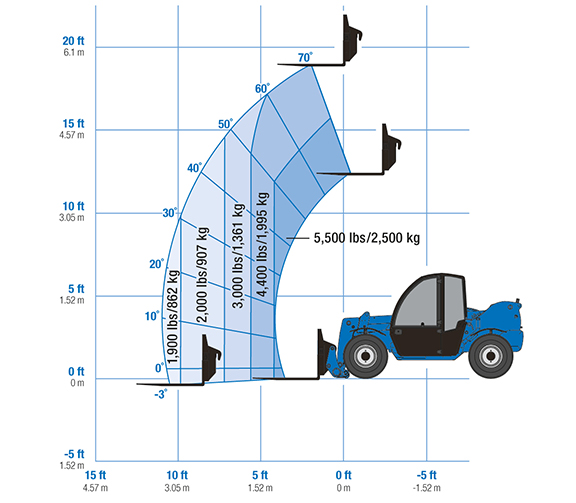

Maximum lift capacity of 5,500 lb.
Maximum lift height of 18 ft 10 in.
Maximum forward reach of 11 ft 3 in.
Lift capacity of 4,400 lb at maximum height.
Lift capacity of 1,900 lb at maximum reach.
Drive speed up to 15 mph.
7,716 lb drawbar pull.
11 ft outside turning radius with four-wheel steer.
Full-time planetary four-wheel drive helps deliver traction in demanding environments.
Variable-speed hydrostatic drive supports smooth travel control.
3-mode steering provides maneuverability in tight or congested work areas.

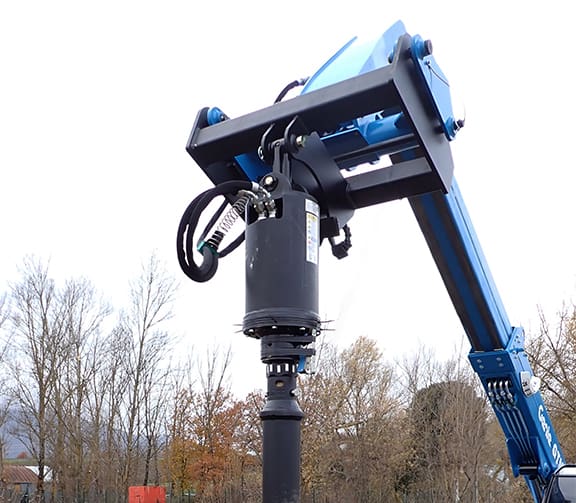

Auxiliary hydraulic flow supports attachment operation.
Rough terrain tire options help adapt the machine to different ground conditions.

Side-mounted engine supports convenient access for service and maintenance.
Full gauge cluster with engine diagnostics helps operators and technicians monitor machine condition.
Telematics-ready design supports fleet monitoring capabilities.
Optional Lift Connect telematics helps track machine data and usage.
Manual Quick-Attach system allows attachments to be changed efficiently.
Hydraulic Quick-Attach system is available for added attachment-changing convenience.

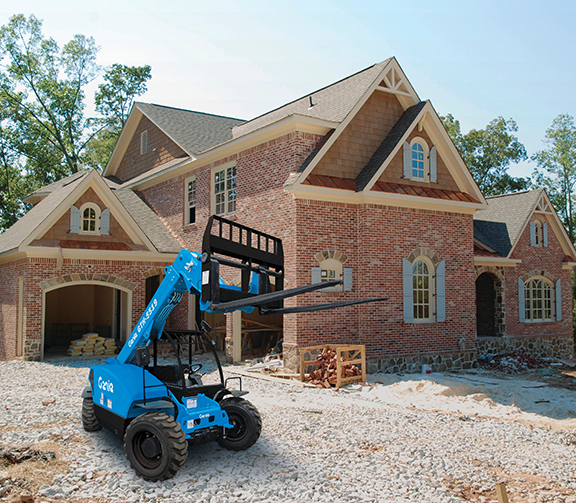

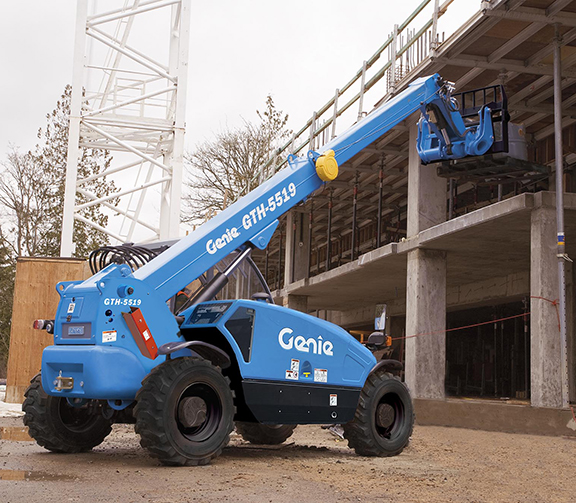

Construction
Masonry
Landscaping
Agriculture
Material handling
Rental fleets
General jobsite support
