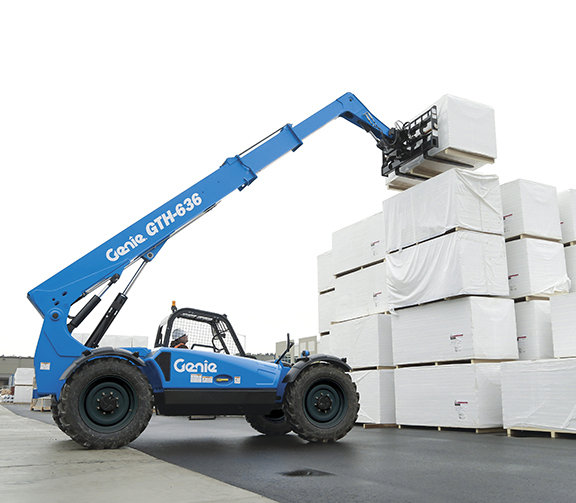

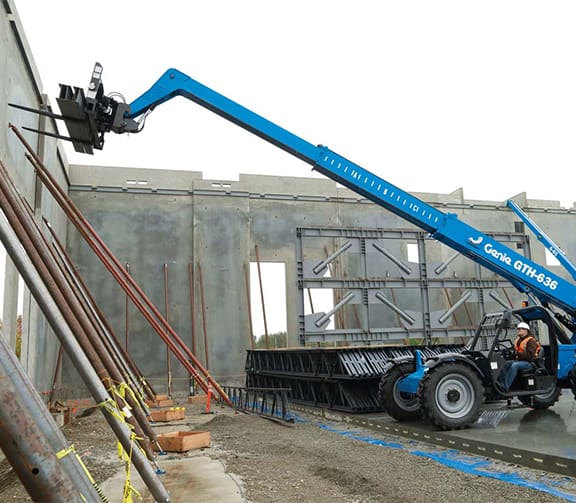

gth-636 Extended Outreach Over Obstacles

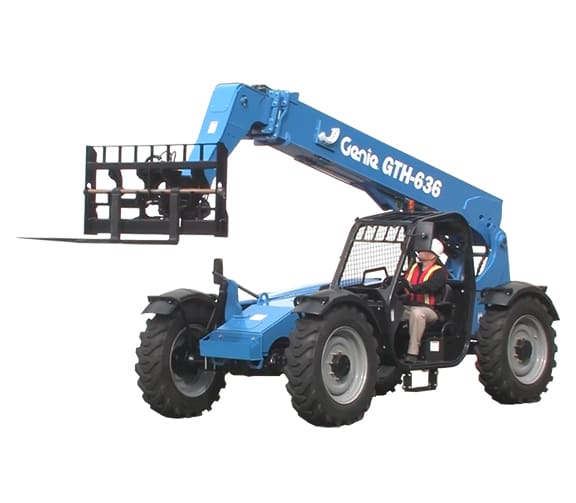

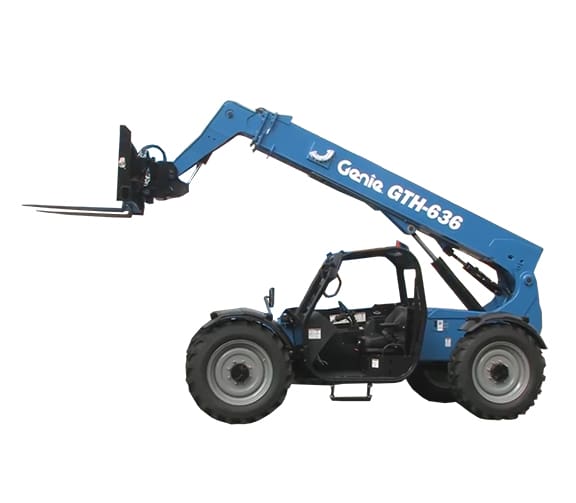

Genie GTH-636 Telehandler

6,000 lb. Maximum Lift Capacity
36 ft. Maximum Lift Height
21 ft. 11 in. Maximum Forward Reach
74 hp Diesel Engine
18 mph Maximum Travel Speed

Documents

Product Documents

Aerial Lift Information

Videos

The Genie GTH-636 telehandler gives operations teams a dependable way to lift, move, and place heavy materials across busy jobsites. With a 6,000 lb maximum lift capacity, 36 ft lift height, and nearly 22 ft of forward reach, it’s built to handle demanding construction, agriculture, landscaping, and material handling work.

Its 4-wheel drive, multiple steering modes, frame leveling, and proportional joystick controls help operators maneuver with confidence on rough or uneven terrain. As a Genie equipment dealer, Conger can help you choose the right configuration, attachments, and support options to fit your application.

Model Number: GTH-636

Additional Information

Condition	New
Brand	Genie
MEWP Type	Telehandler
Power	Engine
MEWP Capacity	Over 2,000 lbs
MEWP Lift Height	26 – 40ft

Heavy-duty, compact telehandler designed for demanding lifting applications.
6,000 lb maximum lift capacity with a 36 ft maximum lift height.

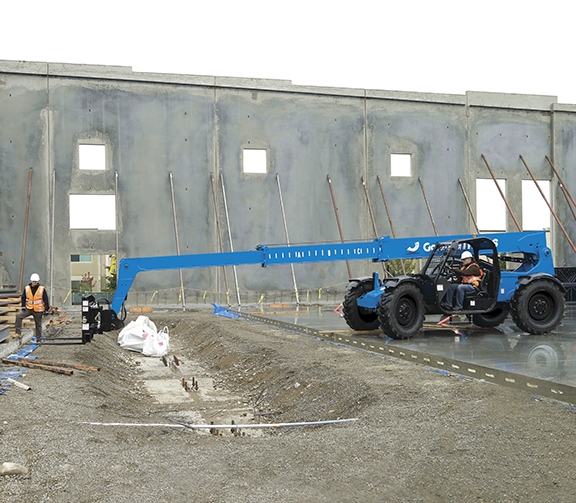

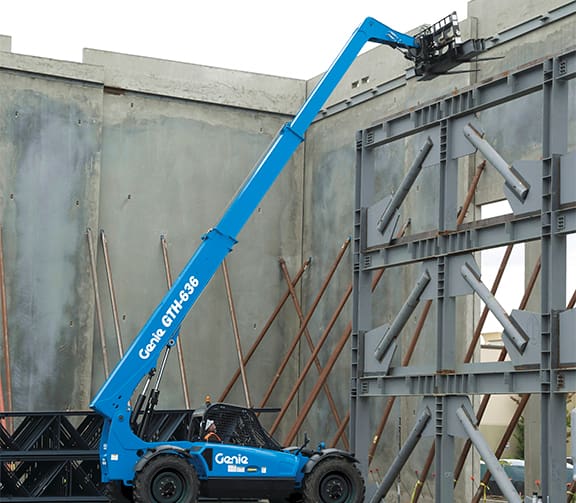

21 ft 11 in maximum forward reach for placing loads at height or across obstacles.
Right-side-mounted engine helps improve operator visibility around the machine.
Multi-function proportional joystick control supports fast, precise load positioning.
Proportional frame-leveling chassis allows operators to pick up or place loads on side slopes up to 10 degrees.
Four-wheel drive and turbocharged diesel power deliver reliable performance in rugged jobsite conditions.
Compatible with a wide range of forks, carriages, buckets, truss booms and other attachments.

74 hp Deutz TCD 2.9 Tier 4 Final side-mounted diesel engine.
3-speed powershift transmission.
Full-time 4WD with front limited slip differential.
3-mode power steering: 2-wheel, 4-wheel coordinated and crab steering.
Frame leveling +/- 10 degrees.
Fully proportional hydraulic boom controls.
Multi-function joystick controller.
Genie manual Quick-Attach system.
Auxiliary hydraulic circuit with 15 GPM flow.
Boom angle indicator and machine level indicator.
Self-leveling fork frame.
Lifting shackle at boom tip.
Adjustable suspended seat.
Tilt steering wheel.
Full gauge cluster with engine diagnostics.
Backup alarm.
Mirrors, including left-hand canopy-mounted and right-hand chassis-mounted mirrors.
Internal multiple wet disc brakes.
Spring-applied, hydraulic-release parking brake.
Air-filled Enduro A/T tires.
Telematics-ready chassis.

Open cab ROPS/FOPS canopy.
Closed cab with heater, defrost, wipers, washer and split door.
Closed cab with air conditioning, heater, defrost, wipers, washer and split door.
Front and top glass.
Lift Guard white noise alarm.
Rear proximity alarm.
Rear proximity alarm with backup camera and display.
Fire extinguisher.
Lift Connect telematics.
Lift Connect with Access Manager upgrade.
Cold weather and extreme cold weather packages.
Fenders, flashing beacon and high-output LED work lights.
Foam-filled Enduro A/T tires, non-marking foam-filled tires or solid rough terrain tires.
Lockable battery disconnect.
Quick-Attach buckets, carriages, fork positioner carriage, side-shift carriage, swing carriage and truss boom.
Pallet forks, lumber forks and cubing tines in multiple sizes.

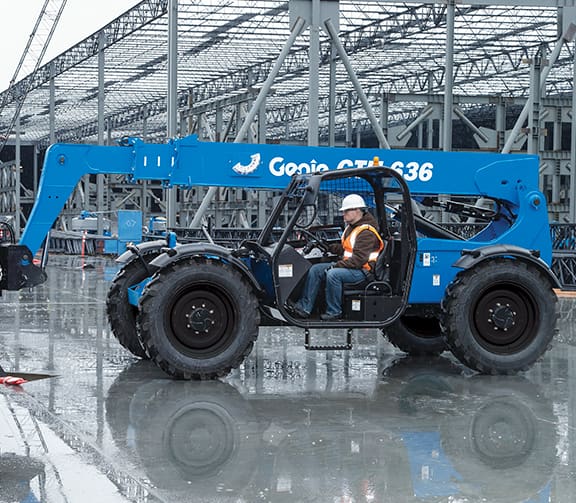

Right-side-mounted engine improves visibility from the operator position.

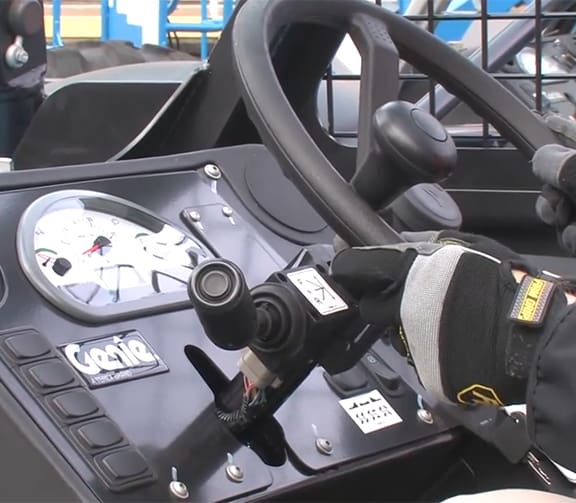

Multi-function proportional joystick enables smooth, precise boom and load control.
Adjustable suspended seat supports operator comfort during long shifts.
Tilt steering wheel helps operators find a comfortable driving position.
Power steering reduces steering effort on jobsites.
Full gauge cluster with engine diagnostics keeps key machine information visible to the operator.
Closed cab options with heat, defrost, wipers, washer and available air conditioning support comfort in changing weather conditions.

ROPS/FOPS canopy or closed cab options help protect the operator.
3 in high-visibility red retractable seat belt.
Backup alarm comes standard.
Optional Lift Guard white noise alarm helps alert workers around the machine.
Optional rear proximity alarm and rear proximity alarm with backup camera and display support awareness behind the machine.
Machine level indicator and boom angle indicator help operators monitor load placement conditions.
Mirrors improve jobsite visibility.
Internal multiple wet disc brakes and spring-applied, hydraulic-release parking brake support controlled stopping and parking.
Optional flashing beacon and high-output LED work lights improve visibility on active jobsites.
Optional fire extinguisher is available.

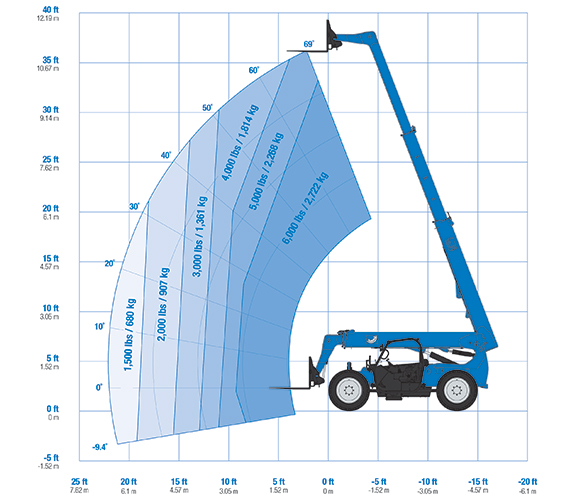

Maximum lift capacity: 6,000 lb.
Lift capacity at maximum height: 5,000 lb.
Lift capacity at maximum reach: 1,500 lb.

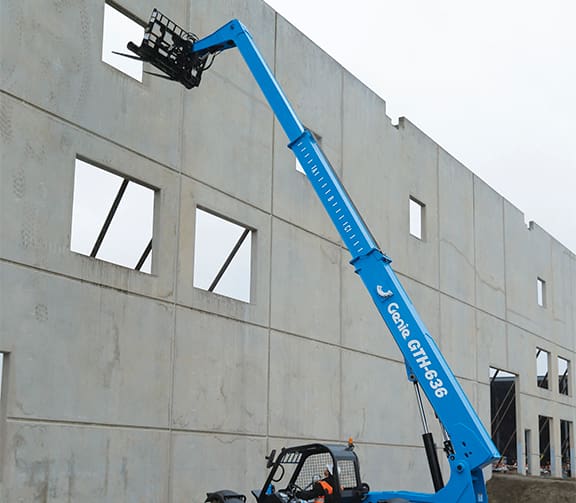

Maximum lift height: 36 ft.
Maximum forward reach: 21 ft 11 in.
Drive speed: 18 mph.
Boom up/down speed: 10/8 seconds.
Boom extend/retract speed: 11/9 seconds.
Draw bar pull: 15,100 lb.
Outside turning radius with 4-wheel steering: 13 ft 4 in.
Auxiliary hydraulic flow: 2–15 GPM.
Auxiliary hydraulic pressure: 3,000 psi.
Full-time 4WD and front limited slip differential help maintain traction in rugged conditions.

Side-mounted engine supports easier access for routine service and inspection.
Full gauge cluster with engine diagnostics helps operators and service teams monitor machine health.
Telematics-ready design allows the machine to support connected fleet management.
Optional Lift Connect telematics can help track usage, location and machine data.
Optional lockable battery disconnect supports maintenance and storage procedures.
Standard Genie manual Quick-Attach system makes it easier to switch compatible attachments.

Construction
Landscaping
Agriculture
General material handling
Rental fleets
Jobsites requiring rough-terrain lifting, loading, unloading and material placement
