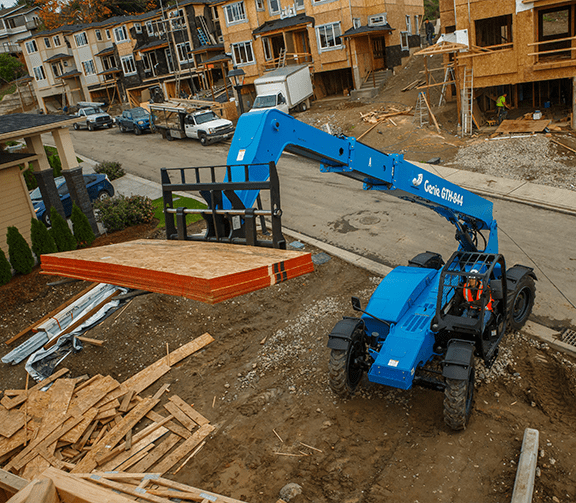

GTH-844 Extended Outreach Over Obstacles

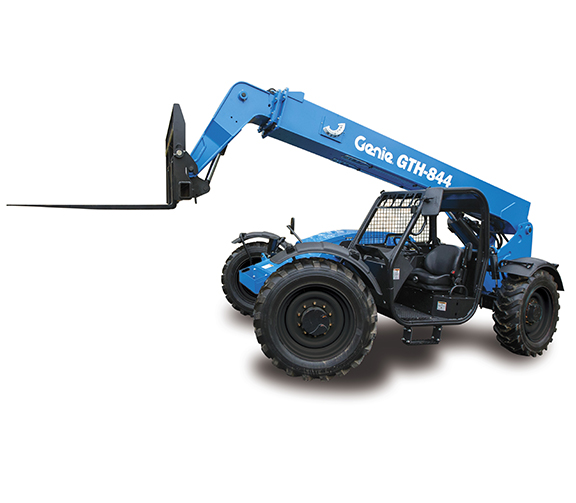

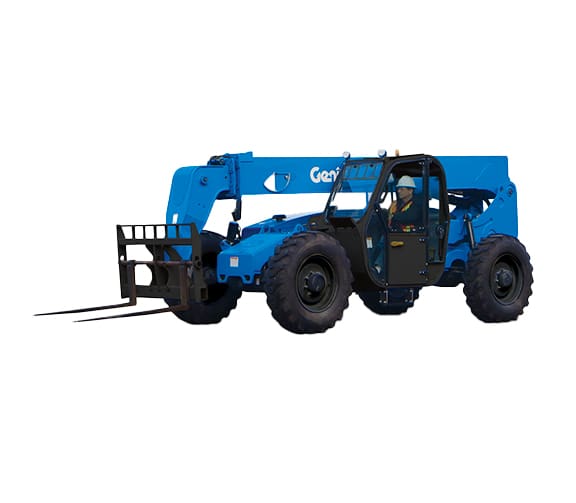

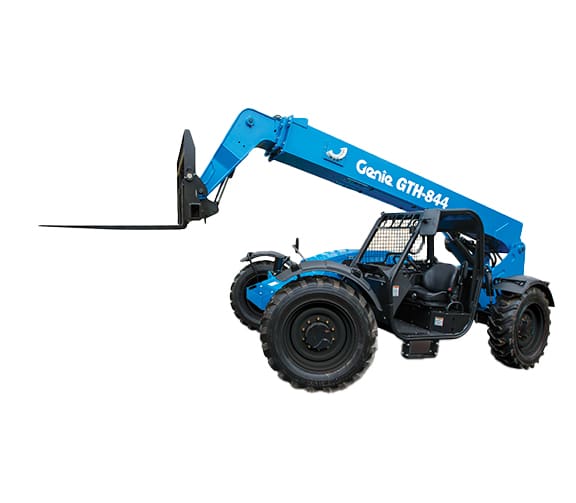

Genie GTH-844 Telehandler

8,000 lb. Maximum Lift Capacity
43 ft. 10 in. Maximum Lift Height
28 ft. 2 in. Maximum Forward Reach
Full-Time 4WD
3 Steering Modes

Documents

Product Documents

Aerial Lift Information

Videos

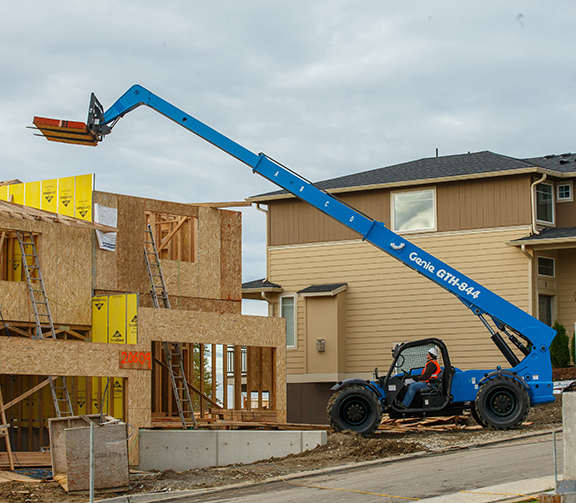

The Genie GTH-844 telehandler gives operations teams the reach, lifting power, and rough-terrain performance needed to move heavy materials efficiently across demanding jobsites. With an 8,000 lb maximum lift capacity, 43 ft 10 in maximum lift height, and full-time 4WD, it is built to handle loading, unloading, material placement, and jobsite cleanup with confidence.

Its three steering modes, proportional boom controls, and frame leveling help operators work more precisely in tight spaces and on uneven ground. Available cab, tire, lighting, telematics, and attachment options make it easier to match the machine to your application, whether you work in construction, agriculture, rental, or general material handling.

Model Numbers: GTH-844

Additional Information

Condition	New
Brand	Genie
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	41 – 60ft
MEWP Capacity	Over 2,000 lbs

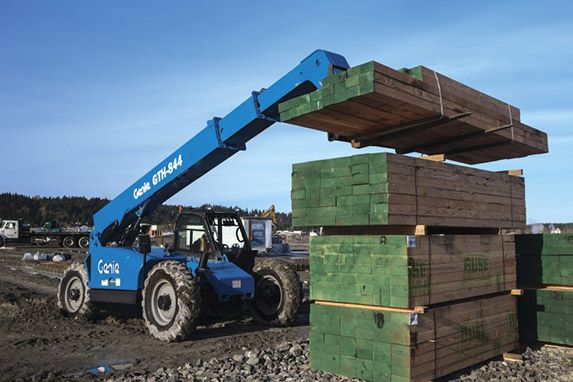

Excellent lift capacity for loading, unloading, moving, placing materials, and jobsite cleanup.
Right-side-mounted engine helps improve operator visibility.
Strong rough-terrain capability with four-wheel drive, four-wheel steering, and low-end torque.
Proportional frame-leveling chassis allows operators to pick up or place loads on side slopes up to 10 degrees.
Quick-Attach system allows the machine to work with a wide range of attachments.
Compact maneuverability with a 13 ft 9 in outside turning radius in four-wheel-steer mode.
Telematics-ready design supports fleet management and machine monitoring options.

8,000 lb maximum lift capacity.

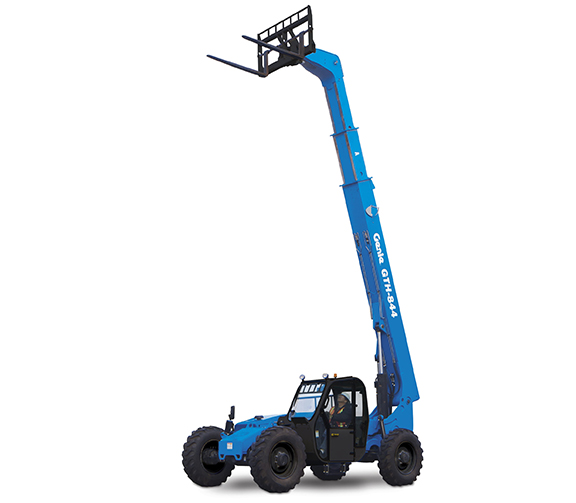

43 ft 10 in maximum lift height.
28 ft 2 in maximum forward reach.
6,000 lb lift capacity at maximum height.
2,000 lb lift capacity at maximum reach.
74 hp Deutz TCD 3.6 Tier 4 Final engine.
Powershift 3-speed transmission.
Full-time 4WD with front limited-slip differential.
Three steering modes: 2-wheel, 4-wheel coordinated, and crab steering.
Genie manual Quick-Attach system.
Auxiliary hydraulic circuit with 15 GPM flow.
Lift shackle at boom tip.
Self-leveling fork frame.
Fully proportional hydraulic boom controls.
Multi-function joystick controller.
Power steering and tilt steering wheel.
Machine level indicator and boom angle indicator.
Full gauge cluster with engine diagnostics.
Backup alarm, mirrors, and RH steel mesh screen.
Adjustable suspended seat.
3 in high-visibility red retractable seat belt.
Internal multiple wet disc brakes.
Spring-applied, hydraulic-release parking brake.
Rear axle stabilizing system.

Open cab ROPS/FOPS canopy.
Closed cab with heater, defrost, wipers, washer, and split door.
Closed cab with air conditioning, heater, defrost, wipers, washer, and split door.
Front and top glass.
Lift Guard white noise alarm.
Rear proximity alarm.
Rear proximity alarm with backup camera and display.
Fire extinguisher.
Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Cold weather package or extreme cold weather package.
Fenders set of four.
LoJack stolen vehicle recovery system.
Positive air shutdown system.
Flashing beacon.
High-output LED work lights for cab, boom, and rear.
Road and work lights with high-output LED front, cab, boom, and rear lighting.
Foam-filled Enduro A/T tires.
Non-marking foam-filled tires.
Solid rough-terrain tires.
Lockable battery disconnect.

Right-side-mounted engine improves visibility around the machine.

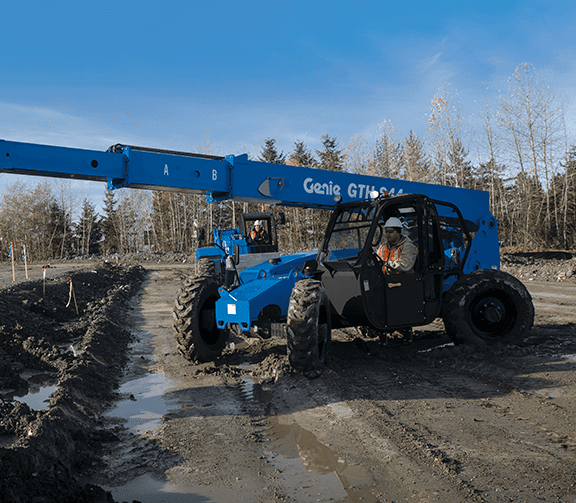

Multi-function proportional joystick controller supports fast, precise load positioning.
Adjustable suspended seat helps improve operator comfort.
Tilt steering wheel allows operators to adjust the driving position.
Power steering reduces steering effort during operation.
Full gauge cluster with engine diagnostics keeps key machine information visible to the operator.
Machine level indicator helps operators monitor machine positioning during load placement.

ROPS/FOPS canopy or enclosed cab options help protect the operator.
Backup alarm comes standard.
3 in high-visibility red retractable seat belt comes standard.
Mirrors include LH canopy-mounted and RH chassis-mounted configurations.
Rear proximity alarm and rear proximity alarm with backup camera and display are available.
Lift Guard white noise alarm is available.
Fire extinguisher is available.
Flashing beacon and work light packages are available to improve visibility on jobsites.
Internal multiple wet disc brakes provide reliable braking performance.
Spring-applied, hydraulic-release parking brake helps secure the machine when parked.
Rear axle stabilizing system supports stability during operation.
Frame leveling up to plus or minus 10 degrees helps operators work on uneven terrain.

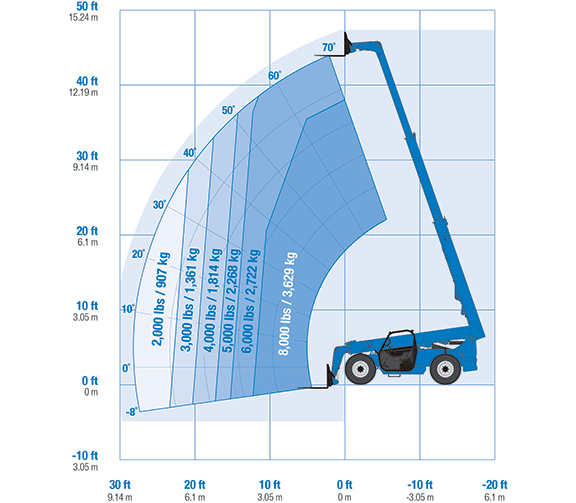

Maximum lift capacity: 8,000 lb.
Maximum lift height: 43 ft 10 in.
Maximum forward reach: 28 ft 2 in.
Capacity at maximum height: 6,000 lb.
Capacity at maximum reach: 2,000 lb.
Drive speed: 15 mph.
Boom up/down speed: 13/10 seconds.
Boom extend/retract speed: 14/9 seconds.
Draw bar pull: 21,000 lb.
Auxiliary hydraulic flow: 2-15 GPM.
Auxiliary hydraulic pressure: 3,000 psi.

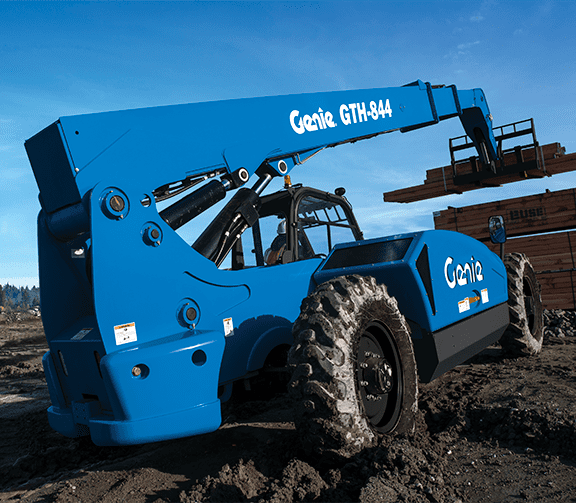

Full-time 4WD with front limited-slip differential supports traction on rough terrain.
Three-mode steering improves maneuverability in tight or uneven jobsites.
Four-wheel drive, four-wheel steering, and low-end torque help the machine work on hills and rough terrain.

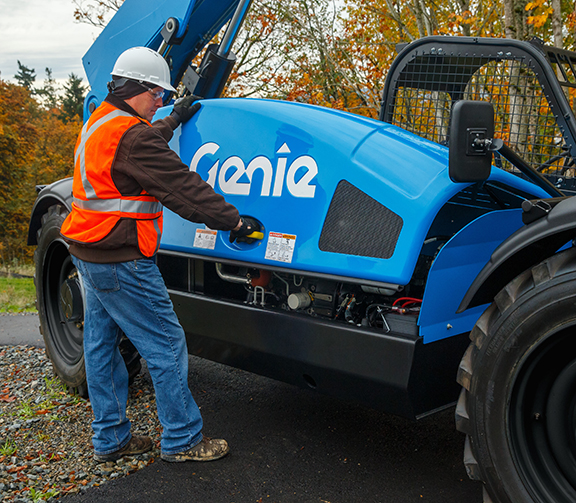

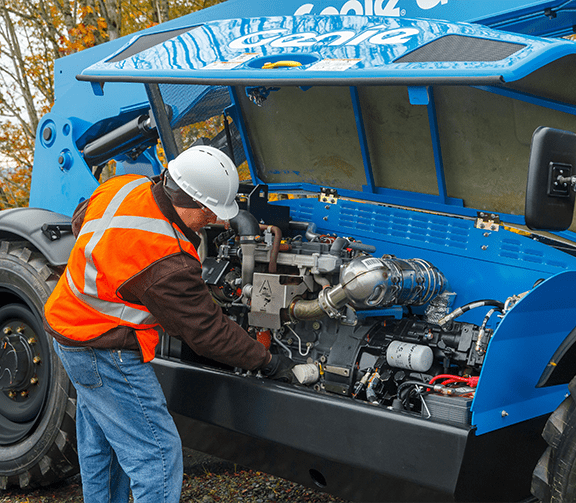

Side-mounted engine design can improve access for inspection and service.
Full gauge cluster with engine diagnostics helps operators and service teams monitor machine status.
Telematics-ready configuration supports fleet tracking and maintenance visibility.
Lift Connect Telematics and Lift Connect with Access Manager are available options for connected fleet management.
Lockable battery disconnect is available for service and storage support.
Quick-Attach system makes it easier to change attachments for different applications.

Construction jobsites.
Material handling applications.
Loading and unloading operations.
Moving and placing materials.
Jobsite cleanup.
Landscaping applications.
Agriculture applications.
Rental fleets.
