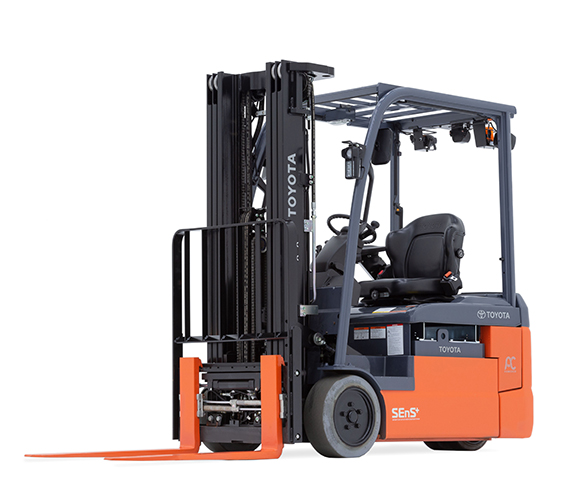

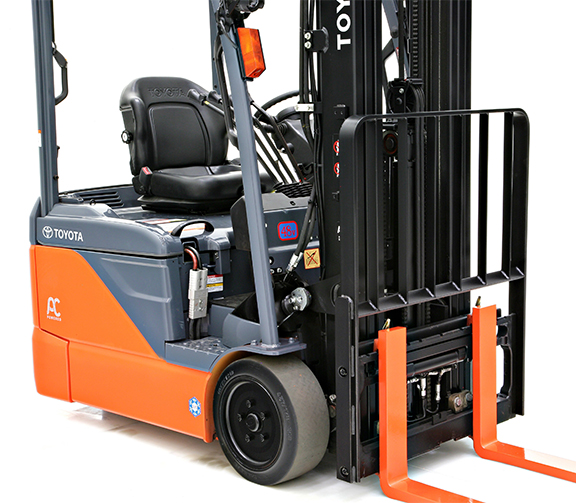

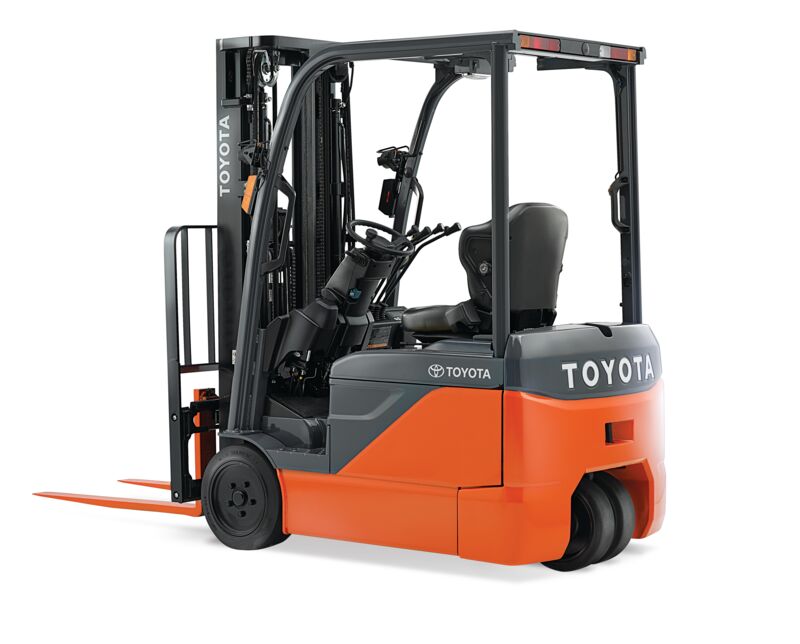

Toyota 3-Wheel Electric Forklift

3,000 – 4,000 lb. Capacity Range
Smooth and Responsive Controls
Industry-Leading Travel Times
AC Drive Motor
No Tools Required Floorboard

Documents

Product Documents

Product Videos

Product Options

Competitive Analysis

Financing Information

Forklift Information

Product Description

More than 30 advances make the Toyota 3-Wheel Electric more versatile than ever. Welcome to a whole new world of uptime, productivity and industry-leading performance. Spend less time on maintenance. And more time getting things done.

Navigation is simplified with the Toyota 3-Wheel Electric Forklift. You can load and unload quickly, with unsurpassed lift and lower speeds. Easily control fork placement with smooth, responsive progressive hydraulics on the mast (faster turnarounds, fewer incidents of damage). And appreciate the extra assist of cornering speed control.

Model Numbers: 8FBE15U | 8FBES15U | 8FBE18U |8FBEH18U | 8FBE20U

Equipment Details

Forklift Type	Electric Motor Riders
Brand	Toyota
Condition	New
Capacity	3,500 lbs., 3,000 lbs., 4,000 lbs.
Fuel Type	Electric/Battery, 36 Volt, Electric/Battery, 48 Volt

Optional rear assist grip with horn makes reverse travel a more comfortable and keeps operator’s hands safely within compartment
Energy efficiency and one-charge run time that outpaces the competition
100% on-board programming and diagnostics through standard display or application-specific fine-tuning and faster service
Wet disc brakes seal out debris, keep brakes running cool, and reduce wear for increased uptime and longer lifespan
Cornering speed control increases stability by slowing down automatically when operator attempts to take a turn too fast

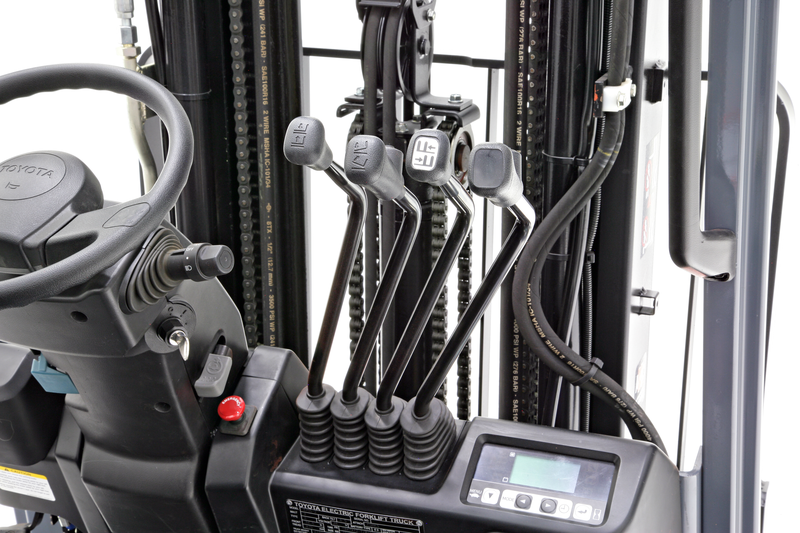

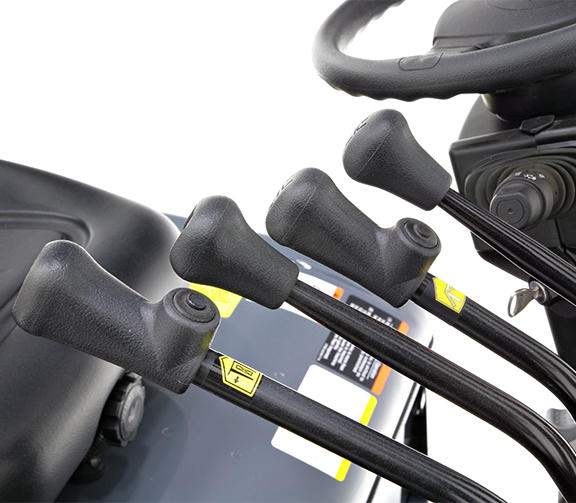

Cowl-mounted hydraulic levers allow entering/exiting operating position from either side, saving time and driver effort
Mast cushioning reduces bang and clang- and, more importantly, wear and damage

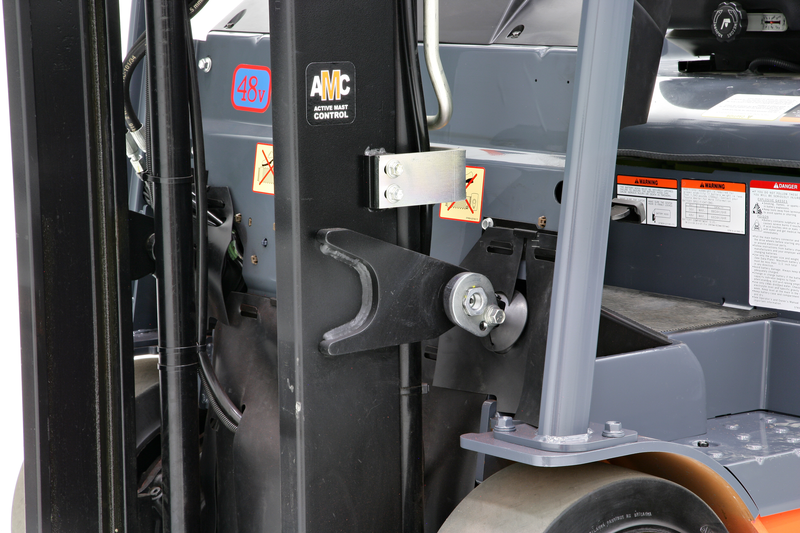

Active Mast Control (AMC) responds automatically to enhance the stability of loads handled at high lift heights

Strategically placed instrument display
On-demand, hydrostatic power steering
Cowl-mounted hydraulic controls
Automatic fork-leveling control
Large dual operator assist grips

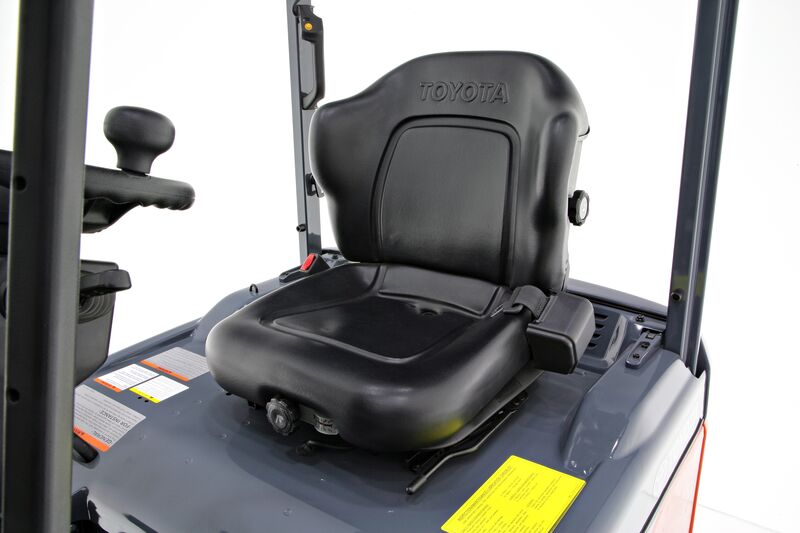

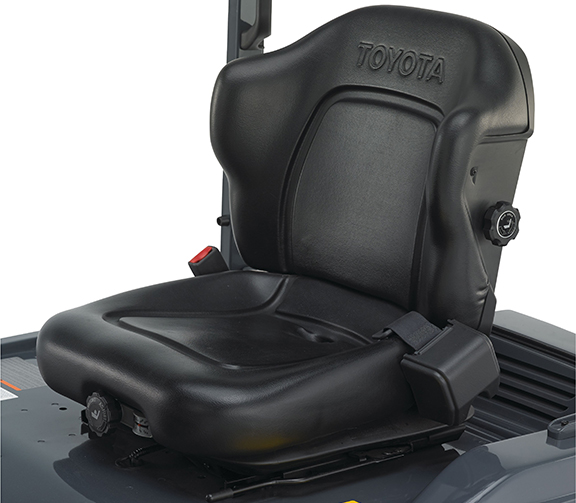

Operator restraint system (ORS) with full-suspension seat
Retractable seat belt
Electric directional shift control
Memory-tilt steering column
Hood-integrated paper clip
Heavy-duty slip-resistant floor mat
Two-spoke steering wheel
Integrated switch for headlight & turn signal

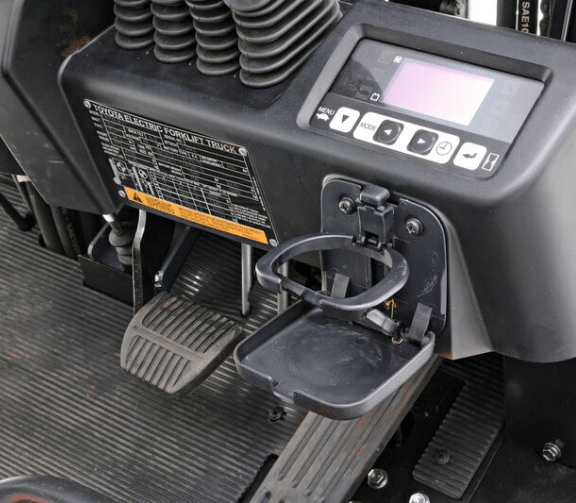

Dash-mounted cup holder
Curvilinear OHG front pillars

36-Volt electrical system
AC drive system
AC lift system
Programmable hydraulics
UL-approved model type E
Transverse-mounted AC drive motors
Power select functions (E.S.P.H.)

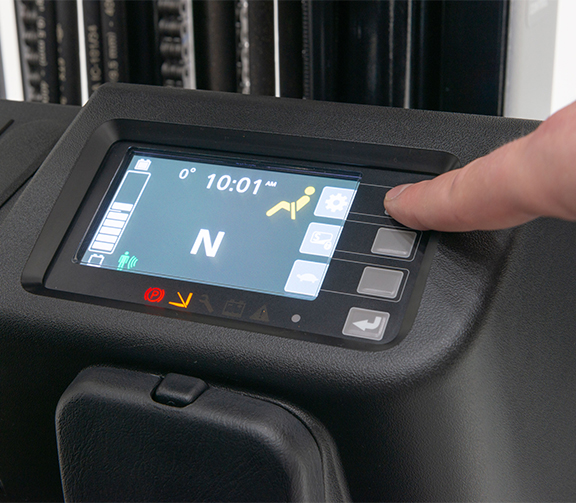

Digital multifunction display

– Time & date
– Speedometer
– Multifunction hour meter
– Battery capacity indicator
– Parking brake indicator
– Over-discharge warning light (lift interrupt)
– Mast tilt indicator

Maximum speed limiter
Power keep function
3-way hydraulic control valve
Programmable auto-off system
Three forms of energy regeneration

– Coast control
– Plug braking
– Foot braking

Maintenance-free AC motors
Thermal protection monitor
Easy-access controllers
Programmable maintenance timer
Battery compartment hood assist damper
Easy access no-tools floorboard
Built-in analyzer
Self-diagnostics

Active Mast Control (AMC)

– Forward tilt angle control
– Rear tilt speed control
– Lift speed limitation with forward tilt

Wet disc brakes
Operator Presence Sensing System (OPSS)
Momentary hold/controlled descent
Key lowering interlock
Foot-operated parking brake
Electric horn
Manual return to neutral
Turn speed control

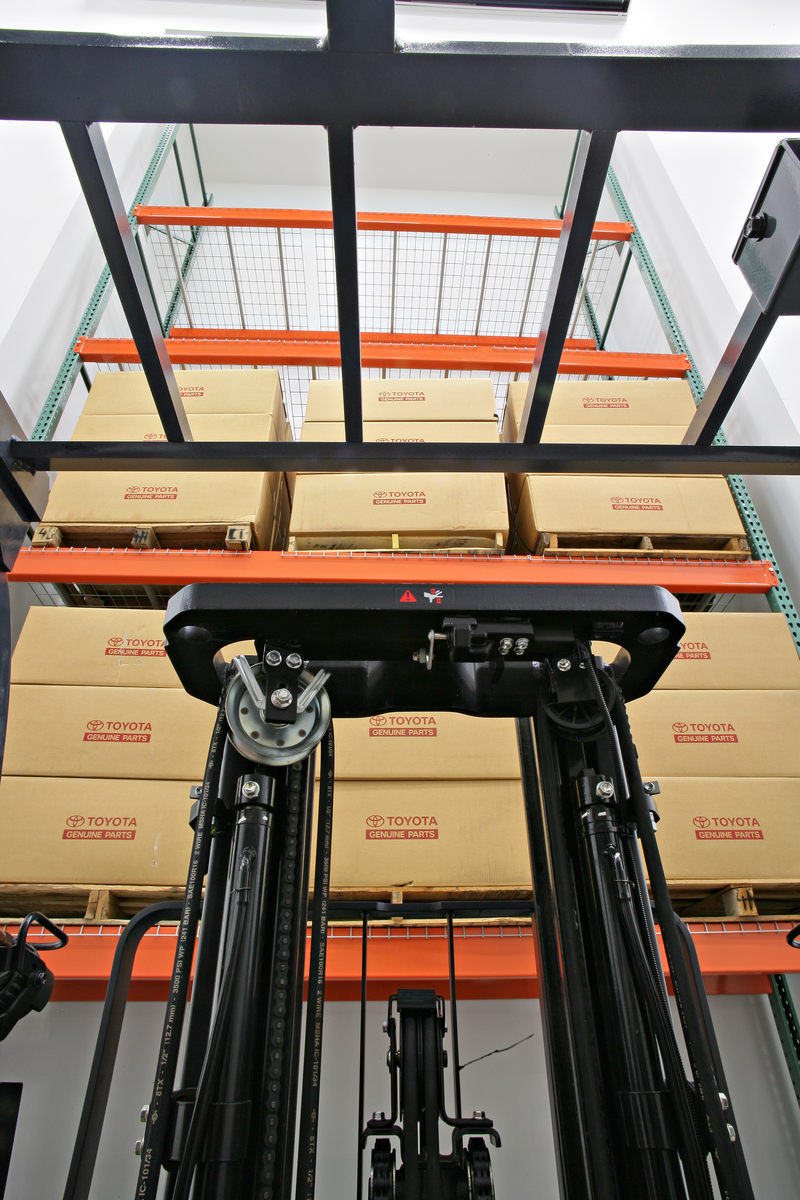

Wide-view 2-stage mast (V)
Punched plate entry/exit step

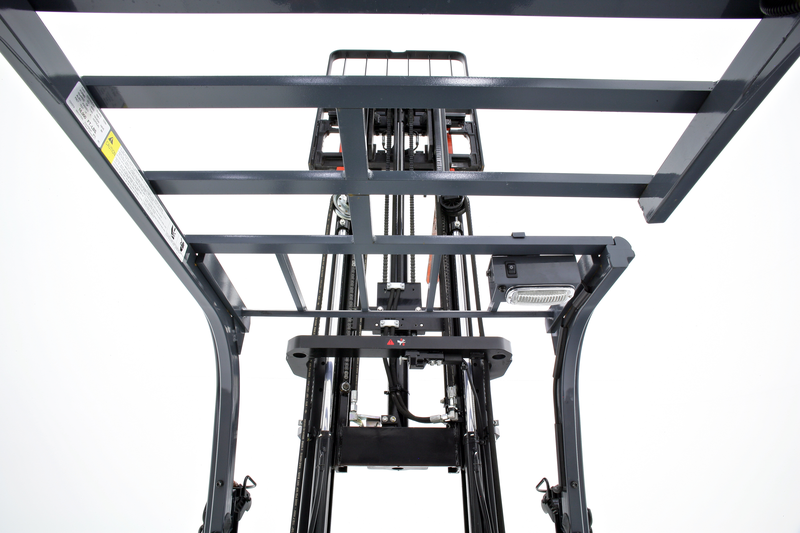

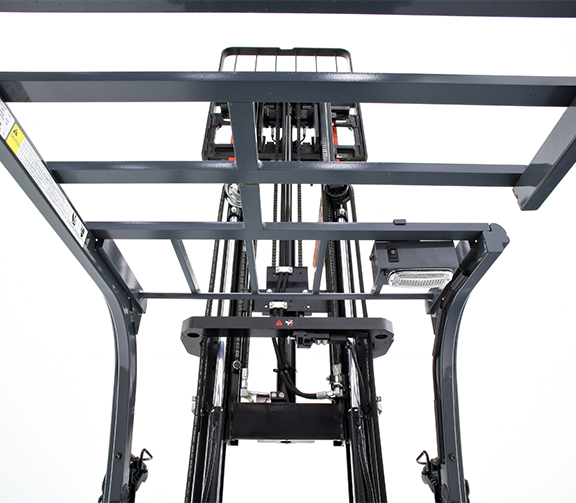

Bolt-on overhead guard

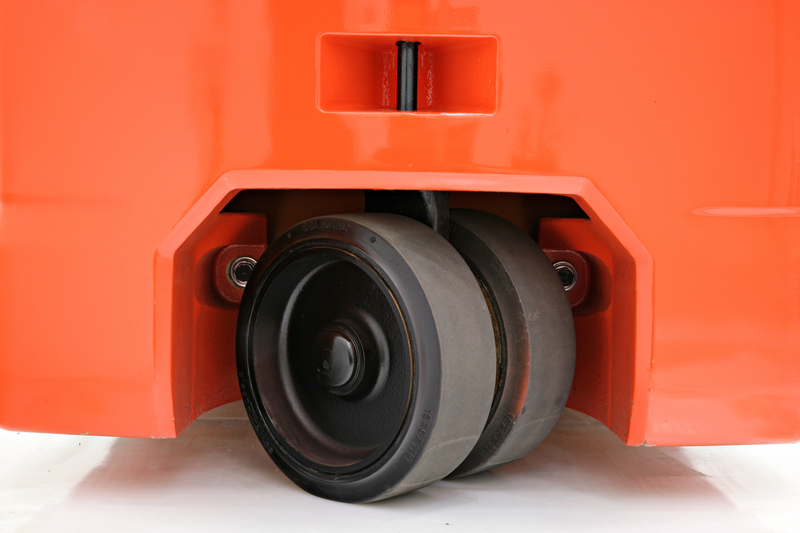

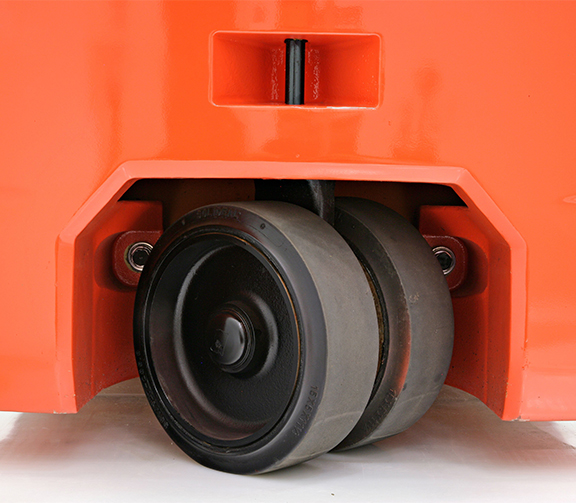

Smooths cushion tires (dual steer tires)
36”-wide ITA class II fork carriage
48” load backrest extension

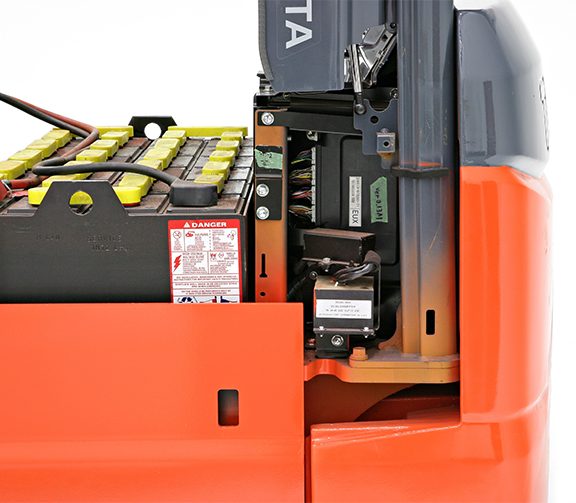

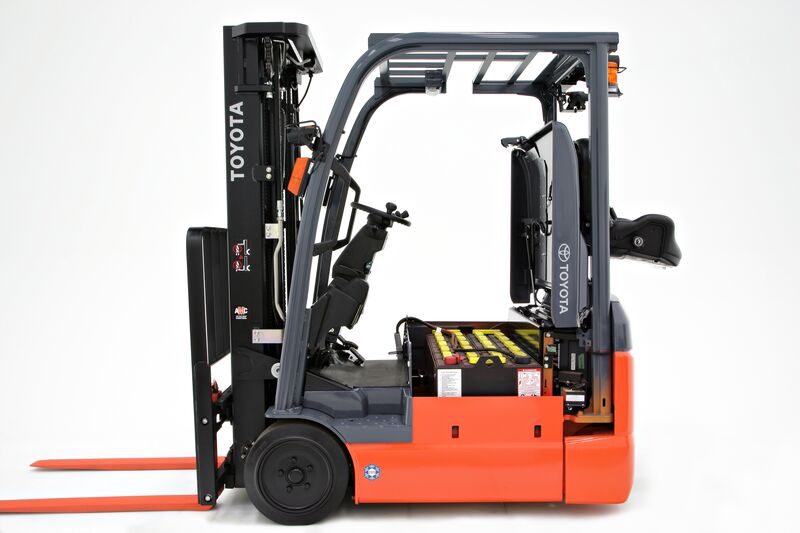

90°-wide-opening battery hood
42” tapered forks
81” OHG height
SB 350 battery connector (gray)
Drawbar pin
