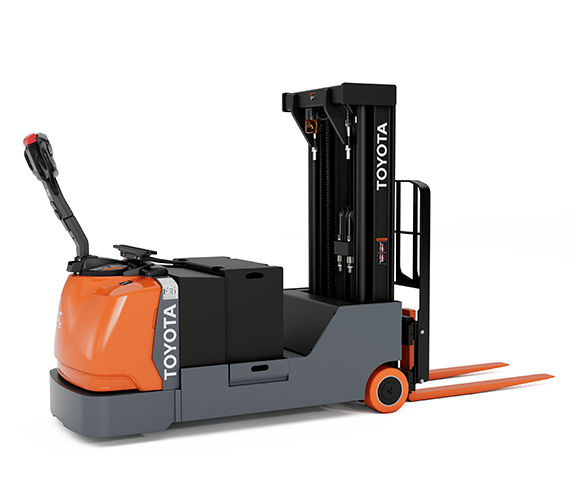

Counter-Balanced Stacker_WS1-CB20-40_Studio_4

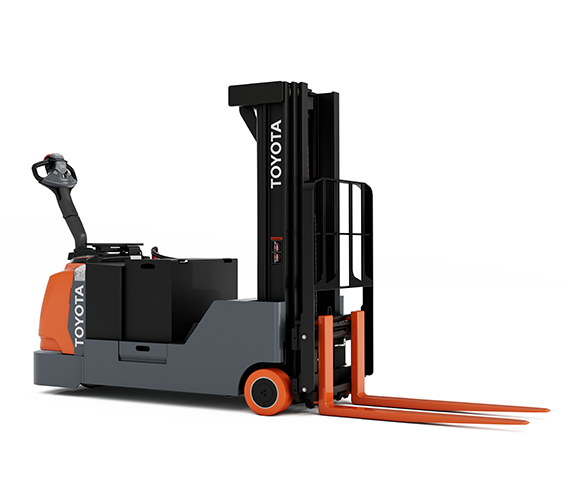

Counter-Balanced Stacker_WS1-CB20-40_Studio_8

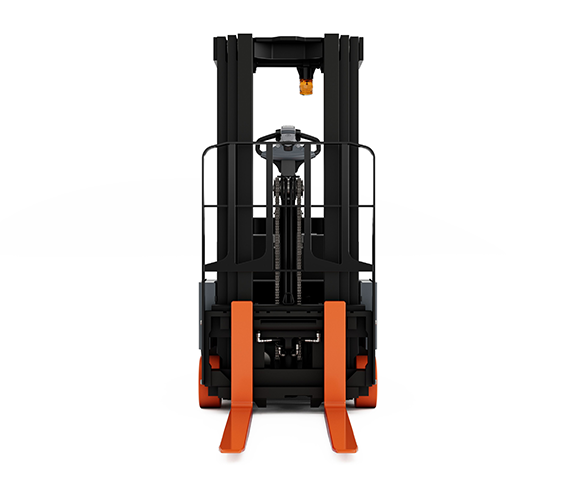

Counter-Balanced Stacker_WS1-CB20-40_Studio_7

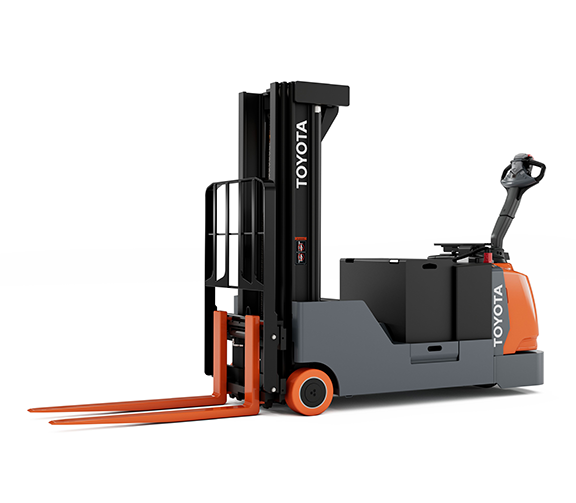

Counter-Balanced Stacker_WS1-CB20-40_Studio_6

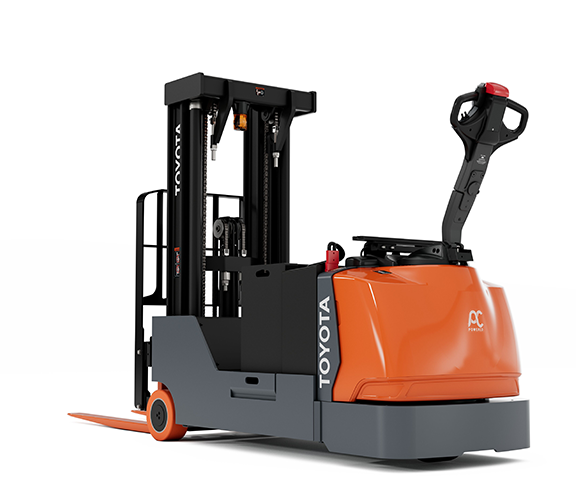

Counter-Balanced Stacker_WS1-CB20-40_Studio_5

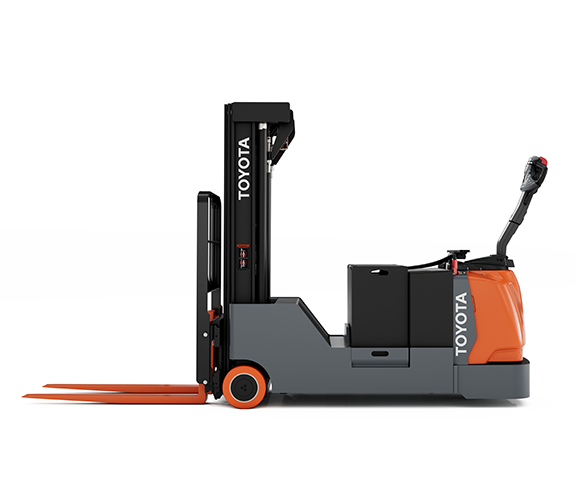

Counter-Balanced Stacker_WS1-CB20-40_Studio_3

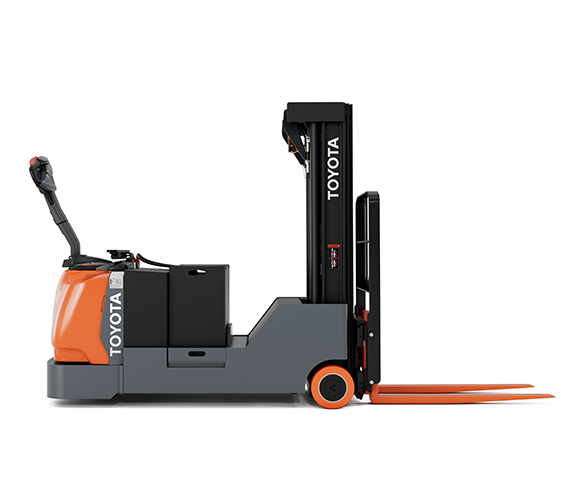

Counter-Balanced Stacker_WS1-CB20-40_Studio_2

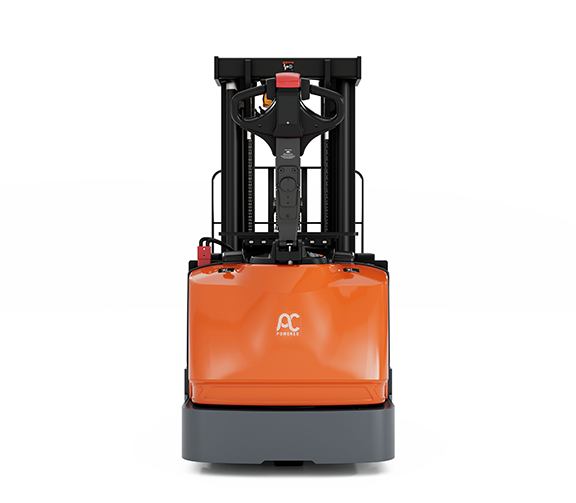

Counter-Balanced Stacker_WS1-CB20-40_Studio_1

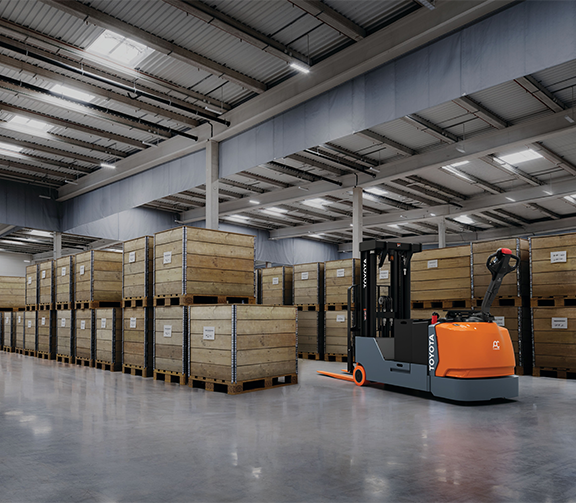

Counter-Balanced Stacker_WS1-CB20-40_Beauty_2

Counter-Balanced Stacker_WS1-CB20-40_Beauty_1

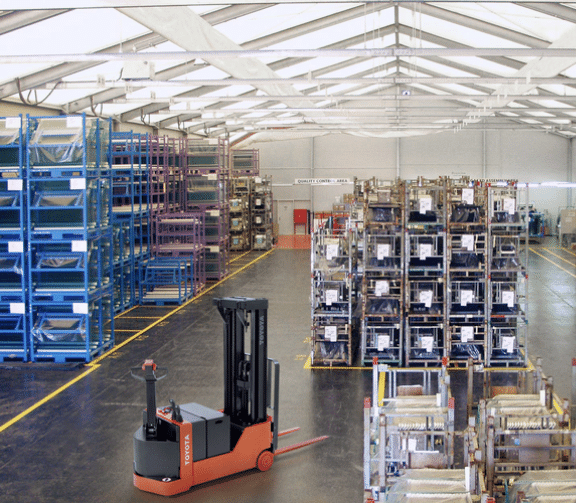

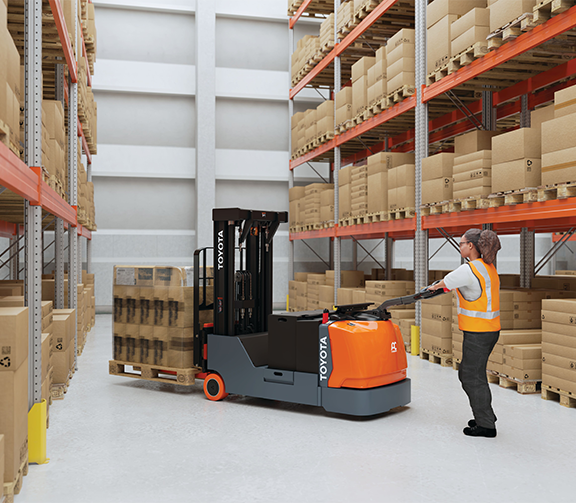

Counter-Balanced Stacker_WS1-CB20-40_Application_2

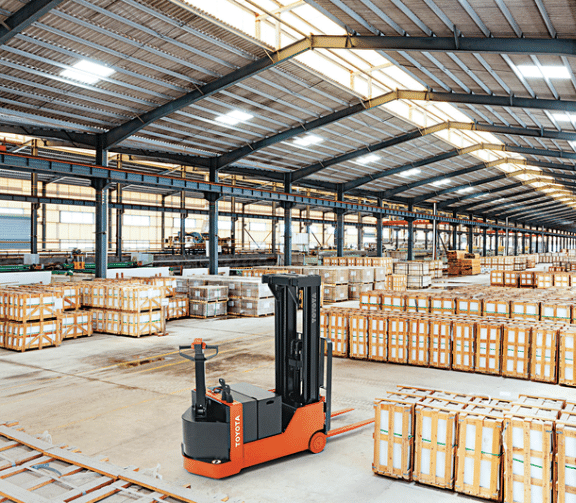

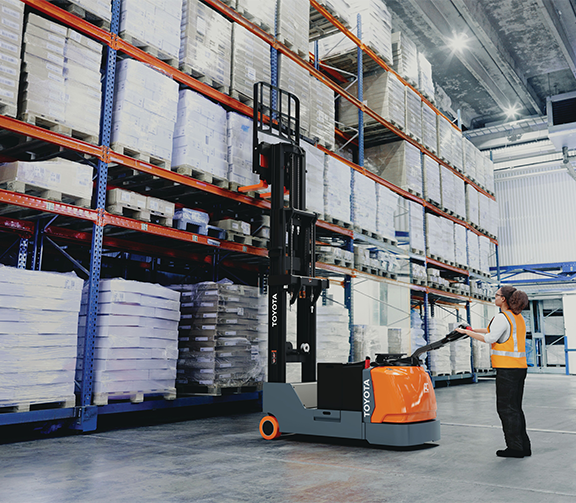

Counter-Balanced Stacker_WS1-CB20-40_Application_1

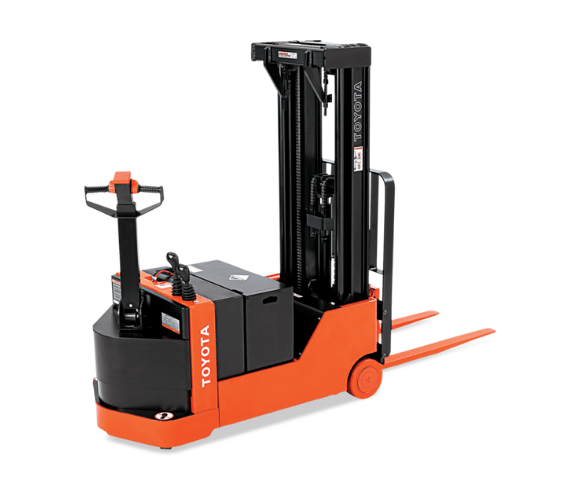

Toyota Counter-Balanced Stacker

2,000 – 4,000 lb. Capacity
Electric AC Drive Motor
189 in. Maximum Lift Height
Compact 56.4 – 68.1 in. Turning Radius
3.5 mph Maximum Travel Speed

Documents

Product Documents

Product Videos

Financing Information

Product Description

Designed to help you move more with less effort, the Toyota Counter-Balanced Stacker is a compact, high-capacity solution for tight warehouse aisles and demanding environments. With a lift height of up to 189 inches and load capacity up to 4,000 lbs., this electric walkie stacker offers the performance of a forklift—without the bulk.

Its ergonomic control handle and optional power steering make operation smooth and intuitive, even for newer operators. Regenerative braking and AC drive technology boost efficiency while minimizing maintenance. Whether you’re managing inventory in retail, food storage, or general warehousing, this stacker delivers dependable, easy-to-maneuver productivity where space is tight.

Model Numbers: WS1-CB20 | WS1-CB30 | WS1-CB40

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	Toyota
Capacity	2,000 lbs., 3,000 lbs., 4,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

AC drive motor ensures smooth travel, quiet operation, and low maintenance
Regenerative plugging recharges battery during operation for extended runtime
Power steering option reduces steering effort and boosts operator comfort
Multiple fork lengths available for handling varied load sizes
Compact design allows operation in narrow aisles with tight turn radius
Longer run times and lower maintenance due to advanced AC technology
Battery gate interlock enhances safety and reliability

AC drive motor
Electric raise/lower controls integrated in handle
Regenerative plugging with cushioned mast stops
Electric horn and 48″ high load backrest extension
Battery discharge indicator with lift interrupt
Fixed baselegs and rubber/polyurethane wheels
30″ wide ITA Class II hook-type carriage
Dual thumbwheel control for directional input
Power On Self Test system

Power steering system
Cold conditioning package for refrigerated environments
Multiple fork lengths: 30″, 36″, 48″
Sideshift carriage
Battery compartment rollers and magnetic storage trays
LED work light and operator cooling fan
Electronic PIN pad or keyless On/Off switch
Various drive tire types: poly, non-marking, Dyalon B, smoothy, diamond, etc.
Auxiliary hydraulic function valve with carriage termination
Cold storage & corrosion conditioning packages

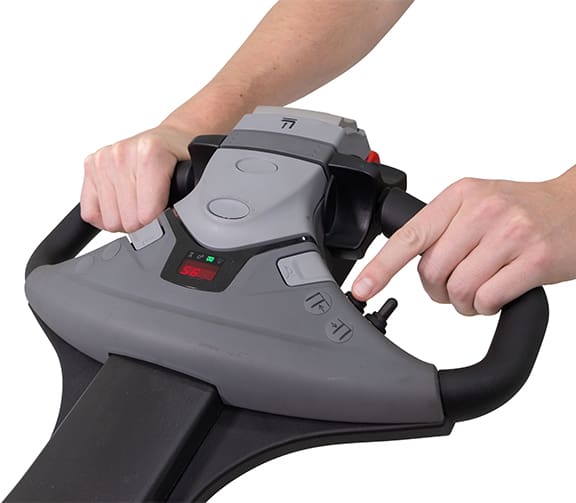

Multifunction control handle with ergonomic hand grips
Dual thumbwheels allow forward and reverse control with either hand
Optional accessory bars and storage totes for personalized operation
Controls positioned for intuitive, low-effort use

Emergency power disconnect switch
Battery discharge indicator with lift interrupt to prevent mid-task power failure
Red, amber, and blue flashing lights
Electronic travel alarms (forward, reverse, or both)
Screen guard mast protection
Non-rubber static strap to prevent electrostatic discharge

Load capacity: 2,000–4,000 lbs
Lift height up to 189 inches
24V electrical system
Top speed: 3.5 mph (loaded and unloaded)
Lift speeds: up to 49 fpm unloaded
Regenerative braking system for better uptime
Compact size and tight turning radius (56.4″ to 68.1″)
Gradeability: 4% loaded, 10% unloaded

Easy access service cover for fast maintenance
Battery rollers and dual side gates for simplified battery handling
Electronic diagnostics via Power On Self Test
Greasable steer bearing to extend part life

General Warehousing
Food Storage
Cold Storage
Beverage
General Manufacturing
Retail
