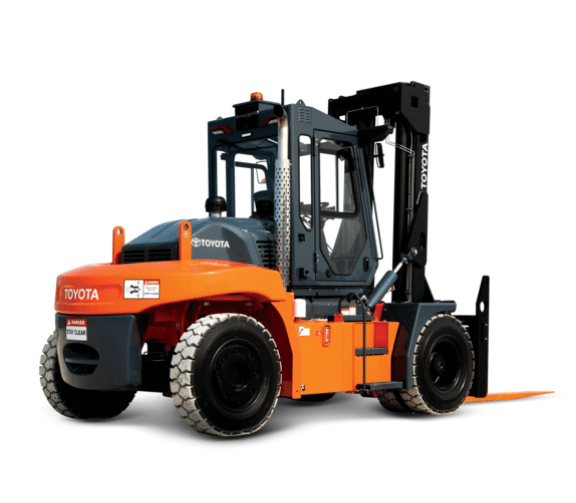

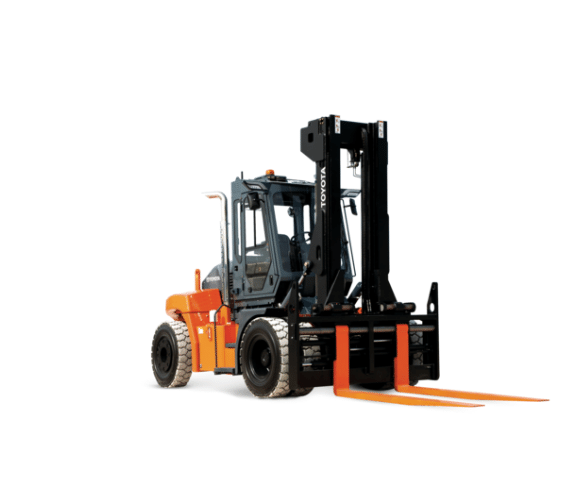

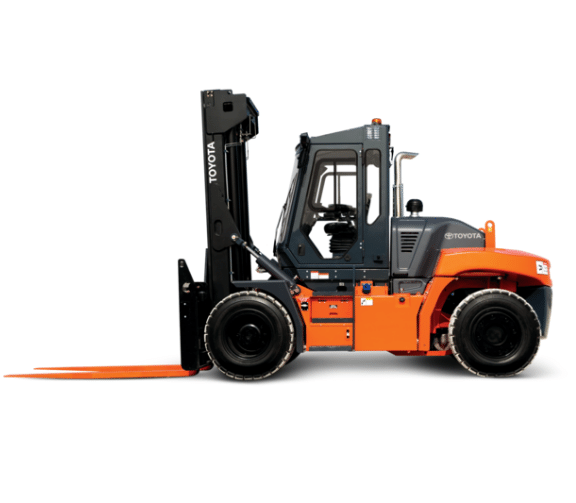

Toyota High-Capacity Core IC Pneumatic Forklift

22,000 – 30,000 lb. Capacity
Cummins 4-Cylinder QSB 4.5L Diesel Engine
Dana TE-10 Transmission
Tilting Cab
7″ MD4 Touchscreen Display
Force-Cooled Wet Disc Brakes
Advanced Hydraulic System

Documents

Product Documents

Product Videos

Product Options

Toyota Assist Brochure

Financing Information

Forklift Information

Product Description

Welcome to the big show. Toyota’s High-Capacity Core IC Pneumatic forklift delivers versatility to handle any heavy-duty task while promising to fit the exact needs of your high-capacity operation. Ideal for lumber, steel, automotive, and any application where you need major lifting capacity, the High-Capacity Core IC Pneumatic comes equipped with a Cummins 4-cylinder diesel engine that delivers up to 173 HP to give you the torque you need to move anything in the warehouse or under the sun.

It’s durable, with a rugged drive axle and electronically controlled transmission rounding out a reliable, heavy duty build.

Model Numbers: 2THD220-24 | 2THD240-24 | 2THD260-24 | 2THD280-24 | 2THD300-24

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Forklift Capacity	20,000+ lbs
Condition	New
Fuel Type	Diesel

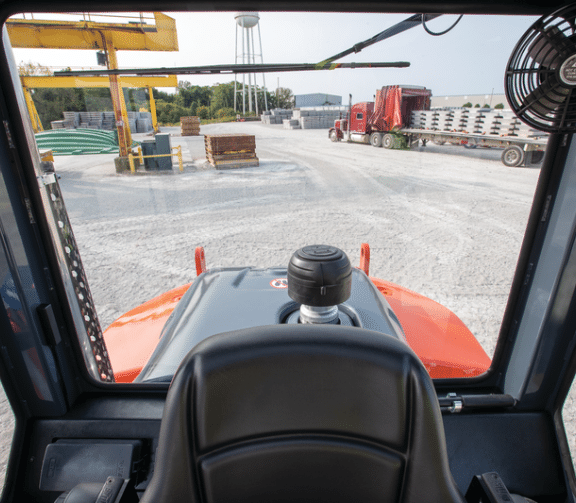

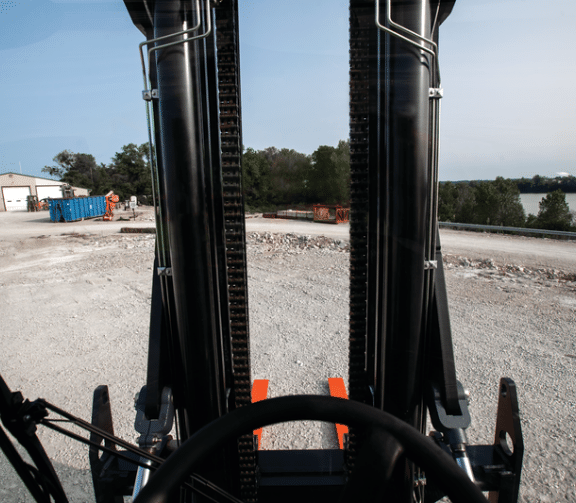

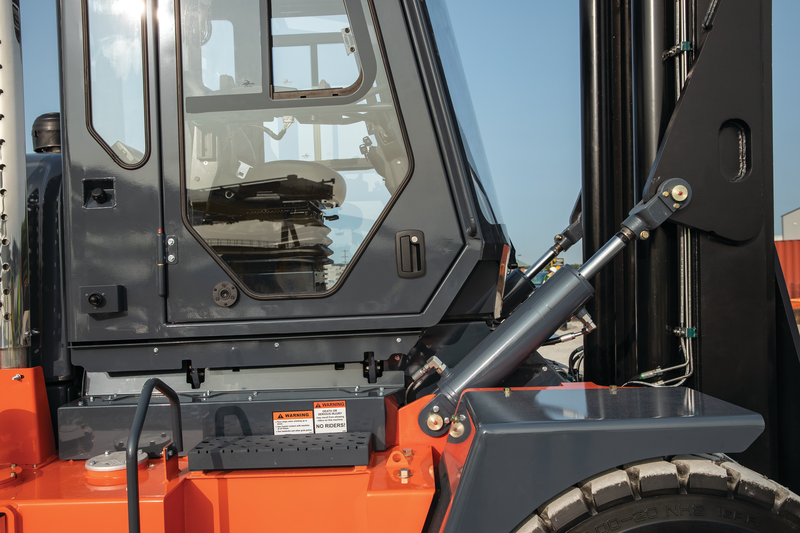

Low-mounted tilt cylinders, shorter carriage, and open-view front glass for optimal visibility.

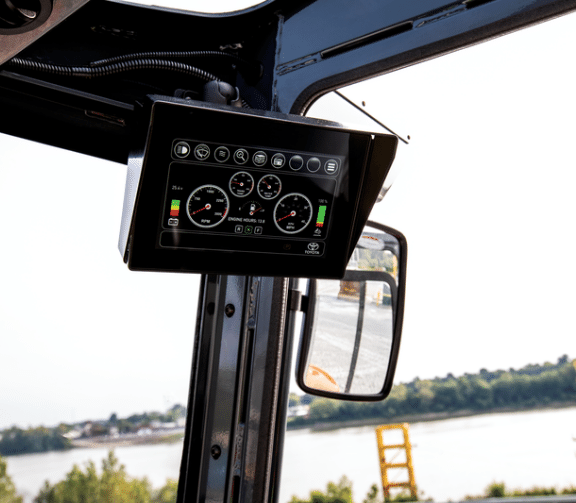

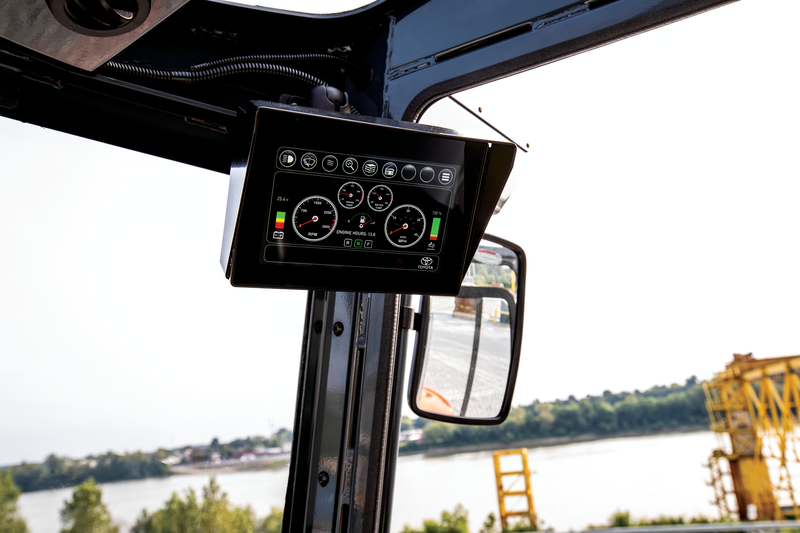

MD4 7″ touch screen display provides key forklift information and advanced diagnostics.
Engine protection system and high-capacity cooling system provide durability assurance.
Superior torque and horsepower from Cummins 4-cylinder diesel engine.
Wet-disc brakes provide consistent performance and are virtually maintenance free.

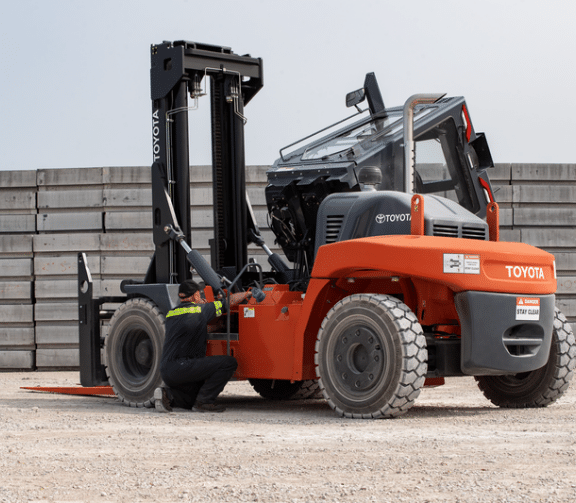

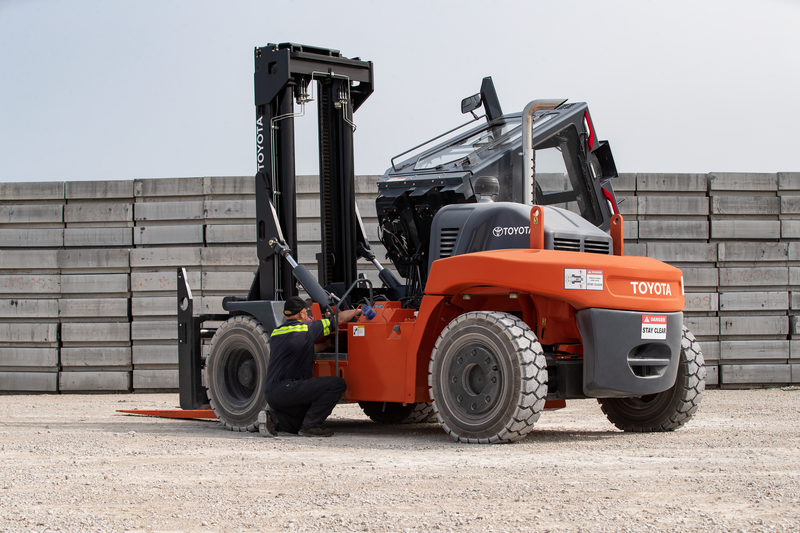

Side-tilt cab opens 65 degrees for easy access and enhanced serviceability.
Dana TE-10 transmission with electronic control provides smooth, reliable performance.

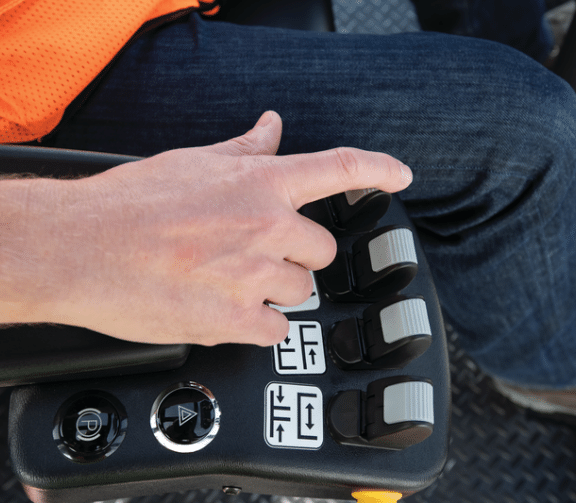

Fingertip controls provide easy adjustment of hydraulic functions.

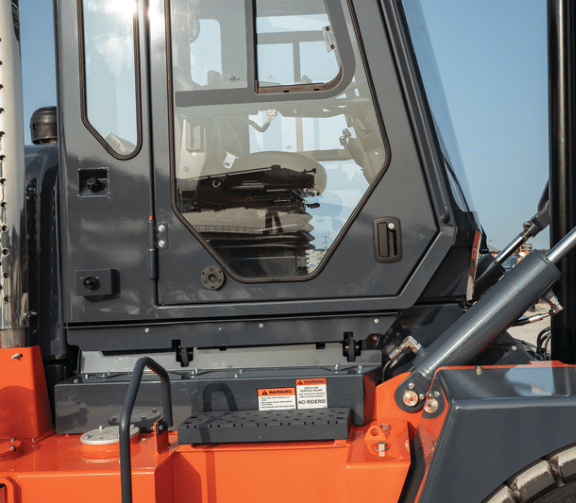

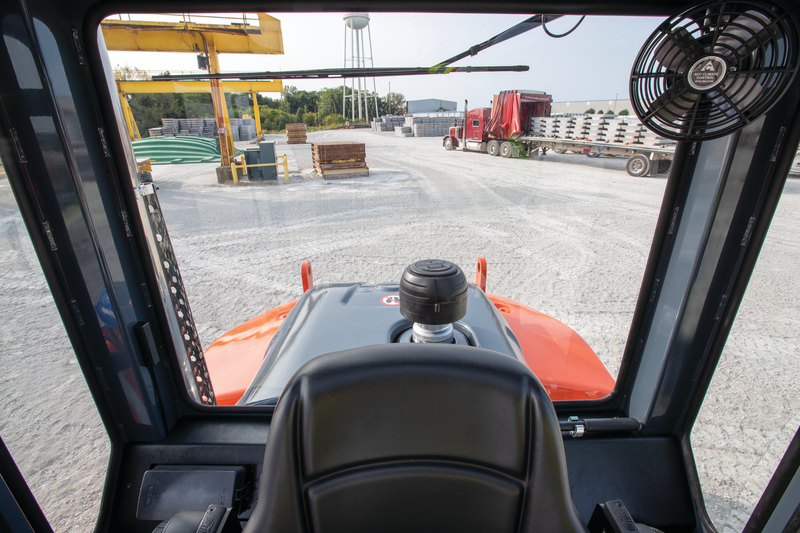

Premium cabin comes standard with heat, A/C, and fingertip controls.

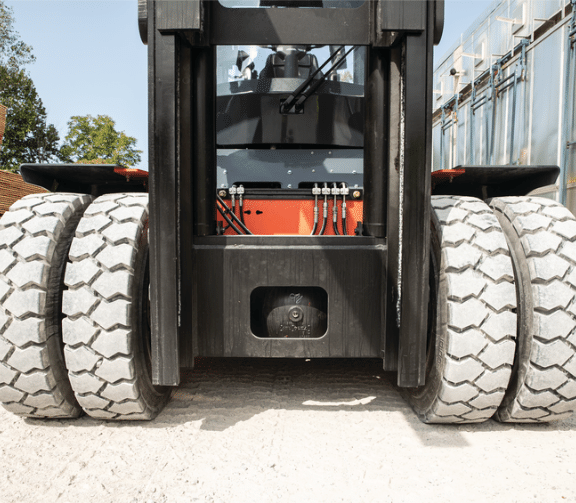

Heavy duty drive axle offers maximum durability in high-capacity and outdoor applications.
Advanced hydraulic system with built-in pressure monitoring through digital display.

Force-cooled wet disc brakes
Heavy-duty planetary drive axle rated for high-capacity, off-road applications
Rigidly constructed welded frame
Engine protection system
High-capacity cooling system
Open-core radiator with fan shroud
Welded-nested mast rails
Pin-type forks
Two-stage heavy-duty air cleaner
Wide visible 2-stage mast (V)
24-Volt electrical system with two 12V batteries

Front and rear reflectors
Mechanical suspension seat
Telescopic and tilting steering column
Floor mat
Operator manual box
Roof-mounted amber strobe
Fingertip hydraulic controls
Left-hand shift lever
Long operator assist grips
Spring-applied/hydraulic-release parking brake
Standard premium cabin

– Cup holder(s)
– Enclosed cab with doors
– Front, rear, and top wipers
– Heat/defrost
– Air conditioning
– Operator fan
– Dome light
– Front LED work lights (2)
– Rear work light
– Stop/turn/tail combination lights
– Front turn signal lights (2)
– Aux 12V power supply
– USB charging port(s)
– Top and rear sunshades
– Rearview mirror
– AM/FM/MP3 radio with 2 speakers

Remote oil drain
Easy-access filters
Easy-lift hoods, panels, and doors
Externally serviceable brakes

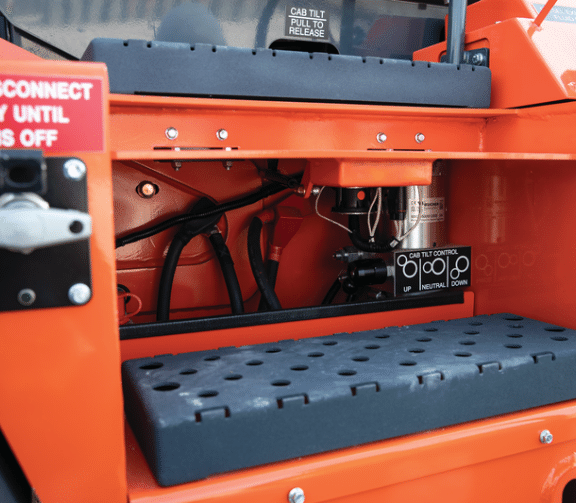

Cab tilt with manual handpump

Lumber
Brick, Block & Pipe
Mining
Steel/Metals
General Manufacturing
Concrete
Oil & Gas
