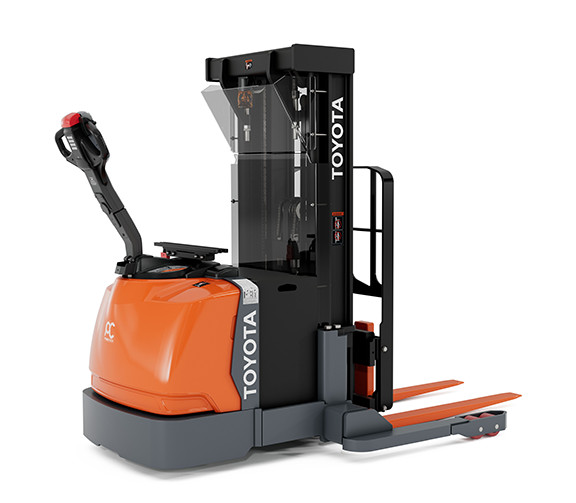

Walkie Straddle Stacker_WS1HD22-40_Studio_3

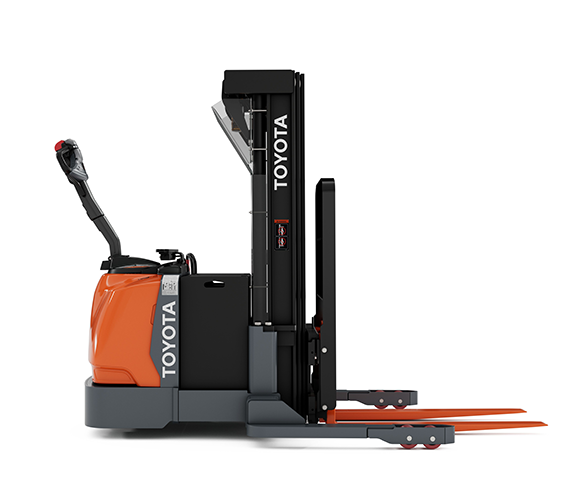

Walkie Straddle Stacker_WS1HD22-40_Studio_5

Walkie Straddle Stacker_WS1HD22-40_Studio_7Walkie Straddle Stacker_WS1HD22-40_Studio_7

Toyota Industrial Walkie Stacker - Image 7

Walkie Straddle Stacker_WS1HD22-40_Studio_2

Walkie Straddle Stacker_WS1HD22-40_Closeup_Handle with Keypad_1

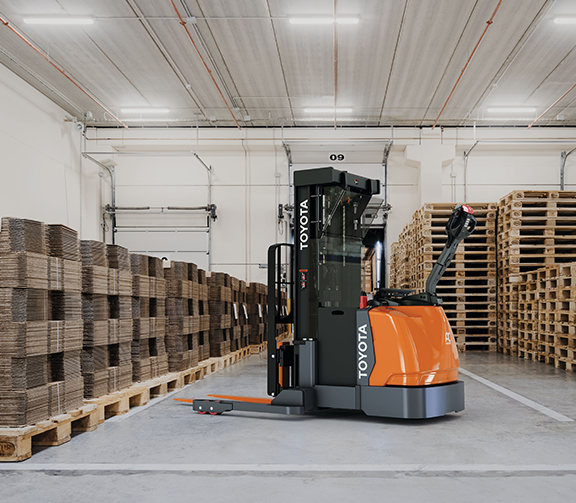

Walkie Straddle Stacker_WS1-HD22-40_Beauty_1

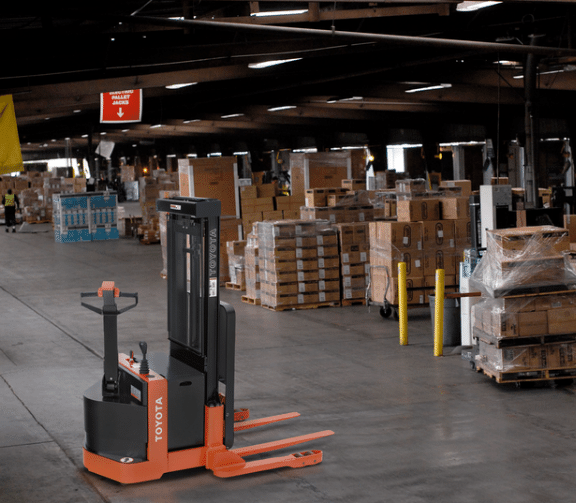

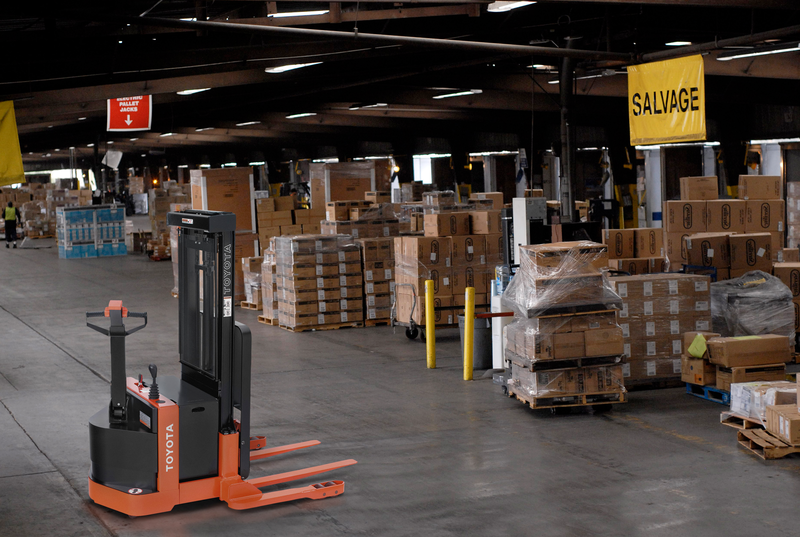

Walkie Straddle Stacker_WS1-HD22-40_Application_2

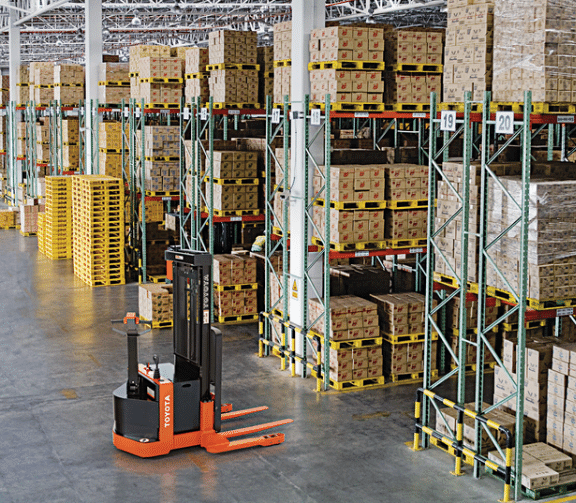

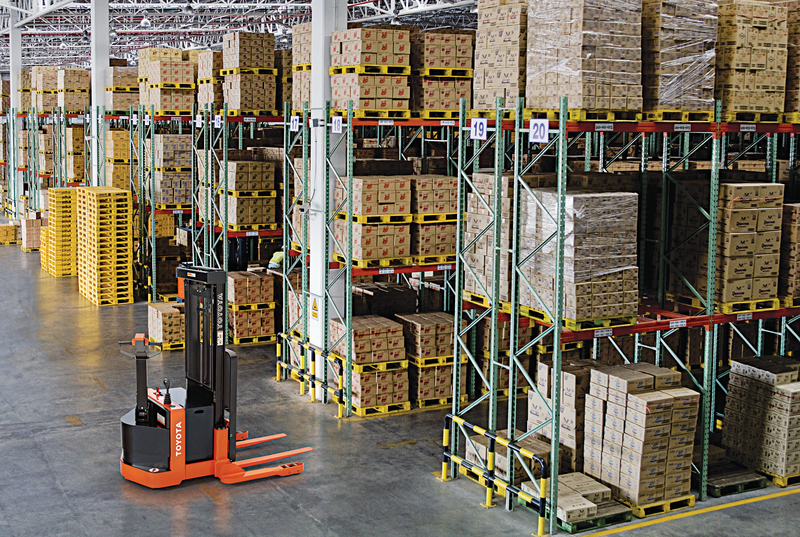

Walkie Straddle Stacker_WS1-HD22-40_Application_1

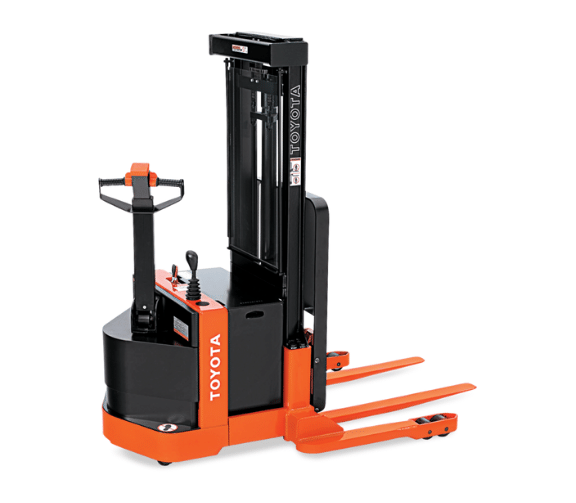

Toyota Industrial Walkie Stacker

2,200 – 4,000 lb. Capacity
Up to 189 in. Lift Height
AC Drive Motor
Regenerative Plugging
Compact, Ergonomic Design

Documents

Product Documents

Product Videos

Financing Information

Product Description

Toyota’s Electric Walkie Straddle Stacker is designed to boost efficiency and safety in your warehouse, retail space, or manufacturing facility. This versatile piece of equipment smoothly handles pallets in narrow aisles and tight spaces, lifting loads up to 4,000 lbs to heights of up to 189 inches.

With an ergonomically designed control handle, regenerative plugging technology for improved battery life, and optional power steering, your operators can work more comfortably and productively throughout their shifts. Its compact design, low-maintenance AC drive motor, and easy-access service points ensure minimal downtime, helping you keep productivity high and operational costs low.

Model Numbers: 6WS1-HD22 | WS1-HD30 | WS1-HD40

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	Toyota
Capacity	2,200 lbs., 3,000 lbs., 4,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

AC drive motors provide smooth travel, quiet operation, and low maintenance.
Regenerative plugging increases battery efficiency and runtime.
Various fork length options offer versatility and stability.
Optional power steering enhances operator comfort and reduces steering effort.
Longer run times between battery charges.
Lower maintenance costs with fewer downtimes.
Faster acceleration and improved responsiveness.
Compact footprint suited for narrow aisles and versatile storage needs.

Electric horn and 30-inch wide ITA Class II hook type carriage.
42-inch pallet forks and 48-inch load backrest extension.
Rubber drive tire and tandem polyurethane load wheels.
Fixed baselegs with openings from 32 to 50 inches in 1-inch increments.
Easy-access service cover.
24-volt electrical system with AC drive motor.
Battery discharge indicator with lift interrupt and hour meter.
Polycarbonate mast guard.
Emergency power disconnect switch.

Cold conditioning package (special oil, greasable bearings, stainless steel pins).
Fork length options (30″, 36″, 48″).
Sideshift carriage for precise load handling.
Various flashing lights (red, amber, blue).
Electronic travel alarms (forward/reverse).
Battery accessories including LiB ESS tags.
Accessory bars, storage trays, LED work lights, and operator fan.
Special tires (non-marking rubber, razor sipe, diamond tread).

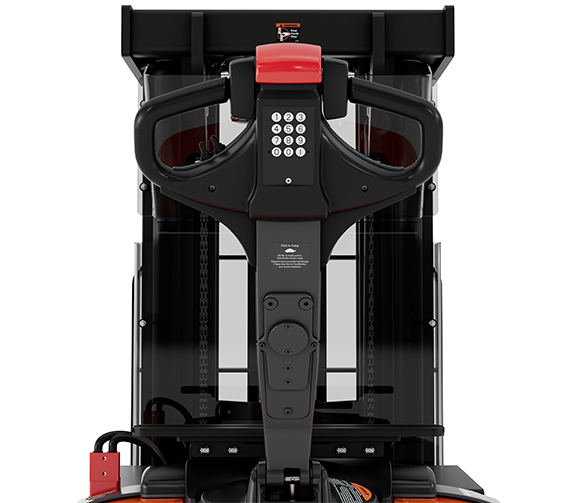

Multifunction control handle with ergonomic handgrips and dual thumb wheels for easy operation.
Intuitive lift, lower, and horn buttons accessible from either hand.
Optional power steering reduces physical strain.
Comfort-enhancing amenities like accessory bars and storage totes.
Switches conveniently positioned for rapid and intuitive control.

Battery gate interlock for operator safety.
Optional screen guard, replacing glass mast guard.
Flashing lights and electronic travel alarms for enhanced visibility and safety alerts.
Non-rubber static strap option available.

Capacities ranging from 2,000 to 4,000 lbs.
Lift heights up to 189 inches.
AC motor delivers efficient and responsive performance.
Electric disc brakes and regenerative plugging maximize uptime and reduce energy costs.
Smooth operation with finely tuned controls.
Gradeability of 6% loaded and 10% unloaded for traversing ramps.
