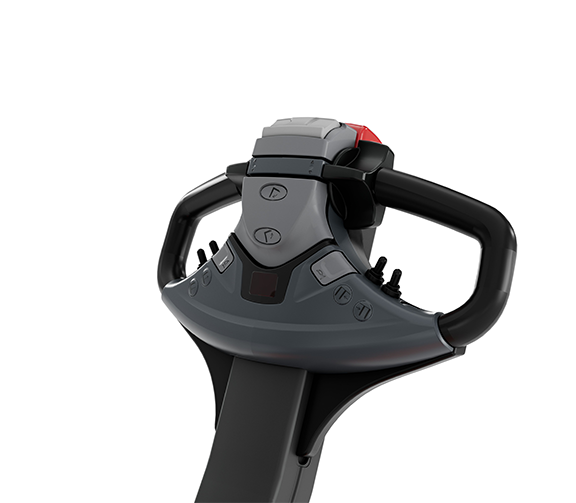

Walkie Reach Stacker_WS1-RE30_Closeup_Handle_2

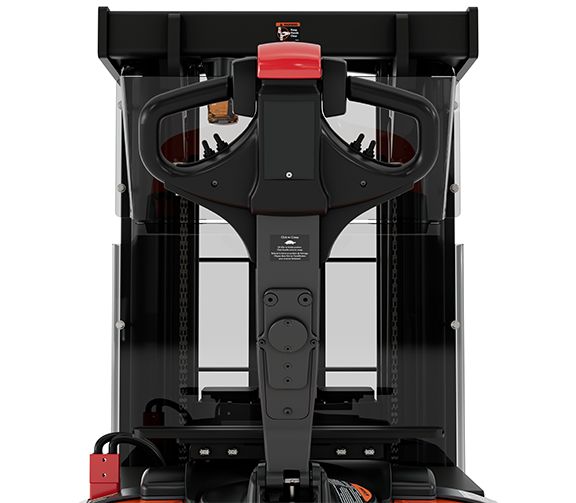

Walkie Reach Stacker_WS1-RE30_Closeup_Handle_1

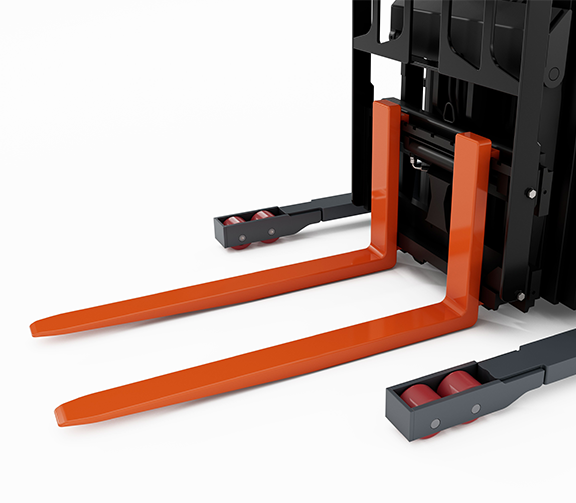

Walkie Reach Stacker_WS1-RE30_Closeup_Baselegs_1

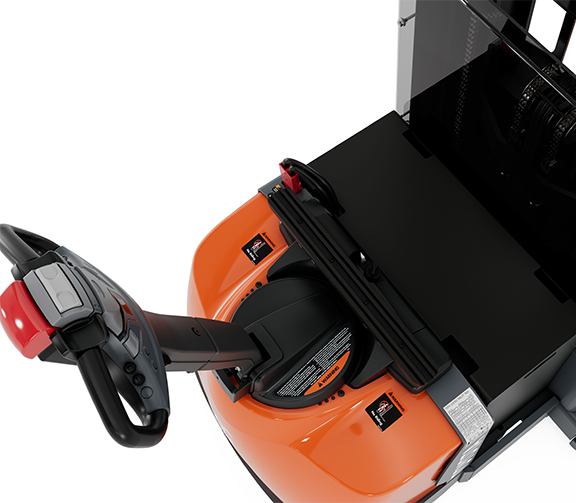

Walkie Reach Stacker_WS1-RE30_Closeup_Accessory Bar_1

Walkie Reach Stacker_WS1-RE30_Application_5

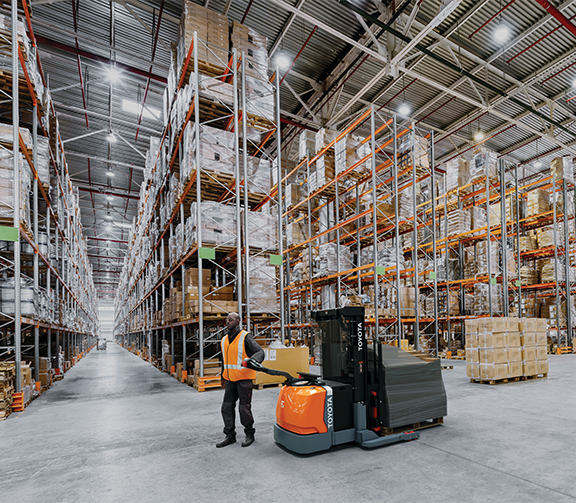

Walkie Reach Stacker_WS1-RE30_Application_4

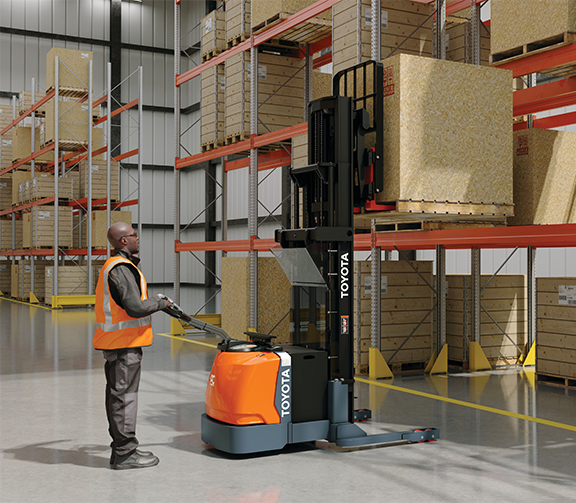

Walkie Reach Stacker_WS1-RE30_Application_3

Walkie Reach Stacker_WS1-RE30_Application_2

Walkie Reach Stacker_WS1-RE30_Application_1

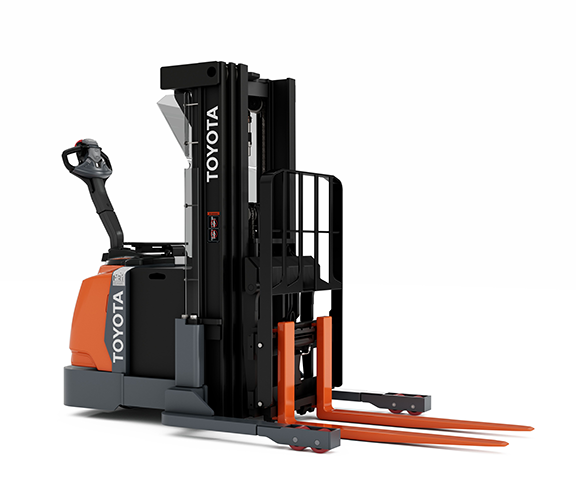

Toyota Walkie Reach Truck

3,000 lb. Capacity
Electric AC Drive Power
189 in. Maximum Lift Height
24 in. Reach Stroke
65 in. Turning Radius

Documents

Product Documents

Product Videos

The Toyota Forklift Story

Financing Information

Product Description

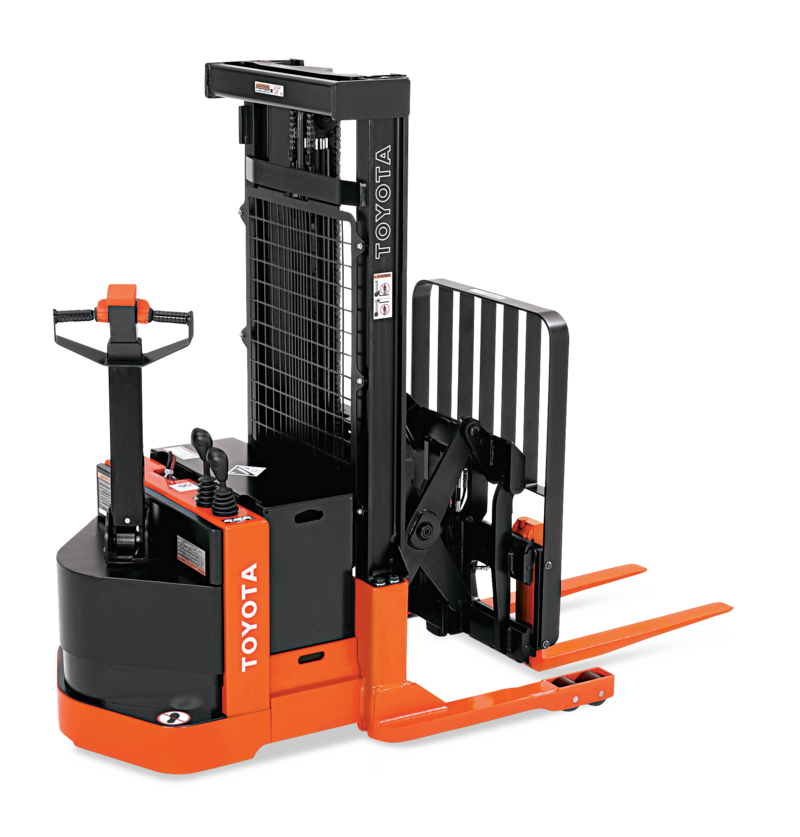

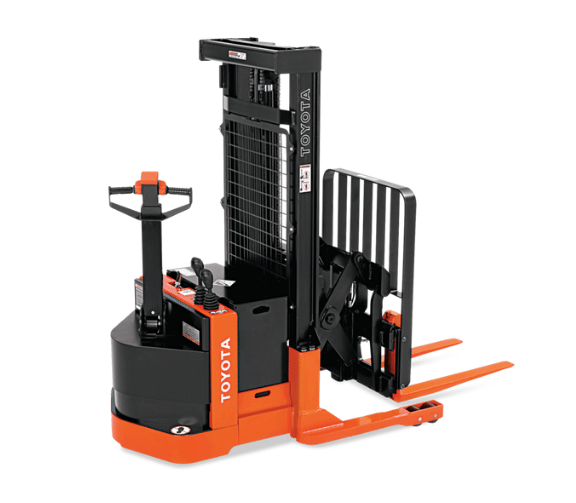

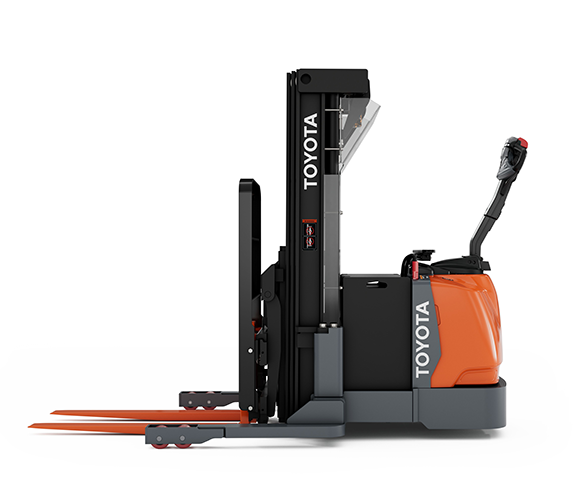

The Toyota Walkie Reach Stacker ES1-RE30 is a compact, operator-friendly solution designed to help you lift, store, and move palletized loads in tight warehouse spaces. With a 3,000 lb. capacity, reach functionality for deep racking, and lift heights up to 189 inches, it offers the performance of a forklift in a walk-behind design.

AC drive power delivers quiet, low-maintenance operation, while ergonomic controls make training and day-to-day use a breeze. Built for productivity and reliability, it’s a smart fit for warehouses, cold storage, retail backrooms, and manufacturing. As your local authorized dealer, Conger can help you choose the right setup and options to match your space and application.

Model Numbers: WS1-RE30

Additional Information

Forklift Type	Electric Pallet Jacks & Stackers
Brand	Toyota
Capacity	3,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

AC Drive Motor for quiet operation and low maintenance
Regenerative plugging increases energy efficiency and runtime
Optional power steering for improved operator comfort
Versatile fork lengths and base leg widths for various applications
Compact design with tight turning radius for maneuvering narrow aisles
Electric disc brakes and AC power reduce downtime and energy costs

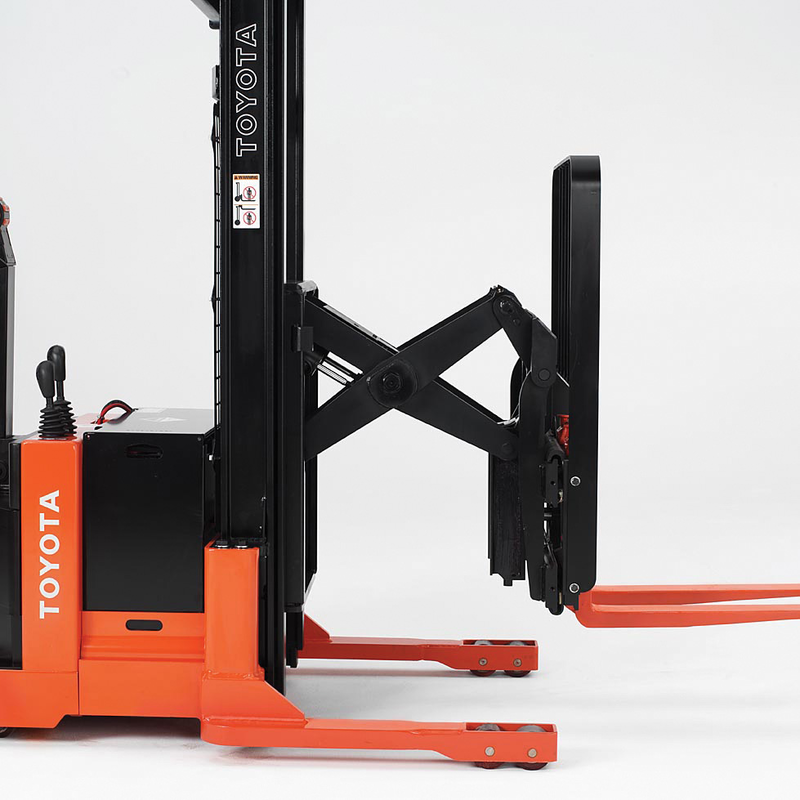

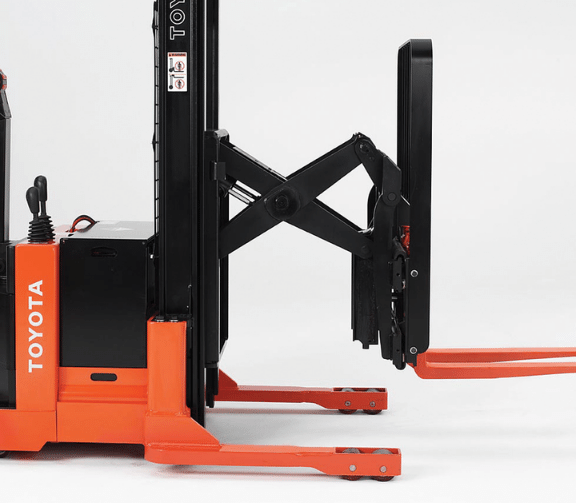

Reach mechanism allows storage in deeper racks without increasing truck length

3000 lb. capacity with 189″ maximum lift height
AC drive motor and regenerative braking system
Electric horn and 42″ forks with 48″ high load backrest
30″ wide ITA Class II hook type carriage
Battery discharge indicator with lift interrupt
Fixed baselegs with 32″ to 50″ openings (in 1″ increments)
Ergonomically designed multifunction control handle
Dual thumb wheels and lift/lower controls on handle
Emergency power disconnect switch

Power steering for reduced operator effort
Various fork lengths: 30″, 36″, 48″
Sideshift carriage
Cold Storage Conditioning package (includes corrosion protection)
LED work light, electronic PIN pad, and keyless switch
Multiple drive tire material options (poly, rubber, non-marking, etc.)
Magnetic and compartment-mounted storage trays
Accessory bars, operator fan, and onboard power hook-up terminal

Multifunction control handle allows full control with either hand
Easy-to-reach directional and lift/lower controls
Accessory options allow customization to operator preferences
Dual thumbwheel control for speed and direction
Control switches return to neutral for smooth, intuitive operation

Emergency power disconnect switch
Battery discharge indicator with lift interrupt
Polycarbonate mast guard and optional flashing lights (red, amber, blue)
Optional electronic travel alarms (forward/reverse)
Optional screen guard for mast visibility and safety

Top travel speed: 3.5 mph (loaded and unloaded)
Lifting speed: 29 fpm loaded, 46 fpm unloaded
Lowering speed: 60 fpm loaded, 47 fpm unloaded
Gradeability: 6% loaded, 10% unloaded
Reach stroke: 24″
Optional sideshift (2″ or 3″ each direction based on baseleg width)
Regenerative and electric braking systems
Compact size with a 65″ turning radius

Easy-access service cover for maintenance
Battery compartment with optional rollers and side gates
Electronic self-test function simplifies diagnostics
Greasable steer bearing for improved service life

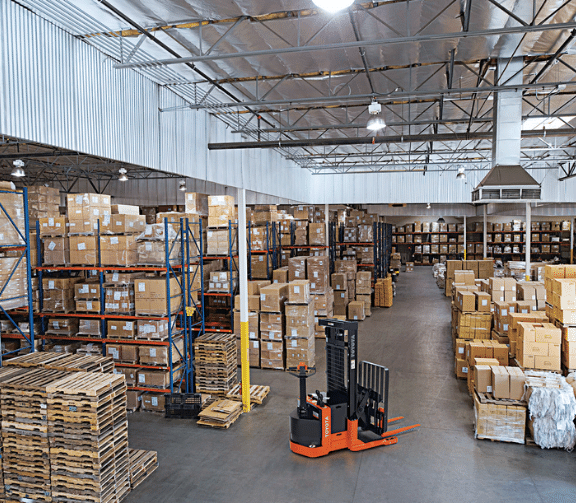

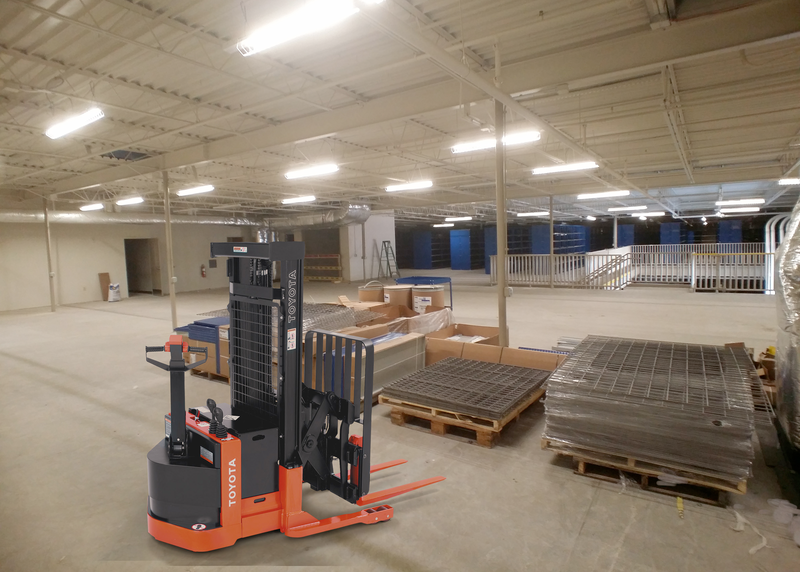

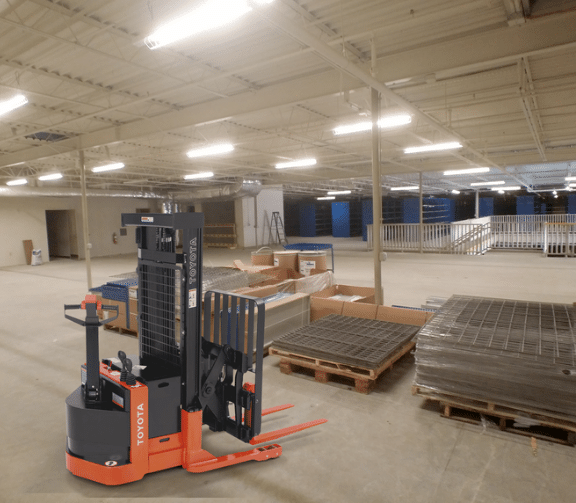

General Warehousing
Food Storage
Cold Storage
Retail
Beverage
General Manufacturing
