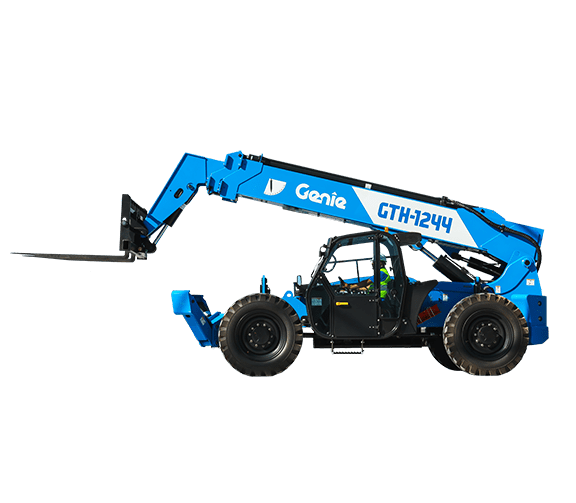

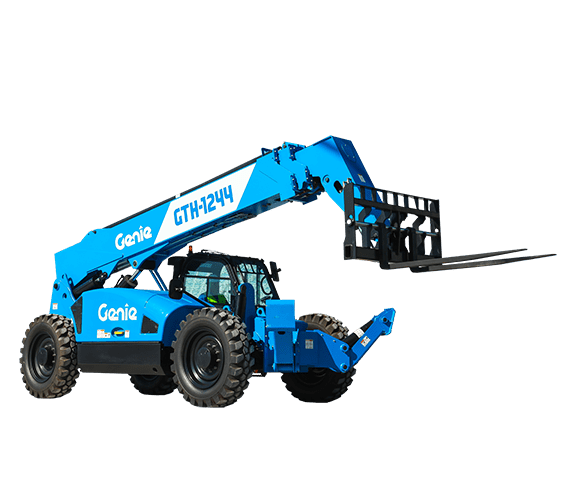

Genie GTH-1244 Telehandler

12,000 lb. Maximum Lift Capacity
44 ft. 7 in. Maximum Lift Height
30 ft. 7 in. Maximum Forward Reach
18 mph Maximum Drive Speed
Full-Time 4WD with 3 Steering Modes

Documents

Product Documents

Aerial Lift Information

The Genie GTH-1244 telehandler gives operations teams the reach, capacity, and rough-terrain performance needed to move heavy materials efficiently across demanding jobsites. With a 12,000 lb maximum lift capacity, 44 ft 7 in lift height, and 30 ft 7 in forward reach, it is built to handle challenging placement tasks while maintaining strong maneuverability with 4-wheel drive, three steering modes, and frame leveling.

Operator-focused features like proportional boom controls, a multi-function joystick, engine diagnostics, and available enclosed cab options help crews work more comfortably and confidently throughout the day. As a Genie equipment dealer, Conger can help you choose the right GTH-1244 configuration, attachments, and support options for your operation.

Model Numbers: GTH-1244

Additional Information

Condition	New
Brand	Genie
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	41 – 60ft
MEWP Capacity	Over 2,000 lbs

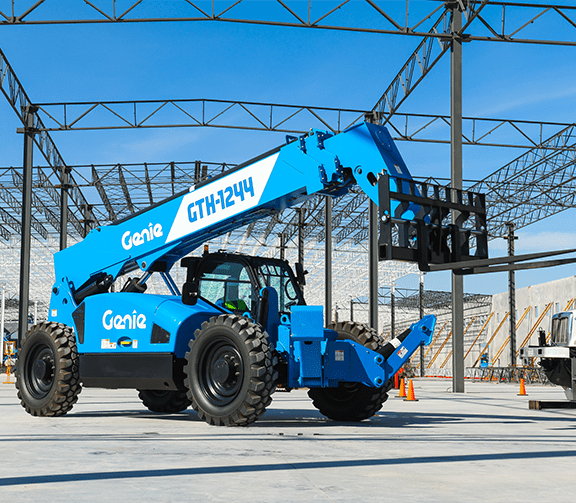

Highly efficient pick-and-carry telehandler designed to move around the jobsite without requiring stabilizers.
Low total cost of ownership, supported by a standard DEF-free engine and simplified maintenance.
Designed to offer a strong load chart in its category class, balancing high performance with efficiency.
Stronger boom design proven through rigorous, real-life testing.
Optional stabilizers available for applications that require additional support.
Versatile attachment compatibility for lifting, loading, carrying, placing and specialty material handling tasks.

12,000 lb maximum lift capacity.

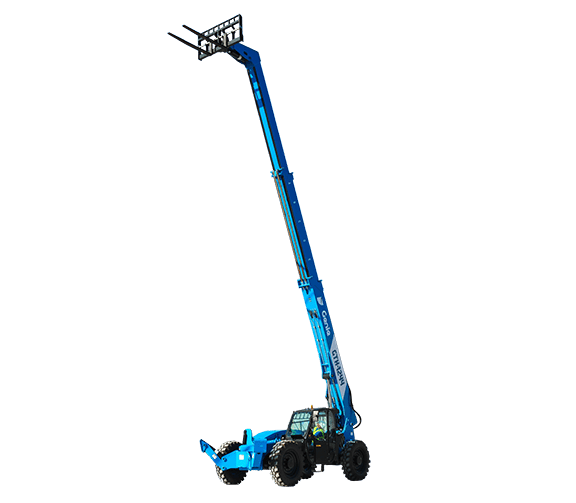

44 ft 7 in maximum lift height.
30 ft 7 in maximum forward reach.
8,000 lb lift capacity at maximum height.
4,000 lb lift capacity at maximum reach.
74 hp Deutz TCD 3.6 side-mounted, DEF-free engine.
3-speed powershift transmission.
Full-time 4WD with front and rear limited slip differential.
3-mode power steering: 2-wheel, 4-wheel coordinated and crab steering.
Frame leveling up to +/- 10 degrees.
Rear axle stabilizing system.
Internal multiple wet disc brakes.
Spring-applied, hydraulic-release parking brake.
Genie manual Quick-Attach system.
Auxiliary hydraulic circuit with 15 gpm flow.
Boom angle indicator.

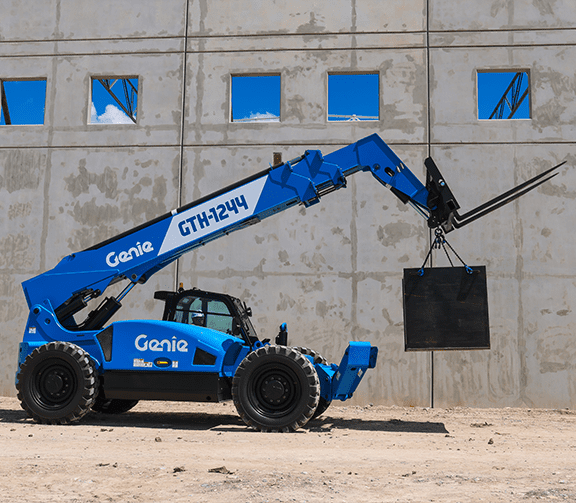

Lifting shackle at boom tip.
Self-leveling fork frame.
Fully proportional hydraulic boom controls.
Multi-function joystick controller.
Full gauge cluster with engine diagnostics.
Machine level indicator.
Backup alarm.
Adjustable suspended seat.
3 in high-visibility red retractable seat belt.
ROPS/FOPS canopy.

121 hp Deutz TCD 3.6 engine.
4-speed powershift transmission with 121 hp configuration.
Open cab or closed cab configurations.
Closed cab with heater, defrost, wipers, washer and split door.
Closed cab with air conditioning, heater, defrost, wipers, washer and split door.
Front and top glass.
Lift Guard white noise alarm.
Rear proximity alarm.
Rear proximity alarm with backup camera and display.
Fire extinguisher.
Lift Connect telematics.
Lift Connect with Access Manager upgrade.
Cold weather package.
Extreme cold weather package.
Fenders set of four.
Positive air shutdown system.
Flashing beacon.
High-output LED work lights for cab, boom and rear.
High-output LED road and work lights for front, cab, boom and rear.

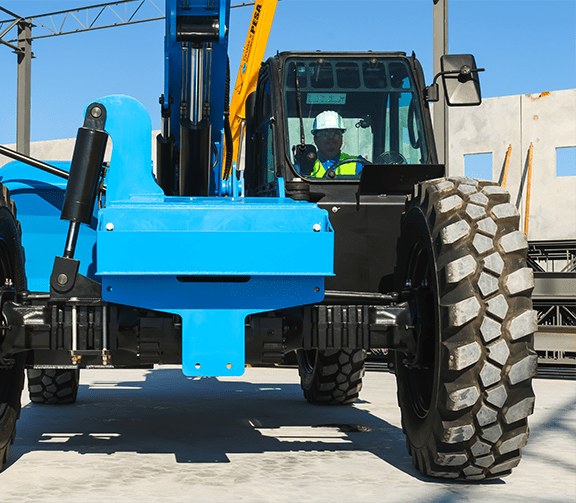

Foam-filled Enduro A/T tires.
Solid rough terrain tires.
Air-filled Enduro A/T tires.
Twin front-mounted stabilizers.
Lockable battery disconnect.

Ergonomic cabin designed for a superior operator experience.
Adjustable suspended seat helps improve operator comfort during long shifts.
Tilt steering wheel supports a more comfortable operating position.
Multi-function joystick controller helps centralize machine control.
Fully proportional hydraulic boom controls allow smooth, precise boom operation.
Closed cab options include heat, air conditioning, defrost, wipers, washer and split door for improved comfort in varying weather conditions.
Mirrors mounted on the left-hand canopy and right-hand chassis improve jobsite visibility.
Full gauge cluster with engine diagnostics keeps key machine information visible to the operator.

ROPS/FOPS canopy helps protect the operator.
3 in high-visibility red retractable seat belt comes standard.
Backup alarm comes standard.
Machine level indicator helps operators monitor machine position.
Boom angle indicator supports safer boom positioning.
Rear axle stabilizing system improves stability during operation.
Frame leveling up to +/- 10 degrees helps maintain a stable working position on uneven terrain.
Internal multiple wet disc brakes provide durable stopping performance.
Spring-applied, hydraulic-release parking brake comes standard.
Optional rear proximity alarm and rear proximity alarm with backup camera and display help improve awareness around the machine.
Optional Lift Guard white noise alarm, flashing beacon and fire extinguisher support jobsite safety needs.
Complies with ANSI A92.20 and CSA B354.6 telehandler standards.

12,000 lb maximum lift capacity.
44 ft 7 in maximum lift height.
30 ft 7 in maximum forward reach.
8,000 lb capacity at maximum height.
4,000 lb capacity at maximum reach.
18 mph drive speed.
14.9-second boom-up time and 13.6-second boom-down time.
21-second boom extension and 25-second boom retraction.
23,000 lb drawbar pull with 74 hp powertrain.
25,000 lb drawbar pull with 121 hp powertrain.
13 ft 11 in outside turning radius with 4-wheel steering.

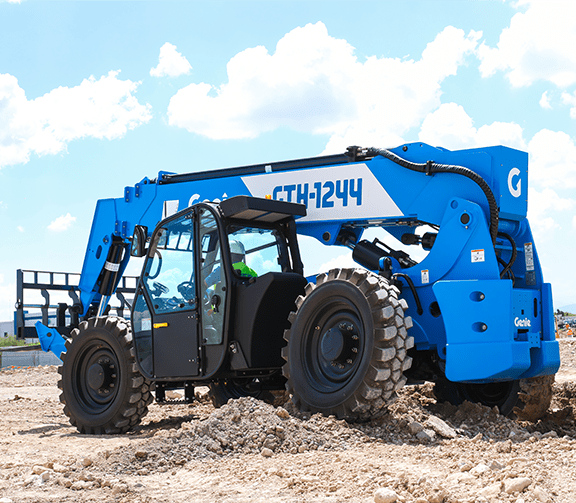

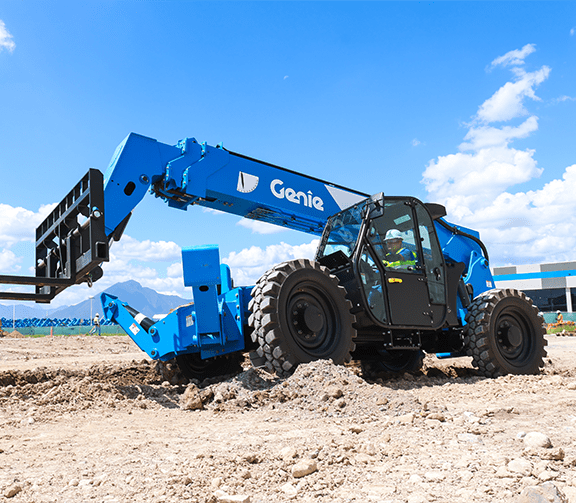

Full-time 4WD and limited slip differentials help maintain traction on rough jobsites.
3-mode steering improves maneuverability in tight or challenging work areas.
Auxiliary hydraulic flow range of 2-15 gpm with 3,200 psi auxiliary hydraulic pressure.

Standard DEF-free engine helps reduce service requirements and lower service costs.
Simplified maintenance and operation are part of the machine’s design.

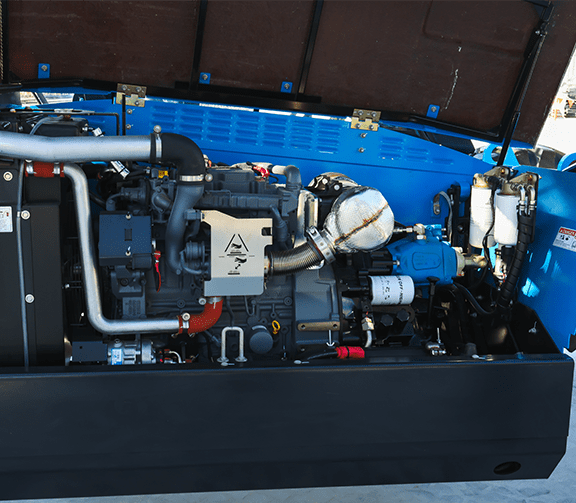

Side-mounted engine supports service access.
Full gauge cluster with engine diagnostics helps operators and technicians monitor machine condition.
Telematics-ready configuration and Lift Connect telematics options support fleet visibility and maintenance tracking.
Lockable battery disconnect is available as an option.

Industrial maintenance.
Infrastructure projects.
Energy sector.
Construction.

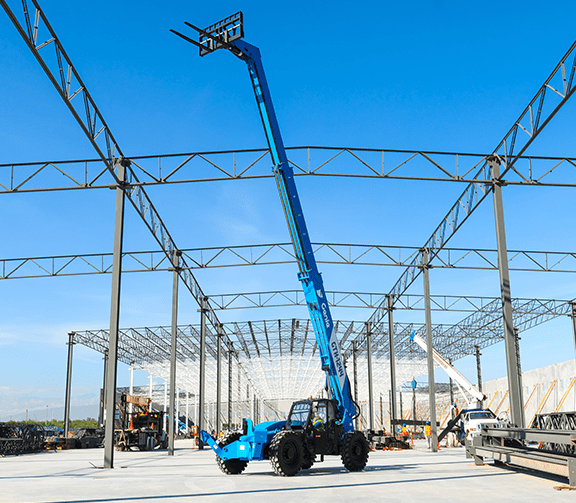

Steel erection.
Material handling applications requiring high-capacity lifting, forward reach and rough-terrain mobility.
