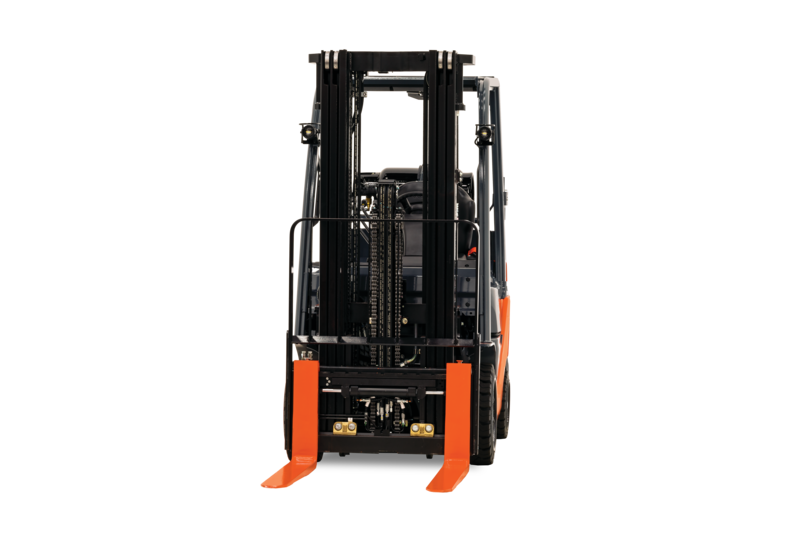

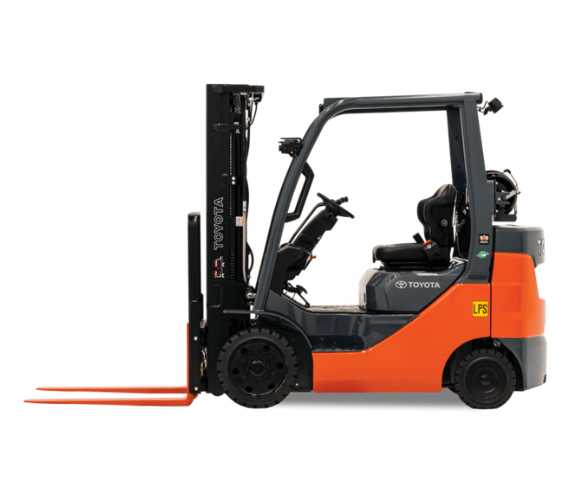

Toyota Core IC Cushion Forklift Studio 1

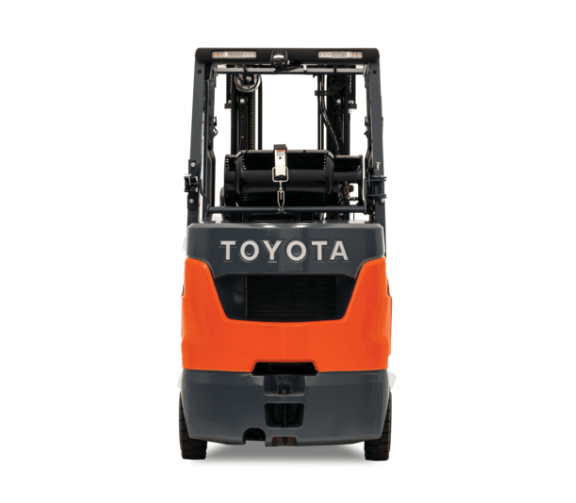

Toyota Core IC Cushion Forklift Studio 2

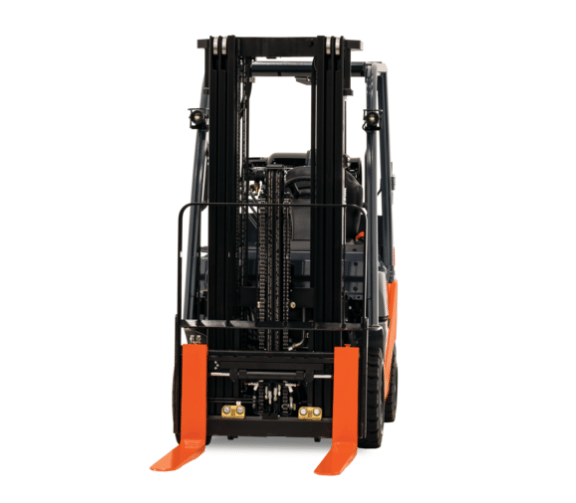

Toyota Core IC Cushion Forklift Studio 3

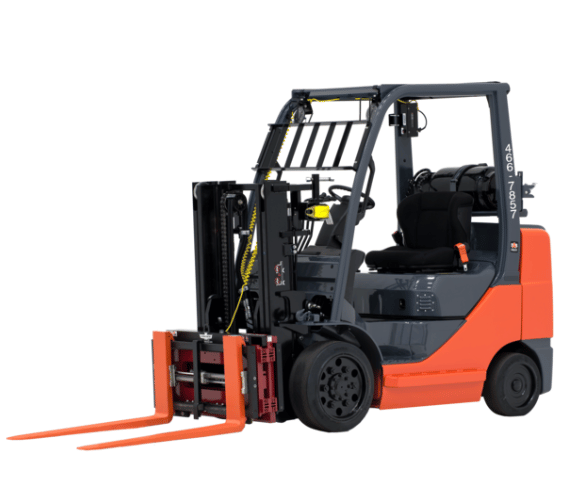

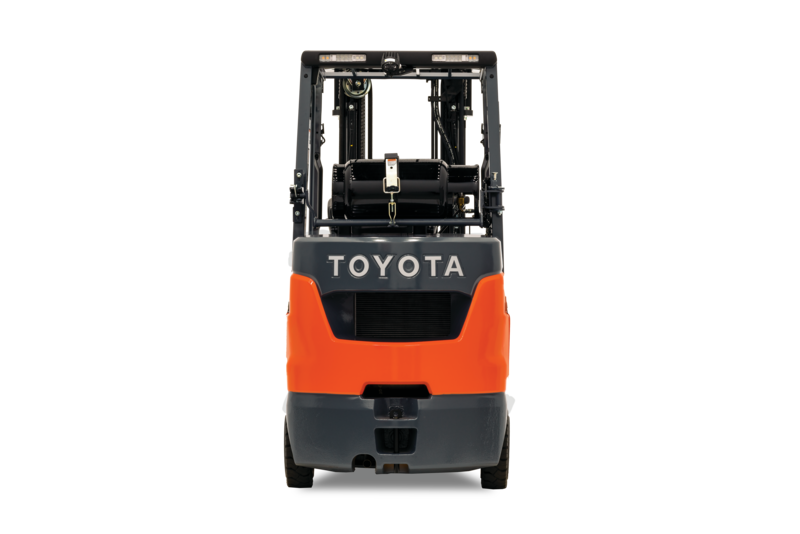

Toyota Core IC Cushion Forklift Studio 4

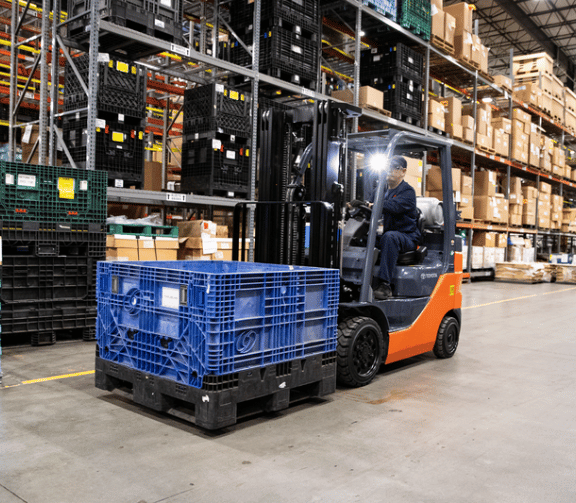

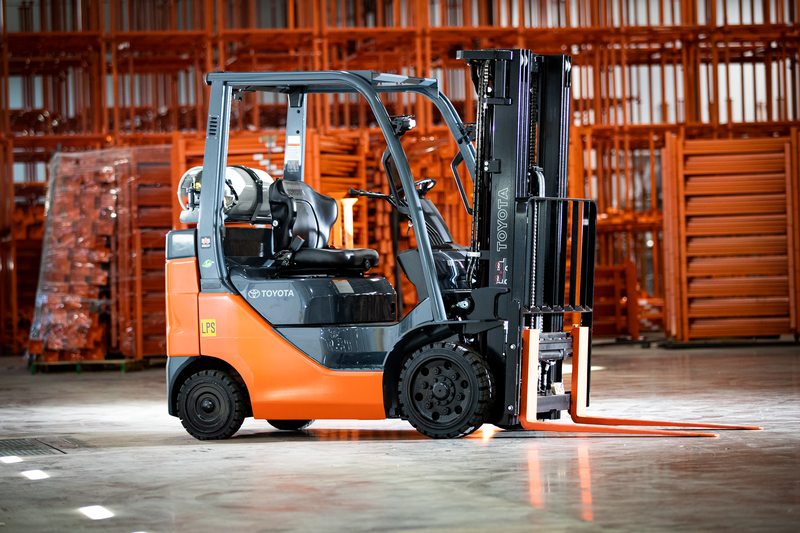

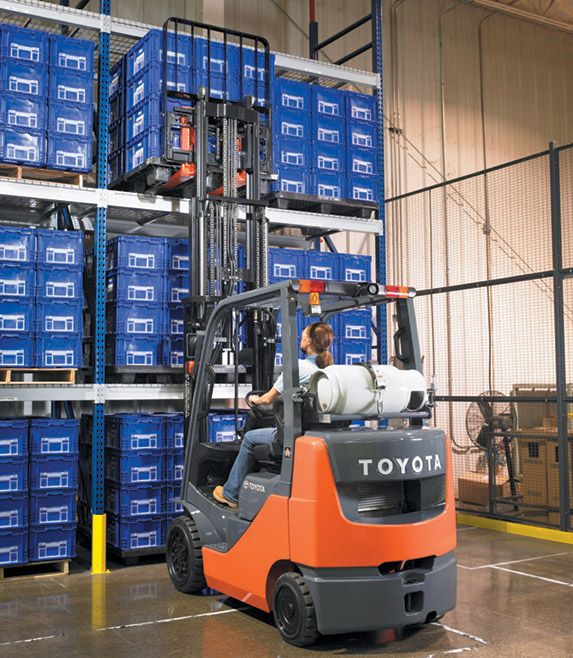

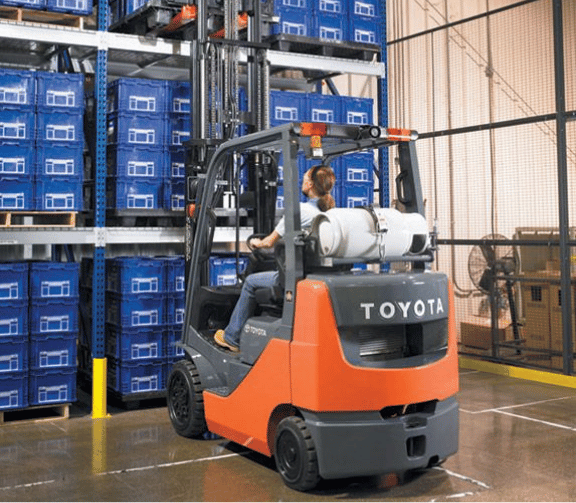

Toyota Core IC Cushion Forklift Application 1

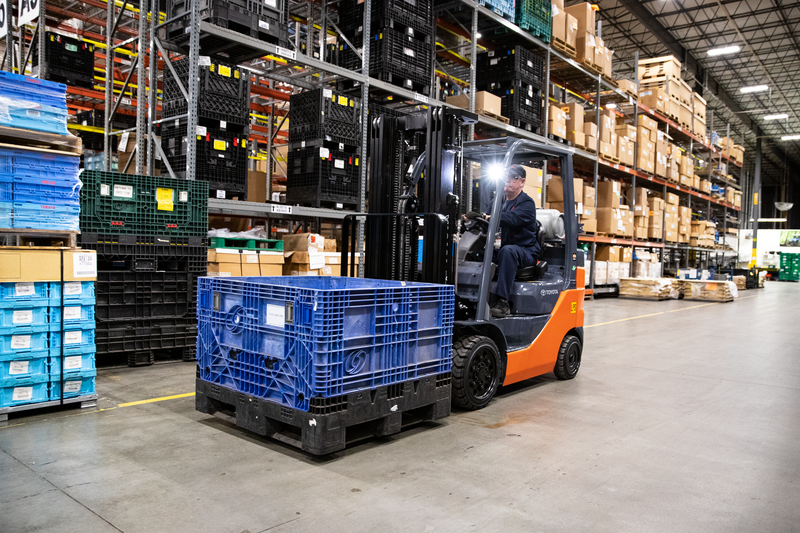

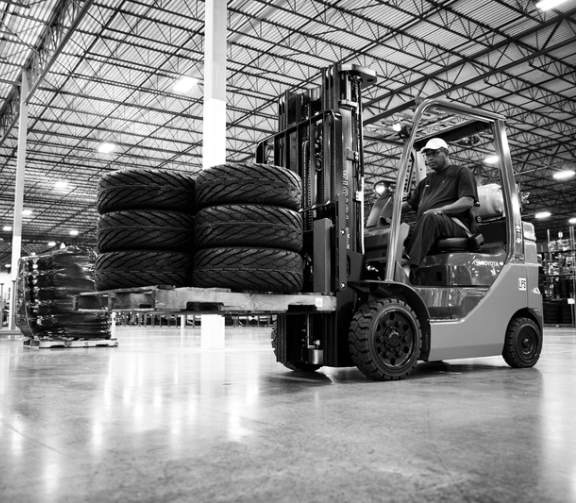

Toyota Core IC Cushion Forklift Application 2

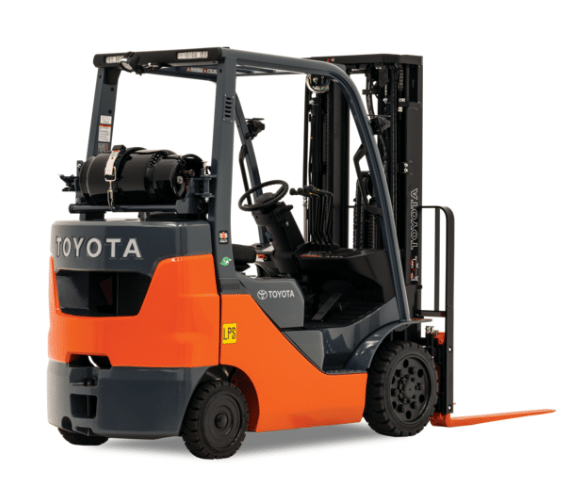

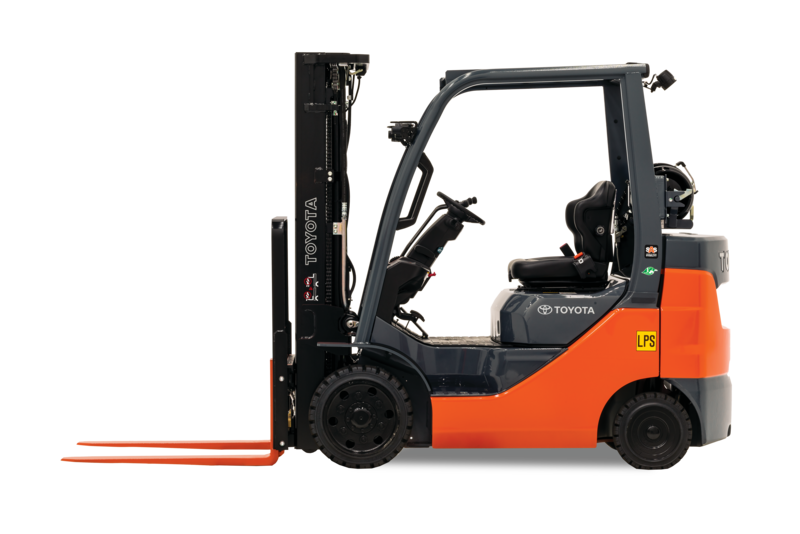

Toyota Core IC Cushion Forklift

3,000 – 6,500 lb. Capacity
System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
No. 1-Selling IC Cushion Forklift

Documents

Product Documents

Product Videos

Product Options

Competitive Analysis

Financing Information

Forklift Information

Product Description

Built for warehousing, distribution, manufacturing, and retail. The Toyota Core IC Cushion Forklift is equally at home in any of them, and nimble enough to navigate aisles as narrow as 12 feet. A compact chassis teamed up with a tight turning radius maximizes maneuverability throughout the warehouse.

Forward, up, back. Any way you look, you’ll appreciate the clear, open sight lines of the Core IC Cushion. The LPG tank bracket keeps a low profile, too. Visibility plays a leading role in performance and safety, and the Core IC Cushion delivers it like a star.

Equipment Details

Forklift Type	Internal Combustion – Cushion Tire
Brand	Toyota
Capacity	3,500 lbs., 3,000 lbs., 4,000 lbs., 5,000 lbs., 6,500 lbs., 6,000 lbs.
Condition	New
Fuel Type	LPG

Rear assist grip with horn option makes reverse travel more comfortable and keeps operator’s hands safely within compartment
Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
Fully sealed air intake mounted up high to limit low-lying dust and debris entering engine
Engine protection system automatically reduces output if coolant temperature rises to potentially damaging levels
Independent brake and inching control pedals for excellent stopping power and precise positioning
Welded, roll-formed overhead guard pillars provide maximum operator protection with improved entry/exit and load visibility
System of Active Stability™ (SAS) acts automatically in uncertain situations to protect operator, and reduce product and forklift damage

Dash-mounted instrument display
11.8”-diameter two-spoke steering wheel
Heavy-duty non-slip rubber floor mat
12”-long dual operator assist grips
Load-sensing hydrostatic power steering
Cowl-mounted hydraulic control levers
Low, wide entry steps
Low-profile front cowl
Non-cinching seatbelt
Dash-integrated amenity tray & oversized cup holder
Vinyl 4-way adjustable full-suspension seat
Slim profile, tilt steering column

EPA/CARB-certified engine
Toyota 136 cu. In., 4-cylinder, OHV gasoline engine (4Y-ECS)
Electronic fuel injection (gasoline only)
UL “G” gasoline engine
One-way automatic fork leveling
Independent brake & inching pedal
Limited free-lift 2-stage mast (V)
Integrated monitoring system – includes:

-Digital hour meter display
-Engine coolant temperature gauge
-Fuel gauge (gasoline only)
-Check engine light
-Engine oil pressure warning light
-Better charge warning light
-OPSS activation light
-SAS/OPSS warning light

Adjustable headlights with guards
Foot-activated parking brake
Alternator with built-in regulator
Transistorized ignition assembly
Automatic transmission with oil cooler
Hydraulic valve lifters
Integrated headlight & turn signal lever
Electric shift control

Easy-access no tools required floorboard
Engine hood assist damper with lock device
Air cleaner discharge valve
Externally mounted hydraulic oil return filter
Dash-mounted brake fluid level check
Easy-lift engine hood with wide 75° opening

System of Active Stability ™ (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Electric horn
Neutral start safety switch
Asbestos-free components

Control Area Network (CAN-bus) communication
Fully stamped steel side panels
Moisture-resistant electric connectors
High cooling capacity radiator with fan shroud
Low-maintenance battery
Large capacity engine-cooling fan
7” cyclone air cleaner with high positioned external air intake
Plate-iron front fenders
Anti-restart ignition key switch
Stamped steel engine hood
Fully sealed air intake system
Self-adjusting brakes
