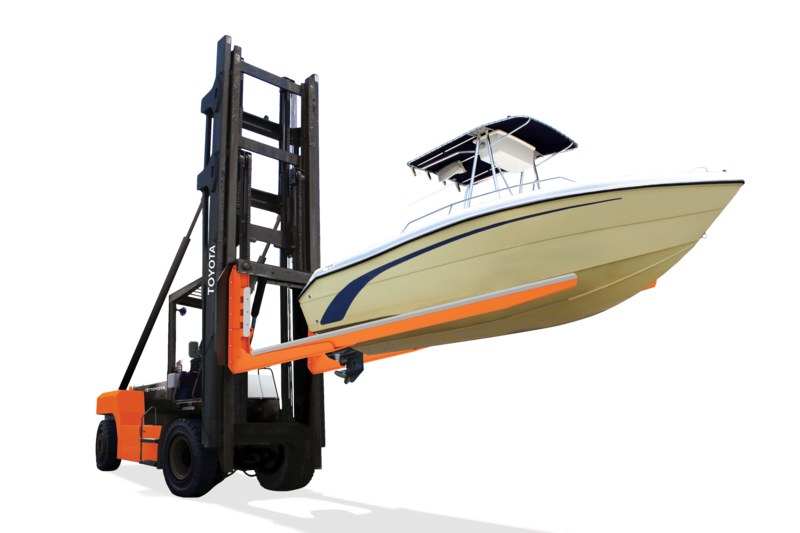

Toyota High-Capacity Marin Forklift Product Photo with Boat

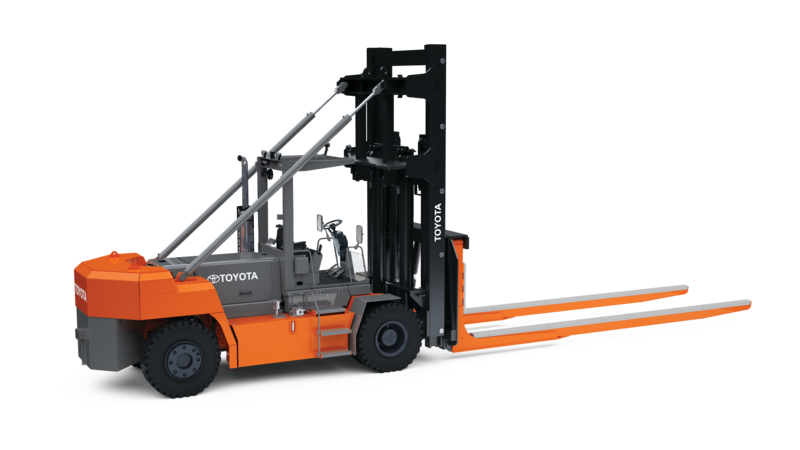

High Capacity Marina Forklift_Studio_3 crop

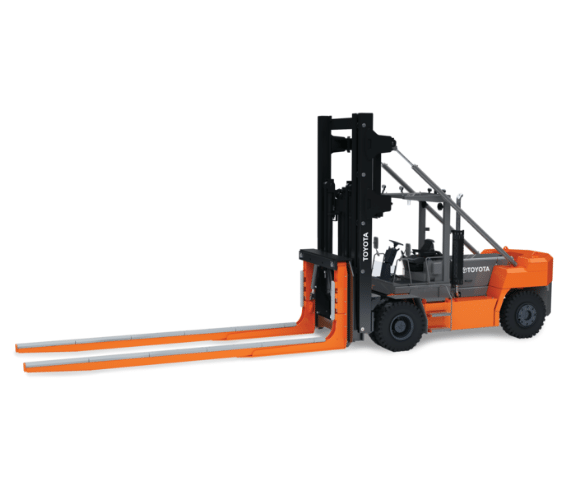

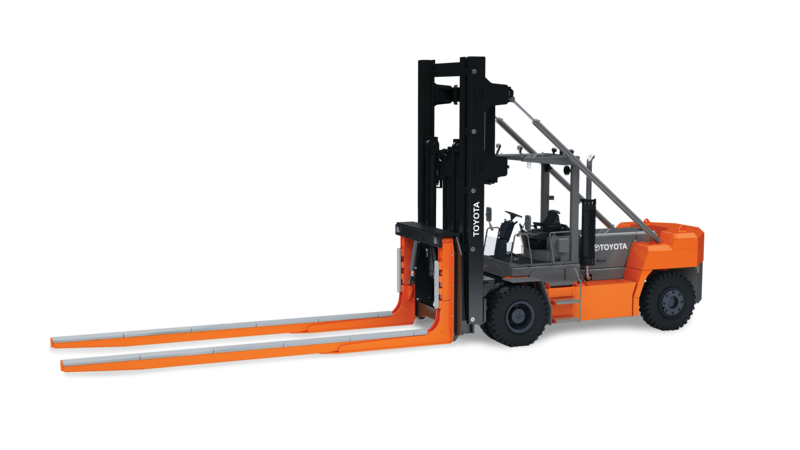

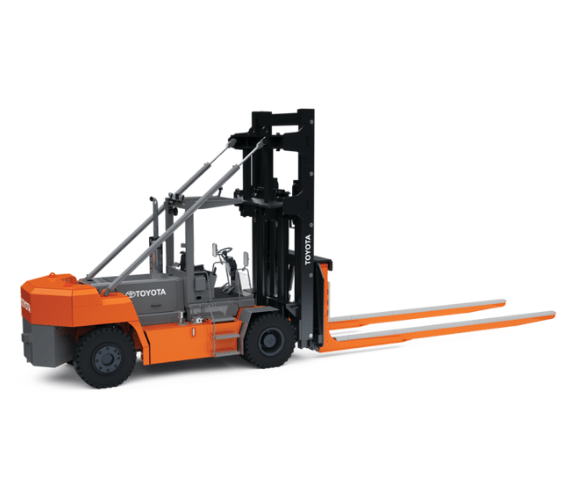

Toyota High-Capacity Marina Forklift

15,000 – 55,000 lb. Capacity
CUMMINS 6.7L Diesel Engine (Tier 4 Final)
3-Speed Powershift Transmission
Operator Presence Sensing System (OPPS)
Swing-Style Fork Carriage
7″ Touch Screen Multi-Function Display

Documents

Product Documents

Toyota High-Capacity Marina Brochure & Spec Sheet

Product Videos

The Toyota Forklift Story

Financing Information

Product Description

The Toyota High-Capacity line is synonymous with strength and durability, and the High-Capacity Marina Forklift is no exception. We know you’re handling precious cargo. That’s why this forklift comes standard with what you’ll need to ensure superior performance and reliability.

Ready to take on the toughest challenges at your boatyard or marina, the Toyota High-Capacity Marina Forklift boasts a 100% welded steel chassis with steel cross supports. And our AxleTech planetary drive axle with force-cooled wet disc brakes is designed for maximum durability in high-capacity applications. Even the paint is tough. A three-step paint process provides maximum corrosion protection perfectly suited for wet marina applications.

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Capacity	15,000 lbs., 18,000 lbs., 20,000 lbs., 22,000 lbs., 24,000 lbs., 25,000 lbs., 27,000 lbs., 30,000 lbs., 35,000 lbs., 42,000 lbs., 44,000 lbs., 52,000 lbs., 55,000 lbs.
Condition	New
Fuel Type	Diesel

Cummins, 6.7L, 6 cylinder diesel engine powers the heaviest applications while meeting increasingly tough emission standards.
Axletech heavy-duty front axle for maximum durability in high-capacity applications.
Specially designed mast negative lift to pull boats out of a lower marina slip.
Electronic joystick controls are highly intuitive and ergonomically designed to increase comfort and productivity.
Swing-style fork carriage dependent and independent fork control for precise load handling.

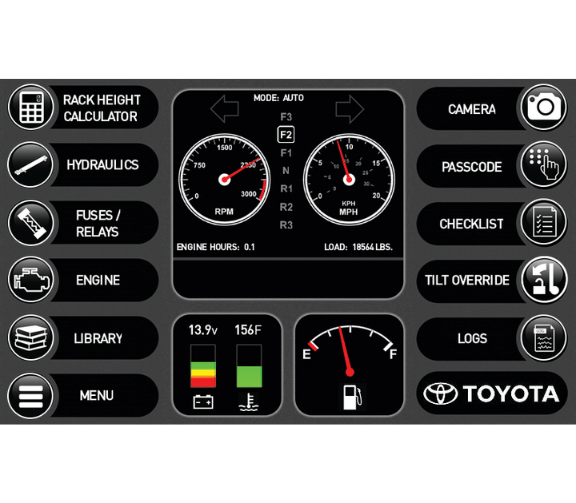

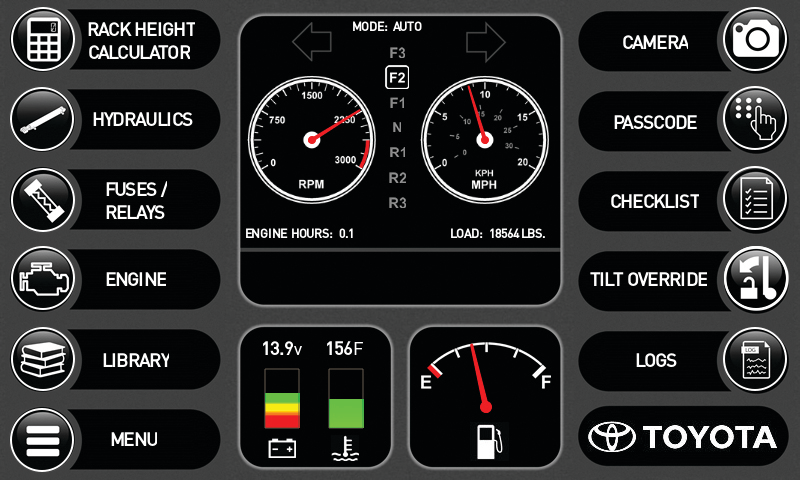

MD4 7-inch touch screen display for customizable performance, advanced diagnostics, and pertinent forklift information right at your fingertips.

Electronic joystick controls
Air-ride seat
Low-profile counterweight
Tilt steering column
Left hand shift lever on steering column
Two-stage, wide-view mast
Low-height, non-skid steps with operator handrails
Splash guard in front of operator platform
Rear collision sensor w/ visual and audible warning
Overhead mounted tilt cylinders
Lift circuit accumulator
LED headlights
Rear LED work lights
Rear LED combo lights

Cummins Tier 4 Final 6.7L Diesel Engine
Dana 32000 powershift transmission

– 3FWD/3REV gears
– Dedicated cooling system
– 12 plate modulation

Declutch control pedal
Swing-style fork carriage (independent and dependent)
Interactive CANBUS vehicle management system
7” touch-screen multi-function display

– Fuel gauge
– Hour meter
– Tachometer
– Water temperature gauge
– Estimated rack height calculator
– Engine oil pressure
– Parking brake indicator
– Estimated load weight indicator
– Service and operator manuals
– Pre-operation checklist (upon request)1
– Fuse/relay diagnostics

Electronic engine diagnostics with fault code history
Bolted open core radiator with high-capacity cooling system
External sump tank provides additional cooling
100 amp alternator with built-in regulator

Lubricated, sealed, and greasable main rollers on each side of the mast
O-ring face seal fittings on entire system to prevent oil leaks
Tilt-lock valve with counterbalance to prevent mast drift
Large, bolt-on fuel and hydraulic tank
Easy-access filters
Low chassis side plates provide easy drive train access
Hydraulic multi-gauge
Integrated lift points
Wet disc brakes serviceable through wheel ends
Easy-access lubrication points

Electrical horn
Asbestos free components
Spring-applied/hydraulic release parking brake
Operator Restraint System seat
Operator Presence Sensing System (OPSS)

Axletech heavy-duty planetary drive axle rated for durability in high-capacity applications
Force-cooled wet disc brakes
Galvanized forks and carriage for ultimate corrosion protection
Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
Rubber fork covering system
Algae filtration system
Carriage wear blocks
Heavy-duty, isolated drive line mounts
Two easily accessible 12V industrial batteries
Anti-restart ignition switch
Welded steel chassis with heavy-duty cross supports
Dual action bolt-on cylinder protected by heavy steel support beams
High-impact composite trunions
Sealed, tapered roller bearings
Forged steer knuckle
Oversized steer linkage
Stainless steel hydraulic bulkhead fittings (carriage and mast)
Stainless steel, corrosion resistant rods, ends, and pins on swing cylinders
Lubricated mast rollers
Long life, corrosion resistant wear pads
Rubber fork covering system
